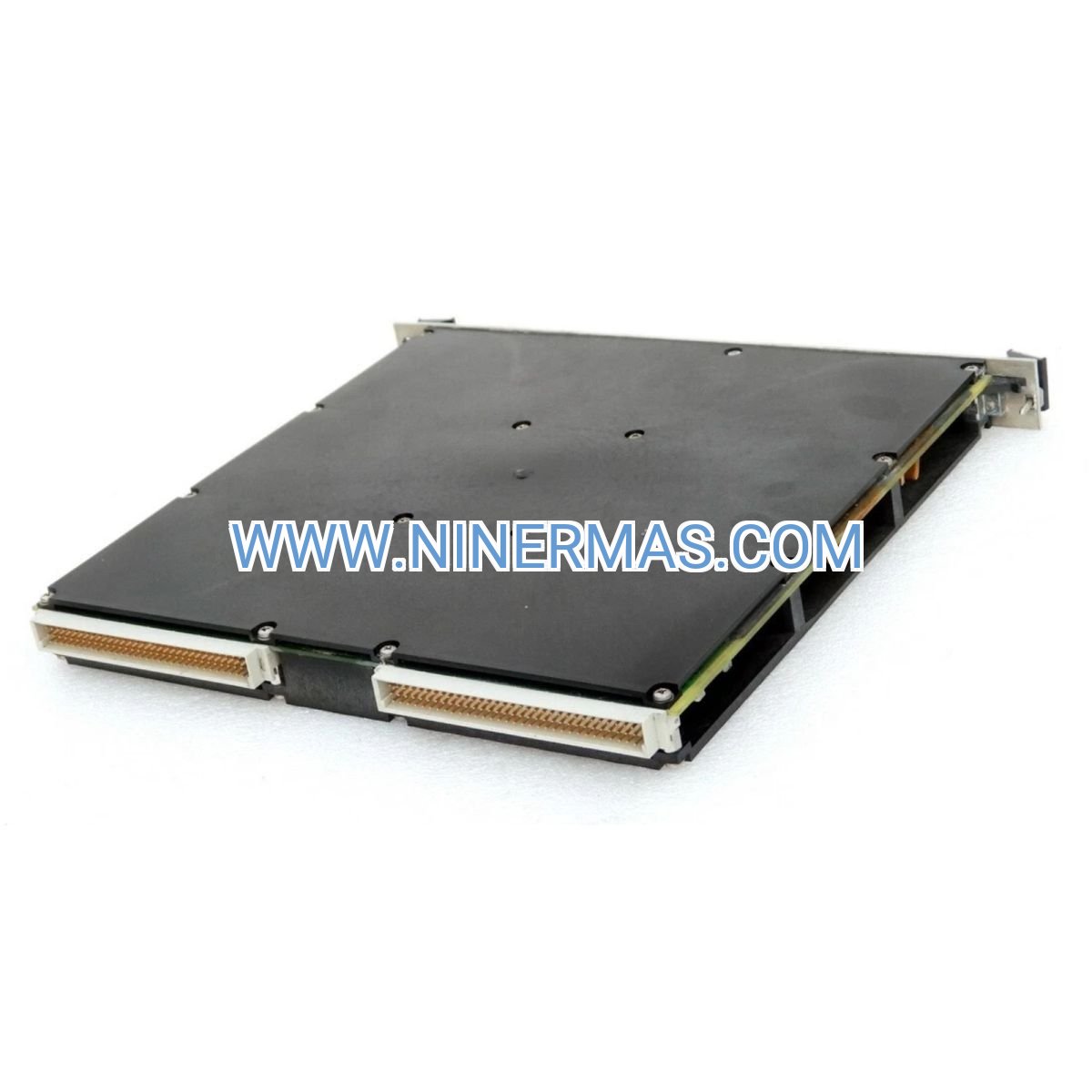

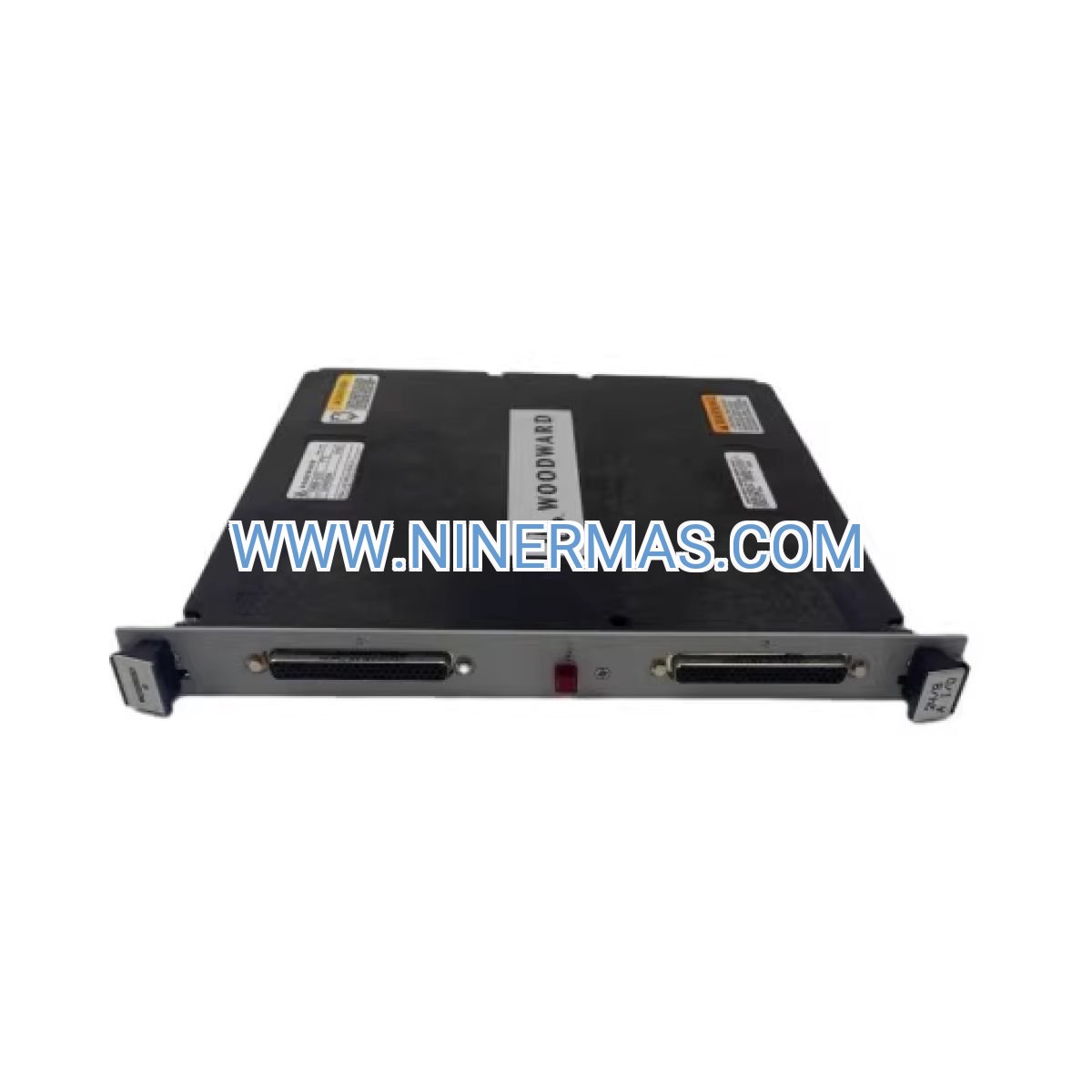

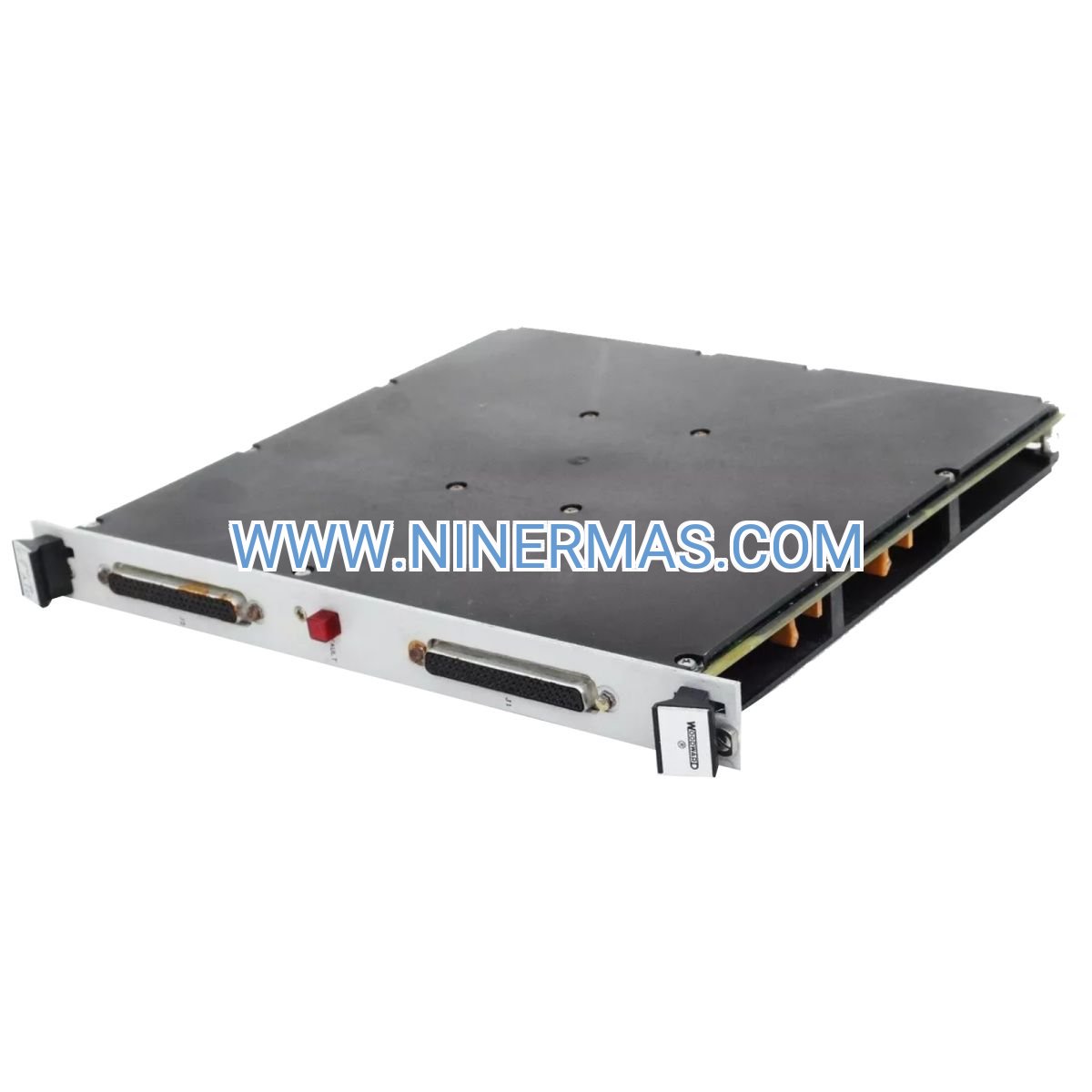

5466-328 TMR Analog Input Module – Industrial-Grade Fault-Tolerant Signal Processing

The Woodward 5466-328 represents a critical component in mission-critical control architectures where process continuity cannot be compromised. This triple-modular redundant analog input module transforms raw sensor data from turbines, compressors, and rotating machinery into actionable control signals while maintaining operational integrity through advanced fault detection and automatic failover mechanisms.

Engineered for power generation, oil & gas processing, and marine propulsion environments, the 5466-328 addresses the fundamental challenge of single-point failure in analog signal acquisition. By processing each input through three independent channels and employing majority-voting logic, the module delivers uninterrupted operation even when individual components experience degradation or failure.

Integration with Woodward MicroNet platforms enables centralized monitoring, predictive maintenance alerts, and seamless coordination with governor systems, load-sharing controllers, and protection modules. The result: reduced unplanned downtime, extended equipment lifespan, and compliance with stringent safety standards in regulated industries.

Core Capabilities & Technical Advantages

→ Triple-Channel Redundancy Architecture
Three parallel processing paths continuously compare input signals and automatically isolate faulty channels without operator intervention, ensuring 99.99% uptime in critical applications.

→ Multi-Signal Compatibility
Natively supports 4-20mA current loops, 0-10V voltage signals, thermocouple temperature sensors, and RTD resistance inputs—eliminating the need for external signal conditioners in most installations.

→ Extended Environmental Tolerance
Operates reliably across -40°C to +70°C temperature ranges with built-in protection against electrical noise, vibration, and electromagnetic interference common in industrial settings.

✓ Real-Time Diagnostic Monitoring
Continuous self-testing identifies signal drift, wiring faults, and sensor degradation before they impact process control, with detailed fault codes transmitted via MicroNet protocol.

✓ Hot-Swappable Design
DIN-rail mounting and plug-in terminal blocks enable module replacement during operation without system shutdown, reducing maintenance windows by up to 75%.

✓ High-Resolution Signal Conversion
16-bit analog-to-digital conversion delivers precision measurement for applications requiring tight control tolerances, such as steam temperature regulation and fuel flow optimization.

Industry-Specific Application Scenarios

Gas Turbine Power Plants
Monitors exhaust temperature, fuel pressure, and vibration sensors across multiple turbine stages. TMR architecture prevents false trips that could cost $50,000+ per hour in lost generation capacity.

Offshore Oil & Gas Platforms
Acquires pressure, flow, and temperature data from subsea equipment where maintenance access is limited to quarterly intervals. Redundancy ensures continuous production monitoring despite harsh marine conditions.

Industrial Compressor Stations
Tracks suction/discharge pressures, bearing temperatures, and anti-surge valve positions in natural gas pipeline applications. Failover capability maintains compressor protection even during component failures.

Marine Propulsion Systems
Processes engine speed, fuel rack position, and coolant temperature signals for diesel-electric vessels. Meets classification society requirements for redundant control in DP-2/DP-3 dynamic positioning systems.

Combined Heat & Power (CHP) Facilities
Integrates with steam turbine governors and heat recovery systems, enabling precise load following while maintaining thermal efficiency above 85% across varying demand profiles.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5466-328 when your application requires SIL-rated safety integrity, operates in hazardous area classifications (Zone 2/Div 2), or demands continuous operation exceeding 8,760 hours annually. For non-critical monitoring applications with acceptable downtime windows, consider standard single-channel I/O alternatives.

Advanced Integration & Customization Options

MicroNet Network Connectivity
Seamless integration with Woodward 505E governors, 2301D load-sharing controllers, and 9907 network modules enables distributed control architectures with centralized HMI visualization.

SCADA/DCS Interface Capability
Modbus TCP/IP gateways available for integration with Siemens PCS7, Emerson DeltaV, Honeywell Experion, and other enterprise control platforms via OPC UA or Modbus protocols.

Custom Signal Conditioning
Factory-configurable input scaling, linearization tables, and filtering parameters tailored to specific sensor types—reducing commissioning time by 40% compared to field programming.

Cybersecurity Hardening
Optional firmware configurations supporting IEC 62443 industrial cybersecurity standards, including encrypted communications and role-based access control for critical infrastructure applications.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured custom orders
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and retrofit planning
Documentation Package: Includes installation manual, wiring diagrams, MicroNet configuration files, and calibration certificates

Expedited shipping available for emergency replacements—contact our team for same-day dispatch options.

Frequently Asked Questions

How does TMR redundancy differ from dual-redundant systems?
Triple-modular redundancy uses three independent channels with majority voting, allowing the system to identify and isolate a faulty channel while maintaining full accuracy. Dual-redundant systems can detect failures but cannot determine which channel is correct without external validation.

Can the 5466-328 interface with non-Woodward control systems?
While optimized for MicroNet networks, the module can integrate with third-party PLCs and DCS platforms through Modbus gateways or hardwired 4-20mA outputs from companion modules. Consult our integration team for protocol conversion requirements.

What maintenance intervals are recommended for TMR modules?
The 5466-328 requires no scheduled maintenance beyond annual visual inspections and terminal tightness checks. Continuous self-diagnostics eliminate the need for periodic calibration in most applications—reducing lifecycle costs by 60% versus traditional I/O systems.

Is the module suitable for hazardous area installations?
The standard 5466-328 is rated for Zone 2 / Division 2 locations. For Zone 1 / Division 1 applications, intrinsically safe barrier modules are required between field sensors and the I/O module. Consult local electrical codes for specific installation requirements.

How quickly can a failed module be replaced during operation?
With proper system configuration, hot-swapping a 5466-328 module takes approximately 5-8 minutes without process interruption. The replacement module auto-synchronizes with the MicroNet network and inherits configuration parameters from the system controller.

What training is required for commissioning and troubleshooting?
Basic electrical knowledge and familiarity with industrial control systems are sufficient for installation. Woodward offers online training modules and on-site commissioning support for complex multi-module configurations. Diagnostic LEDs and network-accessible fault logs simplify troubleshooting without specialized tools.
