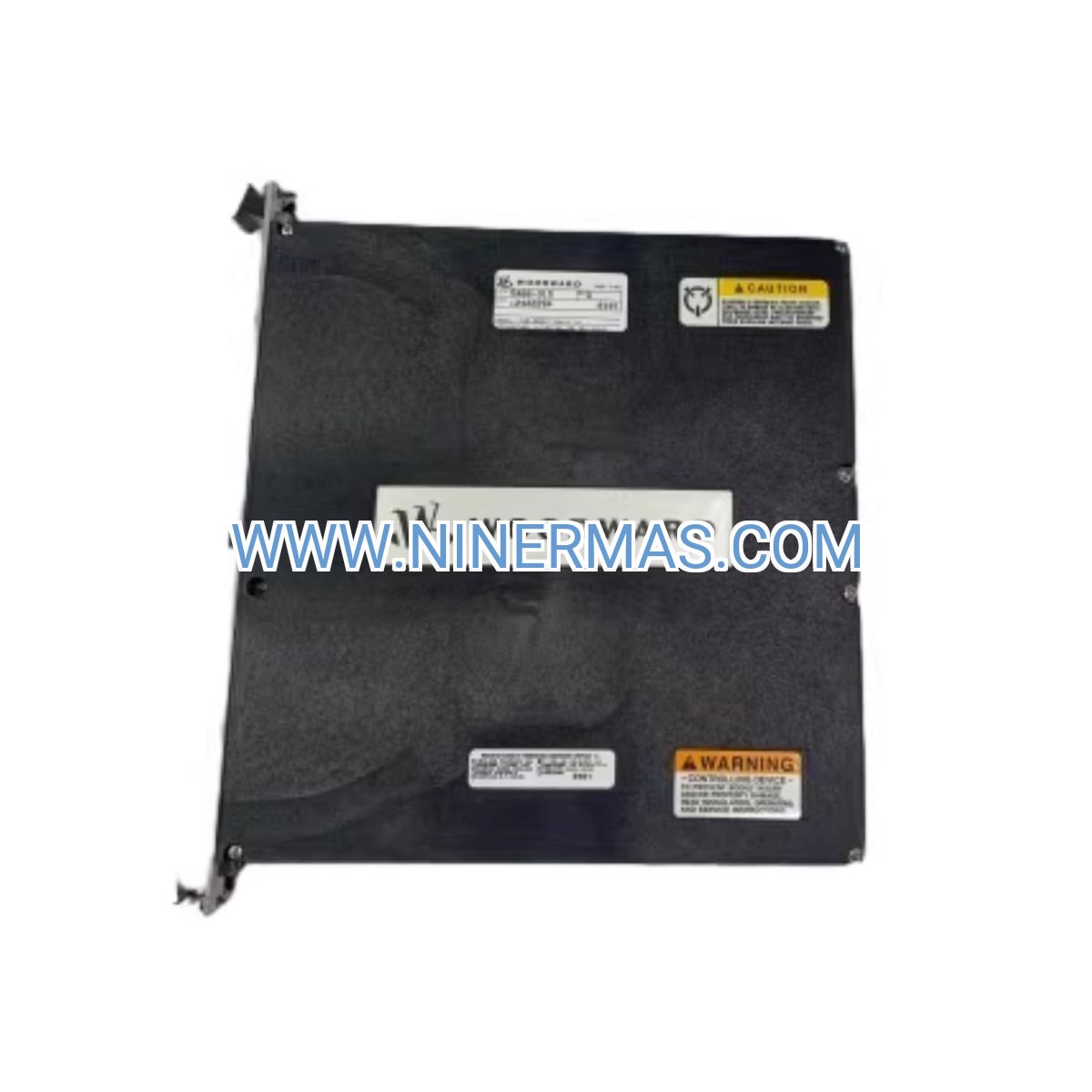

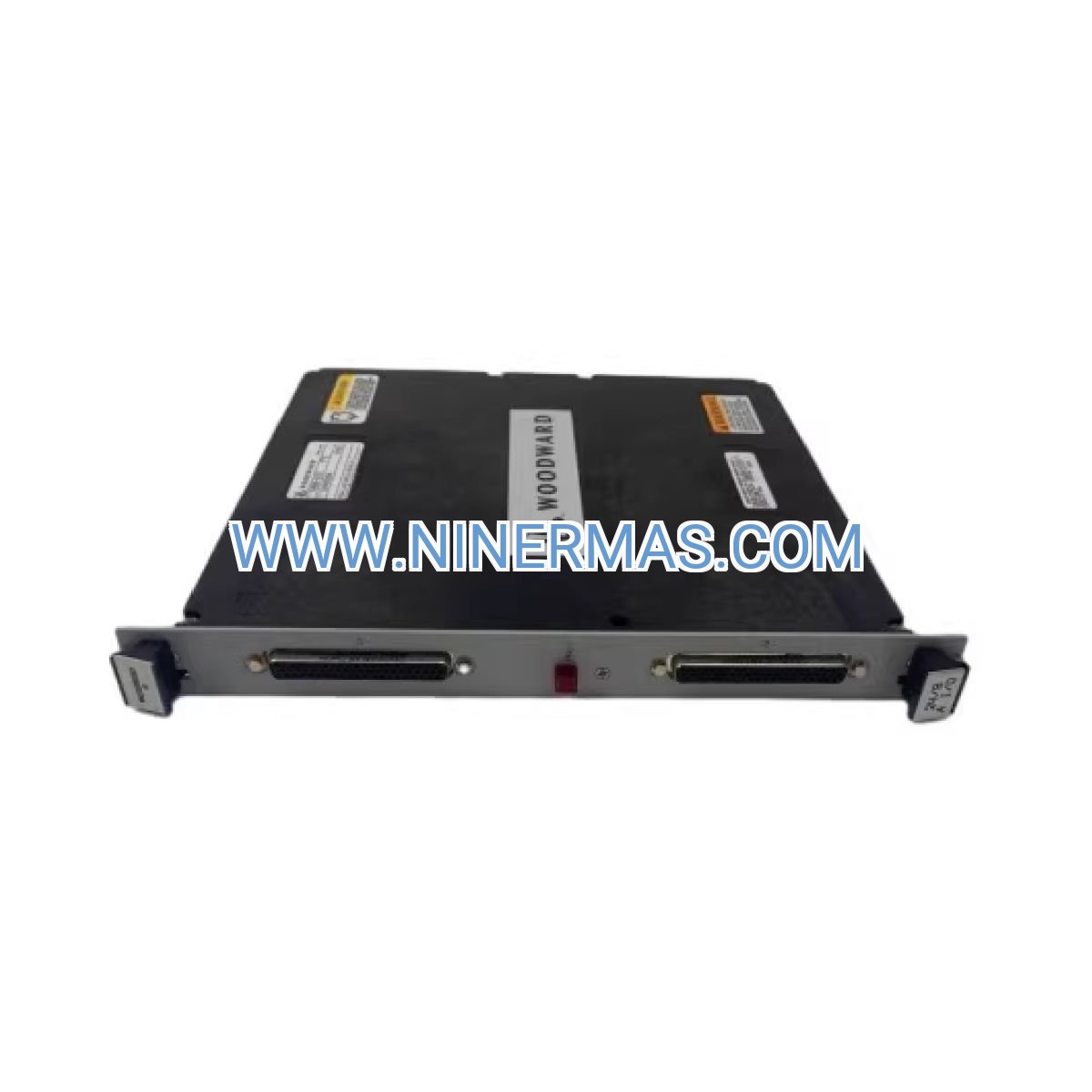

Woodward 5466-315 TMR Analog Combo I/O Module (Industrial-Grade Redundant Control)

The 5466-315 represents Woodward's advanced approach to fault-tolerant analog signal management in critical control environments. This Triple Modular Redundant (TMR) combo module integrates multi-channel analog inputs and outputs into a single, space-efficient package designed specifically for MicroNet control platforms. Built to withstand the demanding conditions of turbine control, power generation, and heavy industrial automation, it delivers continuous operation even when individual channels experience faults.

Engineered for industries where downtime translates to significant revenue loss—such as power plants, petrochemical facilities, and offshore platforms—the 5466-315 addresses the critical challenge of maintaining process integrity during component failures. Target users include control system integrators, plant maintenance engineers, and automation specialists managing safety-critical applications that require SIL-rated redundancy.

What sets this module apart is its intelligent voting logic that automatically isolates faulty channels while maintaining full operational capability, combined with hot-swappable architecture that enables maintenance without process shutdown. The result: maximized uptime, reduced maintenance windows, and simplified compliance with safety standards like IEC 61508.

Core Features & Benefits

• ✓ Triple Modular Redundancy Architecture: Three parallel processing channels with majority voting eliminate single-point failures, delivering 99.9%+ availability in mission-critical applications where conventional I/O would create unacceptable risk.
• ✓ High-Density Combo Configuration: Consolidates 16+ analog input channels and 8+ output channels in one module, reducing cabinet space by 40% compared to separate I/O cards while cutting wiring labor costs by an estimated 30%.
• ✓ 16-Bit Signal Resolution: Precision ADC/DAC conversion captures minute process variations (±0.01% accuracy), enabling tighter control loops for valve positioning, temperature regulation, and pressure management in turbine applications.
• → Universal Signal Compatibility: Accepts thermocouples (J/K/T types), RTDs (Pt100/Pt1000), 4-20mA current loops, and ±10V voltage signals without external conditioning, simplifying sensor integration across diverse measurement points.
• → Extended Temperature Rating: Operates reliably from -40°C to +70°C, making it suitable for unheated enclosures in arctic installations or high-ambient environments near turbine exhaust systems.
• → Built-In Diagnostics & Self-Test: Continuous channel health monitoring with LED status indicators accelerates fault identification, reducing mean time to repair (MTTR) by up to 50% versus modules requiring external diagnostic tools.

Typical Application Scenarios

1. Gas Turbine Control Systems: In combined-cycle power plants, the 5466-315 monitors exhaust temperature spreads across 16 thermocouples while controlling fuel valve positioning via analog outputs. The TMR design prevents false trips that could cost $50,000+ per hour in lost generation capacity.

2. Steam Turbine Governor Systems: Processes critical speed, vibration, and bearing temperature signals with redundant voting to ensure safe operation during grid disturbances. Automatic fault masking allows technicians to replace defective channels during scheduled outages rather than forcing emergency shutdowns.

3. Offshore Platform Compression: Handles pressure transmitter inputs and actuator control for gas compression trains in corrosive marine environments. The module's conformal coating and wide temperature range address the dual challenges of salt spray exposure and equipment enclosure heat buildup.

4. Industrial Cogeneration Facilities: Coordinates boiler feedwater control, steam pressure regulation, and emissions monitoring across multiple process loops. High channel density reduces panel footprint in space-constrained retrofit installations.

5. Hydroelectric Wicket Gate Control: Provides precise analog positioning feedback for turbine guide vanes, with TMR redundancy ensuring continuous operation even during sensor calibration or replacement activities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5466-315 when your application requires both analog input diversity (multiple sensor types) and output control in a redundant architecture. For input-only applications with >16 channels, consider the 5466-316 high-density input module. If your system uses simplex (non-redundant) control, the standard MicroNet analog modules offer lower cost. Verify that your MicroNet CPU supports TMR operation—CPU5200 or later required.

Extended Functions

IoT Integration Capability: The module's data streams integrate with Woodward's Compass software for cloud-based analytics, enabling predictive maintenance algorithms to identify sensor drift or channel degradation weeks before failure. OPC UA connectivity allows seamless data exchange with plant-wide SCADA and historian systems.

Advanced Calibration Features: Software-selectable input ranges and programmable scaling eliminate the need for external signal conditioners. Built-in cold junction compensation for thermocouples and automatic lead resistance compensation for RTDs ensure measurement accuracy without manual adjustments.

Customization Options: Factory configuration services available for pre-programmed channel assignments, custom input filtering (50Hz/60Hz rejection), and application-specific firmware. Contact our engineering team for projects requiring specialized signal conditioning or non-standard sensor interfaces.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our regional distribution centers. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for critical outage support—contact us for same-day shipping options.

Warranty Coverage: Comprehensive 12-month warranty covers all manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during RMA processing.

Technical Support: Our application engineers provide configuration assistance, troubleshooting guidance, and integration support via phone, email, and remote desktop sessions. Average response time: <4 hours for critical issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample ladder logic for common applications. Firmware update utilities and calibration certificates available upon request.

Frequently Asked Questions

Q: How does the TMR voting logic handle sensor failures versus module failures?
A: The system distinguishes between input signal faults (sensor issues) and internal processing faults. For sensor failures, the module flags the specific channel while maintaining output based on the two healthy inputs. Internal module faults trigger automatic switchover to redundant processing paths without operator intervention.

Q: What is the maximum cable length for 4-20mA inputs on this module?
A: The module supports cable runs up to 1,000 meters (3,280 feet) for 4-20mA current loop signals, assuming standard 18 AWG shielded cable and proper grounding. Voltage inputs are limited to 100 meters to maintain signal integrity.

Q: Can I hot-swap this module during operation without affecting the control system?
A: Yes, the TMR architecture allows hot-swapping when at least two of the three redundant channels remain operational. The system automatically reintegrates the replacement module and synchronizes its configuration within 30 seconds of insertion.

Q: Does the 5466-315 require special installation procedures for hazardous area applications?
A: The module itself is designed for Zone 2/Division 2 installations when mounted in appropriate enclosures. For Zone 1/Division 1 applications, use intrinsically safe barriers on field wiring or install in purged/pressurized cabinets per NEC Article 500.

Q: How do I verify that all three TMR channels are functioning correctly?
A: The module's front panel features tri-color LEDs for each redundant channel (green=healthy, yellow=degraded, red=failed). Additionally, the MicroNet configuration software displays real-time channel status, voting discrepancies, and diagnostic counters for comprehensive health monitoring.

Q: What energy efficiency improvements does this module offer compared to older I/O systems?
A: The 5466-315 consumes 40% less power than equivalent legacy relay-based I/O systems, reducing heat generation and cooling requirements. Its high channel density also decreases overall cabinet power consumption by minimizing the number of modules and backplane slots required.

Take the Next Step

Ready to enhance your control system reliability with proven TMR technology? Our team is standing by to discuss your specific application requirements, provide detailed technical specifications, and offer competitive pricing for single units or project quantities. Contact us today for a consultation or request a formal quotation—we typically respond within 2 hours during business hours.
