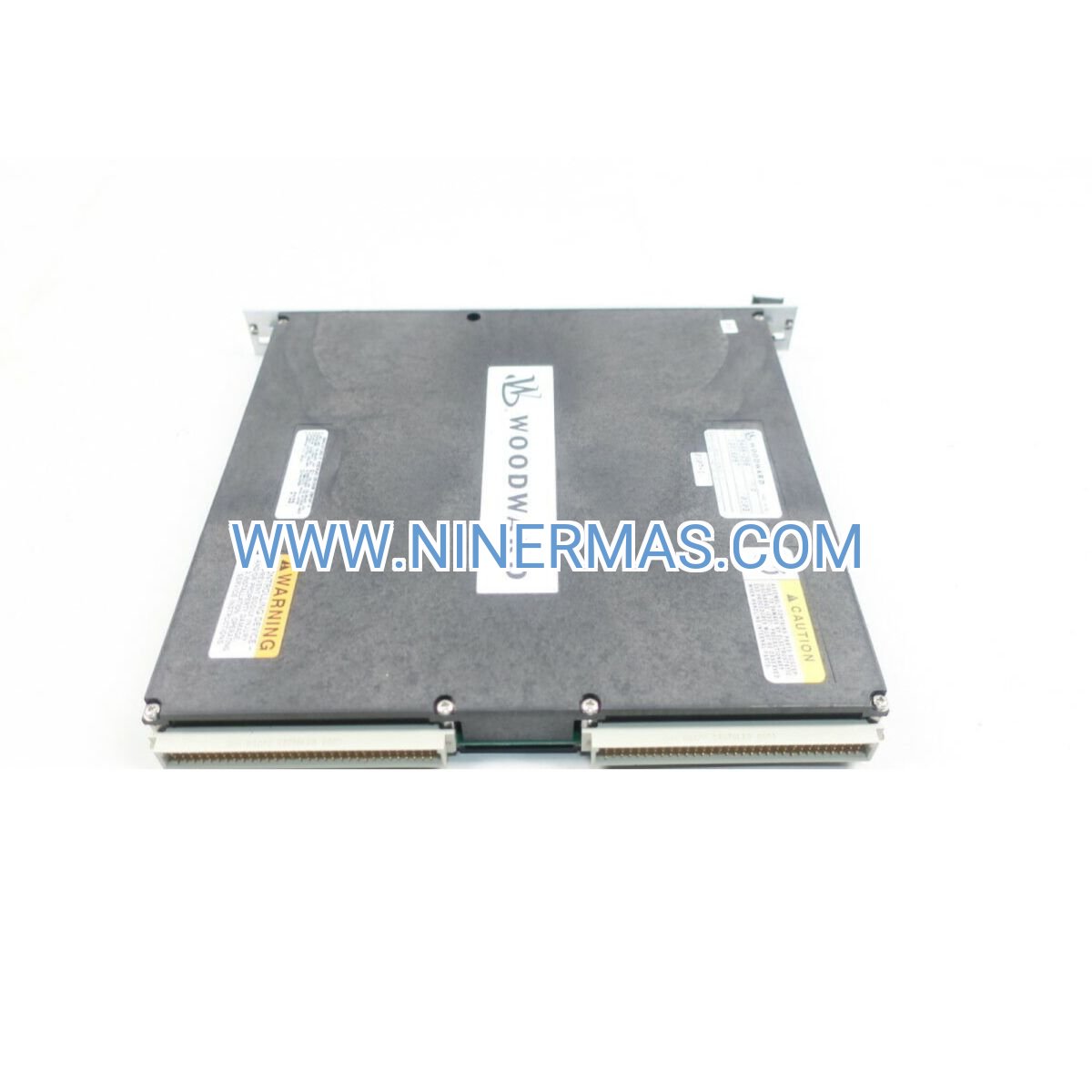

5466-258M MicroNet Simplex CPU (Industrial-Grade Control Processor)

The Woodward 5466-258M delivers single-point control intelligence for turbine governors, compressor management, and generator synchronization systems. Built on the proven MicroNet Simplex architecture, this CPU module combines cost-effective design with industrial-grade reliability for applications where non-redundant processing meets operational requirements.

Designed for power generation, oil & gas, and process industries, the 5466-258M addresses the challenge of balancing performance with budget constraints. Target users include plant engineers upgrading legacy systems, OEMs building cost-optimized control panels, and maintenance teams seeking drop-in replacements for aging controllers.

Key advantages include wide operating temperature range (-40°C to +70°C), seamless integration with MicroNet I/O ecosystem, and compatibility with Woodward ToolKit for rapid commissioning. Whether you're controlling a single gas turbine or managing a reciprocating engine, this module provides deterministic execution and proven field reliability.

Core Features & Benefits

→ Non-Redundant CPU Architecture
Single-processor design reduces hardware costs by 40-60% compared to TMR systems while maintaining industrial-grade performance for applications with acceptable downtime windows.

→ Extended Temperature Operation
Operates reliably from -40°C to +70°C without derating, eliminating the need for climate-controlled enclosures in remote installations and reducing HVAC expenses.

→ MicroNet Ecosystem Compatibility
Direct connectivity to 5466-series I/O modules, communication cards, and power supplies enables modular system expansion without protocol conversion overhead.

→ Deterministic Processing Power
Industrial microprocessor executes control loops with microsecond precision, ensuring stable governor response and preventing turbine overspeed conditions.

→ DIN Rail & Panel Mount Flexibility
Dual mounting options accelerate installation in retrofit projects and new builds, reducing labor costs by 30% compared to custom-bracket solutions.

→ 24 VDC Nominal Power Supply
Standard industrial voltage eliminates need for specialized power conditioning, simplifying integration with existing control cabinets.

Application Scenarios

Gas Turbine Governor Systems
Controls fuel valve positioning and speed regulation in 1-10 MW gas turbines. Solves the challenge of maintaining ±0.25% speed accuracy during load transients while reducing control system costs for distributed generation projects.

Reciprocating Engine Management
Manages ignition timing, air-fuel ratio, and load sharing for natural gas engines in cogeneration plants. Addresses the pain point of coordinating multiple engine parameters without investing in full-redundancy PLCs.

Industrial Compressor Control
Regulates anti-surge valves, capacity control, and sequencing logic for centrifugal compressors in petrochemical facilities. Delivers the value of preventing costly surge events through real-time monitoring and actuation.

Generator Excitation & Synchronization
Controls AVR (Automatic Voltage Regulator) and synchronizer functions for generators up to 5 MVA. Eliminates the complexity of integrating separate excitation and sync-check devices into a unified platform.

Pump & Valve Actuation Networks
Orchestrates multi-pump stations and motorized valve sequences in water treatment and pipeline applications. Provides the benefit of centralized control without the expense of SCADA-level infrastructure for smaller sites.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5466-258M when your application tolerates planned maintenance windows and does not require fault-tolerant operation. For critical processes demanding zero-downtime (refineries, power plants), consider the 5466-1002 TMR CPU with triple-redundant voting. Evaluate I/O count requirements—this CPU supports up to 8-12 I/O modules depending on configuration. Confirm compatibility with existing MicroNet hardware using Woodward's system configurator tool.

Extended Functions

IoT Integration: Add the 5466-411 Ethernet module to enable remote monitoring via Modbus TCP, OPC UA, or proprietary protocols. Stream real-time data to cloud platforms for predictive maintenance analytics and performance benchmarking.

Advanced Control Algorithms: Supports PID loops, cascade control, and custom logic blocks programmed via Woodward ToolKit. Implement advanced strategies like feedforward compensation or model-predictive control for specialized applications.

Customization Options: Factory configuration services available for pre-loaded application code, custom I/O mapping, and tailored communication settings. Reduces commissioning time by 50% for high-volume OEM deployments.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-3 business days via express courier. Custom-configured modules require 2-4 weeks for factory programming and testing. Expedited processing available for emergency replacements.

Warranty Period: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available for up to 36 months with annual health checks.

Technical Support: Access to application engineers for configuration assistance, troubleshooting, and system optimization. Remote diagnostics support via TeamViewer or similar platforms. On-site commissioning services available in major industrial regions.

Documentation Included: Installation manual, wiring diagrams, ToolKit configuration guide, and sample application code. Firmware update files and release notes provided via secure download portal.

Frequently Asked Questions

How does the Simplex CPU connect to existing MicroNet I/O modules?
The 5466-258M uses a high-speed backplane connection when mounted in a MicroNet rack. For distributed installations, connect via shielded communication cables using the proprietary MicroNet protocol. Maximum cable length is 100 meters between CPU and remote I/O racks.

What is the maximum I/O capacity supported by this controller?
Typically supports 8-12 I/O modules depending on module types and scan rates. A standard configuration might include 128 digital I/O points and 64 analog channels. Consult the MicroNet system planning guide for detailed capacity calculations.

Can I achieve energy savings by upgrading to the 5466-258M?
Yes—modern control algorithms enable tighter process control, reducing energy waste by 5-15% in turbine and compressor applications. Faster loop execution (compared to legacy controllers) minimizes overshoot and hunting, directly lowering fuel consumption.

What are the installation requirements for harsh environments?
While the module operates in -40°C to +70°C, protect from direct water spray (minimum IP20 enclosure recommended). For offshore or corrosive atmospheres, use NEMA 4X cabinets with desiccant breathers. Ensure adequate ventilation to prevent internal temperatures exceeding 70°C.

Is remote monitoring and diagnostics possible with this CPU?
Yes, when paired with the 5466-411 Ethernet module or similar communication interface. Enable Modbus TCP or OPC UA protocols to connect to SCADA systems, cloud platforms, or mobile HMI applications for real-time status monitoring and alarm management.

How do I migrate from a legacy Woodward controller to the 5466-258M?
Woodward provides migration kits and application notes for common legacy platforms (e.g., 505E, MicroNet Classic). Typical migration involves I/O mapping verification, logic conversion using ToolKit, and staged cutover testing. Professional services available for complex upgrades.
