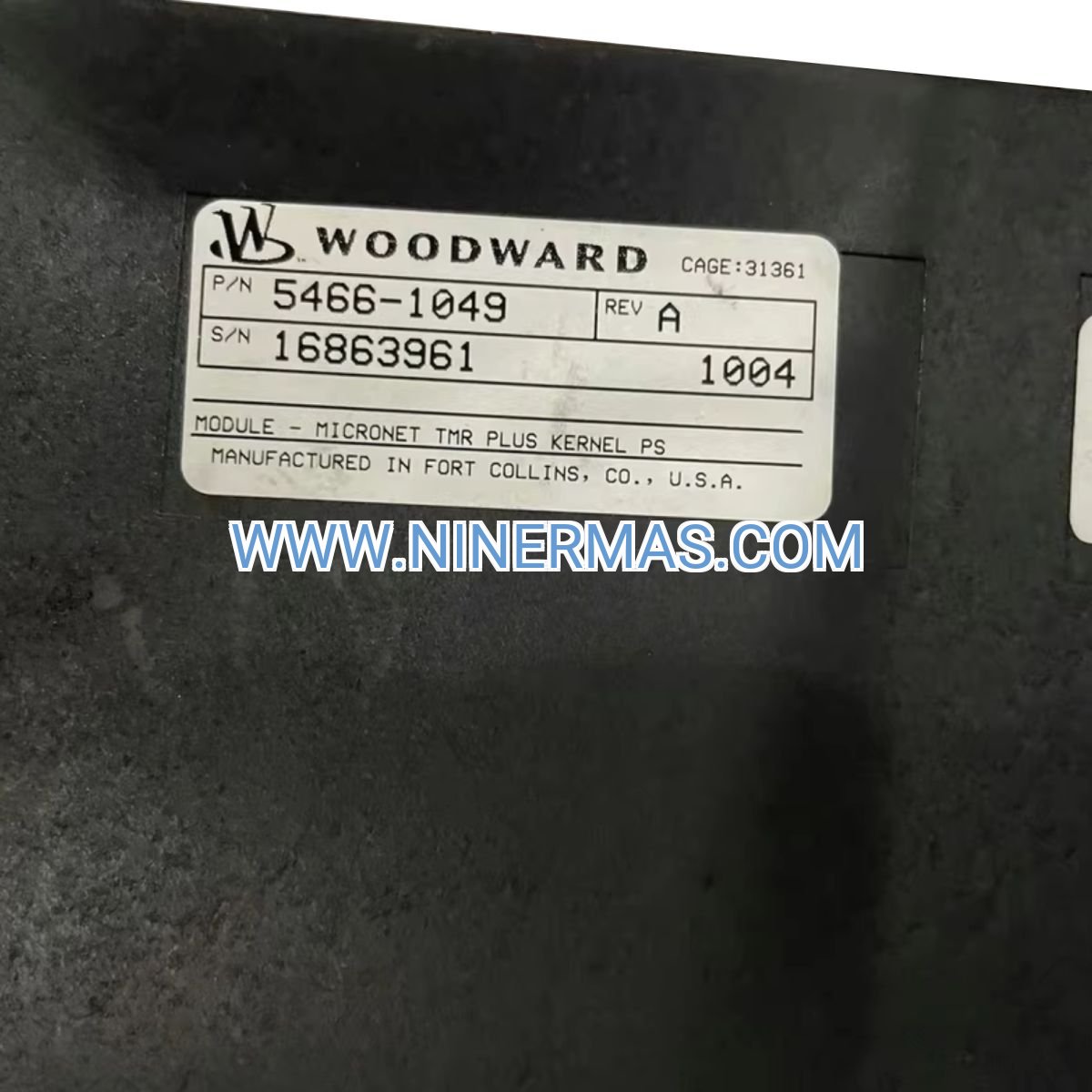

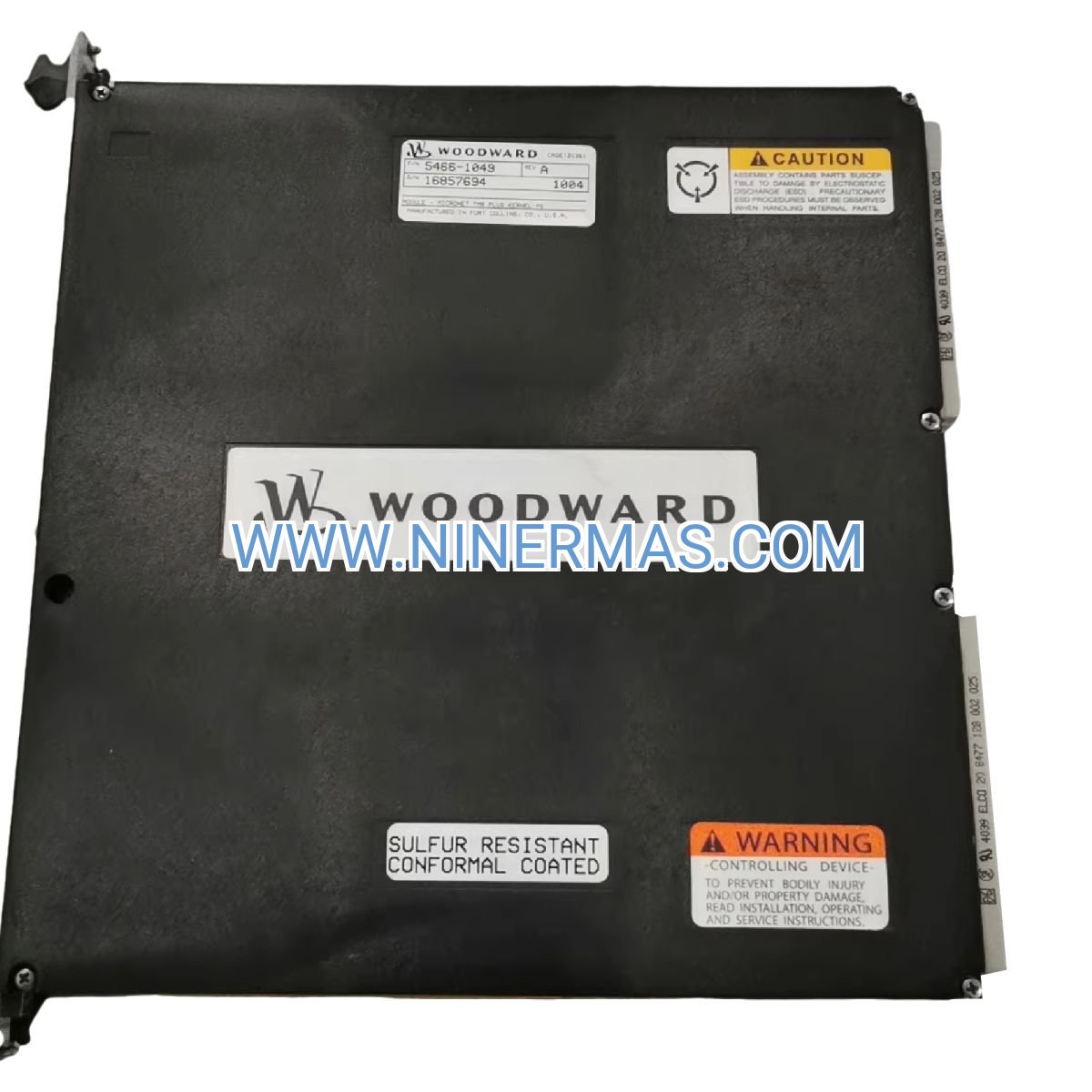

Woodward 5466-1049 TMR CPU5200 Enhanced Module (Industrial-Grade Triple Redundant Processor)

The Woodward 5466-1049 delivers uncompromising reliability for mission-critical turbine control and industrial automation systems through its Triple Modular Redundancy (TMR) architecture. Engineered for applications where a single second of downtime translates to millions in lost revenue or catastrophic safety risks, this enhanced CPU5200 module provides continuous operation even when individual processors fail. Power generation facilities, offshore platforms, and LNG terminals worldwide depend on this proven technology to maintain 99.999% uptime in the harshest industrial environments.

Unlike conventional redundant systems that switch between active and standby processors, the 5466-1049 runs three independent CPUs simultaneously, comparing outputs at every 10-millisecond scan cycle. When one processor deviates—whether from component aging, electromagnetic interference, or soft errors—the voting logic automatically selects the majority result without interrupting control. This self-healing capability eliminates single points of failure while providing diagnostic insights impossible with dual-redundant designs.

The enhanced CPU5200 variant delivers 40% greater processing throughput than standard versions, enabling sophisticated model predictive control algorithms, real-time thermodynamic calculations, and complex sequencing logic within deterministic scan cycles. Combined with expanded memory capacity and hot-swappable design, the 5466-1049 represents the optimal choice for next-generation turbine control systems requiring both computational power and fault tolerance.

Core Capabilities & Business Value

→ Zero-Downtime Fault Tolerance: TMR voting architecture maintains control integrity during processor failures, eliminating unplanned shutdowns that cost $50,000-$500,000 per hour in lost production. Automatic failover occurs within microseconds—faster than any protective relay can respond.

→ Hot-Swappable Maintenance: Replace failed modules during operation without process interruption or control transfer. New modules auto-synchronize within 15 seconds, downloading current programs and resuming voting participation. This capability extends maintenance windows from quarterly to annual intervals.

→ Enhanced Processing Performance: 40% faster execution enables advanced control strategies including adaptive PID tuning, multi-variable optimization, and predictive analytics. Process 2,048 I/O points with complex math operations while maintaining 10ms deterministic scan rates.

✓ Predictive Diagnostics: Continuous self-testing identifies degrading components before failure occurs. Fault logs capture transient events indicating developing problems, enabling condition-based maintenance that reduces spare parts inventory by 30%.

✓ Cybersecurity Hardening: Encrypted communication channels, role-based access control, and comprehensive audit logging meet NERC CIP and IEC 62443 compliance requirements for critical infrastructure protection.

✓ Extreme Environment Operation: -40°C to +70°C operating range with conformal coating protects against humidity, vibration, and electromagnetic interference common in turbine enclosures and offshore installations.

Industrial Application Scenarios

Combined Cycle Power Plants: Coordinate gas turbines, HRSGs, and steam turbines across 500+ MW facilities. The 5466-1049 manages combustion control, emissions compliance, and grid synchronization while handling load ramps exceeding 50 MW/minute. TMR architecture ensures regulatory compliance with NERC reliability standards requiring fault-tolerant control for critical generation assets.

Offshore Production Platforms: Remote installations 200+ miles offshore cannot tolerate control failures requiring helicopter technician dispatch. The module manages compressor anti-surge control, gas dehydration, and emergency shutdown systems with mean time between failures exceeding 15 years. Salt fog resistance and shock/vibration tolerance withstand harsh marine environments.

LNG Liquefaction Trains: Cryogenic processing at -160°C demands precise control with zero failure tolerance. The enhanced CPU5200 executes complex refrigeration cycle optimization, managing 300+ control loops across mixed refrigerant systems. Processing power enables real-time thermodynamic modeling that improves energy efficiency by 2-3%, saving millions annually in compression costs.

Petrochemical Refinery Units: Fluid catalytic crackers and hydrocracking units processing $50M+ feedstock daily require SIL 3 safety instrumented systems. The 5466-1049 integrates basic process control with safety logic, reducing hardware complexity while meeting IEC 61511 functional safety requirements through certified TMR architecture.

Industrial Gas Turbine Packages: Mechanical drive applications for pipeline compression and LNG export terminals operate continuously for 3-year intervals between overhauls. The module's fault tolerance eliminates control-related trips that previously caused 15-20% of unplanned shutdowns, improving fleet availability from 96% to 99.5%.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the enhanced 5466-1049 over standard CPU5200 modules when your application requires (1) processing more than 1,000 I/O points, (2) scan cycles below 20 ms with complex math, (3) advanced control algorithms like MPC or neural networks, or (4) high-speed data logging exceeding 100 tags/second. For simpler applications with <500 I/O and basic PID control, standard CPU5200 TMR modules offer equivalent fault tolerance at lower cost.

Advanced Integration & Expansion Options

Distributed I/O Architecture: Connect up to 32 remote I/O racks via MicroNet high-speed network, positioning modules near field devices to reduce wiring costs by 40%. Fiber optic links span 2 km between racks, ideal for large facilities with distributed equipment.

SCADA & HMI Connectivity: Native OPC UA server enables plug-and-play integration with modern visualization platforms. Modbus TCP gateway provides backward compatibility with legacy systems. Dual Ethernet ports support network segregation between control and enterprise networks per ISA-99 security standards.

Third-Party Device Integration: Communicate with variable frequency drives, analyzers, and smart transmitters using Modbus RTU, HART, and Profibus DP protocols. Protocol conversion modules eliminate the need for separate gateways, reducing panel space and failure points.

Redundant Communication: Implement dual Ethernet rings with automatic failover for critical SCADA links. The system detects cable breaks or switch failures within 50 ms, rerouting traffic through alternate paths without data loss.

Custom Algorithm Development: IEC 61131-3 programming environment supports ladder logic, structured text, function blocks, and sequential function charts. Import custom C libraries for proprietary calculations or third-party optimization algorithms.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock modules with factory testing and calibration certificates. Expedited 24-hour shipping available for emergency replacements supporting critical outages.

Custom Configuration: 10-15 business days for modules requiring specific firmware versions, pre-loaded application programs, or specialized testing protocols per customer specifications.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Warranty includes advance replacement service—receive new module before returning failed unit to minimize downtime.

Technical Support: Lifetime access to application engineers experienced in TMR system design, commissioning, and troubleshooting. Phone and email support available 24/7 for critical issues affecting plant operations.

Documentation Package: Complete technical manual set including hardware installation guide, programming reference, communication protocol specifications, and troubleshooting procedures. CAD drawings and 3D models available for panel design integration.

Common Implementation Questions

How does TMR voting handle transient errors from electromagnetic interference?
The voting logic compares outputs every scan cycle, automatically rejecting outliers from EMI-induced glitches. If interference affects one processor, the other two maintain correct control. The system logs these events, and if one processor shows repeated deviations, it triggers a maintenance alert while continuing operation on the remaining two processors.

Can I retrofit existing MicroNet systems with TMR capability?
Yes, if your current chassis supports TMR operation (identified by three CPU slots with voting backplane). You'll need three 5466-1049 modules working as a set—they cannot operate individually in TMR mode. Simplex chassis require backplane upgrades to support voting logic and synchronized I/O updates.

What programming changes are required when upgrading from simplex to TMR?
Existing MicroNet application programs transfer directly to TMR systems without modification. The TMR architecture operates transparently to application logic. However, you should review I/O forcing and manual mode logic to ensure safe behavior during processor replacement procedures.

How much additional power does TMR consume compared to simplex control?
Three processors draw approximately 45W total versus 15W for a single module—a 30W increase. In large systems with hundreds of I/O modules, the CPU power difference represents less than 5% of total panel consumption. The reliability benefit far outweighs the marginal energy cost.

Are there ongoing software license fees for TMR operation?
No recurring fees exist for runtime operation. MicroNet Development System (MDS) programming software requires a one-time license purchase (approximately $3,500). This license supports unlimited controllers and includes software updates for the licensed version. Optional annual support contracts provide access to new major releases and priority technical support.

What cybersecurity measures protect against unauthorized access?
The module implements role-based access control with encrypted passwords, supports RADIUS/LDAP authentication for centralized user management, and logs all configuration changes with timestamps and user IDs. Ethernet ports can be configured for MAC address filtering and VLAN segmentation. For maximum security, disable unused communication ports and implement firewall rules restricting access to authorized engineering workstations.

Ready to Implement Fault-Tolerant Control?

Contact our application engineering team to discuss your specific turbine control requirements. We'll help you design the optimal TMR architecture, select compatible I/O modules, and develop a migration plan that minimizes commissioning risk. Request a detailed quotation including module pricing, recommended spares, and programming support services.
