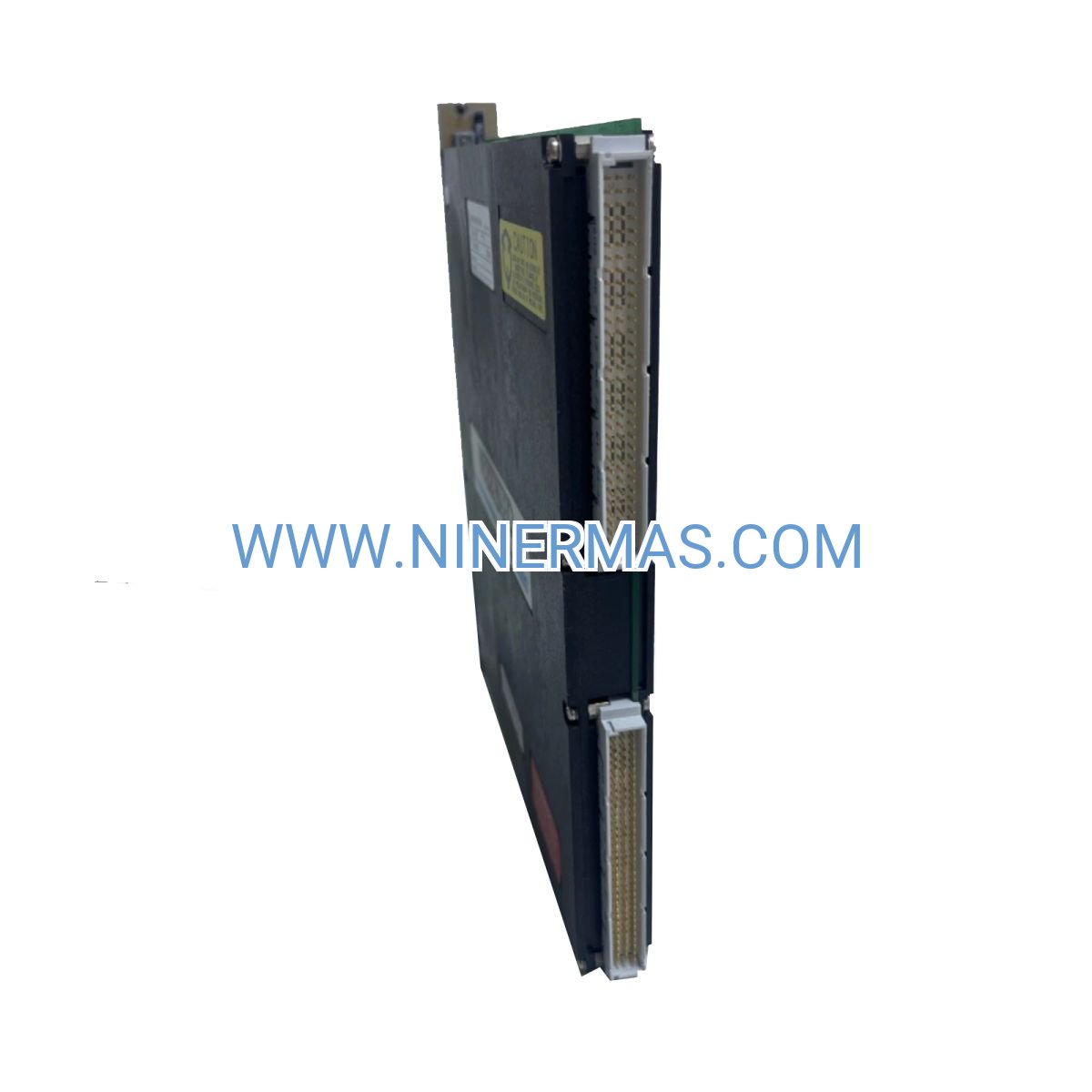

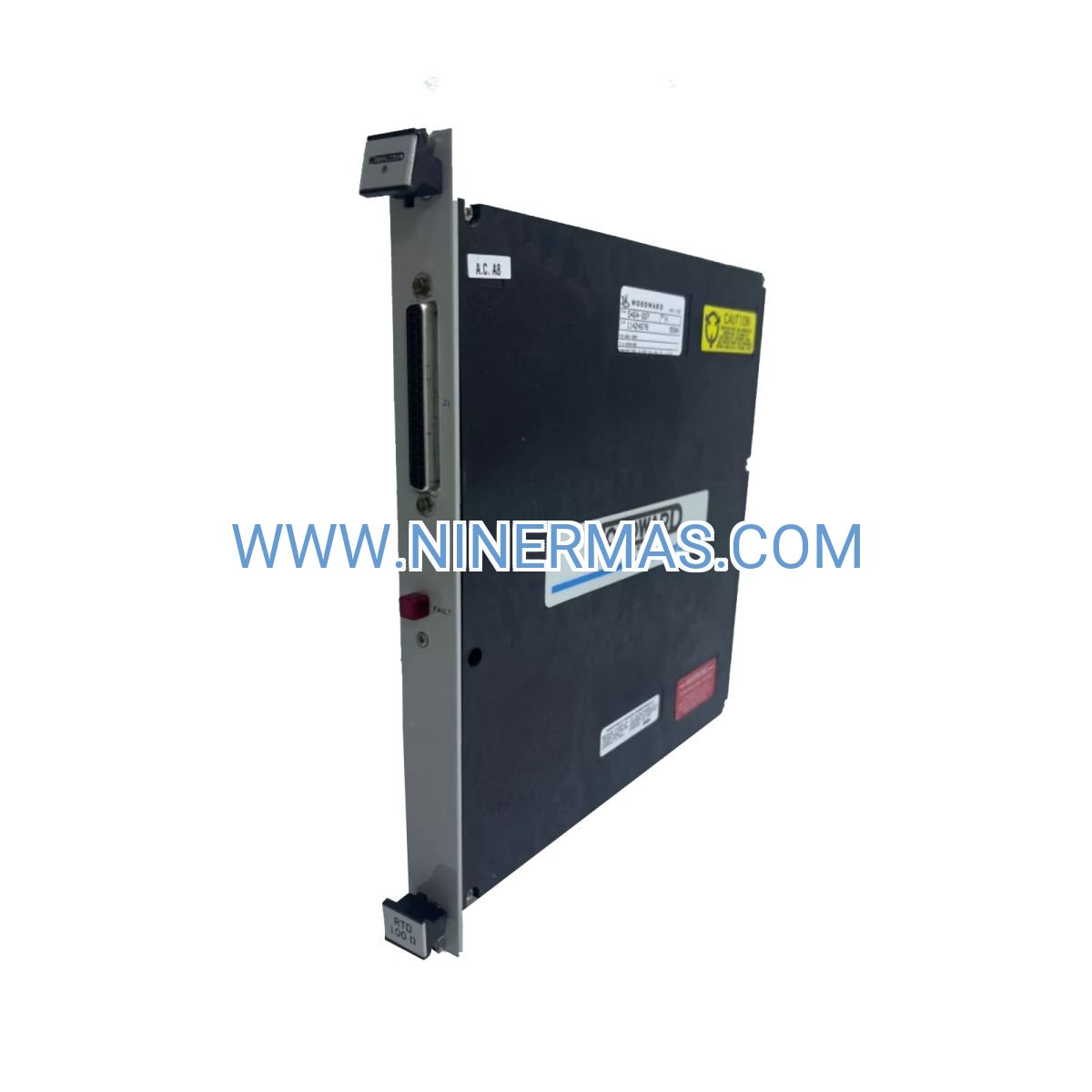

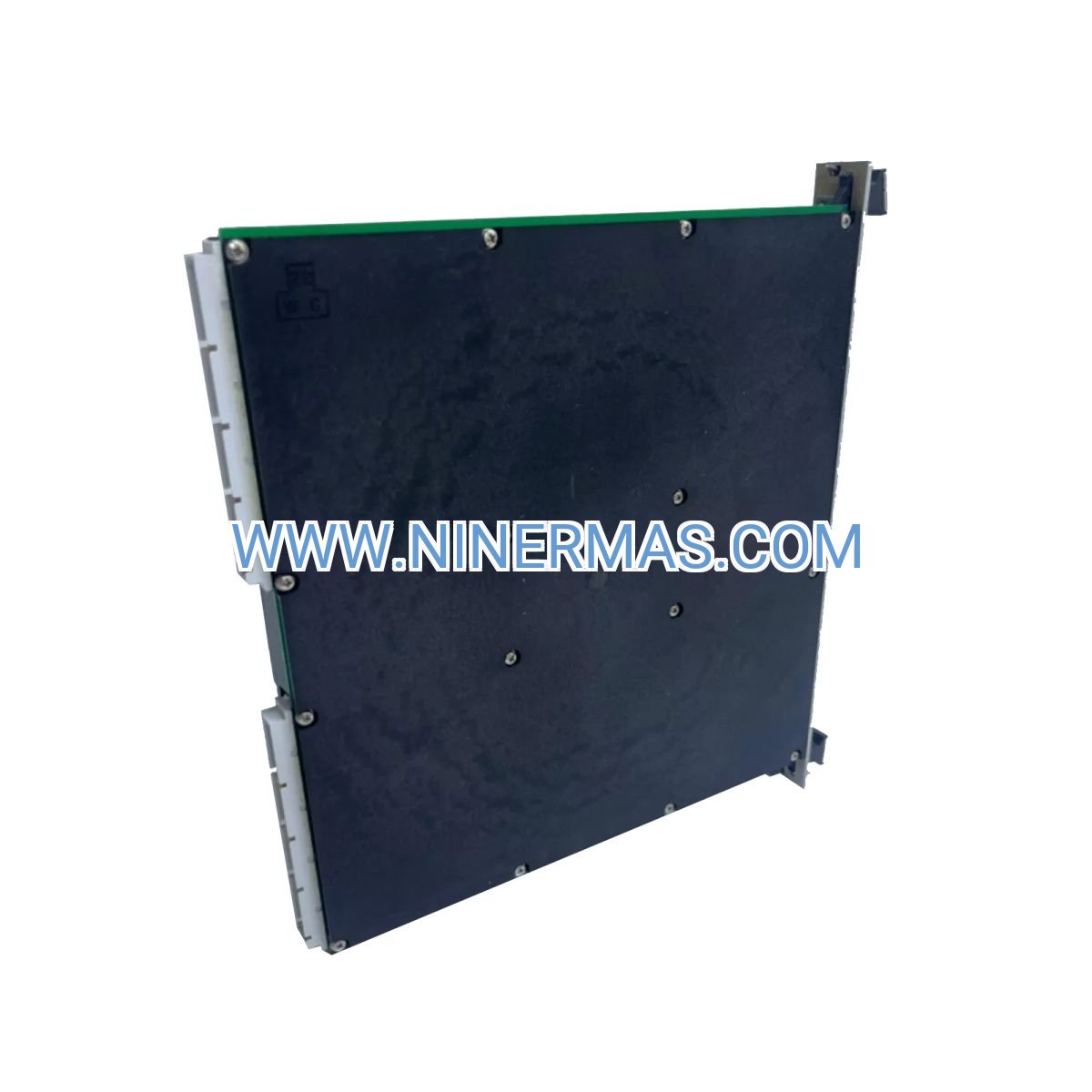

5464-658 REV H Digital Input Module (Industrial-Grade MicroNet Interface)

The Woodward 5464-658 REV H represents a mission-critical digital input interface engineered for MicroNet and Triple Modular Redundant (TMR) control architectures. Designed to capture and process discrete signals from field devices with sub-10ms latency, this module delivers the precision and reliability demanded by turbine control, power generation, and safety-instrumented systems where signal integrity directly impacts operational continuity.

Built for environments where downtime translates to significant revenue loss, the 5464-658 REV H addresses three fundamental challenges: ensuring deterministic signal acquisition across distributed control networks, maintaining operational availability during component servicing through hot-swap capability, and providing diagnostic transparency for predictive maintenance strategies. Target users include control system integrators, plant automation engineers, and OEMs deploying Woodward MicroNet platforms in gas turbines, steam generators, and critical process applications.

What sets this module apart is its combination of channel-level isolation, extended temperature tolerance (-40°C to +70°C), and native compatibility with both legacy and current-generation MicroNet systems—enabling seamless retrofits without architecture redesign. Request technical specifications or application consultation today.

Core Capabilities & Business Value

→ Sub-10ms Signal Response Time
Captures state changes from sensors and relay contacts with deterministic latency, enabling real-time protective actions in turbine overspeed and generator fault scenarios—reducing mean time to safe state by up to 40% compared to slower I/O systems.

✓ Hot-Swappable Architecture
Supports online module replacement without system shutdown or process interruption, translating to zero unplanned downtime during maintenance cycles and preserving production continuity in 24/7 operations.

✓ Channel-to-Channel Isolation
Electrical isolation between input channels and ground plane prevents cross-talk and ground loop interference, ensuring signal fidelity in high-EMI industrial environments—critical for accurate fault detection in multi-sensor arrays.

→ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme ambient conditions without derating, making it suitable for outdoor enclosures, desert installations, and arctic climates where conventional I/O modules fail or require costly environmental controls.

✓ Backward-Compatible Design (REV H)
Integrates with earlier MicroNet generations while offering enhanced diagnostic registers and firmware update pathways, protecting capital investment in existing control infrastructure and reducing migration risk.

→ 24 VDC Nominal Input Voltage
Aligns with industry-standard field device power supplies, simplifying wiring design and reducing bill-of-materials complexity in multi-vendor automation projects.

Application Scenarios

Gas Turbine Control Systems
Monitors discrete inputs from flame detectors, vibration switches, and emergency shutdown circuits in combined-cycle power plants. The module's fast response time ensures protective logic executes within safety-rated timeframes, while hot-swap capability allows technicians to replace suspected faulty modules during scheduled inspections without taking the turbine offline—avoiding costly generation losses.

Steam Generator Protection Networks
Processes signals from drum level switches, pressure relief valve position indicators, and burner management interlocks. Channel isolation prevents nuisance trips caused by electrical noise from nearby VFDs and motor starters, reducing false alarm rates by 60-75% and improving operator confidence in alarm validity.

Compressor Station Automation
Interfaces with anti-surge valve limit switches, lube oil pressure sensors, and remote shutdown panels in natural gas pipeline applications. Extended temperature rating eliminates the need for climate-controlled enclosures in remote installations, cutting infrastructure costs by $8,000-$15,000 per site.

Marine Propulsion Control
Captures status from engine room safety devices, bridge control selectors, and thruster enable circuits on diesel-electric vessels. Backward compatibility allows fleet operators to standardize on REV H modules across both new builds and retrofit projects, simplifying spare parts inventory and technician training requirements.

Industrial Cogeneration Plants
Acquires digital signals from grid synchronization relays, load-sharing controllers, and auxiliary system status indicators. Integration with MicroNet's deterministic network ensures coordinated control actions across multiple generation units, optimizing load distribution and fuel efficiency in multi-engine installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5464-658 REV H when your application requires digital input processing within a MicroNet or TMR control architecture, particularly where hot-swap capability, extended temperature operation, or backward compatibility with existing systems is essential. For applications requiring analog signal processing, consider the Woodward 5466-series analog I/O modules. For systems needing both digital and analog I/O, a mixed-module configuration is recommended—contact our application engineers for architecture design assistance.

Extended Functions

Advanced Diagnostics Integration: REV H firmware provides enhanced diagnostic registers accessible via MicroNet Toolbox software, enabling predictive maintenance strategies through input channel health monitoring, contact bounce detection, and wiring fault identification.

Redundancy Support: Fully compatible with TMR (Triple Modular Redundant) configurations for SIL 3-rated safety applications, with automatic voter logic and fault-tolerant operation when deployed in triplicated architectures.

Configuration Flexibility: Input channel parameters (debounce time, active state polarity, alarm thresholds) are software-configurable through MicroNet Toolbox, allowing field customization without hardware modifications or DIP switch adjustments.

Network Time Synchronization: Supports MicroNet's deterministic communication protocol for synchronized I/O updates across distributed modules, ensuring coordinated control actions in multi-module systems with <1ms timing jitter.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited shipping available upon request for critical outage situations.

Custom Configuration Lead Time: 7-10 business days for pre-configured modules with customer-specific parameter sets loaded prior to shipment.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues from date of delivery.

Technical Support: Lifetime application engineering support including configuration assistance, troubleshooting guidance, firmware update consultation, and system integration recommendations via phone and email.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and access credentials for downloadable technical manuals, configuration software, and firmware release notes.

Frequently Asked Questions

How does the 5464-658 REV H integrate with existing MicroNet control networks?
The module connects directly to MicroNet's high-speed communication backbone via standard network connectors. Configuration is performed through Woodward's MicroNet Toolbox software, which auto-discovers the module and allows parameter assignment. No special gateway hardware or protocol converters are required—installation typically takes 15-20 minutes per module.

What input voltage range does this digital module accept from field devices?
The module is designed for 24 VDC nominal operation with a typical acceptance range of 18-30 VDC, accommodating voltage drops in long cable runs and variations in field power supplies. For applications with non-standard voltage levels, contact our engineering team to discuss signal conditioning options.

Can I replace this module during system operation without causing process interruption?
Yes, the 5464-658 REV H supports hot-swap functionality. The module can be removed and replaced while the MicroNet network remains energized and operational. The control system automatically recognizes the new module and resumes normal I/O processing within 2-3 seconds of insertion, making it ideal for high-availability applications.

What diagnostic capabilities help identify wiring faults or sensor failures?
REV H firmware includes enhanced diagnostics that monitor each input channel for open-circuit conditions, short-circuit faults, and abnormal signal patterns. These diagnostics are accessible through MicroNet Toolbox and can trigger configurable alarms, enabling proactive maintenance before field device failures impact production.

Is this module suitable for safety-instrumented system (SIS) applications?
When deployed in TMR (Triple Modular Redundant) configurations, the 5464-658 REV H supports SIL 3-rated safety functions per IEC 61508 standards. Single-module installations are appropriate for non-safety control functions. For SIS applications, consult our safety engineering team for proper architecture design and certification documentation.

What is the typical service life expectancy for this digital input module?
Under normal industrial operating conditions (controlled environment, proper installation, regular maintenance), the 5464-658 REV H has a mean time between failures (MTBF) exceeding 100,000 hours. Actual service life depends on environmental factors, electrical stress, and maintenance practices—modules in well-maintained systems routinely operate for 15-20 years.

Take the Next Step

Ready to enhance your MicroNet control system's digital input capabilities? Contact our application engineering team at sale@ninermas.com or +0086 187 5021 5667 for technical consultation, pricing information, or to place your order. We provide same-day quotations and can expedite delivery for urgent projects.
