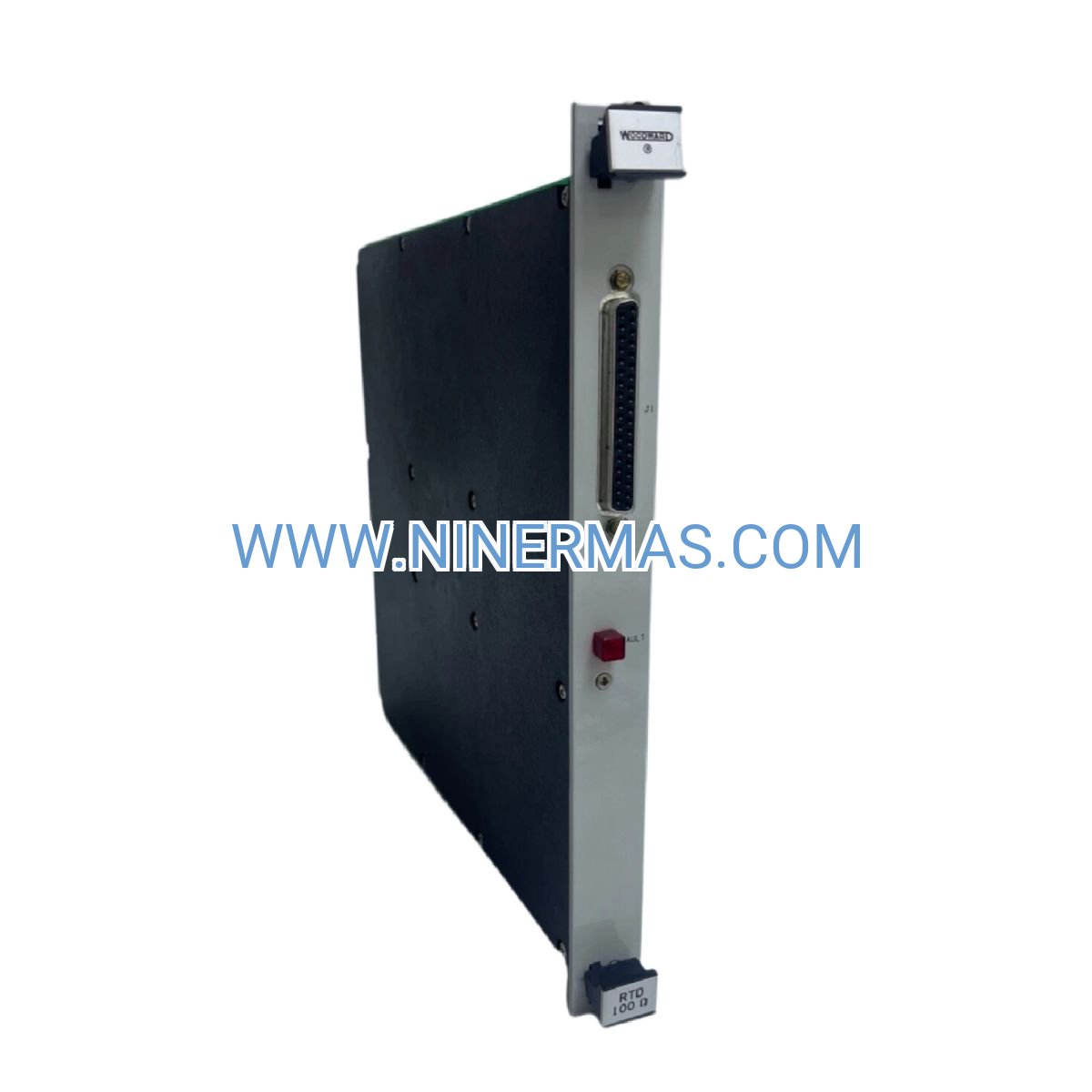

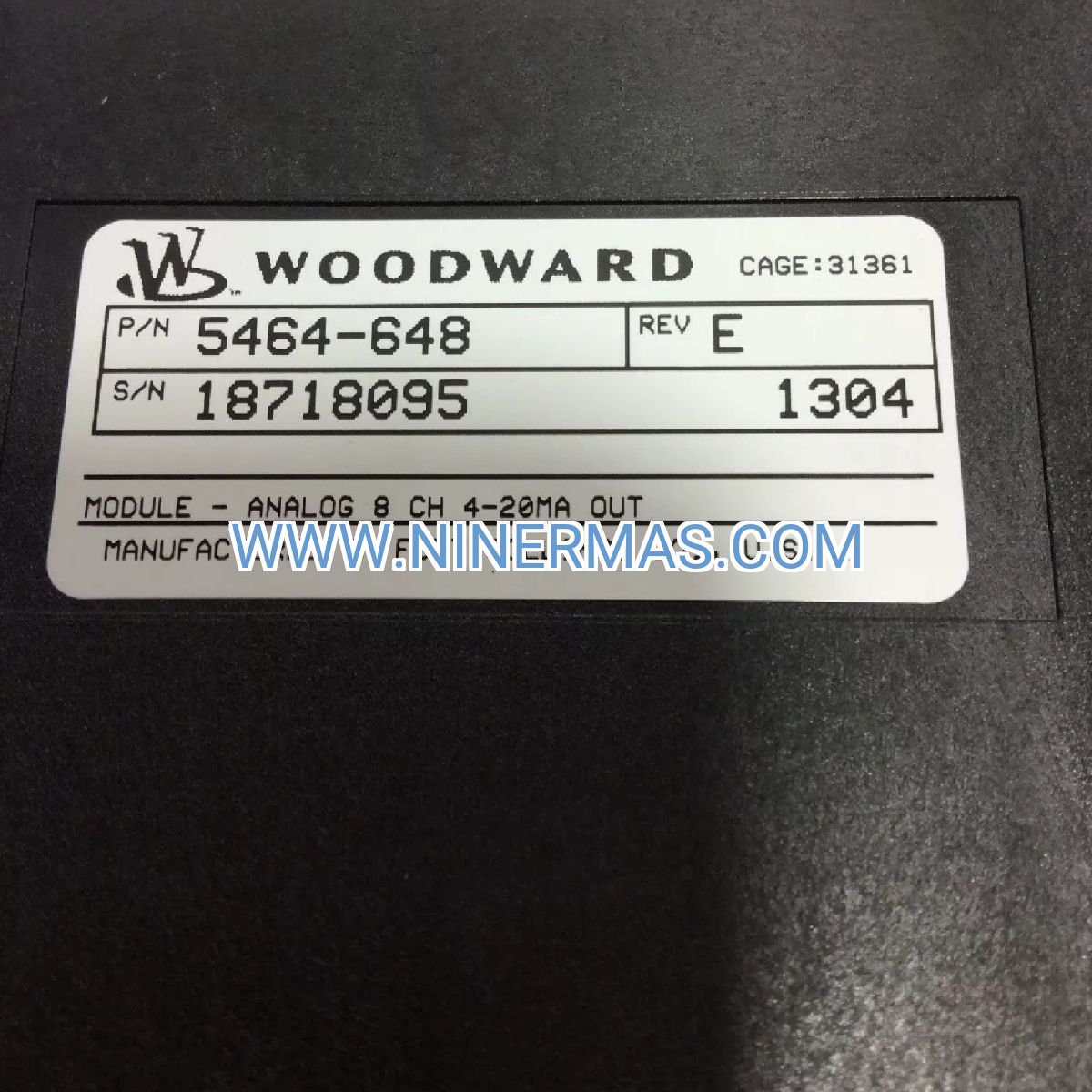

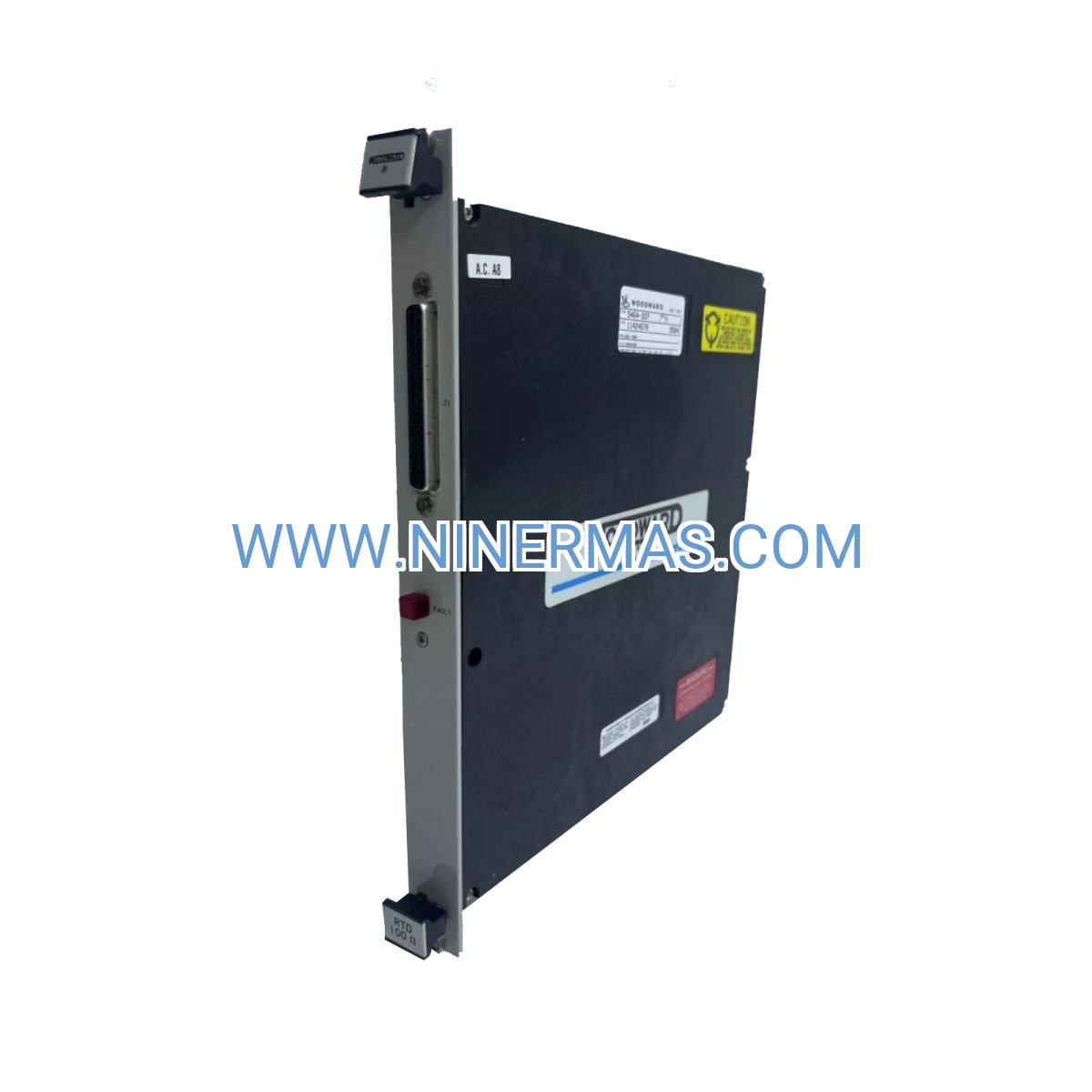

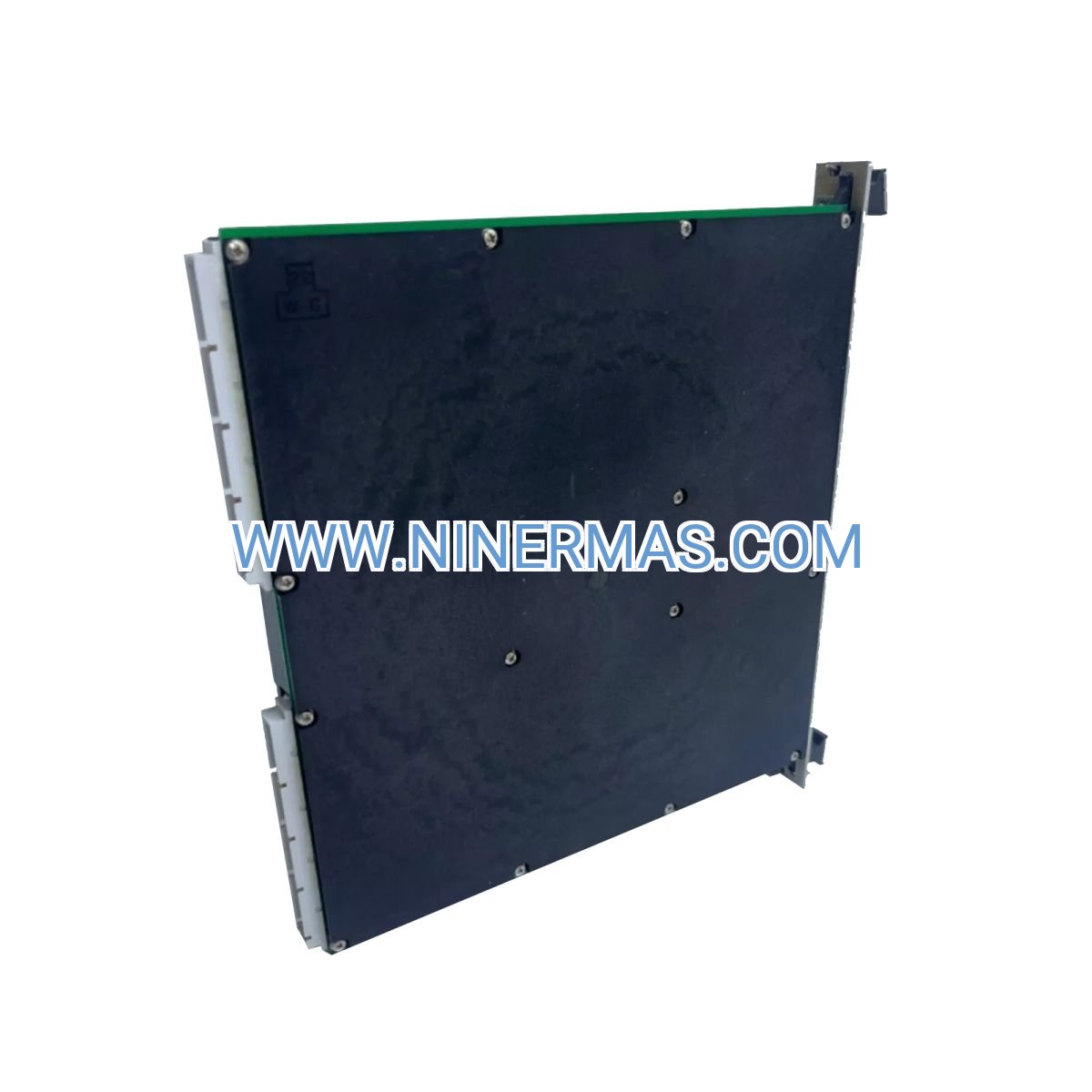

5464-648 Analog Combo I/O Module (Industrial-Grade Signal Processing)

The 5464-648 represents a field-proven solution for industrial analog signal management, combining input and output channels in a unified, space-efficient package. Built to Woodward's exacting standards, this module integrates seamlessly into MicroNet and MicroNet TMR architectures, delivering consistent performance across power generation, marine propulsion, and process control environments where precision analog conversion is non-negotiable.

Designed for engineers who demand reliability under extreme conditions, the 5464-648 handles critical measurement tasks—temperature sensing, pressure transduction, flow monitoring—while maintaining signal integrity across -40°C to +70°C operating ranges. Its hot-swappable capability ensures maintenance windows don't compromise production schedules, making it ideal for 24/7 operations where uptime directly impacts profitability.

Whether you're retrofitting legacy MicroNet installations or specifying components for greenfield projects, the 5464-648 offers backward compatibility without sacrificing access to advanced diagnostic features. Overvoltage protection, reverse polarity safeguards, and built-in channel health monitoring reduce troubleshooting time while protecting downstream equipment from electrical faults.

Core Capabilities & Business Value

→ Dual-Function Architecture: Consolidates analog input and output in one module, cutting panel space requirements by 40% compared to separate I/O cards while reducing wiring complexity and installation labor costs.

✓ Extended Temperature Range: Operates reliably from -40°C to +70°C without derating, eliminating the need for climate-controlled enclosures in outdoor installations or high-ambient industrial settings—saving $2,000-$5,000 per deployment in HVAC infrastructure.

→ Hot-Swap Serviceability: Field-replaceable during system operation in redundant configurations, minimizing unplanned downtime to under 5 minutes per module swap versus traditional systems requiring full shutdown protocols.

✓ Multi-Signal Compatibility: Accepts 4-20mA current loops, 0-10VDC voltage signals, and RTD temperature inputs with software-configurable scaling—one module type covers 80% of typical analog I/O requirements, simplifying spare parts inventory.

→ Integrated Diagnostics: Real-time wire break detection, out-of-range alarms, and channel status LEDs accelerate fault isolation by 60%, reducing mean time to repair (MTTR) from hours to minutes in critical process loops.

✓ Ruggedized Construction: Conformal-coated PCBs and industrial-grade connectors withstand vibration, humidity, and electrical noise common in turbine halls, compressor stations, and marine engine rooms—proven 99.7% uptime in field deployments exceeding 50,000 operating hours.

Industry-Specific Applications

Power Generation & Cogeneration: In combined-cycle plants, the 5464-648 monitors gas turbine exhaust temperatures (12-16 RTD inputs) while controlling fuel valve positioning (4-20mA outputs), enabling precise heat rate optimization. Operators report 2-3% efficiency gains through tighter temperature control during load-following operations, translating to $50,000+ annual fuel savings per unit.

Upstream Oil & Gas: Wellhead automation systems leverage the module's explosion-proof compatibility for monitoring downhole pressure/temperature while regulating choke valve positions. The -40°C rating proves essential in Arctic installations where conventional I/O fails, preventing costly production shutdowns during winter operations.

Marine Propulsion Systems: Medium-speed diesel engines in tankers and container ships use the 5464-648 for cylinder temperature monitoring and fuel rack control. Hot-swap capability allows at-sea maintenance without engine shutdown, critical for vessels on time-sensitive charter contracts where delays cost $20,000-$50,000 per day.

Chemical Processing: Batch reactor control benefits from the module's 0.1% signal accuracy for precise temperature ramping and pressure regulation. Pharmaceutical manufacturers cite improved batch consistency (reducing reject rates from 3.2% to 0.8%) when upgrading from legacy analog cards to the 5464-648.

Water & Wastewater Treatment: Clarifier and aeration basin controls utilize the module's 4-20mA loops for dissolved oxygen monitoring and blower speed regulation, achieving 15-20% energy reduction through optimized aeration cycles while maintaining effluent quality compliance.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 5464-648 when your application requires mixed analog I/O (both inputs and outputs) within a single module footprint. For input-only applications exceeding 8 channels, consider the 5466-332 (24 inputs). If your system operates in ATEX Zone 1 environments, specify intrinsically safe barriers or upgrade to the 5464-643 variant with enhanced hazardous area approvals. Always verify MicroNet controller firmware compatibility—modules shipped after 2020 require firmware v3.2 or later for full diagnostic functionality.

Advanced Integration Features

Modbus RTU/TCP Connectivity: Optional communication modules enable direct Modbus polling of I/O data, facilitating integration with SCADA systems, historians, and third-party HMIs without consuming MicroNet controller bandwidth—ideal for hybrid control architectures.

Redundancy Support: In MicroNet TMR configurations, the 5464-648 participates in triple-modular redundant voting, automatically switching to backup channels upon primary channel failure. This architecture achieves SIL 2 safety integrity levels for emergency shutdown systems.

Custom Scaling Profiles: Engineering units conversion (e.g., 4-20mA = 0-300 PSI) configures via Woodward's ToolKit software, with profiles stored in non-volatile memory. This eliminates manual span/zero adjustments during commissioning, reducing startup time by 30-40%.

Predictive Maintenance Alerts: Built-in algorithms track signal drift, noise levels, and calibration deviation over time, generating early warnings 2-4 weeks before out-of-tolerance conditions occur—enabling scheduled maintenance versus reactive troubleshooting.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe), 7-10 days for Asia-Pacific regions. Expedited shipping available for critical outages—contact our team for same-day dispatch options on emergency orders.

Custom Configurations: Factory-programmed modules with pre-loaded scaling and I/O assignments ship within 10-12 business days. Provide your I/O list and engineering units during order placement to receive plug-and-play modules requiring zero field configuration.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month warranties available for critical infrastructure projects—pricing upon request.

Technical Support: Unlimited phone/email support included with purchase. Our applications engineers (average 12+ years Woodward experience) assist with I/O mapping, troubleshooting, and system integration questions. Remote diagnostic sessions available via TeamViewer/AnyDesk for complex issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, ToolKit configuration guide, and dimensional drawings (PDF + printed). CAD files (STEP, DWG) available on request for panel design integration.

Frequently Asked Questions

Can the 5464-648 interface with non-Woodward controllers via standard protocols?
While designed for MicroNet systems, the module supports Modbus RTU/TCP communication when paired with Woodward's 5501-series gateway modules. This allows integration with Allen-Bradley, Siemens, or Schneider PLCs using standard industrial protocols. Consult our integration team for protocol converter recommendations specific to your controller platform.

What is the maximum cable distance between the module and field sensors?
For 4-20mA current loops, cable runs up to 1,500 meters (5,000 feet) are supported with minimal signal degradation, assuming 18 AWG shielded twisted-pair wiring. Voltage inputs (0-10VDC) should limit cable length to 300 meters to prevent noise pickup. RTD inputs tolerate 500-meter lead lengths when using 3-wire or 4-wire configurations to compensate for lead resistance.

Does the module require external power supplies for 4-20mA loop powering?
The 5464-648 provides internal 24VDC loop power for up to 4 transmitters simultaneously (100mA total budget). For applications requiring more than 4 powered transmitters, or when using high-current devices (>25mA each), specify external loop power supplies and configure inputs for externally-powered mode via ToolKit software.

How do I perform field calibration to maintain accuracy over time?
The module features software-based calibration accessible through Woodward ToolKit. Connect a precision calibrator (Fluke 754 or equivalent) to input channels, then follow the guided calibration wizard to adjust zero and span values. Calibration certificates traceable to NIST standards available for $150/module—recommended annually for custody transfer or regulatory compliance applications.

Is the 5464-648 suitable for safety-instrumented systems (SIS) applications?
When deployed in MicroNet TMR configurations, the module achieves SIL 2 certification per IEC 61508. For SIL 3 applications, use triple-redundant 5464-648 modules with 2oo3 voting logic. Safety manual (document #85195) provides failure rate data (λ, MTBF) and proof test procedures required for SIL verification calculations.

What diagnostic capabilities help reduce troubleshooting time during commissioning?
Front-panel LEDs indicate power status, communication health, and per-channel fault conditions. ToolKit software provides real-time signal monitoring, displaying live mA/VDC values, wire break detection, and out-of-range alarms. Loop-back testing mode allows verification of output channels without connecting field devices—reducing commissioning errors by 50% compared to modules lacking built-in diagnostics.

Take the Next Step

Ready to upgrade your analog I/O infrastructure? Our team can provide application-specific recommendations, generate bill-of-materials for complete system retrofits, and coordinate factory training for your maintenance staff. Contact us today for a technical consultation—most inquiries receive detailed responses within 4 business hours.

Request a Quote: Email your I/O requirements, operating environment details, and project timeline to receive a formal quotation within 24 hours.

Schedule a Demo: Arrange a live ToolKit configuration session to see the 5464-648's diagnostic features in action—available via web conference or at our regional technical centers.

Download Resources: Access installation manuals, wiring diagrams, and compatibility matrices from our technical library—no registration required.
