WESTINGHOUSE 2840A19G07 Retrofit-Compatible PLC for Legacy Systems

WESTINGHOUSE 2840A19G07 Retrofit-Compatible PLC for Legacy Systems: Seamless Upgrade for Aging Automation Infrastructure

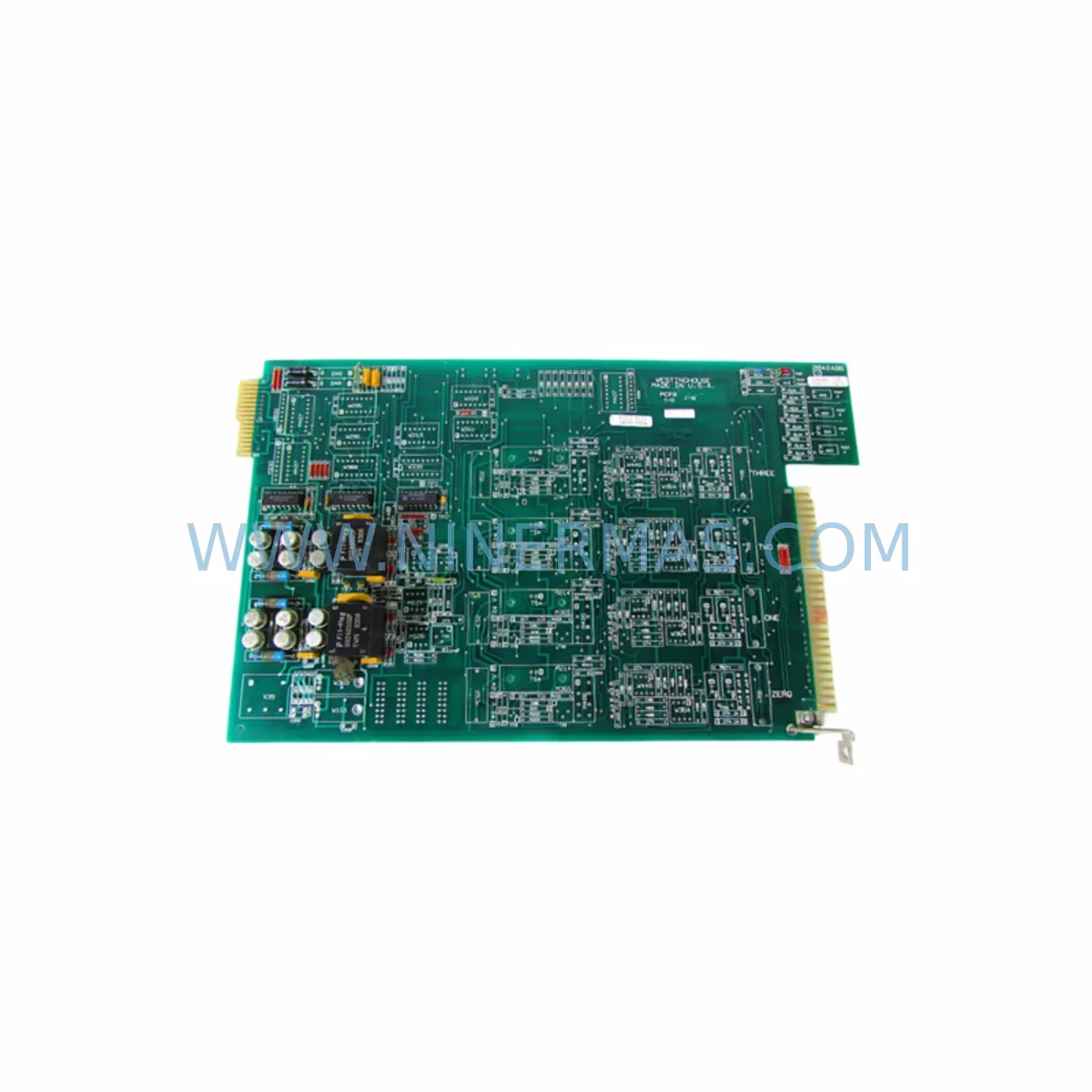

The WESTINGHOUSE 2840A19G07 is a proven PLC controller module engineered for direct retrofit into legacy Westinghouse WDPF, OVATION, and Series 2000 automation platforms. As production lines age and original equipment manufacturers discontinue support for older control architectures, the 2840A19G07 remains one of the most sought-after replacement modules for engineers tasked with extending the operational life of existing control cabinets without committing to a full platform migration. Whether you are managing a power generation facility, a chemical processing plant, or a continuous manufacturing line, this module delivers the I/O compatibility, backplane interface integrity, and communication protocol support required to keep legacy systems running reliably.

At NINERMAS, every 2840A19G07 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent retrofit and emergency replacement scenarios, with fast international shipping to minimize unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 2840A19G07 into an existing control system requires careful pre-engineering to avoid configuration conflicts and extended downtime. The first step is a thorough audit of the existing rack assembly. Engineers should document the current slot assignments for all installed modules — including analog input cards, digital output cards, and any communication interface modules — before removing the failed or end-of-life controller. In a typical WDPF installation, the processor module shares the backplane with distributed processing units (DPUs) and interfaces directly with the operator workstation network via the plant data highway.

Power supply capacity is a critical checkpoint. The existing Westinghouse power supply module — often a dedicated 24VDC regulated unit mounted in the same card cage — must be verified to support the full load of the replacement 2840A19G07 alongside all co-installed I/O modules. If the power supply is also aging or showing signs of instability, it is strongly recommended to replace it concurrently to avoid a secondary failure shortly after the controller swap.

Terminal wiring and field signal connections should be mapped and labeled before any module is removed. In legacy Westinghouse systems, field wiring typically terminates on marshalling panels or directly on I/O termination assemblies connected to the rack via ribbon cables or individual terminal blocks. Confirming that all analog signal ranges (4–20mA, 0–10V) and discrete signal levels (24VDC, 120VAC) are correctly documented prevents wiring errors during recommissioning.

Backplane slot addressing is another area requiring attention. The 2840A19G07 uses hardware address settings — typically configured via DIP switches or jumpers on the module faceplate — that must match the original module’s address to ensure the application program recognizes the replacement without requiring a full software reconfiguration. If the original address settings were not documented, they can often be recovered from the WDPF engineering workstation configuration database or from the plant’s as-built drawings.

For facilities also upgrading their HMI layer, the transition from legacy Westinghouse operator stations to modern SCADA platforms requires careful attention to the communication link between the 2840A19G07 and the data highway interface. In many cases, a communication gateway module or a protocol converter is introduced alongside the controller replacement to bridge the WDPF proprietary bus to Modbus TCP, PROFIBUS, or OPC-DA — enabling the new HMI to read process variables and write setpoints without modifying the underlying control logic.

Signal isolation is frequently overlooked during retrofit planning. Where field signals pass through aging signal isolators or signal conditioners mounted in the control cabinet, these components should be inspected and replaced if necessary. Faulty isolation can introduce ground loops or signal noise that causes erratic behavior in the new controller even when the module itself is functioning correctly.

Programming cable compatibility should also be confirmed. If the site uses a Westinghouse WDPF engineering workstation for online monitoring and program uploads, the programming interface — whether RS-232, RS-485, or Ethernet-based — must be verified against the replacement module’s supported programming port. In some retrofit scenarios, a USB-to-serial adapter or a dedicated programming cable adapter is required to connect a modern laptop to the legacy programming port on the 2840A19G07.

Finally, installation space within the control cabinet must be confirmed. While the 2840A19G07 is designed to occupy a standard WDPF card cage slot, cabinets that have been modified over the years may have non-standard obstructions — additional terminal blocks, cable trays, or supplementary relay panels — that could interfere with module insertion or prevent proper ventilation. A physical site survey before ordering ensures the replacement module can be installed without additional cabinet modifications.

Downtime Control During System Migration

Minimizing downtime during a 2840A19G07 replacement is achievable with disciplined pre-planning. The most effective approach is to perform all preparatory work — module address verification, program backup, wiring documentation, and spare parts staging — during scheduled maintenance windows before the actual swap is executed. This reduces the live replacement activity to the minimum necessary steps: module removal, replacement installation, address confirmation, power-up, and online verification.

Before removing the original controller, a full backup of the application program should be uploaded from the WDPF engineering workstation and stored on at least two independent media. This protects against data loss in the event that the original module’s memory is corrupted or inaccessible during removal. The backup should include not only the control logic but also the module configuration parameters, I/O scaling factors, alarm setpoints, and any custom function blocks that have been added over the system’s operational life.

During the swap itself, field control continuity can be maintained in some configurations by placing the affected control loops in manual mode at the operator station before the controller is taken offline. This allows field devices — control valves, variable speed drives, and other actuators — to hold their last commanded position while the replacement is completed, preventing process upsets caused by loss of automatic control.

After the replacement module is installed and powered, the commissioning sequence should follow a structured checklist: confirm module recognition on the backplane, verify communication link to the operator station, reload the application program from backup, perform I/O force tests on critical signals, and confirm alarm and interlock logic before returning loops to automatic control. This structured approach, combined with pre-tested replacement hardware from NINERMAS, consistently achieves live replacement times of under four hours for experienced maintenance teams.

Retrofit Support FAQ

Q: Is the 2840A19G07 a direct drop-in replacement for the original Westinghouse module of the same part number?
A: Yes. The 2840A19G07 is designed to occupy the same backplane slot, use the same address configuration, and interface with the same I/O modules as the original. No hardware modifications to the rack or wiring are required for a like-for-like replacement.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, confirm the module address DIP switch settings match the original configuration, restore the application program from a verified backup using the WDPF engineering workstation, perform I/O signal verification on all connected field devices, and confirm communication links to the operator station and any connected DPUs before returning to automatic control.

Q: Does NINERMAS provide pre-shipment testing for the 2840A19G07?
A: Yes. Every unit undergoes functional testing prior to shipment to verify module initialization, backplane communication, and I/O interface integrity. A test report is available upon request. All units are covered by a 12-month warranty against functional defects.

Q: What is the typical lead time and are units available from stock?
A: NINERMAS maintains inventory of the 2840A19G07 to support urgent retrofit and emergency replacement requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based requirements, contact our sales team for availability confirmation and project pricing.

—
