Waters 001-04946-W Service-Ready Industrial Spare Part

Waters 001-04946-W Service-Ready Industrial Spare Part: Spare Replacement & Downtime Risk Control

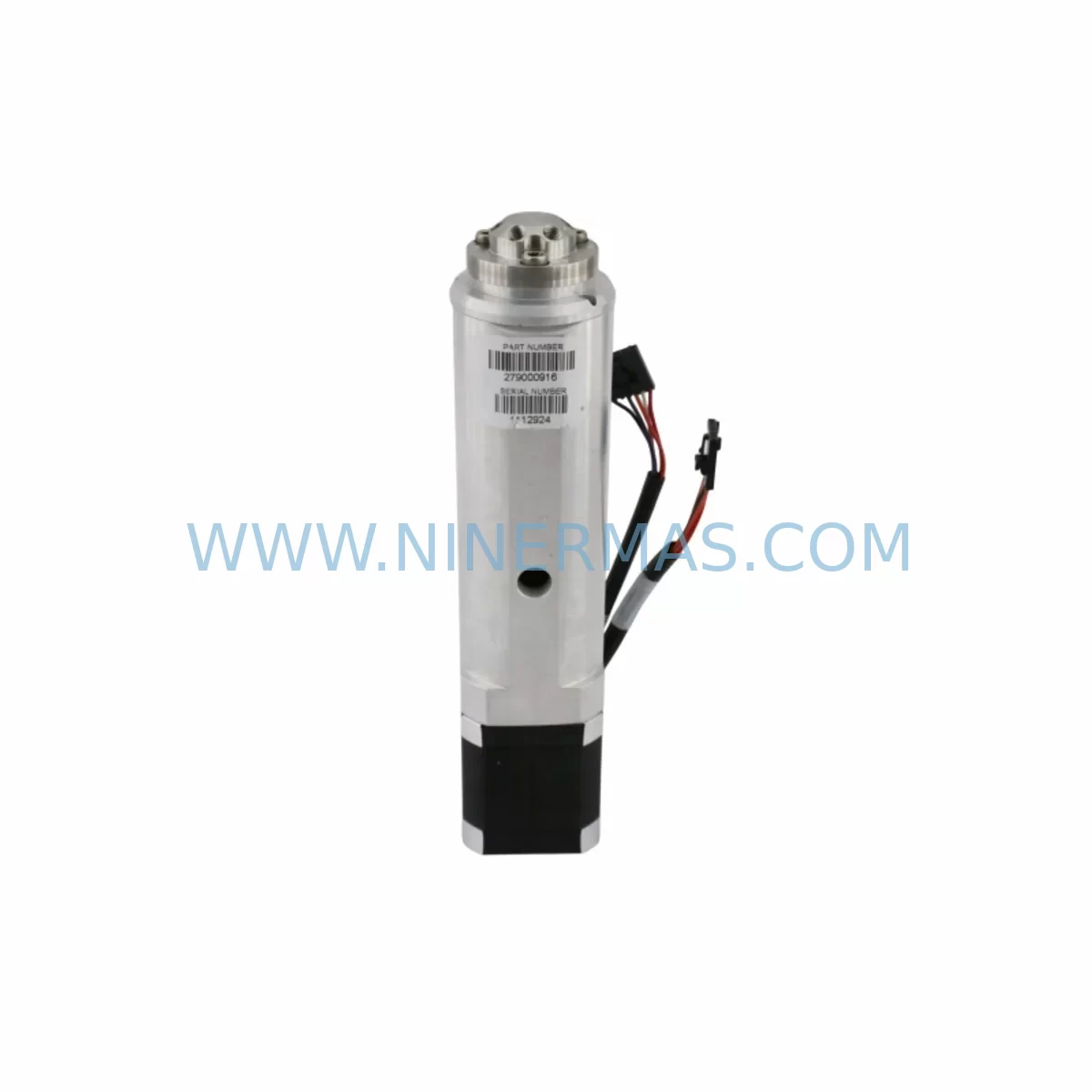

The Waters 001-04946-W (cross-reference: 279000916 / 9701-2936-01 / ATR9100-ROHS / 9700-9960-01) is a service-ready original spare part for the Waters ATR Series — specifically the ATR9100 Attenuated Total Reflectance accessory platform used in industrial FTIR and near-infrared spectroscopy systems. For maintenance engineers and procurement teams managing analytical instrument uptime, sourcing a verified replacement for this component is critical to avoiding unplanned production shutdowns in quality control labs, pharmaceutical manufacturing lines, chemical process environments, and materials testing facilities.

NINERMAS maintains service-ready stock of the Waters 001-04946-W, pre-shipment tested and dispatched with a 12-month warranty. Each unit is inspected for optical integrity, mechanical fit, and RoHS compliance before release. Whether you are executing a planned annual overhaul, responding to an emergency ATR probe failure, or building a strategic spare parts buffer for your Waters FTIR system, this component is available for immediate global dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Waters 001-04946-W ATR accessory, a thorough site inspection of the surrounding optical and electrical subsystems is essential to prevent repeat failures and ensure full system recovery. Maintenance engineers should treat this replacement as an opportunity to audit the complete ATR measurement chain.

Begin with the ATR crystal element — the ZnSe or diamond crystal window seated within the ATR9100 body (Waters part 001-04946-M or equivalent crystal assembly). Crystal surfaces are susceptible to chemical etching, micro-cracking, and contamination from aggressive sample matrices. If the 001-04946-W is being replaced due to optical throughput loss, the crystal should be inspected or replaced simultaneously to avoid a second unplanned outage within the same maintenance window.

Next, inspect the ATR gasket and seal kit (Waters 001-04947 series or equivalent). Degraded seals allow sample ingress into the optical cavity, accelerating corrosion of the reflective surfaces and contaminating the beam path. Replacing seals during the same intervention is low-cost insurance against a repeat failure.

The DTGS or MCT detector module connected downstream of the ATR accessory should be verified for signal baseline stability. A failing detector will mask ATR optical performance issues and lead to misdiagnosis. Check detector bias voltage, preamplifier output, and noise floor against the instrument’s factory specification sheet.

Inspect the beam splitter assembly — typically a KBr or Ge-coated element in mid-IR FTIR systems. Moisture ingress or mechanical misalignment of the beam splitter will degrade interferogram quality regardless of ATR accessory condition. Desiccant packs within the spectrometer purge enclosure should be replaced on schedule; a saturated desiccant pack is a common root cause of beam splitter degradation in humid industrial environments.

The alignment mirror set and sample compartment optics should be cleaned and verified for correct angular positioning. Misaligned transfer optics reduce energy throughput to the ATR crystal and produce artificially low absorbance readings, which can trigger false quality control failures on the production line.

On the electrical side, verify the instrument power supply module output rails — particularly the ±15 V analog supply feeding the detector preamplifier and the 5 V logic rail for the instrument controller board. Voltage ripple or dropout events are a common cause of intermittent spectral artifacts that are incorrectly attributed to ATR accessory faults.

Check all signal cables and interface connectors between the ATR accessory, the spectrometer mainframe, and the data acquisition PC. Oxidized BNC connectors, loose ribbon cable seats, and damaged RS-232 or USB communication cables are frequent sources of noise and communication dropouts in older FTIR installations. Replace any cable showing visible insulation damage or connector corrosion.

If the instrument is integrated into a process control or LIMS network, verify the communication module (Ethernet, RS-485, or proprietary Waters interface card) for firmware version compatibility after any hardware replacement. A mismatch between accessory firmware and instrument controller firmware can prevent the ATR9100 from being recognized after installation of the replacement 001-04946-W unit.

Finally, review the sample press or liquid cell accessories used in conjunction with the ATR9100. Worn press platens, cracked anvils, or contaminated liquid cell windows will compromise measurement reproducibility even after a successful ATR accessory replacement. A complete spare parts kit covering the ATR crystal, seals, press components, and desiccant should be maintained on-site for any facility running Waters FTIR systems in a production-critical role.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the incoming Waters 001-04946-W unit matches the installed ATR9100 platform variant (standard vs. RoHS). Cross-check against the instrument serial number and the original purchase order. Verify RoHS marking on the replacement unit matches the site’s compliance requirements.

Step 2 — System isolation: Power down the FTIR spectrometer and allow the optical bench to reach ambient temperature. Disconnect the ATR accessory interface cable from the spectrometer sample compartment port. Do not remove the accessory while the instrument is in purge mode — depressurize the purge gas supply first to avoid contaminating the optical bench.

Step 3 — Removal of the legacy unit: Unscrew the ATR9100 body from the sample compartment mounting plate using the OEM tool set. Inspect the mounting plate for corrosion, warping, or thread damage. Clean the mounting surface before installing the replacement unit. Retain the legacy 001-04946-W for failure analysis if root cause investigation is required.

Step 4 — Installation of the replacement: Seat the new Waters 001-04946-W onto the mounting plate and torque to the OEM specification. Reconnect the interface cable. Restore purge gas flow and allow the optical bench to stabilize for a minimum of 30 minutes before acquiring a background spectrum.

Step 5 — Functional verification: Acquire a single-beam background spectrum and compare against the instrument’s reference baseline. Run a polystyrene film validation standard to confirm peak positions and absorbance values are within the instrument’s acceptance criteria. Document the validation result in the site maintenance log before returning the instrument to production service.

Step 6 — Spare parts replenishment: Immediately initiate a replenishment order for the consumed 001-04946-W unit to restore the on-site spare buffer. For facilities operating multiple Waters FTIR systems, a minimum of one spare ATR9100 accessory per two instruments is recommended as a baseline inventory policy.

Spare Parts Support FAQ

Q1: Is the Waters 001-04946-W a direct drop-in replacement for the ATR9100-ROHS installed in my instrument?
Yes. The 001-04946-W with the ATR9100-ROHS designation is the OEM-specified RoHS-compliant variant of the ATR9100 accessory. It is a direct mechanical and optical replacement for the standard ATR9100 unit. No firmware changes or optical realignment are required beyond the standard post-installation background verification procedure. Always confirm the instrument serial number and accessory interface version before ordering if your system is a pre-2010 installation.

Q2: What is the lead time and how is the unit tested before shipment?
NINERMAS maintains in-stock inventory of the Waters 001-04946-W for immediate dispatch. Each unit undergoes pre-shipment inspection covering mechanical integrity, optical surface condition, connector continuity, and RoHS marking verification. Units are dispatched with a test report and a 12-month warranty certificate. Standard international shipping from Hong Kong is 3–7 business days depending on destination and customs clearance.

Q3: Can NINERMAS support long-term supply of this part for a multi-year maintenance contract?
Yes. NINERMAS specializes in long-term spare parts supply for end-of-life and legacy industrial instrumentation. For facilities requiring guaranteed availability of the Waters 001-04946-W over a 2–5 year horizon, we offer reserved inventory agreements with fixed pricing and priority dispatch. Contact our sales team to discuss volume requirements and contract terms.

Q4: What should I do if the replacement unit does not resolve the spectral performance issue?
If installing a new Waters 001-04946-W does not restore expected optical throughput or spectral quality, the root cause is likely upstream or downstream of the ATR accessory. Proceed with systematic diagnosis of the beam splitter, detector module, source element, and purge system as described in the Maintenance Planning section above. NINERMAS technical support can assist with failure analysis and component identification. Contact sale@ninermas.com with your instrument serial number and symptom description.
