Vickers EEA-PAM-513-A-32 Service-Ready Spare Part

Vickers EEA-PAM-513-A-32 Service-Ready Spare Part for Industrial Maintenance

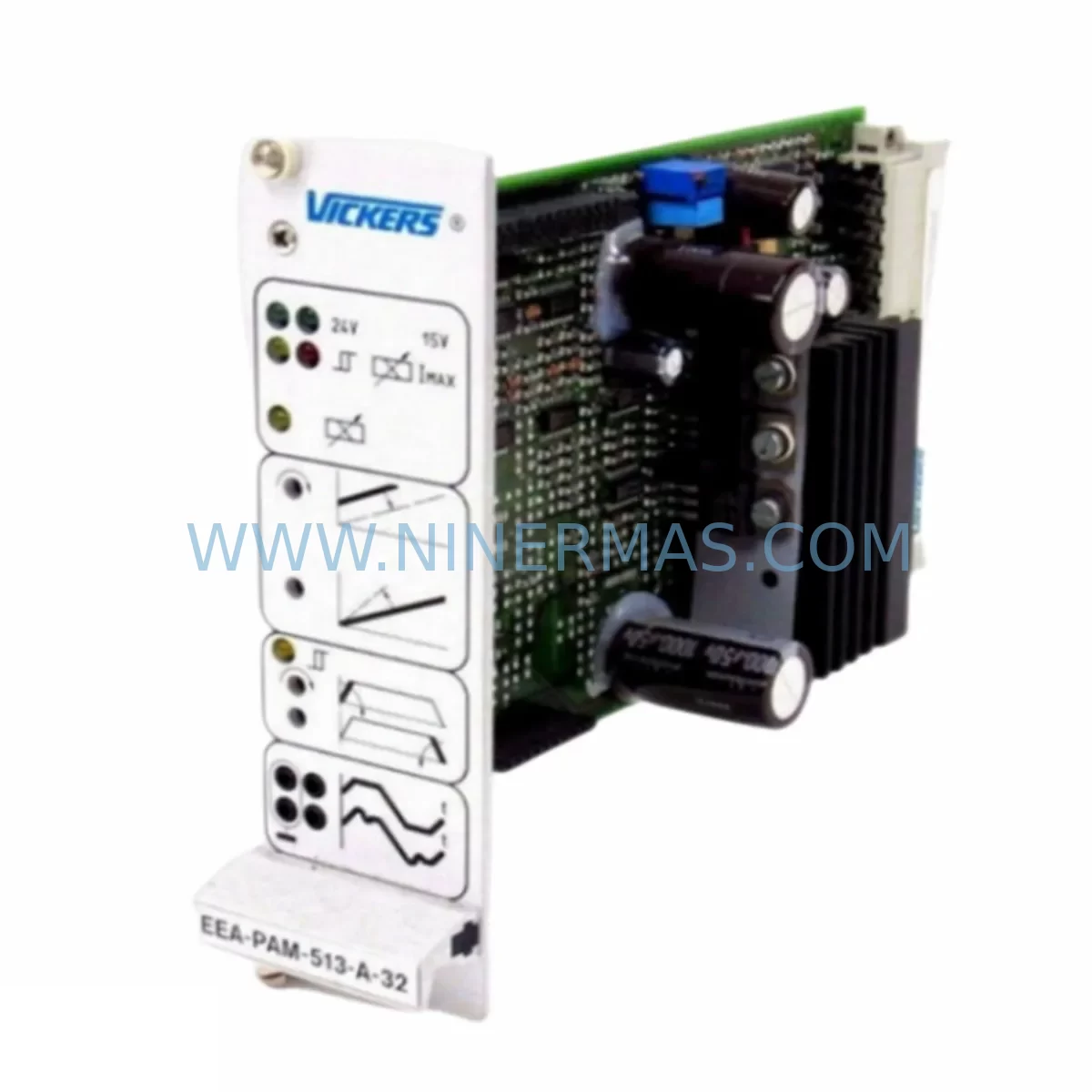

The Vickers EEA-PAM-513-A-32 is a proportional amplifier card designed for use in Vickers (Eaton) electrohydraulic control systems. This amplifier card serves as the command interface between the PLC or DCS control signal and the proportional solenoid valve, enabling precise flow and pressure regulation in hydraulic circuits. For maintenance engineers managing aging hydraulic systems, having a verified, tested spare of the EEA-PAM-513-A-32 on hand is a critical element of any downtime-reduction strategy.

At NINERMAS, every EEA-PAM-513-A-32 unit is pre-shipment tested under simulated load conditions to confirm signal response, output linearity, and board integrity before dispatch. We supply this amplifier card with a 12-month warranty and full documentation support, making it suitable for both emergency replacement and planned maintenance stock programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proportional amplifier card such as the EEA-PAM-513-A-32 fails or degrades, the fault typically manifests as erratic valve response, loss of pressure control, or a complete hydraulic axis lockout. Before condemning the amplifier card alone, a thorough maintenance engineer will inspect the entire signal chain and power supply environment.

Start with the 24 VDC control panel power supply — a sagging or noisy rail is a common root cause of amplifier instability. Verify the supply with a calibrated multimeter and check for ripple voltage exceeding 200 mV. If the panel uses a Vickers or Eaton EEA-PAM-500 series companion enable card or a separate ramp generator module, inspect those boards simultaneously, as they share the same backplane power and signal bus.

Next, inspect the proportional solenoid valve coil resistance on the associated KDG or KBDG valve. A shorted or open coil will cause the amplifier to output incorrectly even if the card itself is functional. Coil resistance should be measured at the valve connector with the card disconnected. While the valve is isolated, check the valve spool for contamination or stiction — hydraulic fluid cleanliness to ISO 4406 Class 16/14/11 or better is required for reliable proportional valve operation.

In the control cabinet, examine the signal wiring from the PLC analog output module. Shielded twisted-pair cable is mandatory for ±10 VDC command signals; unshielded runs near VFD cables or high-current contactors introduce noise that mimics amplifier faults. If the system uses a Siemens S7-300 or S7-400 analog output module (such as the SM 332 or SM 431), verify the output range configuration matches the EEA-PAM-513-A-32 input setting. Similarly, if the control architecture uses an Allen-Bradley 1756 ControlLogix analog output card, confirm the scaling parameters in the ladder logic match the amplifier’s expected input range.

For systems with feedback control, inspect the LVDT or pressure transducer signal conditioner in the closed-loop circuit. A drifting transducer zero will cause the amplifier to hunt continuously, accelerating board wear. Signal isolators — such as a Phoenix Contact MINI MCR or Pepperl+Fuchs KFD series isolator — should be checked for output drift and replaced on a 5-year cycle in high-vibration environments.

Terminal blocks and DIN rail mounted relay modules in the enable and interlock circuit should be inspected for contact oxidation. A high-resistance enable contact can cause intermittent amplifier enable faults that are difficult to diagnose without a proper contact resistance test. Fuse holders for the 24 VDC supply and the solenoid output circuit should be checked for heat discoloration, which indicates sustained overcurrent events.

For facilities running annual or biannual planned shutdowns, the EEA-PAM-513-A-32 should be included in the hydraulic control cabinet inspection checklist alongside the proportional valve, power supply module, enable relay, and analog I/O cards. Stocking one or two verified spare amplifier cards eliminates the risk of extended lead times during an unplanned outage — particularly critical for press lines, die casting machines, and continuous casting systems where hydraulic axis downtime directly impacts production throughput.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow your site LOTO procedure. Isolate the 24 VDC supply to the amplifier card and confirm zero voltage at the card connector before removal.

Step 2 — Document existing settings: Before removing the old EEA-PAM-513-A-32, photograph or record all potentiometer positions (gain, ramp, dither, offset) and DIP switch configurations. These settings are machine-specific and must be replicated on the replacement card.

Step 3 — Remove and inspect: Extract the card from its DIN rail or panel mount. Inspect the PCB for burn marks, swollen capacitors, or corroded connector pins. Retain the failed card for root cause analysis.

Step 4 — Install replacement: Insert the new EEA-PAM-513-A-32 and replicate all potentiometer and DIP switch settings from Step 2. Reconnect all signal and power wiring, verifying correct polarity on the solenoid output terminals.

Step 5 — Power-up and verify: Restore 24 VDC supply. Apply a known command signal (e.g., 0 VDC for null, +5 VDC for mid-stroke) and verify the solenoid current output with a clamp meter. Confirm hydraulic axis response matches the commanded position or pressure setpoint.

Step 6 — Fine-tune and document: Adjust gain and ramp potentiometers as needed to match original machine performance. Update the maintenance log with the replacement date, card serial number, and post-replacement test results.

This workflow minimizes commissioning time and ensures the replacement card is fully validated before returning the machine to production — reducing total downtime from a potential multi-day parts-sourcing delay to a controlled, same-shift recovery.

Spare Parts Support FAQ

Q1: Is the EEA-PAM-513-A-32 still in production, and can NINERMAS guarantee long-term supply?
The EEA-PAM-513-A-32 is a mature Vickers/Eaton product that may be at end-of-production status. NINERMAS maintains verified stock of original spare units and offers blanket order programs for customers requiring guaranteed annual supply quantities. Contact our team to discuss a long-term supply agreement with fixed lead times and reserved stock allocation.

Q2: How is each unit tested before shipment?
Every EEA-PAM-513-A-32 dispatched by NINERMAS undergoes pre-shipment functional testing including power-up verification, signal input/output linearity check, and solenoid output current measurement. A test report is available upon request. Units that do not meet OEM performance specifications are quarantined and not offered for sale.

Q3: What is covered under the 12-month warranty?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failure under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage, or contamination. Warranty claims are processed with a replacement unit dispatched after fault confirmation.

Q4: Can the EEA-PAM-513-A-32 replace older or alternate Vickers amplifier card variants?
Compatibility depends on the specific valve model, input signal range, and enable circuit configuration of your system. NINERMAS technical support can assist with cross-reference verification before purchase. Customers are advised to confirm the DIP switch input range setting and solenoid coil resistance compatibility before installation to avoid commissioning issues.
