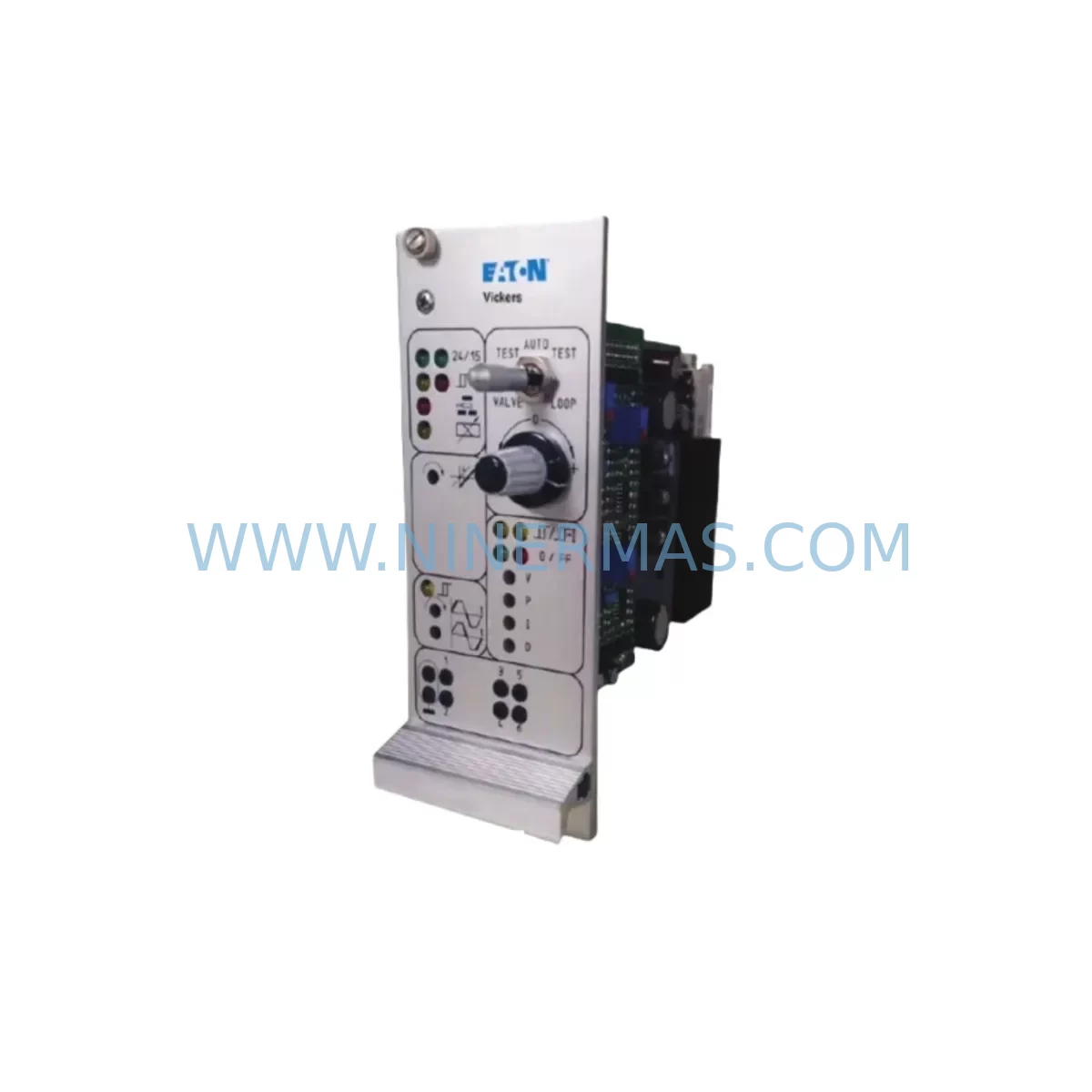

The Vickers EEA-PAM513A32 (cross-reference: 6025852-001) is an original proportional amplifier board engineered for precision control of proportional hydraulic directional and pressure valves in demanding industrial automation environments. Manufactured by Vickers — now operating under the Eaton Hydraulics brand — this amplifier card serves as the critical electronic interface between the PLC or DCS command signal and the proportional solenoid valve, governing flow rate, pressure, and directional response with high repeatability. For maintenance engineers managing hydraulic press lines, injection moulding machines, die-casting systems, steel mill roll-gap controls, and heavy-duty test rigs, the EEA-PAM513A32 represents a non-negotiable spare in any service-ready inventory.

When this amplifier board fails or degrades, the consequences are immediate: erratic valve response, uncontrolled actuator drift, pressure overshoot, or complete loss of proportional control — all of which translate directly into unplanned downtime, scrap product, and safety risk. Sourcing a verified, pre-tested replacement unit is the fastest path to restoring system integrity without waiting weeks for OEM lead times on discontinued or end-of-life components.

NINERMAS maintains service-ready stock of the EEA-PAM513A32 with full pre-shipment electrical testing, 12-month warranty coverage, and long-term supply commitment — making it the preferred procurement source for maintenance teams operating legacy Vickers hydraulic systems globally.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the EEA-PAM513A32 in isolation rarely resolves the root cause of a proportional control fault. Experienced maintenance engineers know that a degraded amplifier board is often accompanied by — or caused by — related failures in the surrounding electrical and hydraulic circuit. A structured inspection of the following components is strongly recommended whenever the EEA-PAM513A32 is replaced on site.

Begin with the 24 VDC control cabinet power supply: voltage ripple or sag under load is a leading cause of amplifier instability and premature board failure. Verify output voltage stability under full solenoid load before commissioning the new card. Next, inspect the proportional valve solenoid coil — typically a Vickers KDG4V-5 or DG4V-3S series valve body — for coil resistance drift, insulation breakdown, or connector corrosion that may have caused the original amplifier to overcurrent.

Check the command signal wiring and shielding from the PLC analog output module to the amplifier input terminals. Unshielded or improperly grounded signal cables introduce noise that manifests as valve hunting or oscillation, often misdiagnosed as amplifier failure. If the system uses a Vickers KBDG5V-7 or DGMX2 series proportional valve, confirm that the valve’s internal LVDT position feedback signal is clean and within specification — a faulty LVDT will destabilize the closed-loop control even with a new amplifier card installed.

Inspect the terminal block connections on the amplifier card mounting rail: loose or oxidized terminals cause intermittent faults that are difficult to reproduce during bench testing. Replace any suspect terminal blocks as part of the corrective maintenance cycle. For systems with signal isolation requirements, verify that any installed signal isolators or galvanic separators between the PLC and the amplifier are functioning correctly — a failed isolator can inject offset voltage that shifts the valve null position.

If the hydraulic system includes a Vickers EEA-PAM571A20 or EEA-PAM513A32-04 amplifier on adjacent valve axes, cross-check those cards for similar symptoms: amplifier boards in the same control cabinet often share a common power rail and are exposed to the same environmental stressors. Proactive replacement of aging cards on parallel axes during a planned shutdown is a cost-effective strategy to prevent cascading failures.

Finally, review the system fuse and circuit protection for the amplifier supply rail. A blown or weakened fuse on the 24 VDC amplifier feed is a common finding after an amplifier board failure caused by a solenoid short circuit. Replace fuses with the correct rated type and document the event in the maintenance log for warranty and audit traceability.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow site LOTO (Lockout/Tagout) procedures. De-energize the control cabinet and confirm zero voltage on the amplifier supply rail before removing the card.

Step 2 — Document existing settings. Photograph or record all potentiometer positions (ramp, gain, dither, null) on the outgoing EEA-PAM513A32 before removal. These settings are machine-specific and must be replicated on the replacement card to restore baseline valve behaviour.

Step 3 — Remove and inspect. Extract the amplifier card from its DIN rail or panel mount. Inspect the PCB for visible burn marks, swollen capacitors, or damaged connector pins. Retain the failed card for failure analysis if required by your maintenance management system.

Step 4 — Install replacement card. Insert the NINERMAS-supplied EEA-PAM513A32 into the mounting position. Reconnect all signal, power, and solenoid output connectors. Verify connector locking and terminal torque.

Step 5 — Configure and commission. Replicate the documented potentiometer settings. Apply power and verify the amplifier enable LED. Issue a low-level command signal from the PLC and confirm proportional valve response. Perform a full stroke test across the command range before returning the machine to production.

Step 6 — Update maintenance records. Log the replacement date, new card serial number, and commissioning test results. File the 12-month warranty documentation from NINERMAS for future reference.

Spare Parts Support FAQ

Q1: Is the NINERMAS EEA-PAM513A32 an original Vickers part or a compatible replacement?
The EEA-PAM513A32 supplied by NINERMAS is sourced as an original Vickers / Eaton Hydraulics component. Each unit undergoes pre-shipment electrical testing to verify proportional output response, enable circuit function, and solenoid drive current before dispatch. A 12-month warranty is included as standard.

Q2: How do I confirm compatibility with my existing hydraulic valve system?
Compatibility is confirmed by matching the amplifier part number (EEA-PAM513A32 / 6025852-001) to your existing card label and cross-referencing the valve model number (KDG4V, DG4V, KBDG5V series) against the Vickers amplifier selection guide. If you have the machine’s electrical schematic, share the amplifier wiring diagram with our technical team at sale@ninermas.com for confirmation before ordering.

Q3: What is the lead time and can NINERMAS guarantee long-term supply?
NINERMAS maintains dedicated stock of the EEA-PAM513A32 for immediate dispatch. For customers with recurring maintenance requirements, we offer reserved inventory agreements to guarantee availability over a 12–24 month horizon — eliminating the procurement risk associated with end-of-life and discontinued Vickers amplifier components.

Q4: What warranty and post-shipment support does NINERMAS provide?
All EEA-PAM513A32 units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS provides replacement dispatch or full refund subject to fault verification. Our technical team is available to support commissioning, fault diagnosis, and compatibility queries throughout the warranty period.
