VIBRO METER VM600 CPU M 200-595-100-032 Retrofit-Compatible CPU for Legacy Systems

VIBRO METER VM600 CPU M 200-595-100-032: Retrofit-Compatible CPU for Legacy Vibration Monitoring Systems

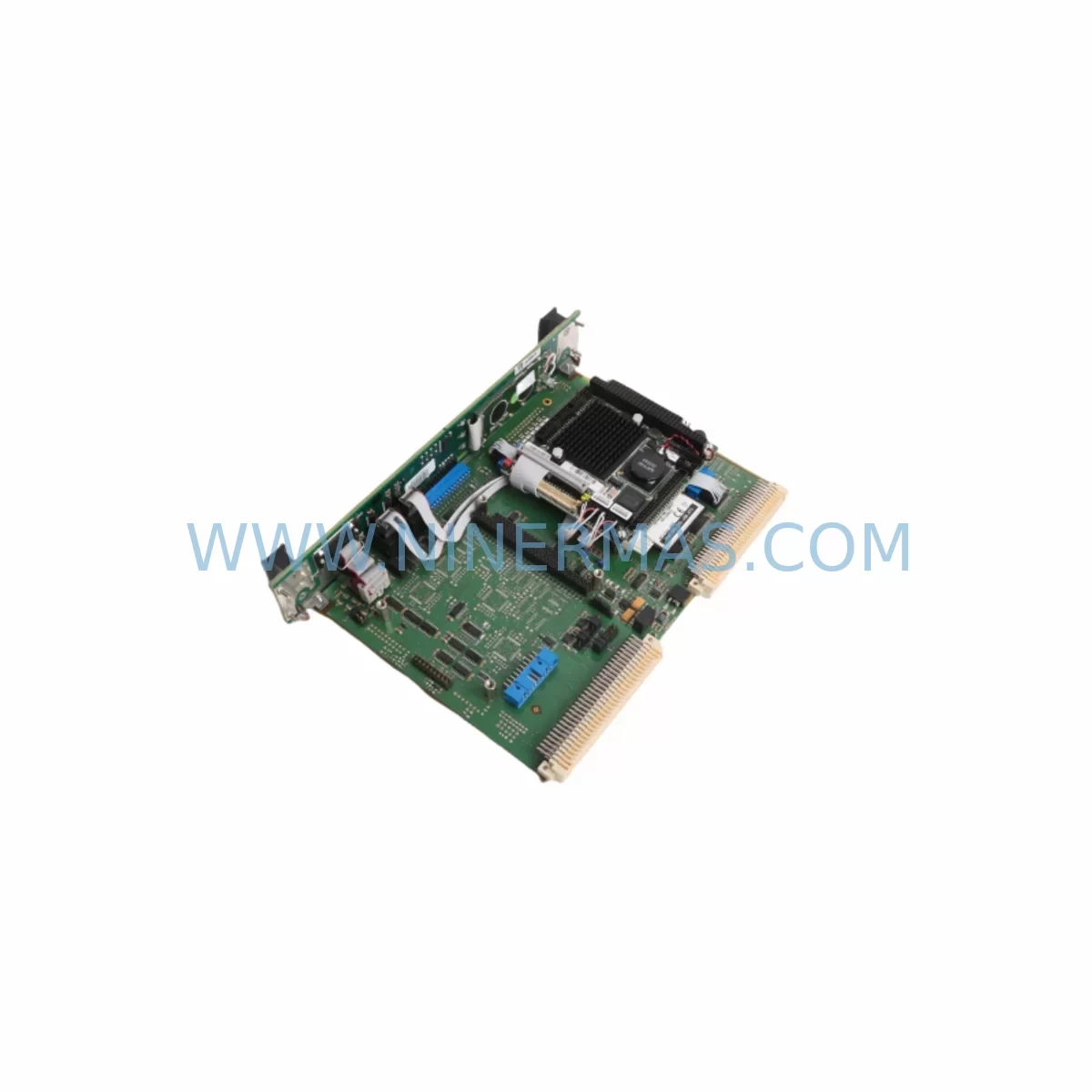

The VIBRO METER VM600 CPU M 200-595-100-032 is a central processing unit module designed for the VM600 rack-based machinery protection and condition monitoring platform. As original VM600 series hardware reaches end-of-life and spare parts become increasingly scarce, this CPU module serves as a critical retrofit and replacement component for plants operating legacy rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy industrial environments.

When planning a retrofit or spare-part replacement using the VM600 CPU M 200-595-100-032, engineers must carefully verify several system parameters before installation. Power supply capacity within the existing VM600 rack is a primary concern — the rack’s power module (such as the VM600 RPS or equivalent redundant power supply unit) must be confirmed to deliver sufficient current headroom for the CPU alongside co-installed I/O modules. Terminal wiring on the backplane connectors should be inspected for corrosion or pin damage before seating the new CPU, as poor backplane contact is a common source of intermittent faults in aged installations.

Backplane interface compatibility is another key checkpoint. The VM600 platform uses a proprietary rack backplane that supports a defined slot addressing scheme; the CPU M module must be installed in the designated CPU slot, and any co-resident modules such as the VM600 AMC8 (8-channel machinery monitoring card), the VM600 MPC4 (machine protection card), or the VM600 IOC4T (I/O and communication card) must retain their original slot assignments to preserve module address mapping within the system configuration software.

Program and configuration compatibility must be validated using the VIBRO METER Rack Configuration Software (RCS) or equivalent VM600 engineering tool. The existing machine protection logic, alarm setpoints, danger thresholds, and relay output assignments stored in the original CPU should be exported and backed up prior to removal. After installing the VM600 CPU M 200-595-100-032, the configuration file is re-downloaded to restore all channel parameters, ensuring that proximity probe inputs, velocity sensor channels, and temperature monitoring loops resume operation with identical protection logic.

HMI screen compatibility should also be reviewed. Plants using SCADA or DCS interfaces connected to the VM600 system via Modbus RTU, Modbus TCP/IP, or proprietary communication links need to confirm that the replacement CPU supports the same communication protocol version. The VM600 IOC4T communication module, if present in the rack, handles the fieldbus interface and typically does not require replacement when only the CPU is being swapped — but firmware version alignment between the CPU and communication module should be verified to avoid protocol handshake failures.

Installation space within the control cabinet is generally not a concern for a like-for-like CPU module replacement, as the VM600 CPU M 200-595-100-032 occupies the same standard VM600 rack slot footprint as the original unit. However, if the retrofit is part of a broader control cabinet upgrade that also involves replacing the VM600 rack chassis itself, engineers should account for rack depth, DIN rail mounting clearance, and cable management space for the multi-pin backplane connectors and front-panel communication ports.

Commissioning after installation follows a structured sequence: power-on self-test verification, RCS communication link establishment, configuration download confirmation, channel-by-channel signal verification against reference transducer outputs, alarm and danger relay functional testing, and final sign-off documentation. Downtime during a CPU swap on a VM600 system can typically be contained to a planned maintenance window of two to four hours when all preparatory steps — backup, pre-staging, and configuration file readiness — are completed in advance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful VM600 CPU M 200-595-100-032 retrofit begins well before the maintenance window opens. The engineering team should compile a full inventory of the existing VM600 rack population, documenting each installed module by slot position. Typical VM600 rack installations in turbomachinery protection applications include combinations of the VM600 AMC8 analogue monitoring card for vibration and position channels, the VM600 MPC4 machine protection card handling relay-based danger outputs, and the VM600 IOC4T for fieldbus communication to the plant DCS or SCADA system. The VM600 RPS redundant power supply module, where fitted, should be tested for output voltage stability before the CPU replacement proceeds, as an ageing power supply can cause erratic CPU behaviour that is misdiagnosed as a CPU fault.

Signal isolation requirements should be reviewed for any proximity probe or velocity transducer inputs that feed into the VM600 AMC8 channels. In some legacy installations, external signal isolators or Zener barriers are installed between the field transducers and the VM600 rack inputs; these devices should be tested and replaced if degraded, as they can introduce signal offset errors that affect vibration amplitude readings after the CPU is replaced and the system is re-commissioned.

For plants migrating from older Bently Nevada 3300 or 3500 series machinery protection systems to the VM600 platform, the CPU M 200-595-100-032 forms the processing core of the new rack, working alongside newly installed VM600 AMC8 and MPC4 modules. In such cross-platform migrations, transducer compatibility, cable screening practices, and relay output wiring to the turbine control system must all be re-engineered, and the VM600 Rack Configuration Software is used to define the new channel configuration from scratch rather than importing a legacy file.

Programming cable and laptop connectivity for RCS communication with the VM600 CPU should be confirmed prior to the maintenance window. The VM600 CPU M typically communicates with the engineering workstation via a front-panel Ethernet or serial port; the correct cable type and RCS software version must be available on-site to avoid delays during the commissioning phase.

Downtime Control During System Migration

Minimising unplanned downtime during a VM600 CPU replacement requires a structured pre-outage preparation protocol. The existing CPU configuration should be exported and stored in at least two independent locations — a local engineering workstation and a secure network backup — before the outage begins. This ensures that if the configuration download to the replacement VM600 CPU M 200-595-100-032 encounters an error, the original file is immediately available for retry without requiring re-engineering of alarm setpoints or channel parameters.

Where the plant protection philosophy permits, a temporary bypass of the VM600 machine protection relay outputs to the turbine trip system can be implemented under a formal management-of-change procedure, allowing the CPU swap to proceed without triggering a spurious machine trip. This bypass must be strictly time-limited and supervised by a qualified instrumentation engineer throughout the replacement and commissioning sequence.

After the new CPU is installed and the configuration is downloaded, a systematic channel verification sequence should be performed: each VM600 AMC8 input channel is checked against a known reference signal from the field transducer, alarm and danger setpoints are confirmed active in the RCS live display, and each VM600 MPC4 relay output is functionally tested by simulating an over-threshold condition. The VM600 IOC4T communication link to the DCS is verified by confirming that all Modbus register values are updating correctly on the SCADA historian. Only after all channels pass verification is the machine protection bypass removed and the system returned to normal protective service.

With thorough preparation, a VM600 CPU M 200-595-100-032 replacement can be completed within a two- to four-hour planned outage window, preserving original program logic, maintaining field control continuity, and minimising production impact.

Retrofit Support FAQ

Q: Is the VM600 CPU M 200-595-100-032 a direct drop-in replacement for my existing VM600 CPU?
A: Yes, the VM600 CPU M 200-595-100-032 is designed as a compatible replacement for the VM600 CPU slot. The existing rack chassis, backplane, and co-installed I/O and communication modules (VM600 AMC8, MPC4, IOC4T) remain in place. The replacement CPU is configured using the VIBRO METER RCS software with the backed-up configuration file from the original unit.

Q: What pre-shipment testing is performed on the VM600 CPU M 200-595-100-032?
A: Each unit undergoes functional power-on testing and communication interface verification prior to dispatch. Units are supplied with a test report confirming operational status. All units are covered by a 12-month warranty from the date of shipment.

Q: How do I verify wiring and terminal compatibility before installation?
A: The VM600 CPU M 200-595-100-032 connects to the system via the VM600 rack backplane — there are no field terminal connections directly on the CPU module itself. Field wiring to transducer input terminals on the VM600 AMC8 and other I/O modules is unaffected by the CPU replacement and does not need to be disturbed.

Q: What is the stock availability and lead time?
A: NINERMAS maintains inventory of the VM600 CPU M 200-595-100-032 to support urgent replacement requirements. Contact sale@ninermas.com or call +0086 187 5021 5667 for current stock status and delivery schedule. All units are supplied with a 12-month warranty.
