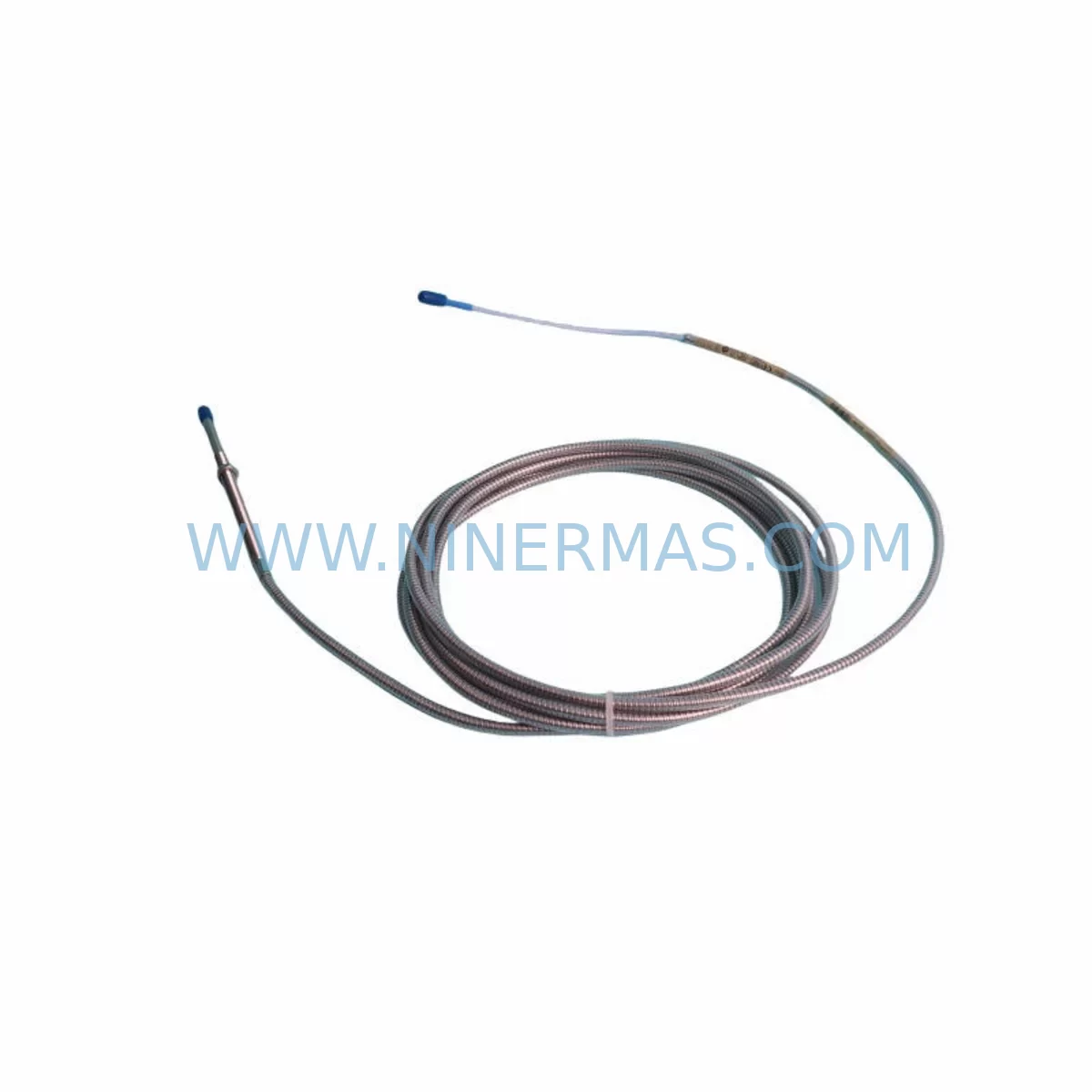

The Bently Nevada 330104-00-05-50-02-CN is a high-performance proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most trusted platforms in industrial machinery protection worldwide. Designed to deliver continuous, accurate non-contact displacement measurement, this transducer is purpose-built for critical rotating machinery applications where control interruption, signal drift, or sensor failure can trigger unplanned shutdowns, safety incidents, or catastrophic equipment damage.

In demanding industrial environments — from petrochemical compressor trains and power generation turbines to mining hoists, metallurgical rolling mills, and continuous process reactors — the reliability of every sensor in the safety loop is non-negotiable. The 330104-00-05-50-02-CN delivers the measurement precision and environmental resilience required to keep critical machinery protection systems operating without compromise, 24 hours a day, 365 days a year.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection architecture, the Bently Nevada 330104-00-05-50-02-CN proximity transducer does not operate in isolation — it is the front-line sensing element in a layered safety and control strategy. Its signal feeds directly into the Bently Nevada 3300 XL Proximitor® Sensor (driver/oscillator module), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to shaft gap. This conditioned output is then routed to the Bently Nevada 3500/40M Proximitor® Monitor or compatible rack-mounted monitor cards within the 3500 Series machinery protection system, where alarm and danger setpoints are enforced in real time.

Within the control cabinet, signal integrity is protected by the transducer’s shielded coaxial cable architecture, which suppresses high-frequency electromagnetic interference generated by variable frequency drives (VFDs), high-current motor starters, and adjacent power distribution equipment. In installations where surge protection is critical — particularly in outdoor substations, coastal facilities, or lightning-prone regions — pairing the transducer system with Bently Nevada TM0180 surge protection modules or equivalent DIN-rail-mounted surge arrestors significantly reduces the risk of transient-induced sensor damage and false trips.

For facilities running redundant safety architectures, the 330104-00-05-50-02-CN is commonly deployed in dual or triple-redundant probe configurations alongside Bently Nevada 330130-080-00-00 or 330180-X1-05 series probes, ensuring that a single sensor failure does not compromise the voted safety function. The Proximitor driver modules are typically housed in dedicated instrument enclosures with Phoenix Contact QUINT-series 24 VDC power supplies or equivalent redundant power modules, providing stable, clean supply voltage even during upstream grid disturbances.

In high-vibration or thermally cyclic environments — such as gas turbine enclosures, reciprocating compressor skids, or steel mill drive trains — the mechanical mounting integrity of the probe holder and armored extension cable is equally critical. Stainless steel probe holders and Bently Nevada 330130-compatible armored cable assemblies are recommended to prevent probe tip displacement due to thermal expansion or mechanical shock, which would otherwise introduce measurement offset errors and potentially trigger spurious shutdowns.

Communication of machinery protection data to the plant DCS or safety PLC is typically handled via Bently Nevada 3500/92 Communication Gateway modules supporting Modbus RTU, Modbus TCP/IP, or OPC-DA protocols, enabling seamless integration with Emerson DeltaV, Honeywell Experion, or Siemens PCS 7 distributed control systems. This end-to-end architecture — from the 330104-00-05-50-02-CN probe tip to the control room historian — forms a complete, auditable machinery safety data chain that supports both real-time protection and long-term reliability analysis.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-05-50-02-CN is deployed across the most demanding sectors of heavy industry, where rotating machinery failure carries consequences measured not only in repair costs but in personnel safety and environmental liability.

In petrochemical and refining facilities, this transducer monitors radial shaft vibration and position on critical centrifugal compressors, boiler feed pumps, and reactor circulation pumps. Continuous, accurate displacement measurement enables early detection of rotor imbalance, bearing wear, and seal degradation — allowing maintenance teams to intervene before a minor anomaly escalates into a process safety event or unplanned flare.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the 330104-00-05-50-02-CN is used on turbine-generator shaft trains to monitor journal bearing clearances and detect sub-synchronous instability. In these applications, the transducer’s ability to maintain calibration accuracy across wide temperature swings and in the presence of strong electromagnetic fields from generator windings is essential to the integrity of the turbine protection system.

In mining and mineral processing operations, where dust, moisture, and mechanical shock are constant challenges, the robust construction of the 3300 XL probe system ensures reliable operation on ball mill pinion bearings, SAG mill trunnion bearings, and conveyor drive gearboxes. Early vibration trend detection enabled by this transducer directly reduces the frequency of unplanned production stoppages in high-throughput ore processing circuits.

In water and wastewater treatment infrastructure, the transducer supports continuous monitoring of large vertical turbine pumps and blower trains, where bearing failure can disrupt municipal water supply or effluent treatment compliance. In port and marine applications, it is used on propulsion shaft lines and cargo pump turbines aboard LNG carriers and FPSO vessels, where the combination of saltwater corrosion risk and vibration demands the highest sensor reliability standards.

Across all these applications, the 330104-00-05-50-02-CN contributes directly to the reduction of non-planned downtime, the protection of personnel in hazardous areas, and the preservation of asset integrity over multi-year operational cycles.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Bently Nevada 330104-00-05-50-02-CN?
All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize any impact on your machinery protection system availability.

Q2: What outgoing inspection and testing is performed before shipment?
Every 330104-00-05-50-02-CN unit undergoes a 100% functional inspection prior to dispatch, including verification of output signal linearity, cable continuity, connector integrity, and physical condition. Units that do not meet specification are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330104-00-05-50-02-CN is a direct-fit replacement for the standard 3300 XL proximity transducer system. It is fully compatible with Bently Nevada 3300 XL Proximitor® Sensor driver modules and integrates without modification into 3500 Series rack-based monitoring systems. The CN connector variant is specifically configured for installations using the China regional connector standard. Always verify probe tip diameter, cable length, and driver module compatibility before installation.
