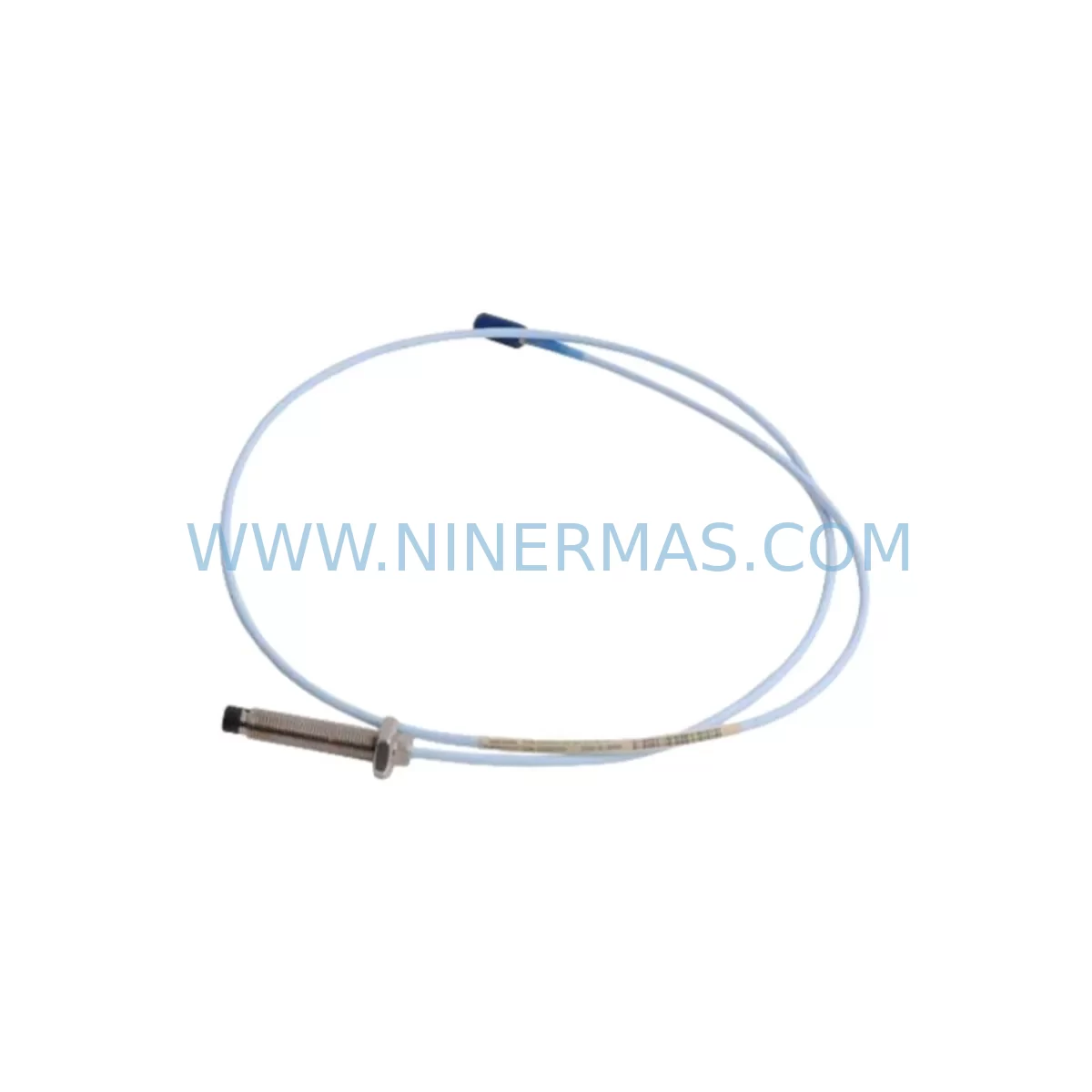

Bently Nevada 330103-00-10-10-11-05 Safety Proximity Transducer

Bently Nevada 330103-00-10-10-11-05 Safety Proximity Transducer for Critical Control Sites

The Bently Nevada 330103-00-10-10-11-05 is a ruggedized proximity transducer module engineered for continuous, safety-critical industrial monitoring applications. Designed as part of Bently Nevada’s renowned 3300 Series, this module delivers exceptional signal integrity and mechanical robustness in environments where control interruption, signal drift, or unplanned downtime carry serious operational and safety consequences.

In rotating machinery protection systems — including turbines, compressors, pumps, and motors — the 330103-00-10-10-11-05 provides reliable non-contact vibration and position sensing. Its ruggedized construction ensures stable performance under high electromagnetic interference (EMI), mechanical vibration, thermal cycling, moisture ingress, and particulate contamination, making it a trusted choice for petrochemical plants, power generation facilities, mining operations, and continuous manufacturing environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered machinery protection cabinet, the 330103-00-10-10-11-05 proximity transducer operates as the primary sensing element within a layered safety architecture. Its signal feeds directly into the Bently Nevada 3500/42M Proximitor Seismic Monitor, which processes radial vibration and eccentricity data in real time. When vibration thresholds are exceeded, the monitor triggers protective relay outputs — often interfacing with a Bently Nevada 3500/32 Relay Module — to initiate controlled machinery shutdown before catastrophic failure occurs.

To ensure signal fidelity across long cable runs in high-EMI environments such as motor control centers or variable frequency drive (VFD) panels, the transducer is typically paired with a Bently Nevada 330130 Extension Cable and a Bently Nevada 330180 Proximitor Sensor, forming a complete eddy-current measurement chain. This chain is engineered to reject common-mode noise from nearby power conductors, preventing false trips or missed alarms that could compromise process safety.

Power supply stability is equally critical. The 3500 Series rack housing this transducer’s monitor modules is typically powered through a Bently Nevada 3500/15 Power Supply Module, which provides regulated, redundant DC power to all rack-mounted cards. Upstream, a dedicated Phoenix Contact QUINT Power 24VDC supply or equivalent industrial DIN-rail PSU with surge protection ensures that voltage transients from motor starts, arc flash events, or grid switching do not propagate into the monitoring system.

For communication and data integration into plant DCS or safety instrumented systems (SIS), the Bently Nevada 3500/92 Communication Gateway Module transmits vibration and position data via Modbus TCP or OPC-DA to control room SCADA platforms. In SIL-rated safety loops, this data may also feed a Rockwell Automation GuardLogix Safety PLC or a Triconex Tricon Safety Controller, where it contributes to emergency shutdown (ESD) logic for rotating equipment protection.

Surge and transient protection at the field junction box level is handled by devices such as the MTL Surge Technologies MTL5000 Series Zener Barrier or equivalent galvanic isolators, which protect the transducer signal lines from lightning-induced surges and ground potential differences common in outdoor or substation-adjacent installations. Together, these components form a comprehensive control cabinet risk reduction strategy that minimizes the probability of control interruption, spurious trips, and unplanned downtime.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-10-10-11-05 is deployed across a wide range of critical industrial sectors where rotating machinery reliability is non-negotiable:

Petrochemical & Refining: In crude distillation units, catalytic crackers, and compressor trains, this transducer monitors shaft radial position and vibration on centrifugal compressors and steam turbines. Early detection of rotor imbalance, bearing wear, or shaft misalignment prevents unplanned shutdowns that can cost hundreds of thousands of dollars per hour in lost production and create hazardous hydrocarbon release scenarios.

Power Generation: Gas turbine and steam turbine generator sets in utility and cogeneration plants rely on proximity transducers of this specification for continuous shaft monitoring. The ruggedized design withstands the high-temperature, high-vibration environment of turbine bearing pedestals, where standard sensors would fail prematurely.

Mining & Mineral Processing: Ball mills, SAG mills, conveyor drive motors, and slurry pumps in mining operations generate extreme vibration and are exposed to dust, moisture, and corrosive slurries. The IP67-rated construction of the 330103-00-10-10-11-05 ensures reliable operation in these demanding conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: Large centrifugal pumps and blower units in municipal water treatment facilities benefit from continuous vibration monitoring to detect cavitation, impeller wear, and bearing degradation before pump failure disrupts water supply or treatment capacity.

Metallurgy & Steel Production: Rolling mill drives, continuous casting equipment, and blast furnace blowers operate under extreme thermal and mechanical stress. Proximity transducers in these applications must maintain calibration accuracy despite wide temperature swings and intense electromagnetic fields from high-current bus bars and induction heating systems.

Port & Marine Applications: Ship propulsion systems, crane drives, and port terminal conveyor systems increasingly incorporate machinery protection systems using Bently Nevada 3300/3500 series components to ensure operational continuity in salt-air, high-humidity marine environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330103-00-10-10-11-05?
A: NINERMAS provides a 12-month warranty on the Bently Nevada 330103-00-10-10-11-05 from the date of shipment. Coverage includes full replacement or repair for any manufacturing defects or functional failures under normal operating conditions. Our technical team provides prompt RMA processing to minimize your site downtime.

Q2: What pre-shipment testing is performed on this transducer module?
A: Every 330103-00-10-10-11-05 unit undergoes 100% functional inspection prior to shipment, including output signal verification, insulation resistance check, and connector integrity testing. Units are packaged in anti-static, shock-protected packaging to prevent transit damage.

Q3: Is this module compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
A: Yes. The 330103-00-10-10-11-05 is fully compatible with the Bently Nevada 3300 XL Proximitor system and integrates seamlessly with 3500 Series monitor racks, including the 3500/42M and 3500/40M monitor modules. It follows standard eddy-current signal chain specifications, ensuring drop-in replacement capability without system reconfiguration.

Q4: Can NINERMAS support long-term and emergency spare parts supply for this SKU?
A: Yes. NINERMAS maintains dedicated inventory of the 330103-00-10-10-11-05 and related 3300/3500 Series components to support both planned maintenance schedules and emergency breakdown situations. We offer expedited shipping for critical plant shutdowns and can advise on compatible alternative SKUs if required for your specific application.
