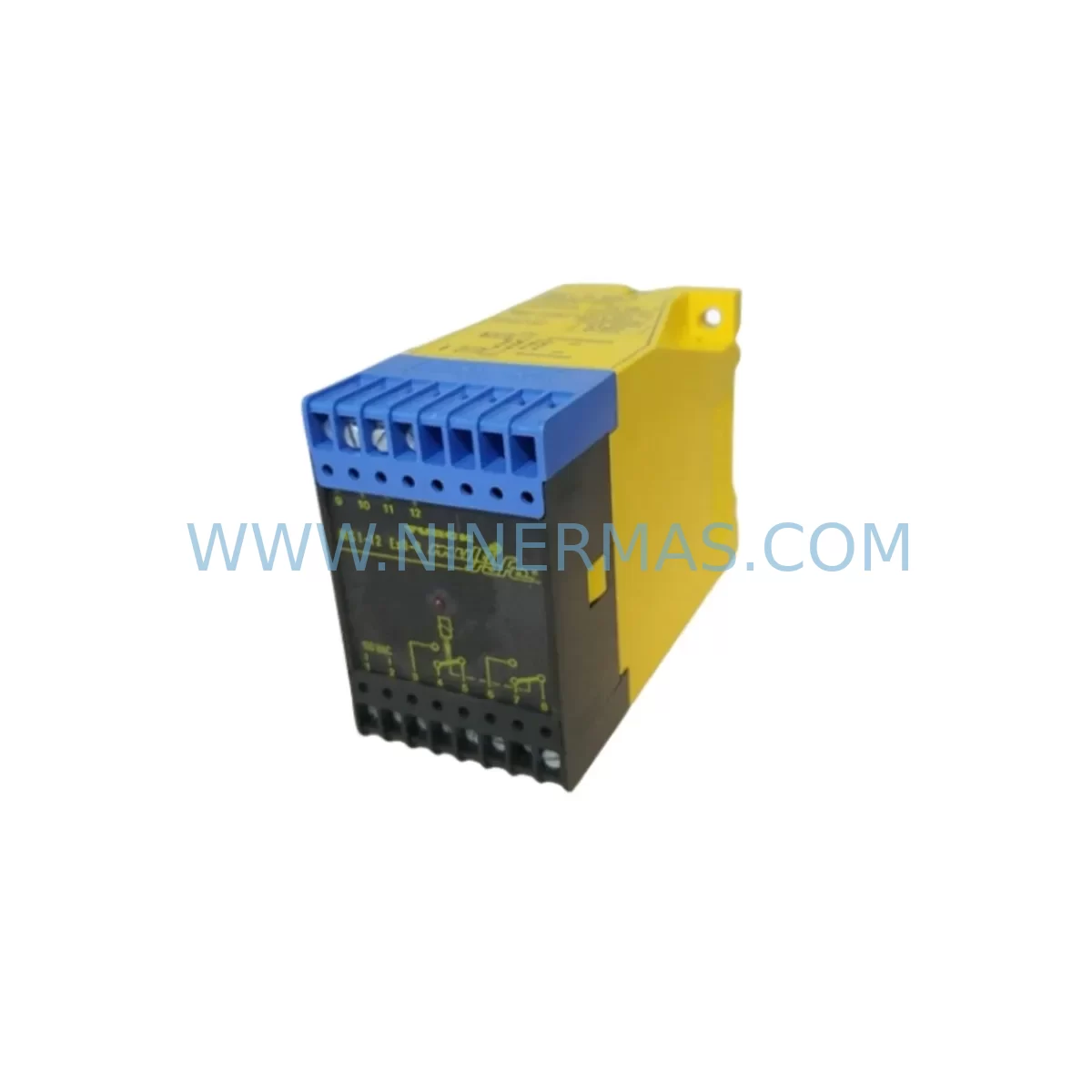

The TURCK MS13-22Ex0-R is a ruggedized switching amplifier module engineered for reliable signal conditioning in hazardous and harsh industrial environments. Designed for intrinsically safe sensor circuits operating in Zone 1 and Zone 2 Ex-classified areas, this module serves as a critical interface between field-level proximity sensors and the control system’s I/O layer. For maintenance engineers managing aging automation infrastructure, having a verified, pre-tested MS13-22Ex0-R in the spare parts inventory is a direct risk mitigation strategy against unplanned downtime in safety-critical zones.

The MS13-22Ex0-R belongs to TURCK’s MS series of DIN rail-mounted switching amplifiers, a product family widely deployed in chemical processing, oil and gas, pharmaceutical manufacturing, and heavy industrial facilities. Its compact form factor, standardized terminal connections, and broad sensor compatibility make it a preferred replacement module when field units exhibit signal drift, output relay failure, or power supply degradation. Procurement engineers sourcing this part should confirm the Ex certification markings and firmware revision against the installed base to ensure full drop-in compatibility without requiring panel rewiring or PLC parameter changes.

At NINERMAS, every MS13-22Ex0-R unit is sourced from authorized distribution channels, subjected to pre-shipment functional testing, and shipped with full documentation. Our 12-month warranty covers manufacturing defects and verified performance against original TURCK specifications, giving maintenance teams confidence in both the part quality and the supply continuity behind it.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault in the MS13-22Ex0-R switching amplifier circuit, the replacement workflow rarely ends with the module itself. The MS13-22Ex0-R sits at the intersection of the field sensor loop and the control cabinet’s safe-area I/O, meaning a thorough inspection of the surrounding components is essential to prevent repeat failures and ensure the restored circuit meets Ex zone safety requirements.

Begin by verifying the 24 V DC supply rail feeding the amplifier. A degraded TURCK NTN or equivalent DIN rail power supply unit can cause intermittent under-voltage conditions that mimic amplifier faults. If the power supply shows output ripple beyond specification or thermal discoloration on its housing, schedule it for replacement alongside the MS13-22Ex0-R. Next, inspect the field wiring from the NAMUR-compatible proximity sensor — cable insulation breakdown or moisture ingress in the Ex zone conduit is a common root cause of repeated amplifier failures. Verify loop resistance and insulation resistance before commissioning the new module.

On the safe-area side, check the I/O module receiving the relay output signal. TURCK FEN20 or BL20 remote I/O modules connected downstream should be inspected for terminal corrosion and firmware currency. If the control system uses a TURCK TBEN or TBPN fieldbus node, confirm that the node’s diagnostic log does not show persistent short-circuit events on the relevant channel, as these events can stress the amplifier’s output relay over time.

During annual shutdown maintenance, it is good practice to audit the full DIN rail assembly in the Ex-interface cabinet. This includes reviewing adjacent TURCK MS series modules such as the MS13-22Ex0 (non-relay variant) and MS96-22Ex0-R for similar wear indicators. Terminal blocks — particularly Phoenix Contact or Weidmüller screw-type terminals used in the same row — should be re-torqued and inspected for oxidation. Surge protection devices on the sensor cable entries, such as TURCK or Pepperl+Fuchs signal isolators and Zener barriers, should be tested for clamping voltage integrity.

For facilities running HART-enabled field devices in the same loop, verify that any HART multiplexer or signal conditioner upstream of the MS13-22Ex0-R is not injecting noise that could cause false switching. If the plant uses a Yokogawa CENTUM VP or Honeywell Experion DCS, confirm that the I/O card’s input threshold settings remain compatible with the relay contact ratings of the replacement module. Fuse holders and miniature circuit breakers protecting the 24 V supply branch should also be tested for correct trip characteristics — a slow-blow fuse rated beyond the amplifier’s inrush tolerance can mask supply anomalies.

Maintaining a minimum stock of two MS13-22Ex0-R units per Ex-interface cabinet, alongside one spare DIN rail power supply and a set of pre-terminated sensor cables, is a practical inventory strategy for facilities with zero-tolerance downtime requirements. Long-term supply agreements with NINERMAS ensure fixed lead times and price stability for multi-year maintenance contracts.

Site Replacement Workflow

Step 1 – Isolation and Permit: Obtain a hot-work or electrical isolation permit as required by site safety procedures. De-energize the 24 V DC supply to the Ex-interface cabinet section containing the MS13-22Ex0-R. Verify absence of voltage with an approved intrinsically safe multimeter.

Step 2 – Documentation: Photograph the existing wiring and terminal assignments before removal. Record the Ex certificate number and hardware revision from the nameplate of the faulty unit. Confirm the replacement MS13-22Ex0-R carries the same or superseding certificate revision.

Step 3 – Removal: Disconnect the removable terminal block from the faulty module. Release the DIN rail locking tab and slide the module clear. Inspect the DIN rail section for corrosion or mechanical damage.

Step 4 – Installation: Clip the replacement MS13-22Ex0-R onto the DIN rail. Reconnect the terminal block, verifying wire seating and torque to TURCK’s specified value (typically 0.5–0.6 Nm for this terminal size). Do not overtighten.

Step 5 – Commissioning: Re-energize the supply. Observe the module’s LED indicators — a steady green power LED and correct output state LED confirm normal operation. Trigger the field sensor manually or via a test magnet to verify relay switching. Log the replacement in the plant’s maintenance management system (CMMS) with the new unit’s serial number.

Step 6 – System Verification: Confirm the control system (PLC/DCS) registers the correct input state change. Clear any latched alarms in the SCADA or DCS historian. Update the spare parts register to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels.

This structured replacement workflow minimizes total downtime to under 30 minutes for a trained technician and ensures the restored circuit meets the original Ex zone safety integrity requirements without requiring re-certification of the installation.

Spare Parts Support FAQ

Q1: Is the MS13-22Ex0-R still available as a new original part, or has it been superseded?
The MS13-22Ex0-R remains available as a service-ready spare through NINERMAS. TURCK periodically updates hardware revisions within the same part number; NINERMAS supplies the current production revision. If your installation requires a specific legacy revision for Ex certificate compliance, contact sale@ninermas.com with your certificate reference number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing does NINERMAS perform on the MS13-22Ex0-R?
Each unit undergoes functional verification including supply voltage input range testing, NAMUR sensor loop simulation, relay output switching confirmation, and LED status indicator check. Units that do not meet TURCK’s published specifications are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q3: Can the MS13-22Ex0-R replace older TURCK MS series variants in an existing Ex-certified panel?
In most cases, yes — provided the replacement unit carries an Ex certificate that covers the same or equivalent protection concept as the original. However, Ex panel modifications may require re-verification by a competent person under IEC 60079-14. NINERMAS recommends consulting your site’s Ex inspection authority before substituting a different hardware revision in a certified panel. We can provide full documentation to support this process.

Q4: What are NINERMAS’s long-term supply terms for the MS13-22Ex0-R?
NINERMAS supports long-term spare parts programs with fixed-price annual supply agreements, priority allocation for contracted customers, and a 12-month warranty on all shipped units. For facilities managing aging TURCK MS series installations with 5–15 year lifecycle horizons, we recommend establishing a blanket order to secure stock and pricing. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.
