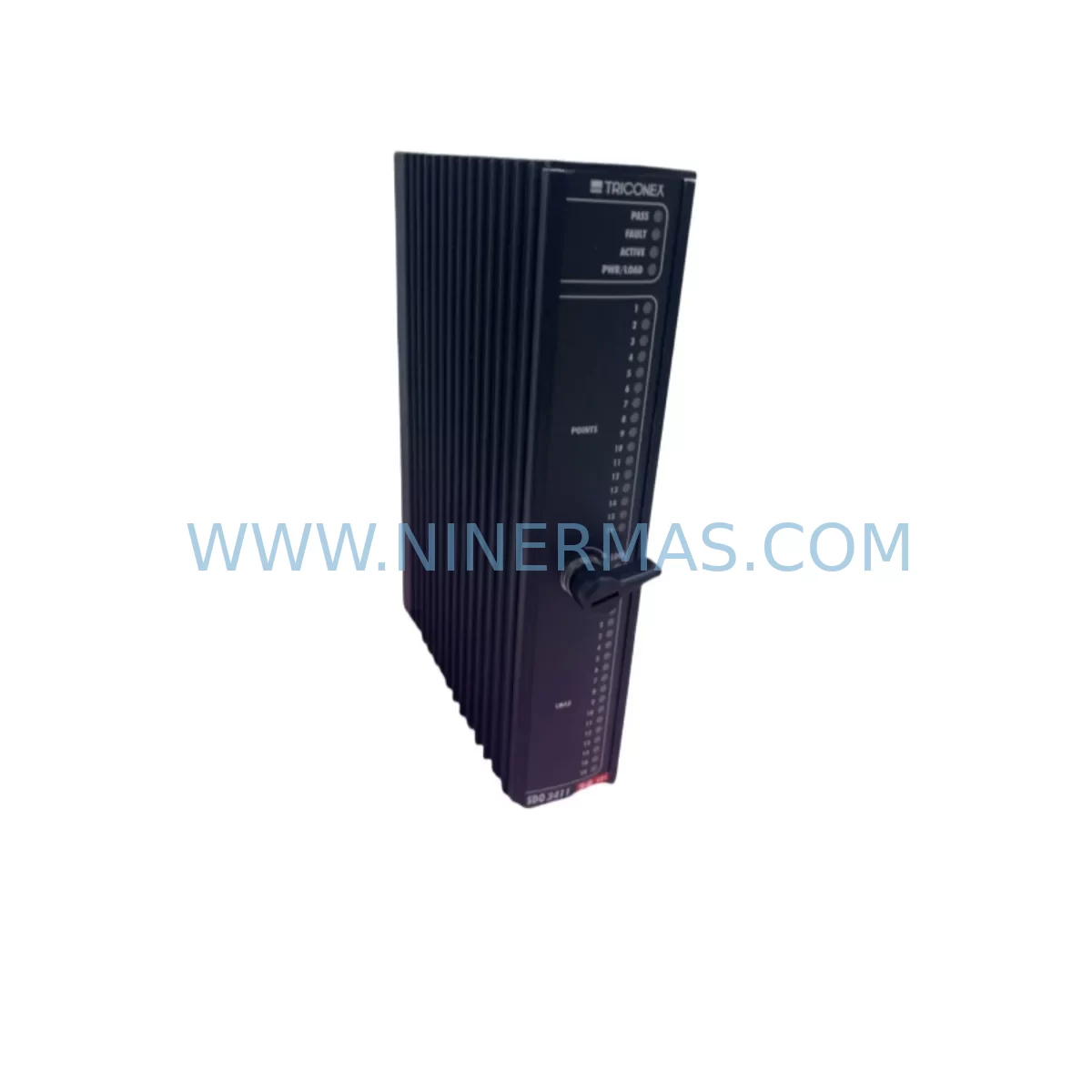

Triconex SDO3411 S2 Safety-Reliable Digital Output Module

Triconex SDO3411 S2 Safety-Reliable Digital Output Module for Critical Control Sites

The Triconex SDO3411 S2 is a safety-rated digital output module engineered for deployment in the most demanding industrial control environments. Designed as a core component of the Triconex Safety System architecture, this module delivers deterministic, fault-tolerant output control across critical process industries including petrochemical, power generation, mining, water treatment, metallurgy, port logistics, marine, and continuous manufacturing. Where unplanned shutdowns carry catastrophic consequences, the SDO3411 S2 provides the output integrity that safety engineers and plant operators depend on.

Built to operate within Triconex’s Triple Modular Redundancy (TMR) platform, the SDO3411 S2 continuously cross-checks output states across three independent processing channels. Any discrepancy is detected and corrected before it can propagate to field devices, eliminating the risk of spurious trips or undetected output failures in safety instrumented functions (SIF). This architecture makes it an ideal choice for Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), and critical interlock loops where IEC 61511 and IEC 61508 compliance is mandatory.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a high-stakes control cabinet serving a refinery ESD loop or a power plant turbine protection system, every component in the safety chain must perform without compromise. The Triconex SDO3411 S2 anchors the output layer of this chain, but its reliability is amplified when paired with complementary Triconex and system-level components.

On the input side, the Triconex SDI3300 S2 digital input module feeds verified field signals into the TMR processor, ensuring that the SDO3411 S2 only acts on validated, cross-checked data. The Triconex MP3008 Main Processor executes the safety logic at the heart of the system, coordinating all I/O modules including the SDO3411 S2 with microsecond-level determinism. For analog process variables such as pressure, temperature, and flow, the Triconex SAI3300 S2 analog input module provides the high-resolution signal conditioning needed to feed accurate data into the safety logic solver.

Power integrity is equally critical. The Triconex TCM4351 Communication Module maintains real-time data exchange between the safety controller and the DCS or SCADA layer, ensuring that operators always have accurate system status even during fault conditions. Redundant power supply modules — such as the Triconex 8312 power supply — provide the stable, filtered DC power that the SDO3411 S2 and its companion modules require to sustain output integrity during grid disturbances, voltage sags, or switching transients common in heavy industrial environments.

In cabinets exposed to high electromagnetic interference — such as those located near variable frequency drives (VFDs), large motor starters, or arc furnaces — the SDO3411 S2’s built-in surge suppression and EMI-hardened design prevent signal drift and false output activation. When combined with proper cabinet grounding, shielded field wiring, and surge protection devices on incoming power rails, the module forms part of a comprehensive electromagnetic compatibility (EMC) strategy that protects the entire safety loop from interference-induced faults.

For communication-layer protection, the Triconex 4351B Enhanced Intelligent Communication Module (EICM) supports redundant Modbus and proprietary Triconex protocols, maintaining control system communications even when one communication path is degraded. This ensures that the SDO3411 S2’s output states are always accurately reflected in the supervisory system, supporting both normal operations and emergency response scenarios.

Facilities managing spare parts programs will benefit from stocking the SDO3411 S2 alongside related modules such as the Triconex SDO3401 and SDO3421 output modules, which share similar form factors and backplane interfaces, simplifying technician training and reducing mean time to repair (MTTR) during unplanned maintenance events.

Critical Industrial Safety Applications

The Triconex SDO3411 S2 is deployed across a wide spectrum of critical industrial applications where output reliability directly impacts personnel safety, environmental protection, and asset integrity.

In petrochemical and refining facilities, the module drives solenoid valves, motor contactors, and shutdown actuators in ESD and HIPPS systems. Its SIL 3 rating satisfies the functional safety requirements of processes handling flammable, toxic, or high-pressure fluids, where a single output failure could trigger a major incident.

In power generation — including thermal, nuclear, and renewable energy plants — the SDO3411 S2 controls turbine trip systems, generator protection relays, and auxiliary shutdown circuits. The TMR architecture ensures that no single component failure can prevent a required protective action or cause a spurious trip that takes a generating unit offline unnecessarily.

In mining and mineral processing, the module operates in environments characterized by heavy vibration, airborne dust, and wide temperature swings. Its ruggedized design and continuous self-diagnostics allow it to maintain reliable output control for conveyor interlocks, crusher protection systems, and ventilation safety circuits without requiring frequent manual inspection.

In water and wastewater treatment plants, the SDO3411 S2 manages pump protection, chemical dosing interlocks, and overflow prevention systems. Its ability to operate reliably in humid, chemically aggressive environments makes it well-suited for both indoor pump stations and outdoor field control panels.

In metallurgical and steel production facilities, where high-current equipment, induction furnaces, and rolling mill drives generate extreme electromagnetic noise, the module’s EMI resistance ensures that output commands to cooling water valves, furnace safety dampers, and emergency stop circuits are executed accurately and without interference-induced errors.

In port and marine applications, the SDO3411 S2 supports cargo handling safety systems, mooring winch protection, and fire and gas suppression activation circuits aboard vessels and at terminal facilities, where saltwater corrosion resistance and vibration tolerance are essential for long-term reliability.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Triconex SDO3411 S2?
All Triconex SDO3411 S2 modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions. Our technical team provides replacement support and failure analysis documentation to assist with plant maintenance records and insurance requirements.

Q2: What pre-shipment testing is performed on each SDO3411 S2 unit?
Every SDO3411 S2 module undergoes functional verification testing prior to shipment, including output channel continuity checks, power-on self-test validation, and visual inspection for physical integrity. Units sourced from original manufacturer stock or certified refurbishment channels are tested to confirm they meet Triconex factory specifications before dispatch.

Q3: Is the SDO3411 S2 compatible with existing Triconex Tricon chassis and software versions?
The SDO3411 S2 is designed for use within the Triconex Tricon TMR platform and is compatible with standard Triconex main chassis configurations. Compatibility with specific TriStation 1131 software versions and chassis revisions should be confirmed against your system’s hardware and software baseline. NINERMAS technical support can assist with compatibility verification prior to purchase.

Q4: Can NINERMAS support long-term supply and emergency replacement needs for the SDO3411 S2?
Yes. NINERMAS maintains inventory of the Triconex SDO3411 S2 and related Triconex safety system modules to support both planned maintenance schedules and emergency replacement requirements. We understand that safety system spare parts availability is a critical element of plant risk management, and we are committed to providing reliable, traceable supply with short lead times for urgent operational needs.
