Triconex 8306E Retrofit-Compatible Communication Module

Triconex 8306E Retrofit-Compatible Communication Module for Legacy TMR Systems

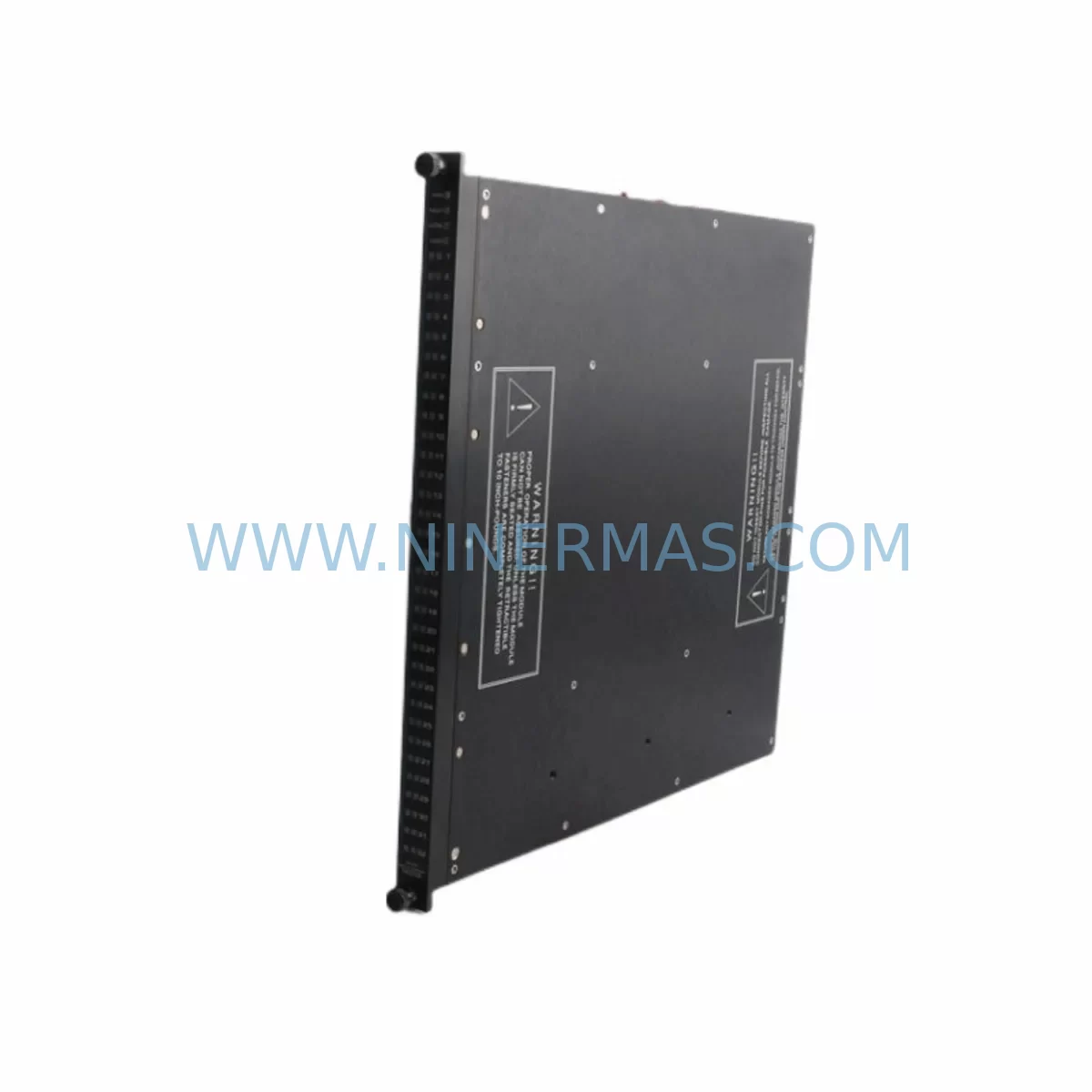

The Triconex 8306E is a communication module designed for use within the Triconex Triple Modular Redundant (TMR) safety system architecture — one of the most widely deployed safety-critical control platforms in oil & gas, petrochemical, power generation, and chemical processing industries. As legacy Tricon systems approach end-of-life and original spare parts become increasingly scarce, the 8306E has become a critical component in retrofit planning, system life extension, and unplanned downtime recovery strategies.

NINERMAS maintains verified stock of the Triconex 8306E, fully tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification to confirm communication integrity, backplane interface compatibility, and module addressing before dispatch — ensuring your replacement program proceeds without delay.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the Triconex 8306E within an operating TMR safety system requires careful coordination across multiple subsystems. Maintenance engineers and procurement teams should treat this replacement as part of a broader retrofit review rather than an isolated module swap.

Before installing the 8306E, confirm that the Tricon main chassis backplane is free of corrosion or connector damage — a degraded backplane can cause intermittent communication faults even with a new module installed. Inspect the Tricon Power Module (such as the 8310 or 8311 series) to verify that chassis power rails are within specification; an under-voltage condition on the backplane can prevent the communication module from initialising correctly.

Communication continuity is critical in TMR architectures. When replacing the 8306E, verify the status of the Triconex 4351B or 4352B Enhanced Intelligent Communication Module (EICM) if your system uses peer-to-peer or host communication links. These modules handle Modbus, TSAA, or OPC data paths that may be affected during the replacement window. Similarly, confirm that the TriStation 1131 programming cable and associated workstation software are available on-site to re-establish the communication link and verify module addressing post-installation.

For systems using Tricon I/O modules — including digital input modules such as the 3501E or 3503E, and digital output modules such as the 3601E or 3603E — verify that I/O scan rates and module addresses remain consistent after the communication module is reseated. Address conflicts introduced during a module swap are a common source of post-maintenance alarms.

If the system interfaces with a DeltaV SIS or third-party safety instrumented system via hardwired I/O or serial links, confirm that the communication handshake parameters (baud rate, parity, stop bits) are documented before removal. Restoration of these parameters after the 8306E replacement is essential to avoid nuisance trips or loss of safety function confirmation signals.

Procurement engineers sourcing the 8306E as part of an annual maintenance kit should also consider stocking the Triconex 8305E Main Processor Module and 8312 Termination Panel as companion spares. These components share the same chassis environment and are subject to similar wear cycles in high-availability installations. Holding buffer stock of these items alongside the 8306E reduces the risk of extended downtime if a secondary fault occurs during or after the communication module replacement.

For facilities operating older Tricon v9 or v10 chassis, confirm that the 8306E firmware revision is compatible with the installed system software version. NINERMAS technical support can assist with firmware revision identification prior to order confirmation.

Downtime Control During System Migration

The Triconex TMR architecture is designed to tolerate single-module faults without loss of safety function, which provides a controlled window for communication module replacement. However, minimising total downtime during the 8306E swap requires disciplined pre-work.

Begin by exporting the current TriStation 1131 project file and saving a timestamped backup to an offline workstation. This preserves the full program logic, I/O configuration, module addressing, and communication parameters — ensuring that if the replacement module requires re-commissioning, the restoration baseline is immediately available.

Coordinate the replacement during a planned low-production window or scheduled maintenance outage. Notify the control room operator before removing the 8306E so that any communication loss alarms are acknowledged and not misinterpreted as a process fault. After installation, use the TriStation diagnostic interface to confirm that the replacement module is recognised by the TMR voter logic and that all three legs of the redundant system are reporting healthy status.

Where the 8306E supports a Modbus TCP or serial Modbus link to an HMI panel or SCADA historian, verify that the communication path is restored and that tag values are updating correctly before returning the system to normal operation. A brief functional test of critical safety interlock signals — including emergency shutdown (ESD) confirmation and process trip outputs — should be completed before sign-off.

NINERMAS ships the Triconex 8306E with full pre-shipment test documentation. Lead times are confirmed at order placement, and express logistics options are available for emergency replacement scenarios. Long-term supply agreements are supported for facilities with recurring maintenance cycles.

Retrofit Support FAQ

Q1: Is the Triconex 8306E a direct drop-in replacement for the 8306 and 8306A?
In most cases, yes — the 8306E is the enhanced revision of the 8306 series and is physically and electrically compatible with the same chassis slot. However, firmware compatibility with your installed TriStation software version should be confirmed before installation. NINERMAS can assist with revision identification prior to shipment.

Q2: Does NINERMAS test the 8306E before shipping?
Yes. Every Triconex 8306E unit is functionally tested prior to dispatch, including backplane interface verification and communication initialisation checks. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can you supply the 8306E as part of a long-term spare parts agreement?
Yes. NINERMAS supports scheduled spare parts programs for Triconex TMR systems, including the 8306E and companion modules. Contact our team to discuss inventory reservation, lead time commitments, and multi-shipment supply arrangements aligned with your maintenance calendar.

Q4: What information should I provide when ordering the 8306E?
Please provide your Tricon chassis model, installed TriStation software version, current firmware revision of the module being replaced, and any communication protocol details (Modbus, TSAA, peer-to-peer). This allows NINERMAS to confirm compatibility and prepare the correct revision for shipment without delay.
