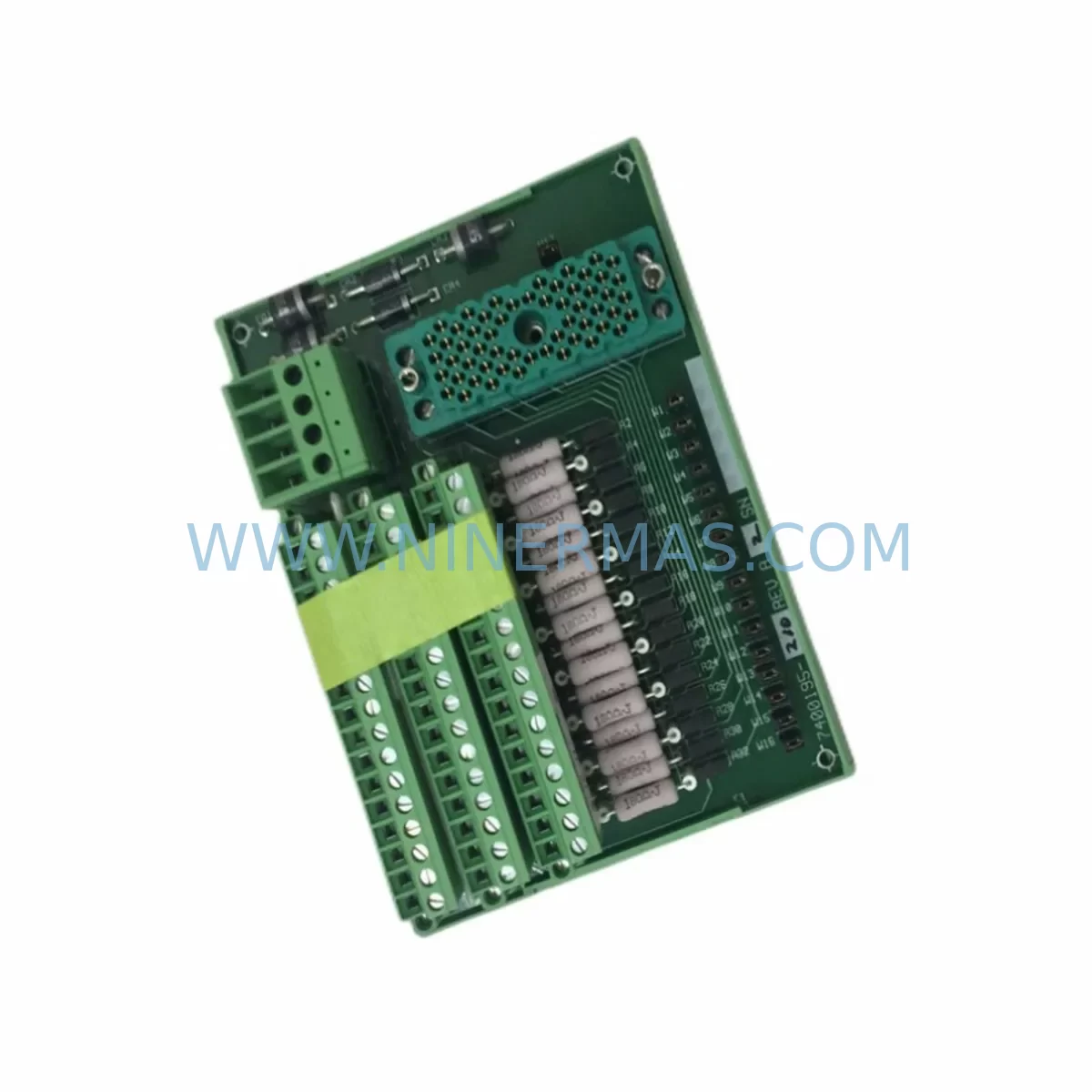

The Triconex 7400169-310 (9962-1XX) is a retrofit-compatible terminal module engineered for seamless integration into existing Tricon safety system architectures. As legacy Triconex platforms approach end-of-life and original spare parts become increasingly scarce, the 7400169-310 serves as a validated drop-in replacement that preserves your existing wiring infrastructure, backplane connections, and safety logic without requiring a full system overhaul. NINERMAS maintains verified stock of this module to support planned maintenance windows, emergency replacements, and long-term spare parts programs across global industrial facilities.

Whether you are managing a refinery control room, a chemical plant safety instrumented system (SIS), or a power generation facility running Tricon-based emergency shutdown (ESD) logic, the 7400169-310 terminal assembly is a critical interface component that bridges field wiring to the Tricon chassis. Its compatibility with the Tricon 9962-1XX terminal panel family means that existing cable harnesses, marshalling cabinets, and field junction boxes can remain untouched during the swap — dramatically reducing both downtime exposure and re-commissioning effort.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Triconex 7400169-310 begins well before the physical swap. Engineers responsible for the migration should first audit the existing Tricon chassis configuration, confirming the slot assignment of the terminal panel and verifying that the associated Tricon I/O module — such as a digital input module (e.g., 3501E or 3503E series) or analog input module (e.g., 3700A series) — remains serviceable. The terminal panel interfaces directly with these I/O modules via the backplane, so any signs of backplane connector wear or corrosion should be addressed concurrently.

Power budget verification is equally important. The Tricon Power Supply Module (such as the 8310 or 8312 series) must be confirmed to have sufficient headroom to support the replacement terminal assembly alongside all co-installed modules. In aging control cabinets, accumulated load from additional I/O expansions or communication modules can push the power supply close to its rated capacity. A pre-retrofit load calculation prevents unexpected shutdowns during the commissioning phase.

Terminal wiring documentation must be reviewed against the original as-built drawings. The 9962-1XX terminal panel uses a specific screw-terminal layout that maps field signals to the Tricon I/O module’s channel assignments. Technicians should verify each terminal’s signal type (discrete, analog, HART), confirm shield grounding continuity, and label all conductors before disconnection. This step is especially critical in facilities where the original wiring was installed decades ago and documentation may be incomplete.

For facilities running TriStation 1131 programming software, the module address and I/O channel mapping should be exported and archived before the retrofit begins. In most cases, the 7400169-310 replacement does not require changes to the application program, but the TriStation project file should be available on-site for reference. If the facility is also upgrading from an older Tricon MP (Main Processor) — such as the 4351B or 4352B — to a newer model, the program compatibility check becomes mandatory, as newer MPs may require updated I/O driver libraries.

Communication infrastructure should also be reviewed. If the Tricon system communicates with a DCS or SCADA platform via Modbus TCP, OPC DA/UA, or a dedicated Triconex Enhanced Intelligent Communication Module (EICM), the network configuration should be documented and tested post-retrofit. In some installations, a Tricon Communication Module (TCM) handles peer-to-peer safety network links; these links must remain active throughout the terminal swap to avoid nuisance trips in the safety logic.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy Tricon v9 system to a Tricon v10 or Tricon CX platform — the 7400169-310 terminal panel may serve as an interim component while the full migration is staged across multiple planned outages. In this scenario, the terminal panel’s compatibility with both the legacy backplane and the new chassis should be confirmed with NINERMAS technical support prior to ordering.

Signal isolators and Zener barriers installed between the field junction box and the terminal panel should be inspected and replaced if they show signs of degradation. These passive safety components protect the Tricon I/O channels from field-side overvoltage events and are often overlooked during terminal panel replacements. Similarly, any marshalling cabinet cross-wiring or intermediate terminal blocks should be verified for correct labelling and continuity.

For HMI integration, facilities using Wonderware InTouch, Ignition SCADA, or a Yokogawa/Honeywell DCS as the operator interface should confirm that the I/O tag database reflects the correct channel assignments after the retrofit. In most cases, no HMI changes are required when the terminal panel is replaced on a like-for-like basis, but a post-retrofit I/O scan is recommended to verify all field signals are reading correctly before returning the system to normal operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a terminal panel in a live safety system. NINERMAS recommends a structured pre-outage preparation protocol to compress the actual replacement window to the shortest possible duration.

Pre-Outage Preparation: All replacement components — including the 7400169-310 terminal panel, spare terminal screws, and any associated gaskets or mounting hardware — should be staged and inspected at least 48 hours before the planned maintenance window. The TriStation 1131 project file should be loaded on a laptop and verified against the current controller revision. A full I/O force table should be prepared to allow manual override of critical outputs during the swap if required by the site’s safety management of change (MOC) procedure.

Protecting Existing Program Logic: The Tricon TMR (Triple Modular Redundant) architecture provides inherent fault tolerance, but a terminal panel replacement still requires a controlled shutdown of the affected I/O leg. Before disconnecting field wiring, the maintenance team should confirm that the Tricon voter logic is operating correctly on the remaining two legs and that no pre-existing faults are masking the true system state. The TriStation diagnostic display should show all three legs in a healthy state before proceeding.

Maintaining Field Control Continuity: In process plants where the Tricon ESD system is interlocked with a Distributed Control System (DCS) — such as an Emerson DeltaV, ABB 800xA, or Siemens PCS 7 — the DCS operator should be notified before the terminal panel swap begins. Relevant interlock bypasses should be applied in accordance with the site’s bypass management procedure, and a dedicated field operator should be stationed at the process unit to monitor conditions manually during the replacement window.

Post-Retrofit Verification: After the 7400169-310 is installed and field wiring is reconnected, a systematic channel-by-channel I/O verification should be performed using TriStation’s online diagnostic tools. Each field signal should be confirmed at the terminal, at the I/O module channel, and at the HMI display. Communication links to the DCS and any peer Tricon controllers should be verified as active before the bypass is lifted and the system is returned to normal protective mode.

NINERMAS ships all Triconex modules with a pre-shipment functional test report. This documentation confirms that the 7400169-310 has been powered, addressed, and verified against its original specification prior to dispatch, reducing the risk of a DOA (dead-on-arrival) component causing an extended outage.

Retrofit Support FAQ

Q1: Is the Triconex 7400169-310 a direct replacement for the 9962-1XX terminal panel series?
Yes. The 7400169-310 is the correct replacement assembly for the Triconex 9962-1XX terminal panel family. It retains the same mechanical footprint, terminal layout, and backplane connector interface, allowing existing field wiring to remain connected without modification in the vast majority of installations. NINERMAS recommends verifying the terminal layout against your as-built drawings before installation.

Q2: Do I need to modify my TriStation 1131 program after replacing the terminal panel?
In most cases, no program changes are required for a like-for-like terminal panel replacement. The 7400169-310 does not alter the I/O channel mapping or module addressing visible to the Tricon MP. However, if the replacement is being performed as part of a broader platform upgrade (e.g., migrating to a Tricon CX or updating the MP firmware), a program compatibility review with your Triconex system integrator is recommended.

Q3: What is the lead time and warranty coverage for the 7400169-310?
NINERMAS maintains in-stock inventory of the Triconex 7400169-310 for immediate dispatch. Standard global shipping via DHL, FedEx, or UPS Express is available, with typical transit times of 3–7 business days depending on destination. All units are covered by a 12-month warranty from the date of shipment, backed by NINERMAS quality assurance and a pre-shipment functional test report.

Q4: Can NINERMAS support a long-term spare parts program for Triconex legacy components?
Yes. NINERMAS specializes in long-lifecycle spare parts programs for discontinued and end-of-life industrial automation components, including the full Triconex Tricon, Trident, and Tri-GP product families. We can provide multi-year supply agreements, bonded stock arrangements, and technical consultation for facilities planning phased migrations away from legacy Triconex platforms. Contact our team to discuss your specific inventory and lifecycle requirements.
