Triconex 3564 Service-Ready Spare Part for Industrial Maintenance

Triconex 3564 Service-Ready Spare Part for Industrial Maintenance

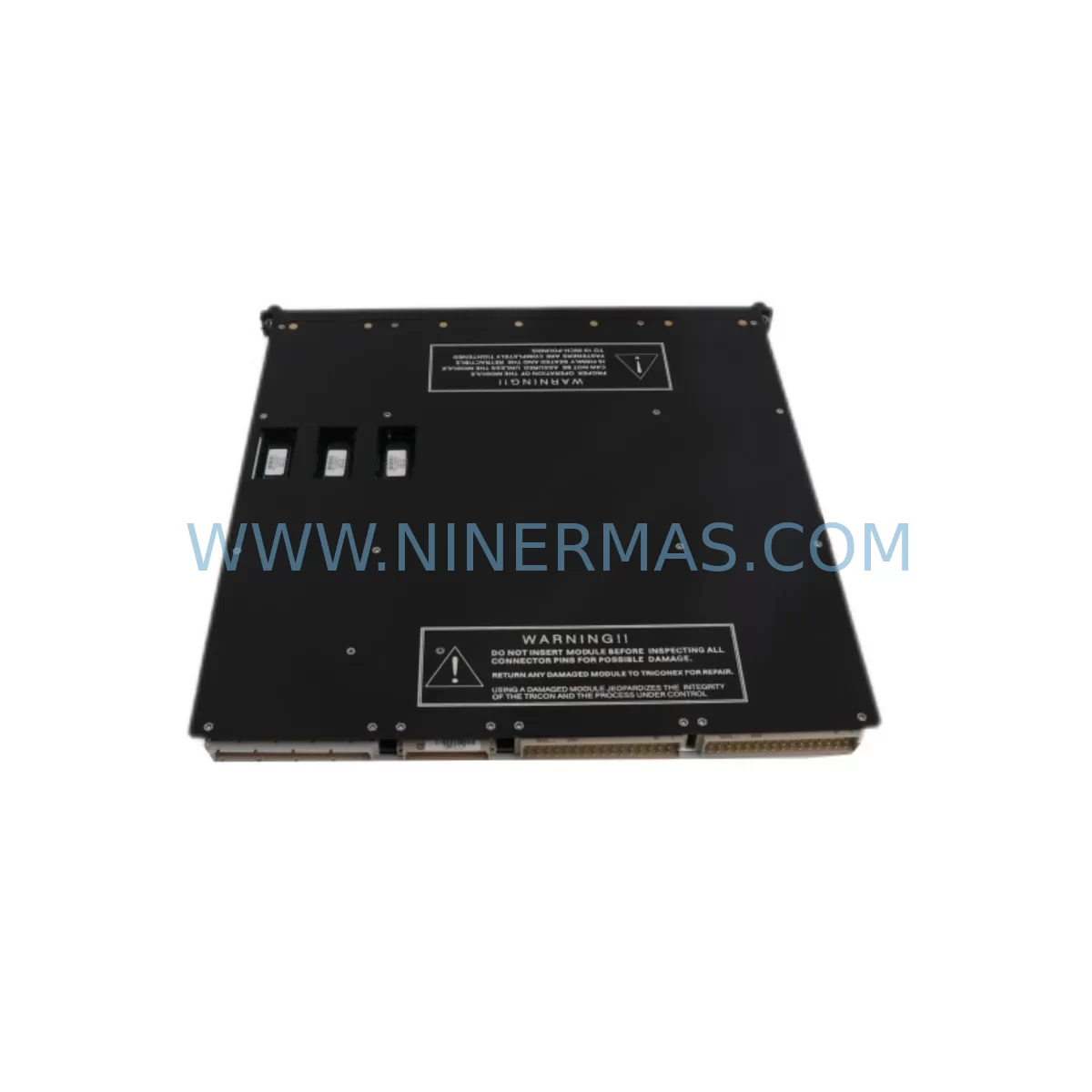

The Triconex 3564 is a ruggedized digital input module engineered for use within Triconex Triple Modular Redundant (TMR) safety instrumented systems. Designed to operate reliably in harsh industrial environments — including oil & gas processing, petrochemical plants, power generation facilities, and offshore platforms — the 3564 module delivers high-integrity discrete input acquisition for safety-critical control loops. When a 3564 fails or reaches end-of-service life, rapid replacement is essential to restore SIS functionality and prevent unplanned process shutdowns. NINERMAS maintains verified stock of the Triconex 3564 to support emergency callouts, planned turnarounds, and long-term spare parts programs.

Maintenance engineers managing Triconex TMR chassis should treat the 3564 as a priority line item in their annual spare parts budget. Field experience shows that digital input modules in high-cycle or high-vibration environments are among the first components to exhibit degraded signal integrity, intermittent faults, or diagnostic alarms. Proactive replacement during scheduled outages — rather than reactive swap-out during a trip event — significantly reduces mean time to repair (MTTR) and protects process uptime. Each NINERMAS-supplied 3564 module undergoes pre-shipment functional testing and ships with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a Triconex 3564 digital input module is rarely an isolated task. A thorough site inspection and cabinet audit should accompany any 3564 swap to ensure the surrounding system remains in full health. Maintenance engineers should begin by verifying the integrity of the Tricon 3703E or 3721 power supply modules feeding the chassis — degraded DC bus voltage is a common root cause of spurious input faults that are incorrectly attributed to the input module itself. Confirm that all field wiring terminations at the 3000-series terminal panels (such as the 3805E or 3808 termination assemblies) are tight, corrosion-free, and within specified torque values.

While the chassis is open, inspect the Tricon 4351B or 4352B communication modules for firmware currency and connector seating — communication faults can mask genuine input module diagnostics and complicate fault isolation. If the system includes Tricon 3511 or 3503 analog input modules in adjacent slots, verify that their field-side signal levels are within calibrated range, as cross-slot interference has been documented in older chassis revisions. Check the Tricon 3625 or 3604E digital output modules associated with the same safety loop to confirm output coil continuity and relay contact resistance remain within specification.

For sites running Triconex systems integrated with a Tristation 1131 engineering workstation, ensure the project database and I/O configuration files are backed up before any module replacement. After installing the 3564, perform a full diagnostic scan from Tristation to confirm the new module is recognized, all 32 input channels report correctly, and no latent faults are present. Where field instruments connect through signal isolators or intrinsic safety barriers — particularly in Zone 1 or Zone 2 classified areas — verify barrier resistance and leakage current remain within the instrument manufacturer’s loop budget. Finally, review the Tricon chassis backplane connectors for pin damage or oxidation, as backplane contact issues can cause intermittent module seating faults that are difficult to distinguish from module failures in the field.

Site Replacement Workflow

The Triconex 3564 is designed for hot-swap replacement within a live TMR chassis, allowing maintenance teams to restore full triple-redundant input integrity without a full system shutdown. The recommended replacement sequence is as follows:

1. Pre-Replacement Verification: Confirm the replacement 3564 part number and firmware revision match the installed module. Cross-reference the Tristation I/O configuration to identify which input channels are active and which field instruments are connected. Notify the control room operator and obtain a permit-to-work before proceeding.

2. Module Extraction: Using the Tricon module extraction tool, carefully unseat the faulty 3564 from its chassis slot. Avoid applying lateral force to the backplane connector. Tag and bag the removed module with the fault description, date, and plant tag number for warranty return or failure analysis.

3. Module Installation: Seat the replacement 3564 firmly until the front-panel latch engages. The TMR system will automatically synchronize the new module into the voting logic within seconds. Monitor the Tristation diagnostic display to confirm the module transitions from “Initializing” to “OK” status.

4. Post-Installation Validation: Perform a channel-by-channel input verification by exercising each connected field device (or using a loop calibrator for dry-contact simulation). Confirm all 32 channels report the correct state in Tristation. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

5. Spare Parts Replenishment: After consuming a 3564 from site stock, initiate a replenishment order immediately to maintain the recommended minimum on-hand quantity. For critical SIS applications, NINERMAS recommends holding at least one spare 3564 per installed chassis, with a second unit available for multi-chassis sites. Contact NINERMAS to establish a long-term supply agreement with priority allocation and fixed pricing.

Spare Parts Support FAQ

Q1: Is the NINERMAS-supplied Triconex 3564 compatible with all Tricon chassis versions?
The 3564 is compatible with Tricon v9, v10, and v11 main chassis as well as Tricon CX configurations. For legacy v8 or earlier chassis, please contact our technical team to confirm slot and backplane compatibility before ordering. We recommend providing your chassis model number and current firmware version when enquiring.

Q2: What pre-shipment testing is performed on the 3564 before delivery?
Every 3564 unit supplied by NINERMAS undergoes functional I/O verification testing prior to shipment. This includes channel-level input signal testing, backplane connector inspection, and visual inspection for physical damage. A test report is available upon request. Units ship in anti-static packaging with protective slot covers to prevent transit damage.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and operational failures under normal service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sale@ninermas.com with the order reference, fault description, and site installation details. NINERMAS will arrange return logistics and provide a replacement or credit note within the agreed lead time.

Q4: Can NINERMAS support a long-term spare parts supply agreement for the Triconex 3564?
Yes. NINERMAS offers long-term supply agreements for critical spare parts including the 3564, with options for reserved stock allocation, fixed annual pricing, and priority dispatch for emergency orders. This is particularly valuable for sites managing aging Triconex TMR systems where OEM availability is declining. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss a tailored spare parts program.
