Triconex 3006 Service-Ready Spare Part for Industrial Maintenance

Triconex 3006 Service-Ready Spare Part for Industrial Maintenance

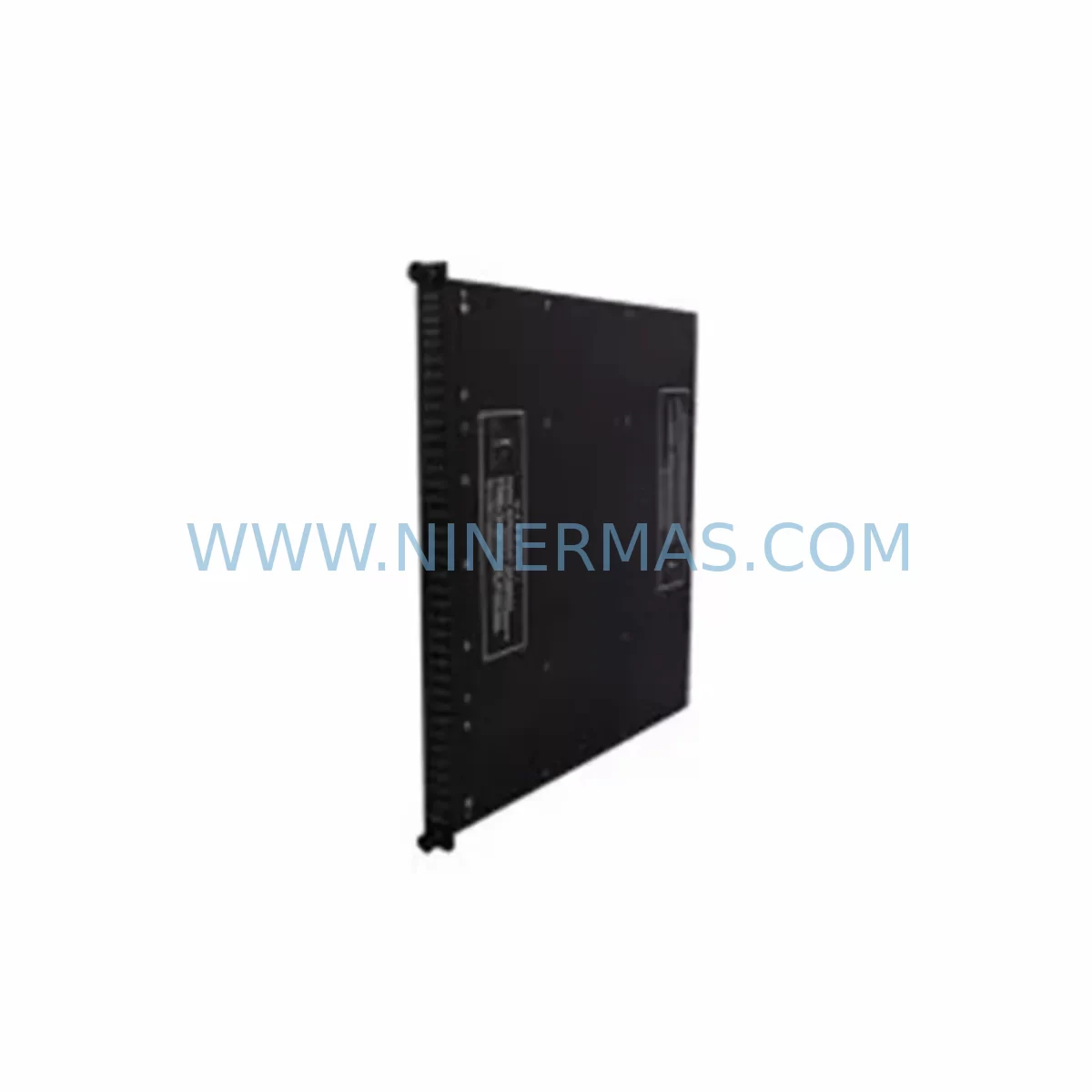

The Triconex 3006 is the main processor module designed for the Tricon v8 Series Safety Instrumented System (SIS), one of the most widely deployed triple modular redundant (TMR) platforms in process safety and industrial automation. For maintenance engineers managing aging safety systems, the 3006 represents a mission-critical component — its failure or degradation can directly impact system availability, process safety integrity, and regulatory compliance. Sourcing a verified, service-ready replacement unit is not optional; it is a fundamental part of any responsible spare parts strategy for facilities running Tricon v8 architecture.

At NINERMAS, every Triconex 3006 unit is inspected, tested, and shipped with full documentation to support fast field replacement and minimize unplanned downtime. Whether you are responding to a live fault, building a critical spare inventory, or executing a planned annual shutdown, this module is available for immediate dispatch with a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Triconex 3006 main processor module is flagged for replacement — whether through a diagnostic alarm, a scheduled inspection, or a post-incident review — experienced maintenance engineers know that the processor is rarely the only component that warrants attention. A thorough site assessment during the same maintenance window can prevent secondary failures and reduce the risk of repeat shutdowns.

Begin with the Triconex power supply modules that feed the Tricon chassis. Power anomalies are a leading cause of processor stress and premature failure; verifying output voltage stability and ripple tolerance before reinstalling a new 3006 is standard practice. Inspect the Tricon chassis backplane for signs of oxidation, connector wear, or physical damage — a degraded backplane can cause intermittent communication faults that are often misdiagnosed as processor failures.

Next, review the Triconex I/O modules installed in the same chassis. Digital input modules, analog input modules, and digital output modules should be checked for fault indicators and calibration drift, particularly in high-cycle or high-temperature environments. If the system includes Triconex communication modules — such as those handling Modbus, HART, or proprietary TriBus protocols — verify that firmware versions remain compatible with the replacement 3006 and that communication integrity is confirmed after module swap.

For facilities using Triconex Enhanced Intelligent Controller (EICM) or Advanced Communication Module (ACM) alongside the 3006, ensure that the network configuration and node addressing are documented before any module is removed. Reconfiguration errors during emergency replacements are a common source of extended downtime.

Relay output modules and terminal assembly panels connected to the Tricon I/O should also be inspected during the same maintenance event. Loose terminations, corroded terminals, or degraded relay contacts can introduce signal errors that compromise the integrity of the safety function even after a successful processor replacement. Where signal isolators or Zener barriers are used in intrinsically safe circuits feeding the Tricon inputs, verify isolation resistance and barrier integrity as part of the loop check procedure.

If the facility operates a Triconex Trident or Tricon CX system in parallel with the Tricon v8, cross-reference spare part compatibility carefully — module form factors may appear similar but are not interchangeable. Maintaining a clearly labeled, segregated spare parts cabinet with dedicated inventory for each platform eliminates substitution errors under pressure.

Finally, if an HMI or engineering workstation running TriStation 1131 is used for system programming and diagnostics, confirm that the software version supports the firmware loaded on the replacement 3006. Firmware mismatches between the processor and the programming environment can prevent successful download and cause unnecessary delays during commissioning after replacement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the fault is isolated to the 3006 processor using Triconex diagnostic tools. Document the current system configuration, firmware revision, and I/O mapping before proceeding. Ensure the replacement unit carries a matching or compatible firmware baseline.

Step 2 — Safe Isolation: Follow site-specific safety procedures and the Triconex hardware installation guide. The Tricon v8 TMR architecture supports online module replacement (hot-swap) under defined conditions — verify with your system integrator whether a controlled shutdown is required for your specific installation.

Step 3 — Module Swap: Remove the faulty 3006 from its chassis slot. Install the replacement unit, ensuring full seating and connector engagement. The TMR architecture will automatically synchronize the new processor with the remaining two legs upon power-up.

Step 4 — Post-Replacement Validation: Run a full system diagnostic from TriStation 1131. Confirm all three processor legs are synchronized and reporting healthy status. Verify I/O module communication, check for any latent alarms, and perform a functional test of critical output channels before returning the system to service.

Step 5 — Documentation and Inventory Update: Record the replacement in the site maintenance log. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain minimum stock levels. A single critical spare on the shelf is not a strategy — two units is the recommended minimum for Tier 1 safety systems.

Spare Parts Support FAQ

Q1: Is the Triconex 3006 still available as a new original unit, and what is the lead time?
The Triconex 3006 has reached end-of-active-production, but NINERMAS maintains stock of original and OEM-refurbished units that have been fully tested to factory specifications. Lead time for in-stock units is typically same-day to next-business-day dispatch. For bulk or long-term supply agreements, contact our team to discuss dedicated inventory reservation.

Q2: How do I verify compatibility between the replacement 3006 and my existing Tricon v8 system?
Compatibility depends primarily on the chassis revision and firmware version running on your existing processor legs. Before ordering, provide your current system firmware revision and chassis model. NINERMAS technical support can cross-reference this against the replacement unit’s firmware baseline and advise on any upgrade requirements prior to installation.

Q3: What testing is performed on each unit before shipment?
Every Triconex 3006 unit dispatched by NINERMAS undergoes functional power-on testing, communication interface verification, and visual inspection for physical integrity. Units are shipped with test records and are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide priority replacement to minimize your downtime exposure.

Q4: Can NINERMAS support long-term supply for facilities with multiple Tricon v8 systems?
Yes. NINERMAS specializes in long-term spare parts support for legacy and end-of-life industrial automation platforms. We offer blanket purchase agreements, dedicated stock reservation, and multi-site supply coordination for facilities managing large Triconex installed bases. Contact our procurement team to discuss a customized supply arrangement aligned with your annual maintenance calendar.
