Toshiba MG30G6EL2 Service-Ready Spare Part for Industrial Maintenance

Toshiba MG30G6EL2 Service-Ready Spare Part for Industrial Maintenance

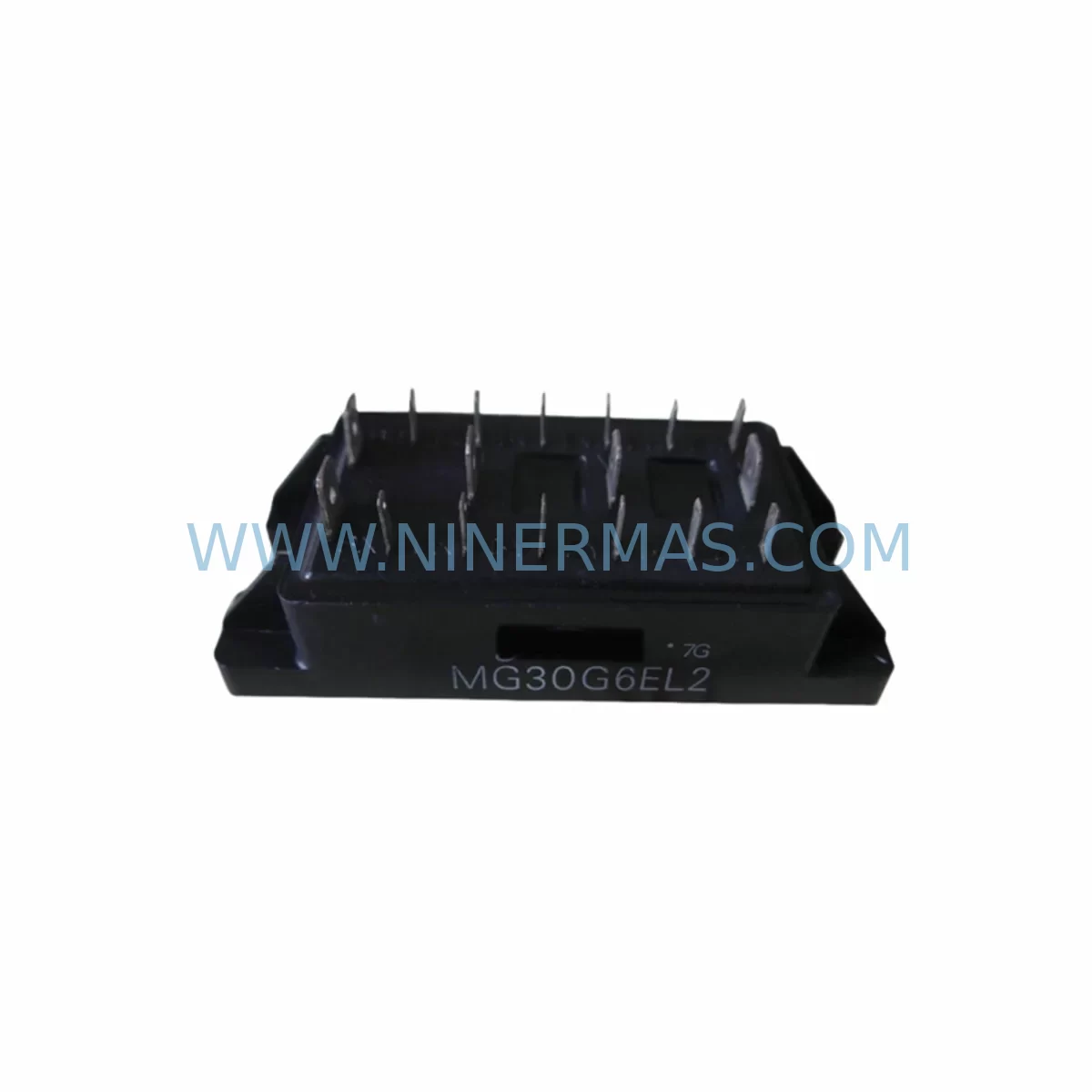

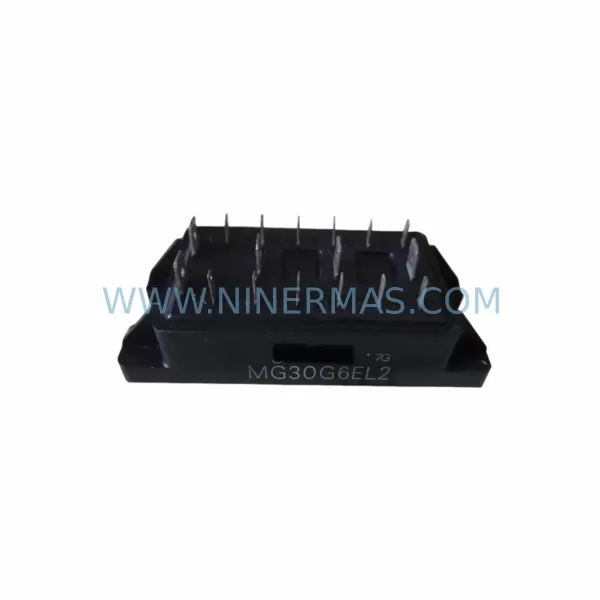

The Toshiba MG30G6EL2 is a 600V / 30A six-pack IGBT module engineered for demanding industrial power conversion applications. As a direct service-ready spare part, it is designed to support rapid field replacement in AC motor drives, servo inverters, UPS systems, and industrial power conditioning equipment built around the Toshiba MG-Series platform. Sourced from verified supply channels and shipped after functional inspection, the MG30G6EL2 is a critical component for maintenance engineers who cannot afford extended downtime on production lines or process control systems.

For facilities operating legacy Toshiba VF-S9, VF-S11, VF-nC3, or VF-MB1 series variable frequency drives, the MG30G6EL2 represents one of the most frequently replaced power stage components. Its compact DIP-IPM-compatible footprint and standardized gate drive interface make it a reliable drop-in solution when the original module shows signs of thermal fatigue, gate oxide degradation, or collector-emitter leakage — all common failure modes in drives that have exceeded 50,000 operating hours.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a failed MG30G6EL2 during a drive fault investigation, the replacement workflow should extend beyond the IGBT module itself. A thorough site assessment significantly reduces the risk of repeat failures and unplanned shutdowns.

Begin by inspecting the gate drive board associated with the failed module. Gate resistors, optocouplers (such as the HCPL-314J or equivalent), and bootstrap capacitors are frequently stressed when an IGBT fails under short-circuit conditions. If the gate drive PCB shows burn marks or component drift, it must be replaced alongside the MG30G6EL2 to prevent immediate re-failure.

Next, verify the DC bus capacitor bank. Electrolytic capacitors in the 400–680µF / 400V range are standard in drives of this power class. Capacitors that have been in service for more than five years should be measured for ESR and capacitance; those outside ±20% of rated value should be scheduled for replacement. Alongside the capacitors, inspect the DC bus fuses and pre-charge resistors — both are common collateral damage items when an IGBT module fails catastrophically.

The input rectifier bridge (typically a three-phase diode bridge module such as the Toshiba DF100AA160 or equivalent 100A / 1600V type) should be tested for forward voltage drop symmetry across all six diodes. An asymmetric reading indicates partial failure and warrants proactive replacement during the same maintenance window.

For drives connected to PLC or DCS control systems, confirm that the analog I/O signal isolators and digital I/O interface cards were not affected by the fault event. Signal isolators from the Phoenix Contact MACX or Weidmüller ACT series are commonly used in these control cabinets and should be verified for correct output levels after power restoration.

Check the 24VDC control power supply — a MEAN WELL SDR-120-24 or equivalent DIN-rail unit — for output voltage stability under load. A degraded SMPS can cause erratic drive behavior that mimics IGBT faults, leading to misdiagnosis. Similarly, inspect the EMC input filter and line reactor for signs of overheating or insulation breakdown.

If the drive communicates via PROFIBUS, Modbus RTU, or CANopen, verify that the communication module (e.g., Toshiba DEV002Z or equivalent fieldbus adapter) is still responding correctly after the fault. Communication timeouts following a power stage failure are common and can be mistaken for network infrastructure issues.

Finally, review the thermal management system: clean the heatsink fins, verify fan operation (replace brushless DC fans that have exceeded 30,000 hours), and apply fresh thermal compound between the MG30G6EL2 and the heatsink surface. Proper thermal interface resistance is critical to achieving the module’s rated service life.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the drive, apply LOTO, and wait a minimum of 10 minutes for DC bus capacitors to discharge below 50V (verify with a calibrated multimeter).

Step 2 — Module Removal: Disconnect gate drive connectors and DC bus busbars. Remove the two mounting screws securing the MG30G6EL2. Note the torque specification (typically 1.5–2.0 N·m) for reinstallation.

Step 3 — Surface Preparation: Clean the heatsink mounting surface with isopropyl alcohol. Apply a thin, uniform layer of thermal interface compound (e.g., Shin-Etsu X-23 or equivalent) to the module base plate.

Step 4 — Module Installation: Position the new MG30G6EL2, torque mounting screws evenly to specification, and reconnect gate drive and power terminals in reverse order of removal. Verify all connector locks are fully engaged.

Step 5 — Pre-Power Verification: Before energizing, perform an insulation resistance test (500V Megger) between DC bus and chassis ground. Confirm resistance exceeds 1 MΩ. Check gate drive supply voltage at the PCB test points.

Step 6 — Commissioning: Energize the drive in a no-load condition. Monitor DC bus voltage, output phase currents, and heatsink temperature during a 15-minute run-in. Log all parameters and compare against the drive’s baseline commissioning record.

This structured workflow minimizes re-work risk and ensures the replacement MG30G6EL2 operates within its design envelope from the first power-on cycle.

Spare Parts Support FAQ

Q1: Is the MG30G6EL2 a direct drop-in replacement for the original Toshiba module?
Yes. The MG30G6EL2 supplied by NINERMAS is sourced from verified distribution channels and conforms to the original Toshiba datasheet specifications. It is a direct replacement for the same part number used in Toshiba VF-S9, VF-S11, VF-nC3, and VF-MB1 series drives without any modification to the gate drive circuit or mounting hardware.

Q2: What pre-shipment testing is performed on each unit?
Every MG30G6EL2 unit undergoes visual inspection, package integrity verification, and basic electrical parameter screening (VCES, VGES, and leakage current) before dispatch. A test report summary is available upon request for critical procurement orders.

Q3: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS specializes in long-term spare parts supply programs for industrial automation components, including end-of-life and hard-to-source modules. We can support scheduled delivery agreements, consignment stock arrangements, and multi-year procurement contracts to ensure your maintenance inventory remains uninterrupted.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical parameter non-conformance under normal operating conditions as defined in the Toshiba MG30G6EL2 datasheet. Warranty claims are supported by our technical team with replacement dispatch typically within 5 business days of confirmed fault diagnosis. The warranty period begins from the shipment date recorded on the commercial invoice.
