TOSHIBA MG100Q2YS50 Service-Ready Spare Part for Industrial Maintenance

TOSHIBA MG100Q2YS50 Service-Ready Spare Part for Industrial Maintenance

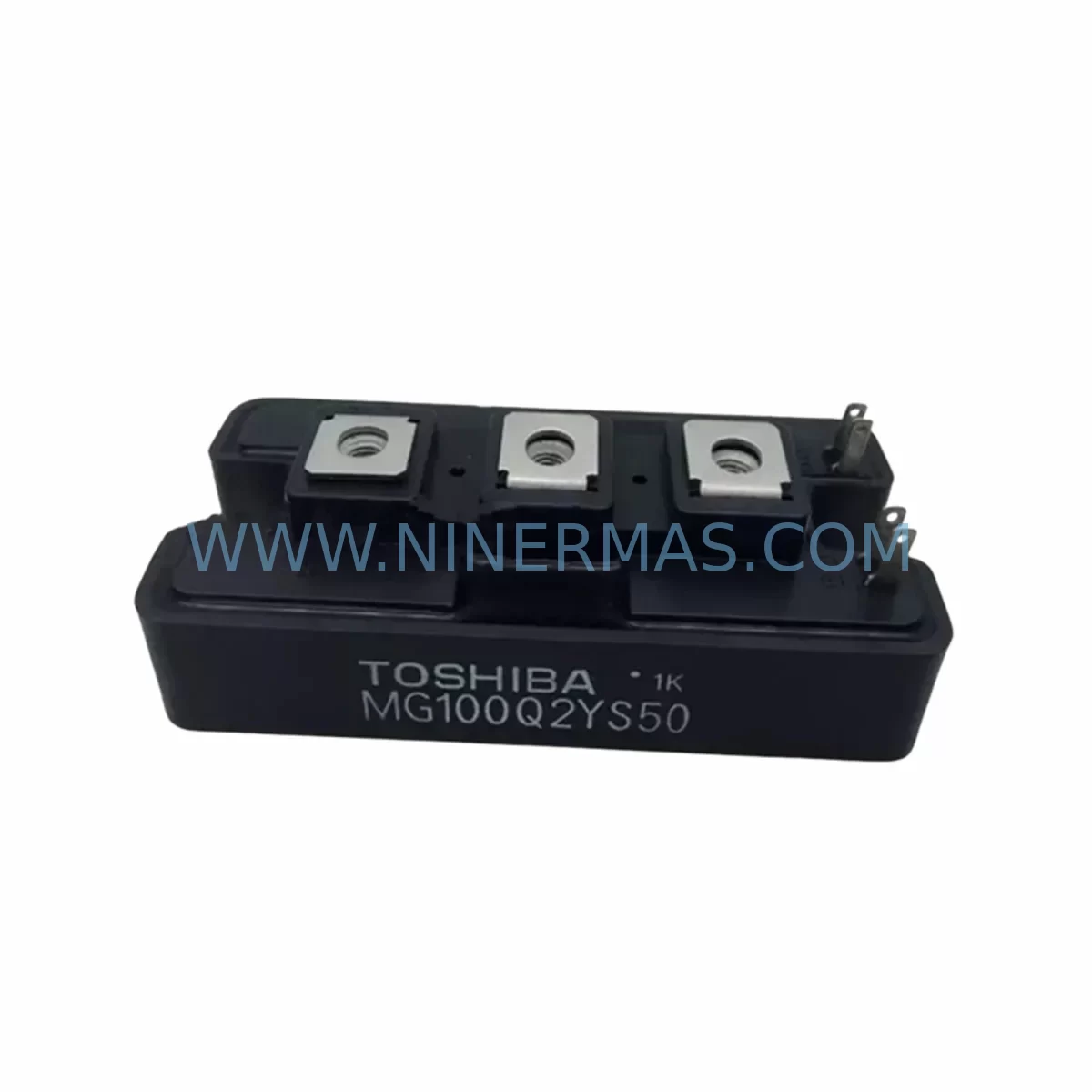

The TOSHIBA MG100Q2YS50 is a high-current IGBT module widely deployed in industrial variable frequency drives (VFDs), servo amplifiers, and power conversion systems across manufacturing, process control, and heavy-duty automation environments. When this module fails or degrades, the result is immediate drive shutdown, production line stoppage, and costly unplanned downtime. Sourcing a verified, service-ready replacement is the fastest path to restoring system operation and protecting your maintenance budget.

At NINERMAS, every MG100Q2YS50 unit is sourced from authorized supply channels, subjected to pre-shipment electrical verification, and backed by a 12-month warranty. Whether you are responding to an emergency breakdown or building a proactive spare parts inventory, this module ships ready for direct installation into your existing drive cabinet.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MG100Q2YS50 in a drive cabinet is rarely an isolated task. Maintenance engineers and procurement teams working on TOSHIBA VFD platforms should treat this module replacement as an opportunity to inspect and, where necessary, pre-stock the surrounding components that share the same thermal and electrical stress cycle.

Begin with the gate driver board associated with the IGBT bridge — a failed IGBT module frequently indicates overstress on the driver circuit, and the gate resistors or optocouplers may have been damaged in the same fault event. Inspect the DC bus capacitor bank for bulging, leakage, or elevated ESR; capacitors in the same drive that have operated for more than five years are prime candidates for proactive replacement alongside the IGBT module.

The thermal interface pad or thermal grease layer between the module base plate and the heatsink must be renewed during every IGBT replacement — degraded thermal contact is one of the leading causes of premature module failure. Verify that the heatsink cooling fan (where fitted) is operating within specification; a blocked or failing fan will shorten the service life of the new module.

On the control side, check the TOSHIBA VF-series control PCB for signs of heat damage or corrosion near the power section. The current sensor or Hall-effect transducer mounted on the output phase busbars should be tested for accuracy — a drifting current sensor can cause nuisance trips or mask overcurrent conditions that damage the replacement module. Similarly, inspect the input rectifier bridge (typically a three-phase diode bridge module in the same cabinet) for forward voltage drop imbalance.

For drives connected to a PLC or DCS, confirm that the communication interface module — whether PROFIBUS, DeviceNet, or MODBUS RTU — is logging fault codes correctly before and after the replacement. Stale fault history can mislead commissioning engineers. If the drive uses an external braking resistor and chopper module, inspect the chopper IGBT and resistor assembly for signs of thermal fatigue, particularly in applications with frequent deceleration cycles.

Procurement engineers building a spare parts kit for TOSHIBA drive platforms should consider stocking the MG100Q2YS50 alongside compatible input EMC filter modules, surge protection varistors (MOVs) on the AC input terminals, and fuse links rated for the DC bus voltage. These low-cost components are frequently overlooked until a secondary fault occurs after the primary IGBT replacement, extending total downtime unnecessarily.

For sites operating legacy TOSHIBA systems beyond their published end-of-life date, NINERMAS maintains long-term supply capability for the MG100Q2YS50 and related modules in the MG-Q2YS family, supporting system life extension programs without requiring a full drive replacement.

Site Replacement Workflow

Step 1 — Isolation and lockout: De-energize the drive, apply LOTO, and allow the DC bus to fully discharge (verify with a calibrated voltmeter across the bus capacitors before touching any internal components).

Step 2 — Document the existing installation: Photograph the gate driver wiring, busbar connections, and thermal pad condition before disassembly. Record the drive fault log and any alarm codes.

Step 3 — Remove the failed module: Loosen the mounting screws in the sequence specified in the TOSHIBA service manual. Disconnect gate and emitter signal leads carefully — note polarity and connector orientation.

Step 4 — Prepare the heatsink surface: Clean the heatsink contact area thoroughly. Apply a fresh, uniform layer of thermal interface material. Do not reuse the old pad.

Step 5 — Install the MG100Q2YS50: Torque mounting screws to the manufacturer’s specification (typically 2–3 N·m for M5 screws). Reconnect gate driver leads and busbar connections. Verify all connections against the original documentation.

Step 6 — Pre-power verification: Before energizing, perform a static gate-emitter resistance check and confirm no short circuit between collector and emitter. Check DC bus capacitor charge circuit continuity.

Step 7 — Commissioning: Energize the drive at reduced load. Monitor output current waveform, heatsink temperature, and drive fault log for the first 30 minutes of operation. Confirm normal operation before returning the system to full production load.

This workflow minimizes re-work risk and ensures the replacement module operates within its rated parameters from the first power-on, reducing the probability of infant mortality failure.

Spare Parts Support FAQ

Q1: Is the MG100Q2YS50 a direct drop-in replacement for the original module in my TOSHIBA drive?
Yes. The MG100Q2YS50 is an original TOSHIBA part number. It is a direct replacement for the same module in TOSHIBA VF-S15, VF-MB1, and VF-nC3 series drives, as well as other TOSHIBA platforms that specify a 100A/500V dual IGBT module with the same footprint. Always verify the gate driver voltage and signal interface before installation if the host drive is a third-party OEM unit.

Q2: How do you verify the module before shipment, and what does the 12-month warranty cover?
Every MG100Q2YS50 unit undergoes pre-shipment electrical verification including collector-emitter leakage, gate threshold voltage, and static on-state resistance checks. The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated parameters.

Q3: What is your lead time, and can you support long-term or blanket purchase orders?
Standard lead time is 2–5 business days from order confirmation. For maintenance teams managing multi-site TOSHIBA drive fleets or annual shutdown schedules, NINERMAS supports blanket purchase agreements and reserved stock arrangements. Contact our sales team to discuss volume pricing and guaranteed availability commitments for your spare parts program.

Q4: Can I use the MG100Q2YS50 to replace an equivalent module from a different manufacturer with the same electrical ratings?
In many cases, yes — provided the replacement module matches the collector current, voltage rating, package dimensions, and gate drive requirements of the original. However, NINERMAS recommends using the original TOSHIBA part number wherever possible to ensure full compatibility with the drive’s protection and gate driver circuitry. If you are evaluating a cross-reference replacement, contact our technical team for compatibility confirmation before ordering.
