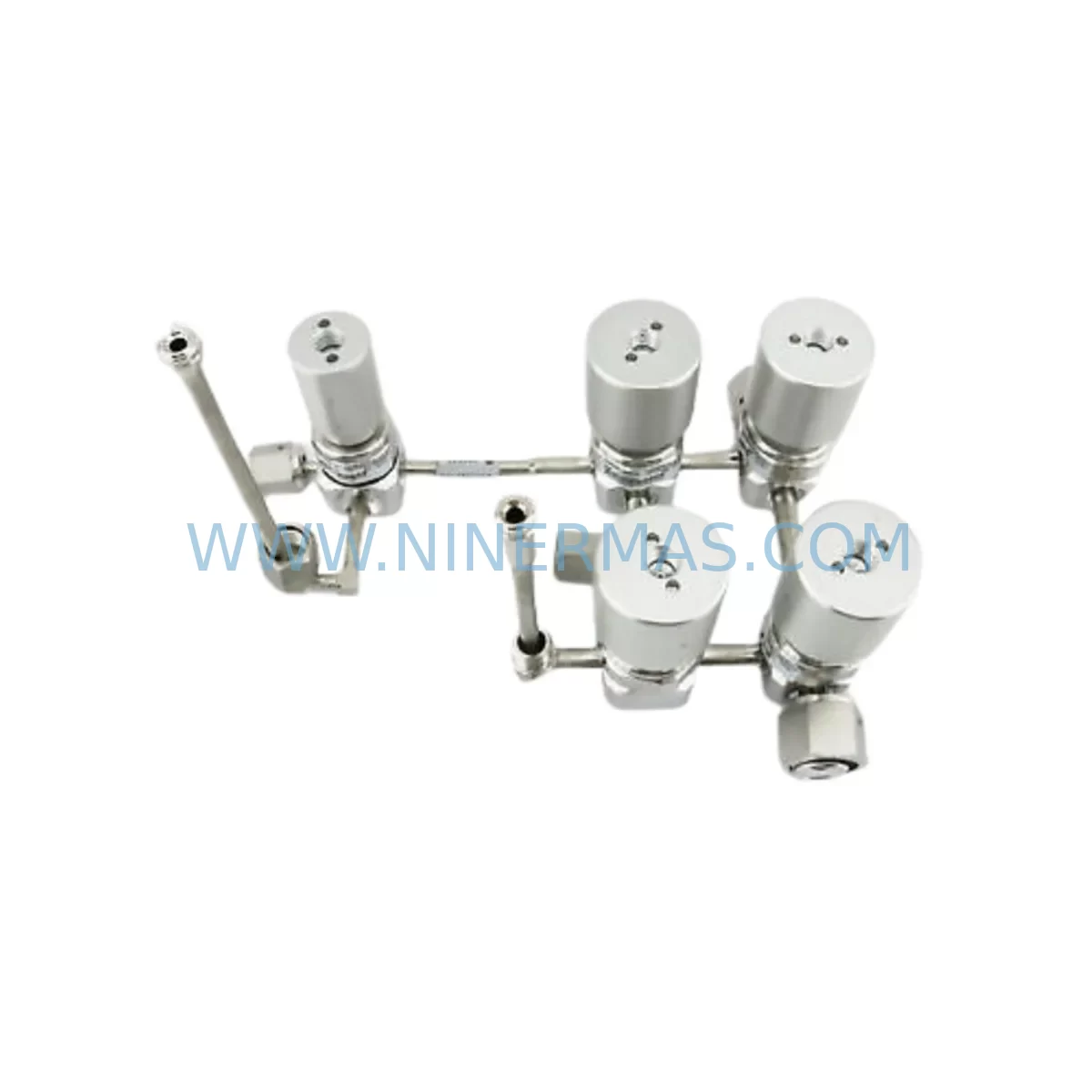

The Swagelok 0051-89074-6LV-BN8BW6-DU-C is an original high purity diaphragm valve from Swagelok’s 6LV series, engineered for ultra-high purity (UHP) gas delivery and distribution systems in semiconductor fabrication, specialty chemical processing, and precision industrial automation environments. When a valve failure occurs in a gas panel or process cabinet, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready spare — pre-tested and backed by a 12-month warranty — is the fastest path to restoring system integrity and resuming safe operation.

This unit is stocked as a service-ready spare, meaning it has undergone pre-shipment functional testing, leak verification, and dimensional inspection before dispatch. Maintenance engineers and procurement teams can order with confidence, knowing the part will perform to Swagelok’s original specification upon installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Swagelok 0051-89074-6LV-BN8BW6-DU-C in a live gas panel is rarely an isolated task. Experienced maintenance engineers know that a diaphragm valve failure is often a leading indicator of broader system stress — particularly in high-cycle pneumatic circuits where actuation pressure fluctuations, contamination ingress, or diaphragm fatigue can cascade across adjacent components.

When scheduling a replacement of this 6LV series valve, the following components in the same gas delivery circuit should be inspected or replaced concurrently to prevent repeat failures and reduce future downtime:

Pneumatic Supply Line: Verify the pneumatic actuator supply pressure regulator — such as a Swagelok KPR series pressure regulator — is delivering stable 60–100 psig to the valve actuator. Pressure drift or contamination in the pneumatic supply line is a common root cause of premature diaphragm fatigue in 6LV-DU-C actuated valves.

Adjacent 6LV Series Valves: In a typical gas stick or valve manifold assembly, multiple 6LV series valves such as the 6LV-DAFR8-P (normally open variant) or 6LV-DABW8-P operate in sequence. If one valve shows diaphragm wear, inspect all valves in the same manifold block during the same maintenance window. Replacing a single valve while leaving aged neighbors in service is a common cause of unplanned shutdowns within 30–60 days.

VCR and Butt Weld Fittings: The BN8BW6 butt weld end connection on this valve interfaces directly with Swagelok VCR or orbital weld fittings in the gas distribution line. Inspect weld joints and VCR gaskets (silver-plated or stainless) for micro-leaks using a helium leak detector before returning the system to service. Swagelok SS-4-VCR-2 or equivalent VCR face seal fittings in the same circuit should be re-torqued or replaced if gasket compression is suspect.

Point-of-Use Filters: Upstream of the 6LV valve, a Swagelok SCF or TF series point-of-use filter (e.g., SCF3S-050-050-S-2PF) should be inspected for particulate loading. A clogged filter increases differential pressure across the valve seat and accelerates diaphragm wear. Replace filter elements on the same PM cycle as the valve.

Pressure Transducers and Gauges: Swagelok PTI series pressure transducers or equivalent instruments mounted on the same gas stick provide real-time pressure data that can confirm successful valve actuation post-replacement. Verify transducer calibration and signal integrity before closing out the work order.

Solenoid Pilot Valves: The pneumatic actuator on the 6LV-DU-C variant is driven by a solenoid pilot valve — typically a 3/2 or 5/2 way solenoid from suppliers such as SMC or Parker. Inspect the solenoid coil resistance, pilot exhaust port, and response time. A sluggish solenoid will cause delayed valve actuation and can be misdiagnosed as a valve body fault.

Gas Cabinet Purge and Vent Lines: Confirm that the gas cabinet purge sequence (typically nitrogen) is functioning correctly after valve replacement. Inspect the purge valve — often a Swagelok SS-4BK series bellows valve — and the vent line check valve for correct seating and flow direction.

Signal Isolation and I/O Modules: In automated gas delivery systems controlled by a PLC or DCS, the valve position feedback signal (from the DU-C position indicator) is wired to a digital input module. Verify the I/O channel, signal cable continuity, and any interposing relay or signal isolator in the loop. A faulty I/O channel can mask a valve fault or generate false alarms after replacement.

Documenting all inspected and replaced components in the maintenance management system (CMMS) ensures traceability and supports future spare parts planning. Procurement teams should maintain a minimum buffer stock of two units of the 0051-89074-6LV-BN8BW6-DU-C for each gas panel installation, given the long lead times historically associated with UHP Swagelok components.

Site Replacement Workflow

Step 1 — Isolation and Purge: Isolate the affected gas stick by closing the upstream isolation valve and initiating a full nitrogen purge sequence per the site safety procedure. Confirm zero pressure on the process side using the local pressure gauge or PTI transducer before breaking any connections.

Step 2 — Pneumatic Disconnection: Disconnect the pneumatic actuator supply tubing (typically 1/4″ OD Swagelok tube fitting). Cap the pneumatic supply port to prevent contamination ingress during the valve swap.

Step 3 — Valve Removal: For butt weld installations, the valve body must be cut out of the weld circuit using an orbital cutting tool. Retain the cut stubs for dimensional reference. For VCR-connected variants, loosen the VCR nut and remove the valve body, retaining the gasket for inspection.

Step 4 — New Valve Installation: Install the replacement 0051-89074-6LV-BN8BW6-DU-C using a qualified orbital welder per Swagelok weld procedure WPS-6LV or equivalent site-approved procedure. For VCR connections, install a new silver-plated gasket and torque to Swagelok specification. Do not reuse gaskets.

Step 5 — Leak Test and Functional Verification: Perform a helium leak test at operating pressure. Reconnect the pneumatic supply and cycle the valve a minimum of 10 times to verify full actuation, correct position feedback signal, and zero leakage. Log test results in the CMMS before returning the system to production.

Step 6 — System Restart: Restore gas supply per the site startup procedure. Monitor the first 30 minutes of operation for any anomalous pressure readings or alarm conditions. Update the spare parts inventory to reflect consumption and trigger a replenishment order to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the 0051-89074-6LV-BN8BW6-DU-C compatible with my existing Swagelok 6LV gas stick assembly?
Yes. The 6LV-BN8BW6-DU-C designation confirms compatibility with standard 6LV series manifold configurations using 6 mm OD butt weld end connections and dual-acting pneumatic actuation. Always verify the actuation pressure range (60–100 psig) and position indicator wiring against your existing installation drawings before installation. If your system uses a different end connection (e.g., VCR or Swagelok tube fitting), contact us to confirm the correct variant.

Q2: What pre-shipment testing is performed on this spare part?
Every unit dispatched from our inventory undergoes a functional actuation test (open/close cycle verification), a helium leak test to confirm seat and body integrity, and a visual inspection for surface finish and dimensional conformance. Test records are retained and available upon request. All units are shipped with a 12-month warranty from the date of shipment.

Q3: Can you support long-term supply agreements for this part number?
Yes. We maintain reserved inventory agreements for critical UHP valve part numbers including the 0051-89074-6LV-BN8BW6-DU-C. Long-term supply contracts with agreed lead times, buffer stock levels, and annual pricing are available for maintenance teams managing multiple gas panel installations. Contact our sales team to discuss your annual consumption volume and site requirements.

Q4: What is the recommended spare parts strategy for 6LV series valves in a semiconductor gas cabinet?
Industry best practice for UHP gas delivery systems is to maintain a minimum of two units per valve model per gas cabinet installation. For high-cycle applications (more than 100,000 actuations per year), consider a proactive replacement interval of 18–24 months regardless of observed condition. Pair the valve replacement with concurrent inspection of pneumatic supply regulators, solenoid pilot valves, VCR gaskets, and point-of-use filters to maximize the maintenance window efficiency and minimize future unplanned downtime.
