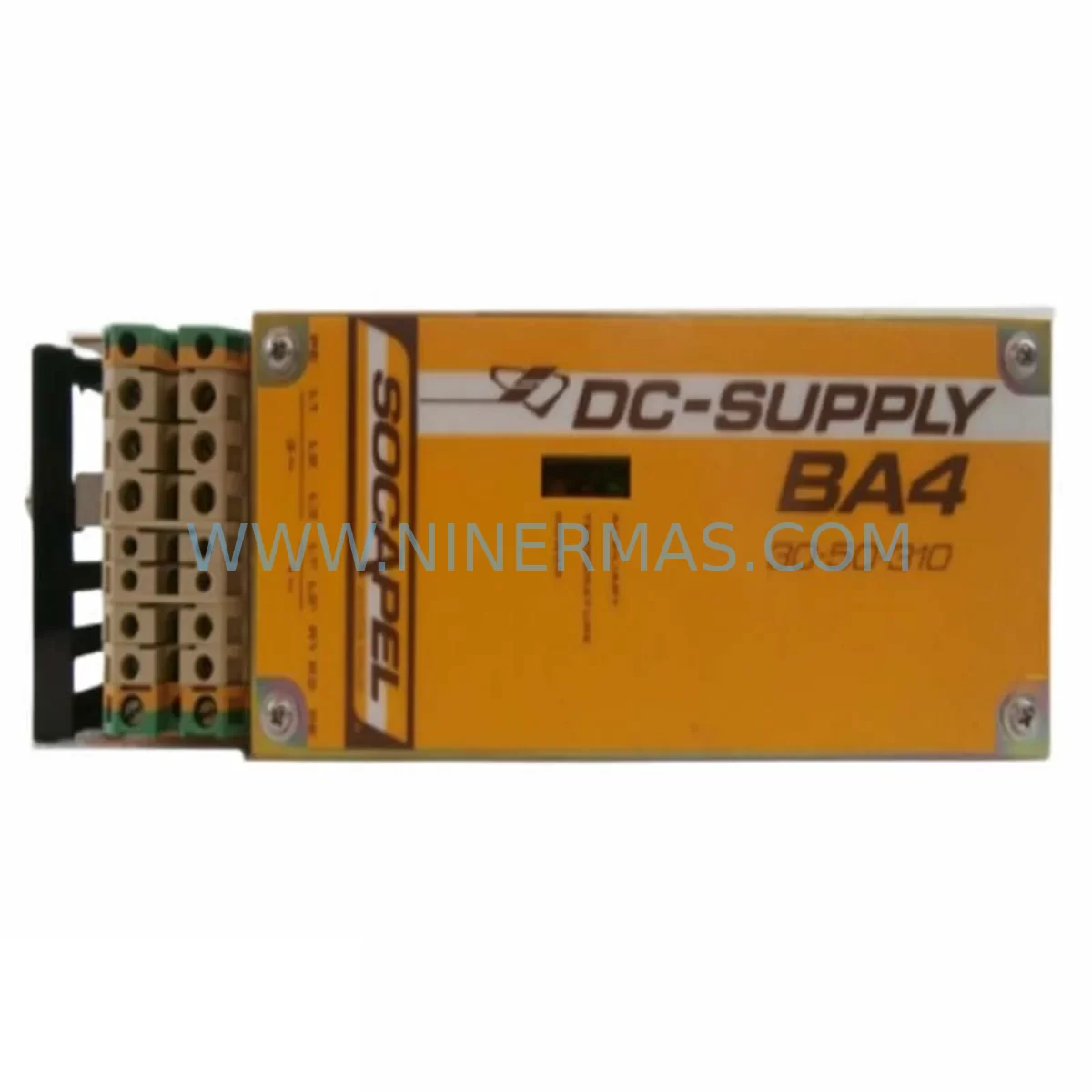

The SOCAPEL BA4-30-50-310 is a retrofit-compatible power supply module engineered for seamless integration into aging BA4-series control architectures. As original SOCAPEL BA4 power supply units reach end-of-life and OEM support is discontinued, facilities running legacy servo drives, motion controllers, and distributed I/O panels face increasing pressure to source reliable replacement components without triggering full system redesigns. The BA4-30-50-310 addresses this challenge directly — offering a verified drop-in upgrade path that preserves existing wiring topology, backplane addressing, and control logic continuity.

Industrial sites operating SOCAPEL BA4-series servo amplifiers and motion control platforms frequently encounter power supply degradation as the primary failure mode in aging control cabinets. Capacitor wear, thermal cycling fatigue, and voltage regulation drift are common in units that have operated beyond their rated service life. Replacing the BA4-30-50-310 power supply module restores stable DC bus voltage, protects downstream I/O modules and communication interfaces, and eliminates the risk of cascading failures across the control rack. This makes the BA4-30-50-310 a critical spare part for any facility committed to lifecycle extension of its existing SOCAPEL motion control infrastructure.

At NINERMAS, every BA4-30-50-310 unit undergoes pre-shipment functional testing to verify output voltage stability, current capacity, and protection circuit response before dispatch. Units are supplied with a 12-month warranty and are available from stock for rapid deployment to minimize unplanned downtime on production lines.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the BA4-30-50-310 into a live production environment requires careful pre-retrofit planning across several interdependent system layers. Before removing the failed or degraded power supply, engineers should document the existing DC bus voltage levels, confirm the current draw profile of all connected BA4-series servo amplifier modules, and verify that the replacement unit’s output current rating — 50A at the 30V rail — matches the aggregate load of the installed axis drives.

In multi-axis SOCAPEL motion control cabinets, the BA4-30-50-310 typically supplies power to a combination of BA4 servo drive modules, digital I/O expansion cards, and the central motion controller backplane. Where the control architecture also includes a SOCAPEL BA4 communication interface module — such as a fieldbus gateway for PROFIBUS-DP or CANopen — the power supply replacement must be coordinated with a communication link health check to ensure that the gateway resumes normal polling cycles after power restoration. Facilities that have integrated third-party HMI panels via RS-232 or RS-485 serial links should also verify that the HMI communication parameters are retained in non-volatile memory and do not require re-entry after the power cycle.

For control cabinets that house both SOCAPEL BA4 motion axes and legacy relay logic panels, the retrofit team should isolate the BA4 power supply circuit from the relay panel supply before beginning work. This prevents transient voltage spikes from the relay coil switching from propagating into the BA4 DC bus during the changeover window. Where the cabinet also contains signal isolators or analog I/O conditioning modules feeding position feedback or torque reference signals to the BA4 servo drives, these modules should be powered down in sequence to avoid false encoder reference signals during the supply swap.

In facilities where the SOCAPEL BA4 system interfaces with a supervisory PLC — such as a Siemens S5 or S7 series controller, or a GE Series 90 rack — the PLC program should be placed in STOP mode before the power supply is removed. This prevents the PLC from issuing motion commands to servo axes that are momentarily unpowered, which could cause axis fault registers to latch and require manual reset during recommissioning. After the BA4-30-50-310 is installed and powered, the commissioning sequence should include a DC bus voltage verification, a servo enable test on each axis, a check of the axis position feedback via the encoder interface, and a confirmation that the motion program resumes from the correct home position reference.

Where the retrofit scope extends beyond a single power supply replacement — for example, where the BA4 backplane itself shows signs of connector wear or where multiple BA4 servo modules are approaching end-of-life simultaneously — NINERMAS can support a phased spare parts program covering BA4 servo amplifier modules, BA4 I/O expansion cards, BA4 backplane assemblies, and associated programming cables and software interfaces. This approach allows facilities to extend the operational life of the entire BA4 motion control platform without committing to a full system replacement, preserving the existing machine program logic, HMI screen layouts, and operator training investment.

Downtime Control During System Migration

Minimizing unplanned downtime during a BA4-30-50-310 power supply replacement is achievable with structured pre-work and a disciplined changeover sequence. The most effective approach begins with a pre-shutdown documentation phase: photograph all terminal wiring connections, record all axis parameter settings from the BA4 servo drive keypads or programming software, and export a backup of the motion controller program to a laptop or USB storage device before the power supply is de-energized.

With a verified replacement BA4-30-50-310 unit on-site and pre-tested, the physical swap can typically be completed within a planned maintenance window of two to four hours, depending on cabinet accessibility and the number of downstream modules that require individual recommissioning. The critical path items are the DC bus voltage verification, the servo axis enable sequence, and the HMI communication link confirmation. If the facility operates a SCADA system that monitors the BA4 motion axes, the SCADA historian should be placed in manual data entry mode during the changeover to prevent false alarm triggers from the temporary loss of axis status signals.

For facilities where continuous production is a hard constraint, a cold-standby strategy — maintaining a pre-tested BA4-30-50-310 unit in the spare parts cabinet alongside a documented changeover procedure — reduces mean time to repair to under two hours for a trained maintenance team. NINERMAS supports this strategy by supplying pre-tested units with a 12-month warranty, ensuring that the standby spare remains within its guaranteed performance specification throughout the storage period. This approach protects the original control program logic, maintains field control continuity, and significantly reduces the financial and operational risk associated with unplanned BA4 power supply failures.

Retrofit Support FAQ

Q1: Is the BA4-30-50-310 a direct replacement for the original SOCAPEL BA4 power supply unit?
Yes. The BA4-30-50-310 is supplied as a retrofit-compatible replacement for the original SOCAPEL BA4-series power supply. It is designed to fit the standard BA4 rack slot and match the original terminal wiring layout. Minor dimensional or connector variations may exist between production batches; customers are advised to confirm the physical dimensions and terminal block configuration against their installed unit before ordering. NINERMAS technical support can assist with compatibility verification based on the existing unit’s nameplate data.

Q2: What commissioning steps are required after installing the BA4-30-50-310?
After installation, the recommended commissioning sequence includes: (1) verify DC bus output voltage at the backplane connector before enabling servo axes; (2) enable each servo axis individually and confirm encoder feedback and drive ready status; (3) verify communication link status between the BA4 controller and any connected HMI, PLC, or SCADA system; (4) run a low-speed jog test on each axis before resuming automatic program execution. If any axis fault codes are present after power-up, clear them individually and document the fault history for future reference.

Q3: Does NINERMAS provide pre-shipment testing and a warranty for the BA4-30-50-310?
Yes. Every BA4-30-50-310 unit supplied by NINERMAS undergoes full functional pre-shipment testing, including output voltage verification, load regulation testing, and protection circuit response checks. All units are covered by a 12-month warranty from the date of shipment. Warranty claims are supported by NINERMAS technical staff and can be initiated by contacting sale@ninermas.com with the order reference and a description of the observed fault.

Q4: Can NINERMAS support a broader BA4 spare parts program beyond the power supply module?
Yes. NINERMAS maintains inventory and sourcing capability across the SOCAPEL BA4 product range, including servo amplifier modules, I/O expansion cards, backplane assemblies, communication interface modules, and associated programming accessories. For facilities managing a long-term BA4 lifecycle extension program, NINERMAS can provide a structured spare parts supply agreement with defined lead times, stock reservation, and technical support. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific requirements.
