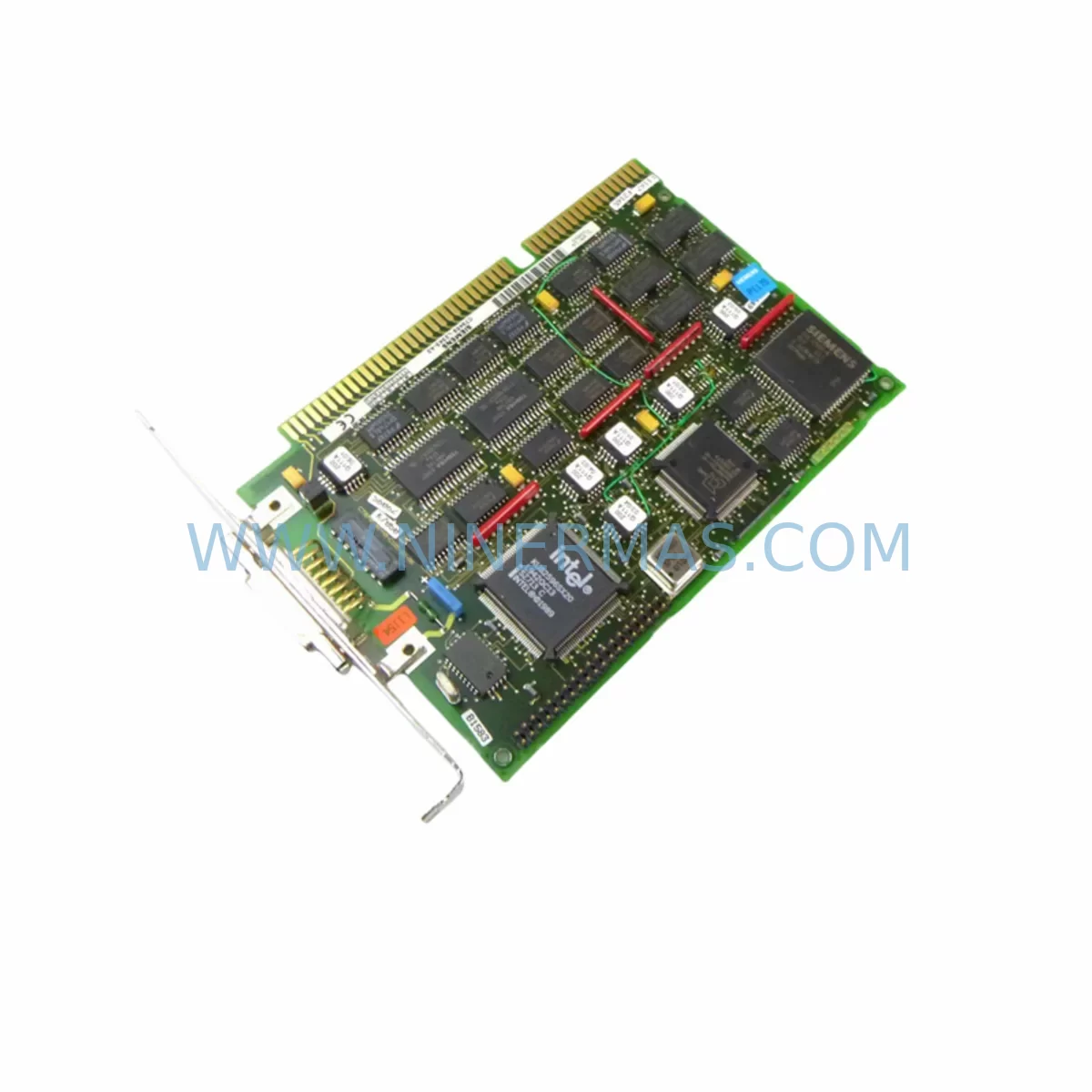

Siemens C79458-L2197-A1 Retrofit Motherboard for SIMATIC S5

Siemens C79458-L2197-A1 Retrofit Motherboard for SIMATIC S5 Legacy Systems

The Siemens C79458-L2197-A1 is a critical industrial motherboard designed for use within the SIMATIC S5 programmable controller platform — one of Siemens’ most widely deployed legacy automation architectures across global process industries. As the SIMATIC S5 series has reached end-of-life status, the C79458-L2197-A1 continues to serve as an essential retrofit and replacement component for facilities that depend on continuous production without the disruption of a full platform migration.

For engineers and maintenance teams managing aging control infrastructure, sourcing a verified, tested replacement motherboard is often the fastest and most cost-effective path to restoring system availability. The C79458-L2197-A1 is fully compatible with the SIMATIC S5 backplane architecture, preserving existing rack slot assignments, module addressing, and I/O wiring configurations — dramatically reducing the engineering effort required during a swap-out.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the C79458-L2197-A1 motherboard within an operational SIMATIC S5 system requires careful pre-planning to ensure a smooth transition with minimal disruption to the production process. Before initiating the swap, engineers should confirm the physical rack model — whether a SIMATIC S5-115U, S5-135U, or S5-155U central controller rack — as backplane bus connector pinouts and slot depth tolerances can vary between chassis generations.

Power supply capacity is a primary concern. The existing Siemens S5 power supply module (such as the 6ES5 955 series) must be verified to deliver sufficient current for the replacement board under full I/O load. Undersized power supplies are a common cause of intermittent faults following a motherboard replacement and should be load-tested prior to commissioning.

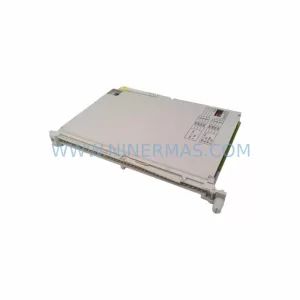

Terminal wiring and I/O module assignments should be documented before removal. Digital and analog I/O modules — including 6ES5 430 series digital input modules and 6ES5 470 series analog output modules — retain their physical wiring, but module address switches must be confirmed to match the original configuration. Any deviation will cause the CPU to report I/O addressing faults on first startup.

For systems using serial communication links, the Siemens CP 521 SI or CP 524 communication processors connected via the S5 backplane must be re-initialized after the motherboard replacement to re-establish SINEC L2 or point-to-point protocol sessions. Communication parameter blocks stored in the CPU’s program memory should be backed up using a Siemens PG 702 or compatible programming device before the swap begins.

HMI panels connected to the S5 system — such as Siemens OP 17 or OP 27 operator panels — communicate via the MPI or PPI interface. These connections typically resume automatically after CPU restart, but screen variable mappings should be verified against the restored program to confirm data block addresses remain consistent.

Signal isolators and surge protection devices installed on field wiring — particularly on analog input channels — should be inspected during the retrofit window. Replacing the motherboard provides an opportunity to install or upgrade Siemens SITOP power conditioning modules or third-party signal conditioners on critical measurement loops, improving long-term signal integrity.

Where the installation space within the control cabinet is constrained, confirm that the replacement C79458-L2197-A1 board’s physical dimensions and connector positions match the original. In some S5 rack configurations, adjacent modules such as the IM 308-C interface module for distributed I/O expansion may need to be temporarily removed to allow safe board extraction and reinsertion.

Downtime Control During System Migration

Minimizing unplanned downtime during a SIMATIC S5 motherboard replacement is achievable with structured preparation. The most effective approach is to perform a full program backup — including all OBs, FBs, DBs, and system data blocks — to an external programming device or memory card before any hardware is disturbed. This ensures that if the replacement board requires a cold start or memory initialization, the original control logic can be reloaded within minutes rather than hours.

Where production schedules allow, the replacement should be performed during a planned maintenance window. However, in emergency breakdown scenarios, having a pre-tested C79458-L2197-A1 board on-site as a critical spare dramatically reduces mean time to repair (MTTR). NINERMAS maintains verified stock of this component with pre-shipment functional testing, enabling rapid dispatch to minimize field downtime.

After board installation, a structured commissioning sequence should be followed: power-on self-test verification, program reload confirmation, I/O force-test on critical outputs, communication link re-establishment, and HMI screen validation. This sequence typically takes 30–90 minutes for an experienced automation engineer, keeping total planned downtime well within a standard maintenance shift.

For facilities considering a longer-term migration from SIMATIC S5 to SIMATIC S7-300 or S7-1500 platforms, the C79458-L2197-A1 replacement provides a stable bridge — maintaining current production continuity while the migration project is planned, budgeted, and executed in a controlled manner.

Retrofit Support FAQ

Q1: Is the C79458-L2197-A1 a direct drop-in replacement for the original board?
A: Yes. The C79458-L2197-A1 is designed for direct slot replacement within compatible SIMATIC S5 racks. No mechanical modification is required. Module address settings and program memory should be verified after installation to confirm full operational compatibility.

Q2: What testing is performed before shipment?
A: Every C79458-L2197-A1 unit supplied by NINERMAS undergoes functional power-on testing and visual inspection prior to dispatch. Units are shipped with protective packaging to prevent ESD damage and physical stress during transit.

Q3: What warranty is provided?
A: All units carry a 12-month warranty from the date of shipment. In the event of a verified defect within the warranty period, NINERMAS will provide a replacement unit or full refund, subject to inspection.

Q4: Can NINERMAS support long-term supply for ongoing maintenance programs?
A: Yes. NINERMAS maintains inventory of legacy Siemens SIMATIC S5 components to support facilities with ongoing maintenance and spare parts programs. Bulk pricing and reserved stock arrangements are available for customers with recurring demand. Contact sale@ninermas.com for details.
