700-972-0BA41 PROFIBUS DP Bus Connector (Industrial-Grade Network Interface)

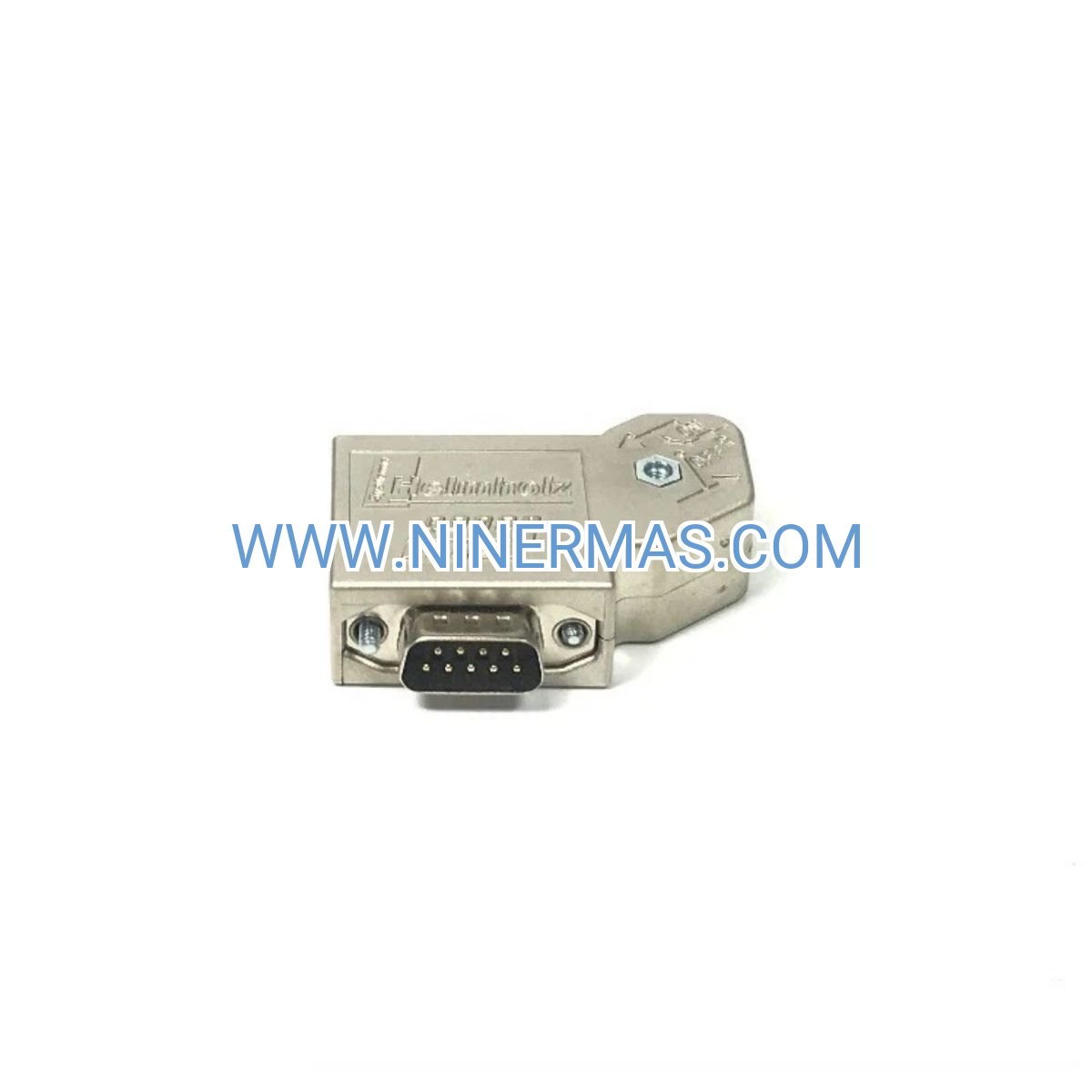

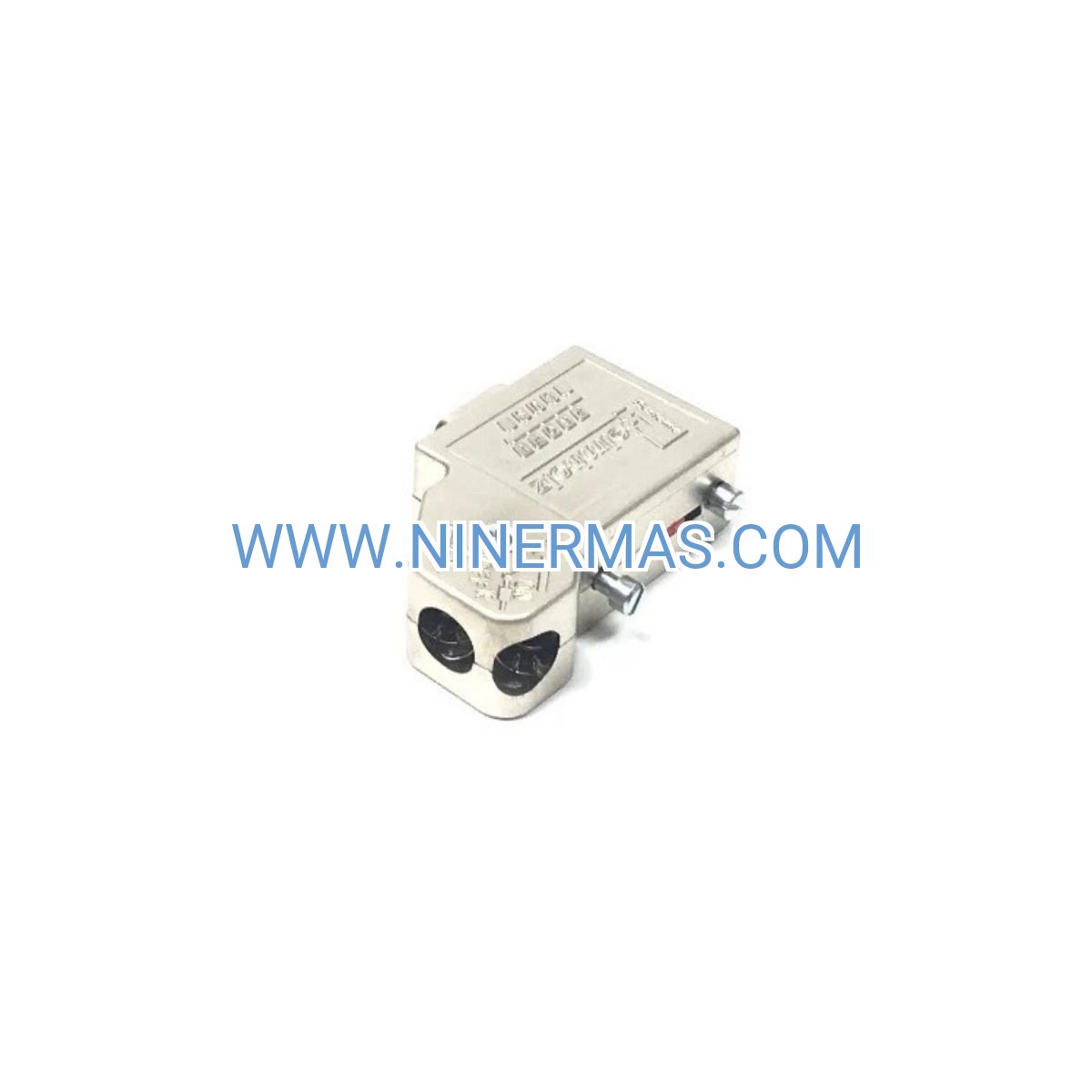

The Siemens 700-972-0BA41 represents a critical connectivity solution for PROFIBUS DP fieldbus networks, engineered to deliver uninterrupted data transmission in demanding industrial environments. This 90-degree angled bus connector serves as the physical interface between PROFIBUS cables and automation devices, featuring integrated switchable termination resistors that eliminate the need for external terminating components. Designed for SIMATIC NET ecosystems, it supports data rates up to 12 Mbps while maintaining signal integrity across extended network topologies.

Manufacturing facilities, process industries, and infrastructure operators rely on this connector to establish robust communication links between PLCs, distributed I/O modules, and field devices. The compact 90-degree cable outlet design proves particularly valuable in space-constrained control cabinets where traditional straight connectors would create cable management challenges. Whether you're commissioning new PROFIBUS networks or maintaining existing installations, the 700-972-0BA41 delivers the reliability and performance that mission-critical automation systems demand.

With IP20 environmental protection, screw-terminal cable connections, and compliance with international PROFIBUS standards, this connector bridges the gap between network infrastructure and operational uptime. Its plug-and-play installation reduces commissioning time while the integrated termination switch simplifies network topology configuration—making it an essential component for automation engineers and system integrators worldwide.

Core Features & Technical Advantages

✓ 90-Degree Angled Cable Outlet
Space-saving design redirects PROFIBUS cables at right angles, optimizing cabinet layout and reducing minimum bending radius violations that could compromise signal quality or cable lifespan.

✓ Integrated Switchable Termination Resistors
Built-in 220-ohm termination eliminates external resistor modules, reducing component count by 30% and simplifying network troubleshooting during installation and maintenance cycles.

✓ High-Speed Data Transmission (12 Mbps)
Supports maximum PROFIBUS DP baud rates for real-time control applications, enabling cycle times under 10ms for time-critical manufacturing processes and motion control systems.

→ Screw-Terminal Cable Connection
Tool-based wire termination ensures vibration-resistant connections in industrial environments, accommodating 0.5–1.5 mm² conductors without specialized crimping tools or proprietary connectors.

→ Universal SIMATIC Compatibility
Seamlessly interfaces with S7-300/400 PLCs, ET 200 distributed I/O, SIMATIC PCS 7 process control systems, and third-party PROFIBUS-compliant devices from 200+ manufacturers.

→ IP20 Shielded Housing
Metal-reinforced plastic enclosure provides EMI/RFI shielding while maintaining touch-safe design for control cabinet installations, meeting CE and UL safety certifications.

Industrial Application Scenarios

Automotive Manufacturing Lines
In robotic welding cells and assembly stations, the 700-972-0BA41 connects distributed I/O modules to central PLCs, enabling coordinated motion control across 50+ network nodes. The 90-degree outlet prevents cable strain in densely packed robot controllers where space is limited to 100mm clearances. Result: 99.8% network uptime during three-shift production schedules.

Chemical Process Control
Refineries and petrochemical plants deploy this connector to link field instruments—flow meters, pressure transmitters, valve positioners—to DCS systems via PROFIBUS PA/DP couplers. The integrated termination simplifies segment configuration in hazardous area junction boxes. Benefit: Reduced commissioning time by 40% compared to external terminator installations.

Water Treatment Facilities
Municipal water plants use the connector to network pump stations, filtration systems, and SCADA interfaces across distributed sites. The IP20 rating protects against dust ingress in outdoor control enclosures while screw terminals withstand temperature cycling from 0°C to 60°C. Outcome: Maintenance-free operation for 5+ years in 24/7 critical infrastructure applications.

Packaging Machinery
High-speed packaging lines integrate the 700-972-0BA41 to synchronize servo drives, vision systems, and quality inspection stations. The 12 Mbps data rate supports sub-millisecond response times for reject mechanisms and product tracking. Advantage: Achieves 600 packages/minute throughput with zero communication-related downtime.

Building Automation Systems
Commercial HVAC installations leverage PROFIBUS networks to control variable-frequency drives, damper actuators, and energy meters. The compact connector fits within standard electrical boxes alongside power distribution components. Impact: Centralized monitoring of 200+ building automation points through single PROFIBUS segment.

Technical Parameters & Selection Guide

Selection Recommendations: For network segments requiring termination at both ends, order two units per segment. In applications with frequent connector mating cycles (>100/year), consider the straight-outlet variant 700-972-0BB41 to reduce cable stress. When deploying in environments approaching 60°C ambient temperature, verify cabinet ventilation meets Siemens thermal management guidelines. Always use genuine PROFIBUS-certified cables (Type A for fixed installations) to maintain the 12 Mbps performance specification.

Extended Functionality & Integration Options

Network Diagnostics Compatibility: The 700-972-0BA41 supports PROFIBUS diagnostic tools including SIMATIC NET PC software and handheld testers, enabling real-time monitoring of signal quality, termination status, and cable impedance measurements during commissioning and troubleshooting.

Redundant Network Topologies: Deploy in redundant PROFIBUS configurations using Siemens Y-link modules to create fault-tolerant communication paths for critical process control applications requiring 99.99% availability.

Hybrid Network Integration: Combine with PROFIBUS/PROFINET gateways to bridge legacy PROFIBUS devices into modern Industrial Ethernet architectures, preserving existing field device investments during IIoT migration projects.

Custom Cable Assemblies: Available as part of pre-assembled cable solutions with molded connectors and specified lengths (0.5m–50m) for rapid deployment in standardized machine builds or OEM panel manufacturing.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock items ship within 1–3 business days via express courier services. Typical delivery to major industrial centers: North America (3–5 days), Europe (2–4 days), Asia-Pacific (4–7 days).

Bulk Order Processing: Quantities exceeding 50 units may require 7–10 business days for warehouse consolidation. Volume pricing available for system integrators and OEM partners—contact our sales team for project-specific quotations.

Warranty Coverage: All Siemens 700-series connectors include a 24-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions as defined in product documentation.

Technical Support: Access to certified Siemens automation specialists for installation guidance, network troubleshooting, and compatibility verification. Support channels include email (response within 24 hours), phone hotline (business hours), and online knowledge base with wiring diagrams and configuration examples.

Documentation Package: Each connector ships with installation instructions, termination wiring diagrams, and compliance certificates. Complete technical manuals, CAD drawings (STEP/DXF formats), and EPLAN macros available for download from the Siemens Industry Online Support portal.

Frequently Asked Questions

How do I connect the 700-972-0BA41 to standard PROFIBUS cable?
Strip 8–10mm of insulation from the two-wire shielded PROFIBUS cable. Insert the data wires (typically green and red) into the screw terminals marked A and B, tightening to 0.5 Nm torque. Connect the cable shield to the metal housing using the integrated shield clamp to ensure proper EMI protection. Verify termination switch position—ON for network endpoints, OFF for mid-segment connections.

What is the maximum network distance when using this connector?
PROFIBUS DP segment length depends on baud rate: 1,200m at 9.6–93.75 kbps, 400m at 187.5 kbps, 200m at 500 kbps, and 100m at 1.5–12 Mbps. The 700-972-0BA41 connector itself does not limit distance—cable quality and repeater placement determine maximum topology reach. For segments exceeding these distances, deploy RS485 repeaters at 90% of maximum length intervals.

Can this connector reduce energy consumption in my automation network?
As a passive interconnect component, the 700-972-0BA41 draws negligible current (<1mA) from the PROFIBUS power rails. However, optimized network topology using this connector's integrated termination eliminates external resistor modules that typically consume 15–20mA each, reducing overall network power draw by 8–12% in large installations with 20+ segments.

What are the installation requirements for control cabinet mounting?
The connector plugs directly into the 9-pin PROFIBUS port on your device (PLC, I/O module, or drive)—no mounting hardware required. Ensure 80mm clearance behind the device for the 90-degree cable bend radius. For vibration-prone applications (mobile machinery, rail vehicles), secure the PROFIBUS cable to the cabinet structure within 150mm of the connector using cable ties or strain relief clamps rated for industrial environments.

Does the 700-972-0BA41 support remote monitoring and diagnostics?
While the connector itself is a passive component, it fully supports PROFIBUS diagnostic protocols when connected to devices with integrated diagnostic capabilities. Network monitoring systems can detect cable breaks, termination faults, and signal quality degradation at the segment level. For connector-level diagnostics, use PROFIBUS installation testers (e.g., PROFIBUS Tester BC-600) to measure impedance and verify termination resistor activation.

Is this connector compatible with PROFIBUS PA field devices?
The 700-972-0BA41 is designed for PROFIBUS DP networks operating at RS485 voltage levels. For PROFIBUS PA applications (intrinsically safe, bus-powered field devices), you must use a DP/PA coupler or link module that converts between the two physical layers. The connector can then interface with the DP side of the coupler to integrate PA segments into your overall network architecture.

Optimize Your Industrial Network Today

Ready to enhance your PROFIBUS infrastructure with proven Siemens connectivity? The 700-972-0BA41 bus connector delivers the reliability and performance your automation systems demand. Contact our technical sales team for application-specific guidance, volume pricing, or to request a compatibility assessment for your existing SIMATIC installation.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with an industrial automation specialist. Same-day quotations available for standard configurations.
