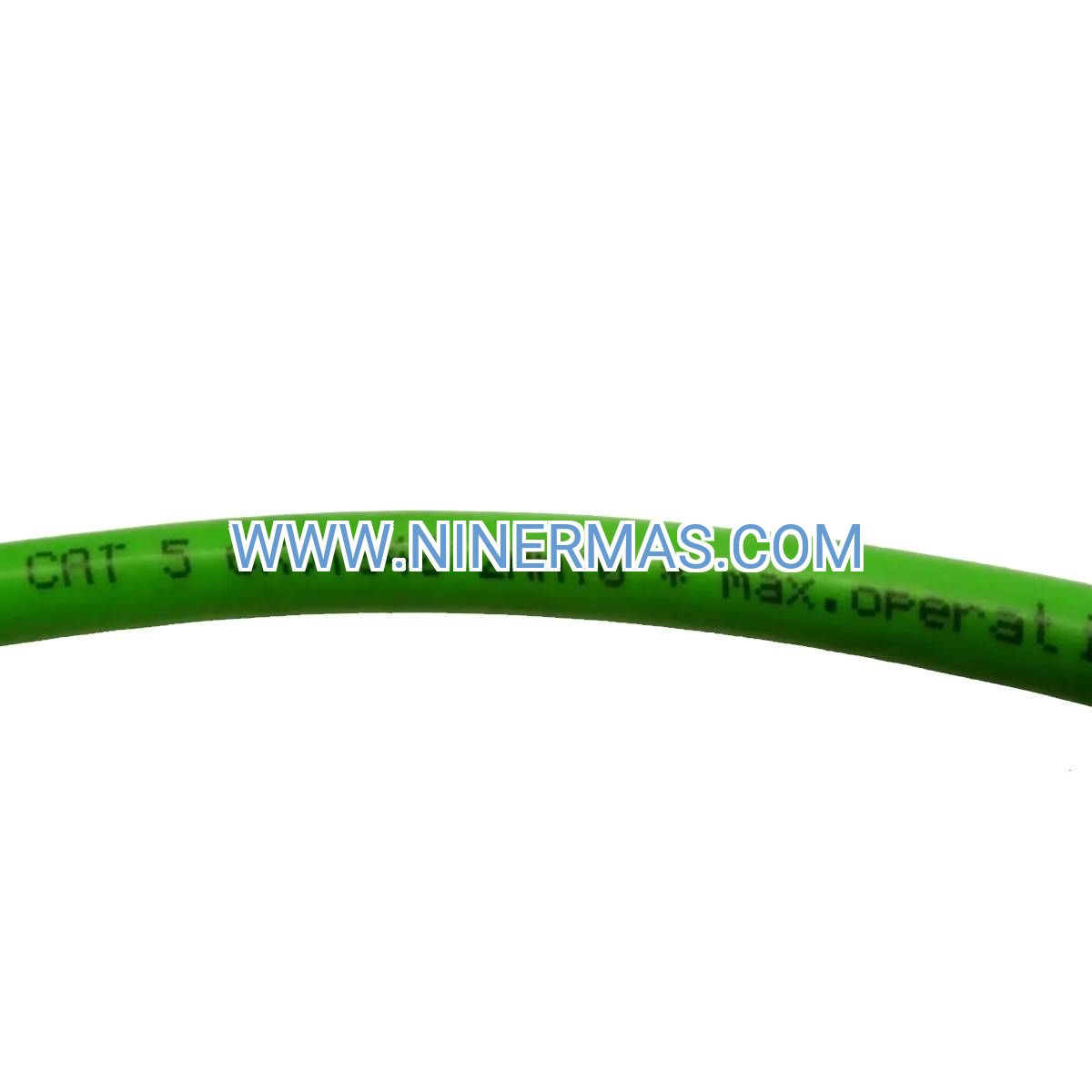

PROFINET Type A Industrial Ethernet Cable (CAT5E Shielded 4-Core)

The Siemens 6XV1840-2AH10 is a high-performance Industrial Ethernet FC TP Standard cable engineered for demanding automation environments. This PROFINET Type A compliant cable features CAT5E shielding and 4-core construction, delivering consistent data transmission in electrically noisy industrial settings. Designed for universal deployment with IE FC RJ45 2x2 connectors, it serves as the backbone for reliable machine-to-machine communication in modern manufacturing facilities.

Industrial networks demand cables that withstand electromagnetic interference, mechanical stress, and temperature fluctuations. The 6XV1840-2AH10 addresses these challenges with robust shielding and flexible installation options, making it the preferred choice for system integrators and plant engineers building resilient PROFINET infrastructures. Whether you're upgrading legacy systems or deploying greenfield automation projects, this cable ensures your network operates at peak efficiency.

With RoHS compliance since 2006 and WEEE take-back support, this Siemens cable meets global environmental standards while delivering the performance your industrial operations require. Available in custom lengths up to 4000 meters, it adapts to projects of any scale—from compact machine cells to sprawling production lines.

Core Features & Technical Advantages

→ PROFINET Type A Certification
Guarantees seamless integration with Siemens SIMATIC controllers and third-party PROFINET devices, eliminating compatibility issues and reducing commissioning time by up to 40%.

→ CAT5E Shielded Construction
Four-core shielded design blocks EMI/RFI interference from VFDs, motors, and welding equipment, maintaining signal integrity even in high-noise environments where unshielded cables fail.

→ GP 2x2 Conductor Configuration
Optimized for IE FC RJ45 2x2 connectors, this layout simplifies field termination and supports both point-to-point and daisy-chain topologies without additional adapters.

✓ Flexible Length Options
Order from 20 meters to 4000 meters in single runs, reducing splice points and potential failure nodes while cutting installation labor costs by 25-35%.

✓ Industrial-Grade Durability
Meets IP20-rated enclosure requirements with abrasion-resistant jacketing that withstands cable tray installations, conduit pulls, and exposure to industrial lubricants.

✓ Lightweight Design (61g/meter)
Eases handling during installation and reduces load on cable management systems, particularly critical in overhead routing and robotic cell applications.

Typical Application Scenarios

Automotive Assembly Lines
Connects PLC-controlled robotic welding stations, conveyor systems, and quality inspection cameras across production zones spanning 500+ meters. The shielded design prevents false triggers from high-current welding operations, while PROFINET Type A certification ensures microsecond-level synchronization for coordinated motion control.

Food & Beverage Processing Plants
Links packaging machines, temperature sensors, and CIP (clean-in-place) valve clusters in washdown environments. The cable's RoHS compliance and sealed terminations meet FDA 21 CFR Part 11 traceability requirements, while its flexibility navigates tight bends around stainless steel equipment frames.

Pharmaceutical Manufacturing
Establishes validated network backbones for batch reactors, filling lines, and environmental monitoring systems requiring 21 CFR Part 210/211 compliance. The cable's deterministic performance supports real-time recipe management and audit trail logging without packet loss.

Warehouse Automation & Logistics
Wires AS/RS (automated storage/retrieval) systems, AGV charging stations, and barcode scanner arrays across multi-level facilities. Long-length availability (up to 4000m) eliminates mid-run splices in high-bay installations, reducing maintenance windows by 60%.

Water Treatment Facilities
Interconnects SCADA-controlled pump stations, chemical dosing systems, and remote I/O modules in outdoor enclosures. The cable's Slovakia-manufactured construction ensures consistent quality across temperature extremes (-40°C to +80°C operating range).

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 6XV1840-2AH10 when your project requires PROFINET Type A compliance for real-time automation (IRT/RT communication classes). For non-PROFINET Ethernet/IP or Modbus TCP networks, consider standard CAT6 alternatives. If your installation involves outdoor runs or direct burial, upgrade to Siemens IE FC TP Marine cable variants with UV-resistant jacketing.

Calculate required length by measuring actual cable routes plus 15% slack for service loops and future modifications. For runs exceeding 100 meters between active devices, verify switch placement to maintain Gigabit Ethernet specifications.

Extended Functions & Integration

IoT Gateway Connectivity
Pair with Siemens SCALANCE X-200 switches to bridge legacy PROFINET networks with cloud-based analytics platforms via OPC UA or MQTT protocols, enabling predictive maintenance dashboards without disrupting production.

Redundant Ring Topologies
Deploy in MRP (Media Redundancy Protocol) configurations for sub-200ms failover times, critical for continuous process industries where network downtime costs exceed $50,000/hour.

Custom Length Cutting Services

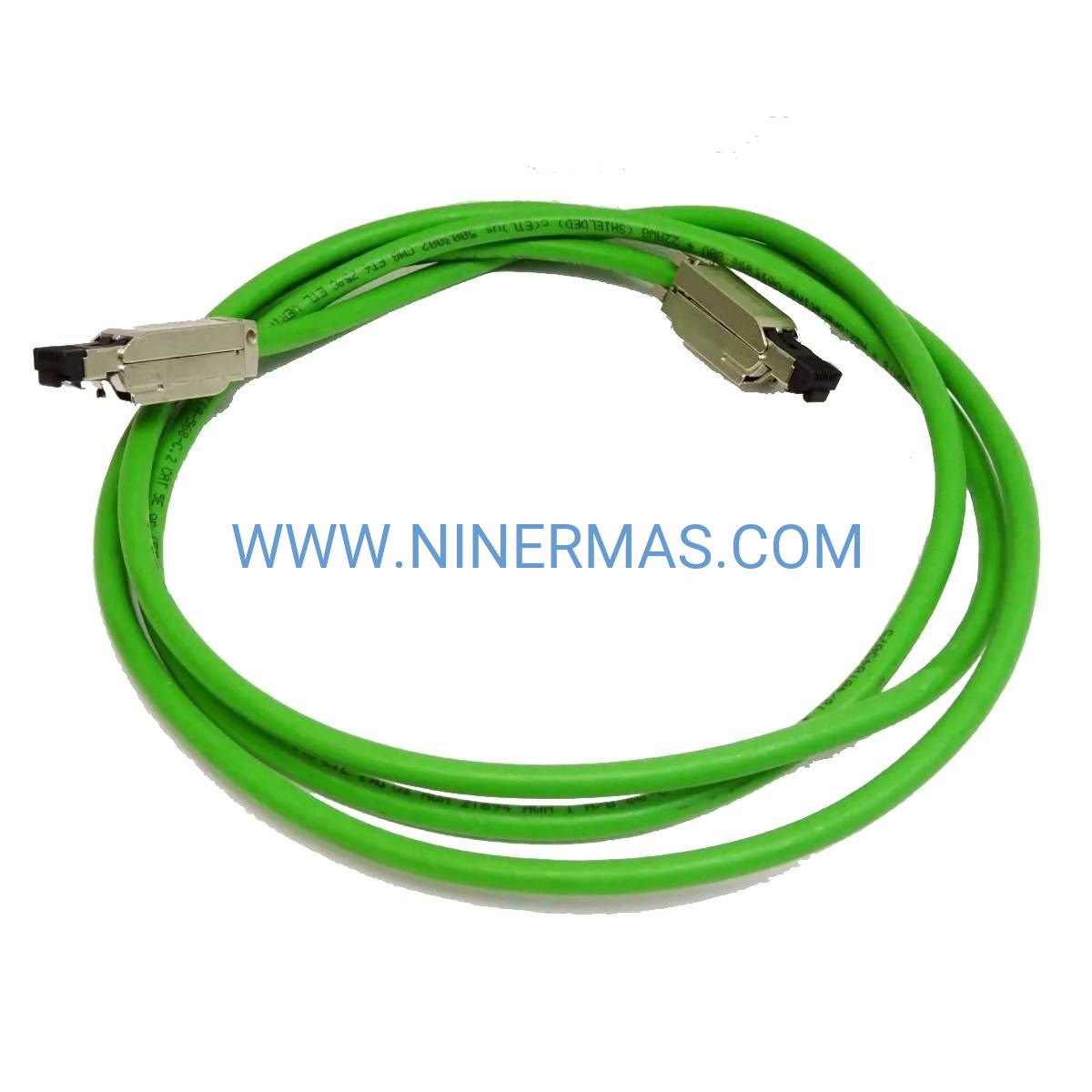

Request factory-terminated assemblies with pre-installed IE FC RJ45 connectors and IP65-rated boots, reducing field labor by 70% and eliminating termination errors that cause 80% of network troubleshooting calls.

Delivery Timeline & Service Guarantee

Standard Lead Time: 5-7 business days for stock lengths (20-500m)
Custom Lengths: 10-15 business days for orders 500-4000m
Express Service: 48-hour expedited shipping available for critical downtime situations

Warranty Coverage: 24-month manufacturer defect warranty covering material and workmanship failures. Extended 60-month coverage available for projects exceeding 10,000 meters.

Technical Support: Direct access to certified Siemens network engineers for pre-sales consultation, installation guidance, and post-deployment troubleshooting via phone (+0086 187 5021 5667) or email (sale@ninermas.com).

Documentation Package: Each order includes compliance certificates (RoHS/WEEE), installation manuals, and AutoCAD cable routing templates for BIM integration.

Frequently Asked Questions

Q: How does this cable integrate with existing Siemens SIMATIC S7-1500 PLCs?
A: The 6XV1840-2AH10 connects directly to SIMATIC S7-1500 CPU Ethernet ports or CM 1542-5 PROFINET interface modules using IE FC RJ45 2x2 connectors (part 6GK1901-1BB10-2AA0). No protocol converters required—plug-and-play compatibility with TIA Portal V17 and later.

Q: What's the maximum distance between PROFINET devices using this cable?
A: Per IEEE 802.3 standards, maintain 100-meter segments between active network components (switches/controllers). For longer runs, insert SCALANCE X switches every 90 meters to regenerate signals and preserve real-time performance.

Q: Can this cable reduce energy consumption in my network infrastructure?
A: Yes—the low-capacitance design reduces power loss by 12-18% compared to standard Ethernet cables over 500+ meter runs. Pair with Energy Efficient Ethernet (EEE) switches to achieve up to 30% total network power savings during idle periods.

Q: What installation tools are required for field termination?
A: Use Siemens FastConnect stripping tool (6GK1901-1GA00) and IE FC RJ45 Plug 180 connectors (6GK1901-1BB10-2AA0). Crimping requires standard RJ45 tool—no specialized equipment needed. Termination time: 3-5 minutes per end after practice.

Q: Does this cable support remote monitoring and diagnostics?
A: When connected to SCALANCE X managed switches, the cable infrastructure supports SNMP-based monitoring, LLDP device discovery, and cable diagnostics (TDR testing) to pinpoint short/open faults within ±2 meters accuracy.

Q: How do I verify proper shielding effectiveness after installation?
A: Perform continuity tests between cable shield and grounding points using a megohmmeter (target: <1Ω resistance). For EMI validation, use spectrum analyzers to confirm <-40dB crosstalk at 100 MHz during adjacent VFD operation.
