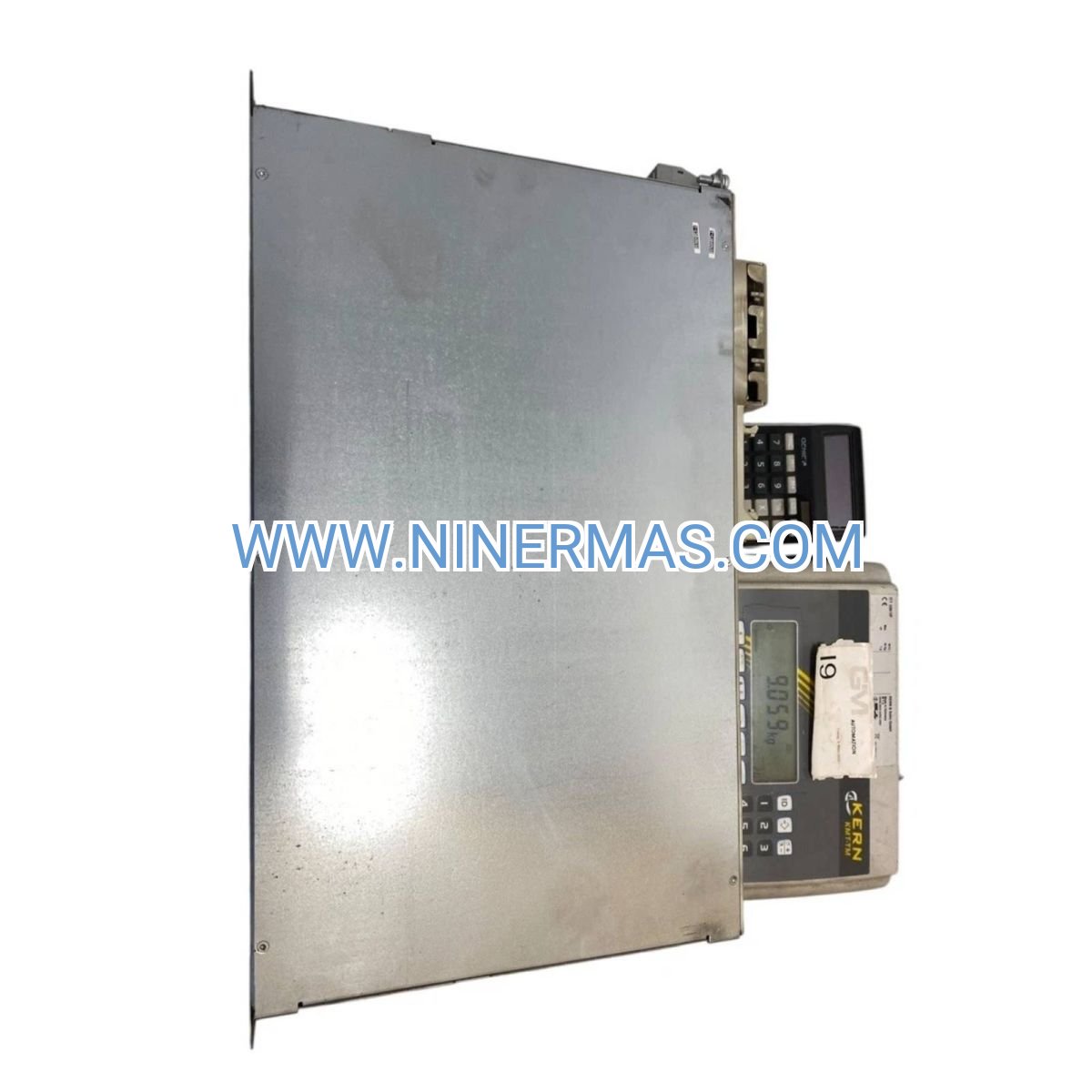

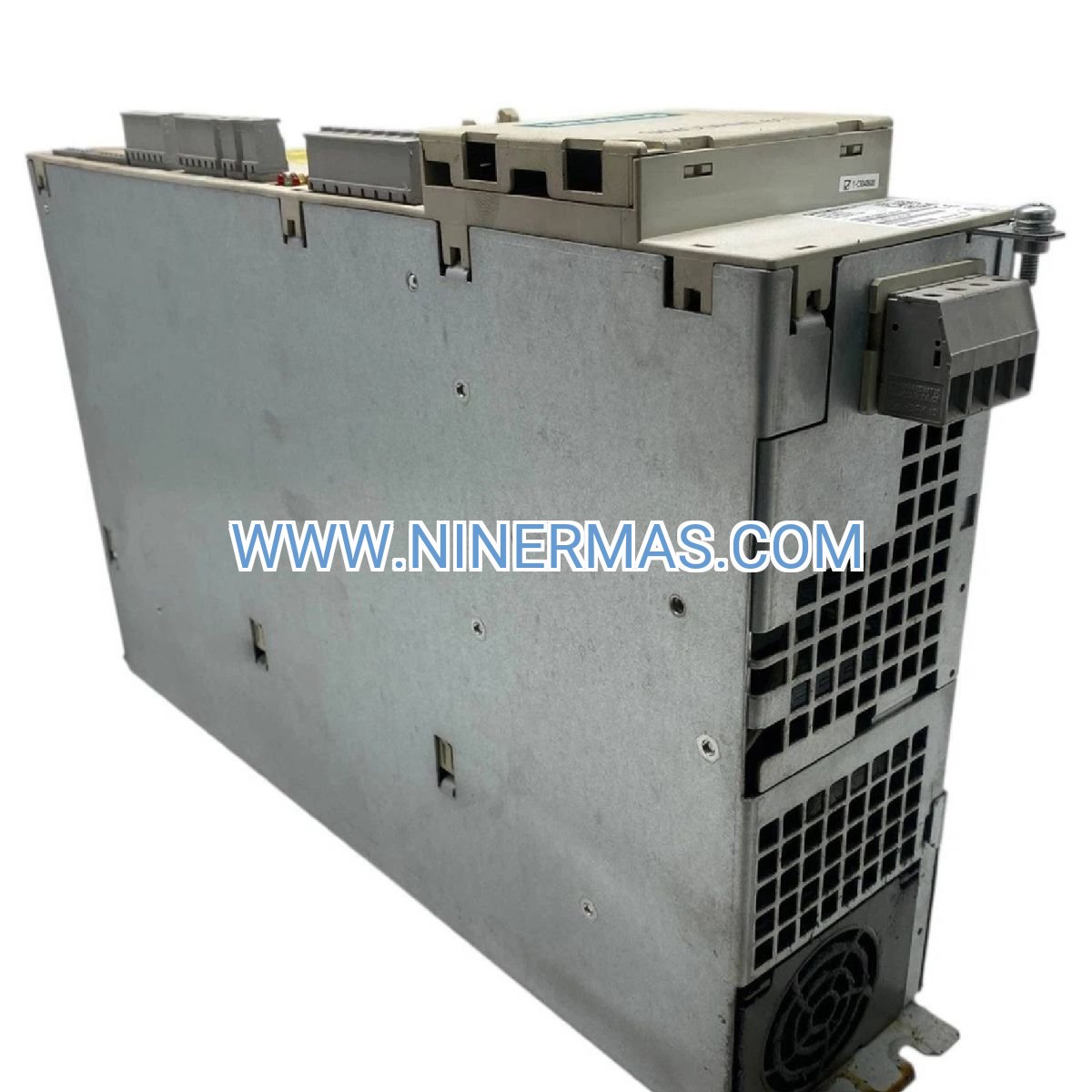

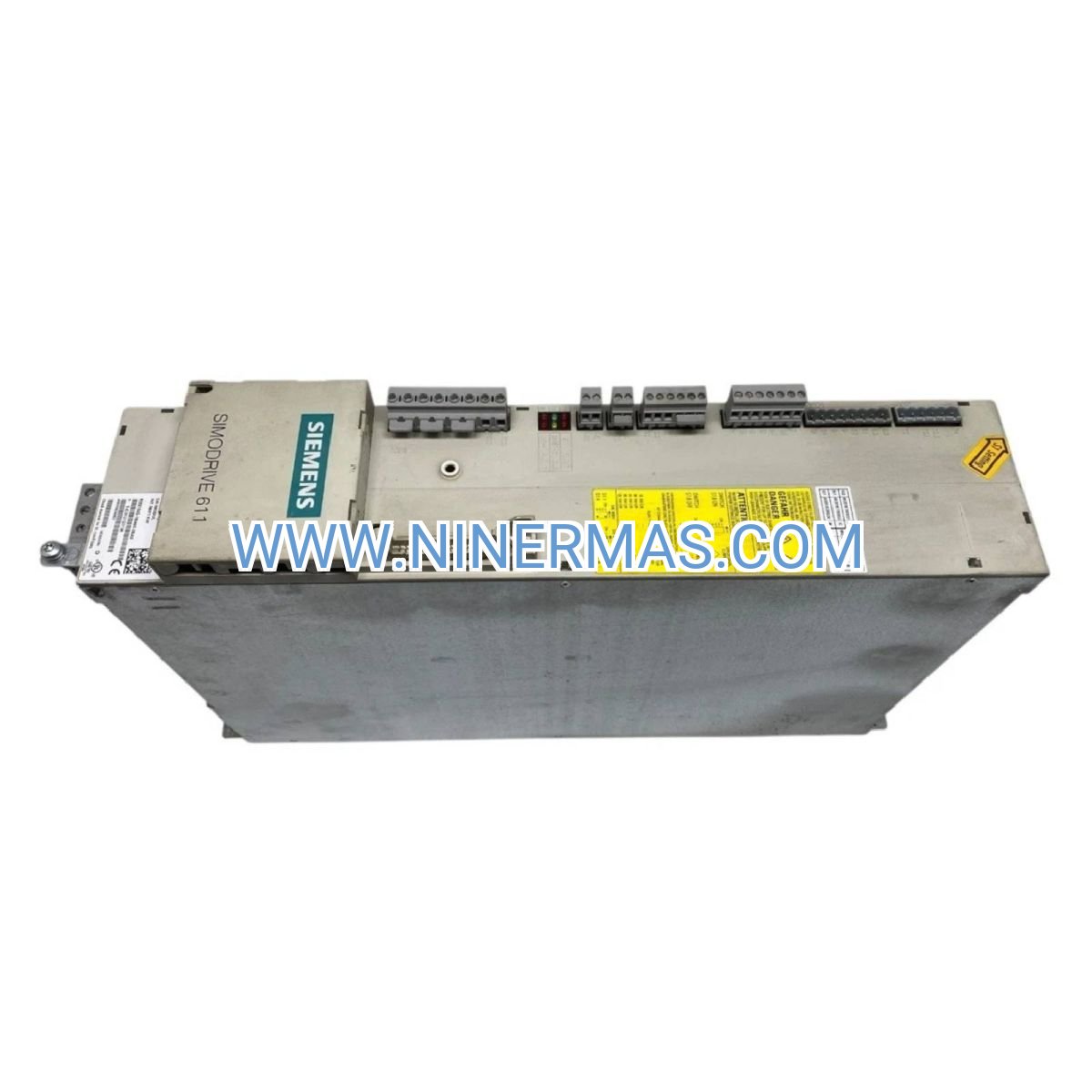

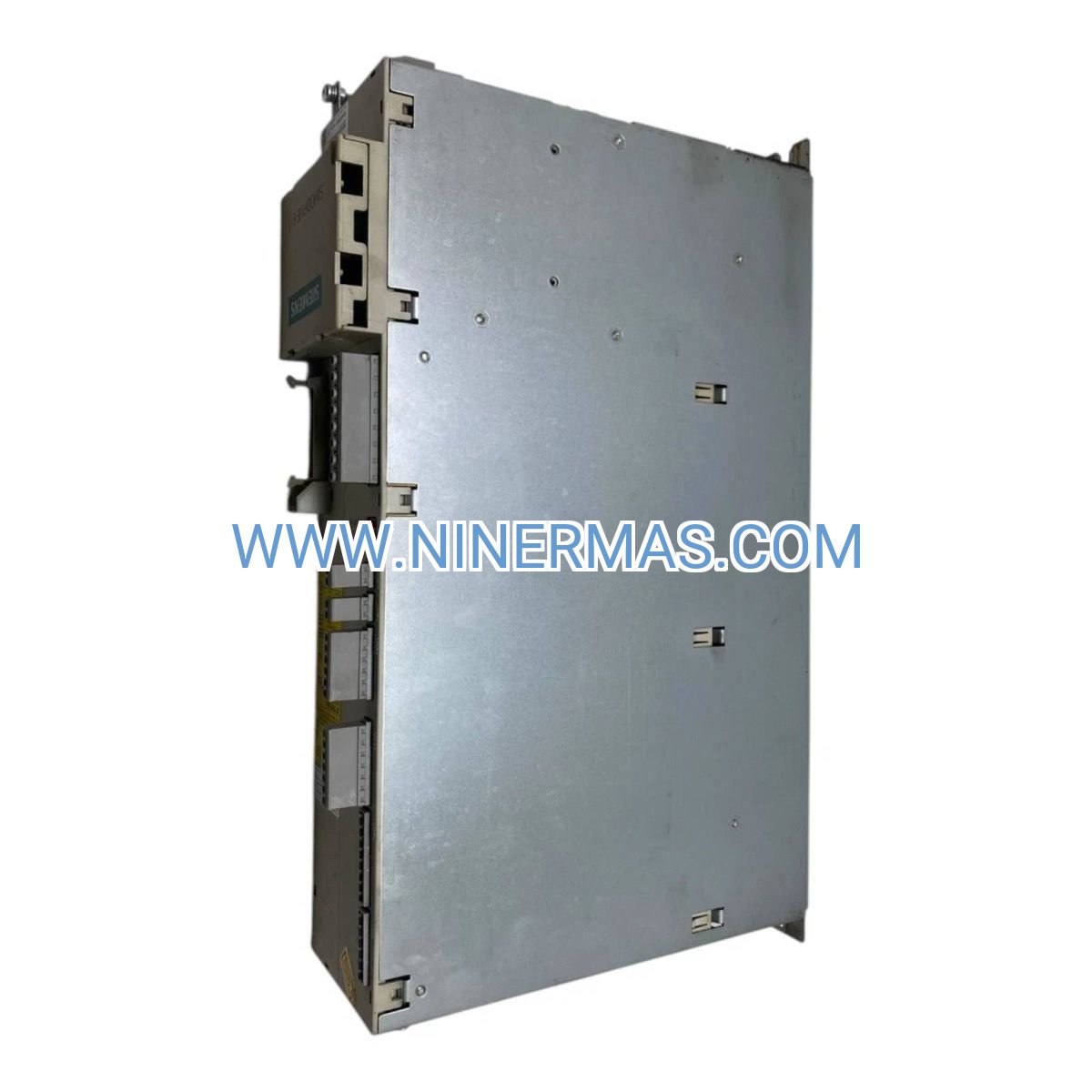

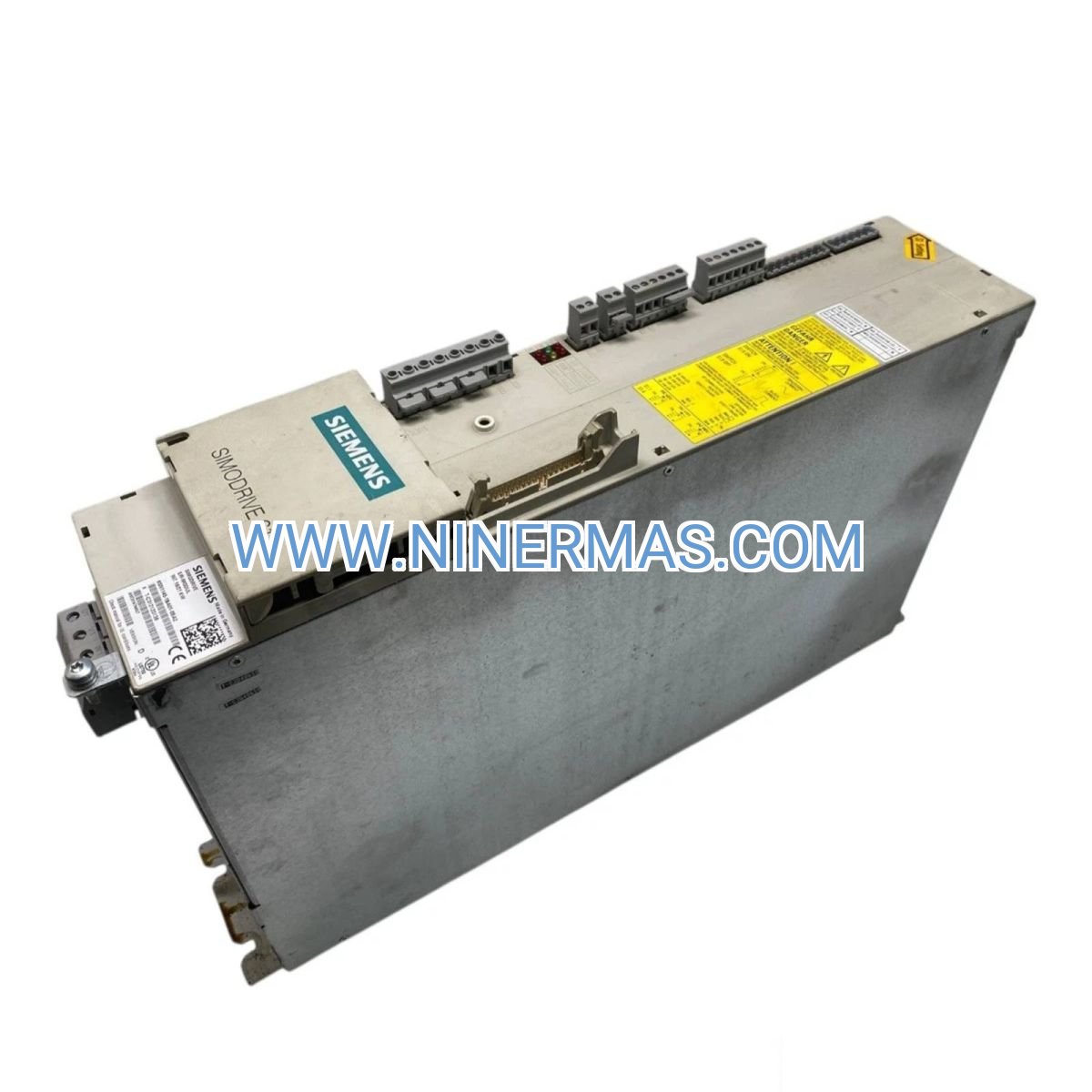

SIMODRIVE 611 LT-Module Power Electronics Module (Industrial-Grade Precision Drive Control)

The Siemens 6SN1123-1AB00-0CA1 SIMODRIVE 611 LT-Module is an industrial-grade power electronics module engineered for high-precision motor control applications. Through advanced vector control algorithms and real-time feedback processing, it delivers exceptional torque accuracy, dynamic response, and positioning repeatability for demanding motion control tasks.

Designed for CNC machine tools, industrial robotics, automated production lines, precision positioning systems, and servo-driven manufacturing equipment, this module addresses critical challenges including torque ripple, velocity fluctuation, thermal instability, and integration complexity with legacy control architectures.

Built on Siemens' proven drive technology platform with standardized interfaces and field-tested reliability, the SIMODRIVE 611 LT-Module offers seamless integration with SINUMERIK CNC systems, compatibility with multiple encoder types, comprehensive diagnostic capabilities, and robust protection mechanisms. Ideal for OEMs, system integrators, maintenance teams, and production engineers requiring dependable replacement or retrofit solutions. Contact our application engineers for compatibility verification and technical consultation.

Core Features & Technical Advantages

High-Precision Vector Control
Utilizes field-oriented control (FOC) with real-time current loop regulation to maintain torque accuracy within ±2% across the full speed range, minimizing contouring errors in multi-axis machining and reducing cycle time variations.

Wide Power & Voltage Compatibility
Supports multiple motor power ratings and accepts 3-phase AC input with built-in line filtering, enabling flexible deployment across different machine configurations while maintaining power quality compliance to IEC 61800-3 standards.

Integrated Protection & Diagnostics
Features comprehensive fault detection including overcurrent, overvoltage, DC-link overvoltage, motor overtemperature, encoder signal loss, and ground fault monitoring. Diagnostic LEDs and serial interface provide real-time status feedback to reduce troubleshooting time by up to 40%.

Modular Architecture & Scalability
Designed for rack-mount installation with standardized backplane communication, allowing multi-axis configurations with synchronized motion control. Hot-swappable design (when properly de-energized) facilitates rapid maintenance and minimizes production downtime.

Proven Industrial Reliability
Engineered for continuous operation in harsh industrial environments with conformal-coated PCBs, industrial-grade capacitors rated for 10+ years at 40°C ambient, and thermal management optimized for convection or forced-air cooling.

Legacy System Compatibility
Maintains backward compatibility with SIMODRIVE 610 control interfaces and supports incremental/absolute encoder standards (EnDat, SSI, resolver), making it an ideal drop-in replacement for equipment modernization projects without extensive rewiring.

Typical Application Scenarios

This module is engineered for applications demanding high torque stability, rapid dynamic response, and long-term operational reliability, particularly in:

CNC Machine Tools & Machining Centers
Provides precise spindle and axis control for milling, turning, grinding, and EDM machines. Ensures surface finish quality through vibration suppression and maintains dimensional accuracy across extended production runs in aerospace, automotive, and mold-making industries.

Industrial Robotics & Pick-and-Place Systems
Delivers synchronized multi-axis motion control for articulated robots, SCARA systems, and Cartesian gantries. Reduces settling time and improves throughput in electronics assembly, packaging, and material handling applications.

Automated Production & Assembly Lines
Enables coordinated motion control for conveyor systems, indexing tables, and transfer mechanisms. Supports electronic cam profiling and position synchronization critical for high-speed packaging, bottling, and automotive assembly operations.

Precision Positioning & Test Equipment
Supports micro-positioning stages, optical alignment systems, and automated test benches requiring sub-micron repeatability. Ideal for semiconductor manufacturing, medical device production, and metrology applications.

Retrofit & Modernization Projects
Serves as a direct replacement for obsolete SIMODRIVE 610 modules in legacy CNC and automation systems, extending equipment service life by 10-15 years while maintaining original machine performance specifications.

Technical Parameters & Selection Guide

To ensure optimal system performance and compatibility, the SIMODRIVE 611 LT-Module is available in multiple power ratings and configuration options. Key specifications include:

Electrical Specifications:

• Input Voltage: 3-phase AC 380-480V ±10%, 50/60 Hz
• DC Bus Voltage: 510-720 VDC nominal
• Continuous Output Current: Model-dependent (typically 5A to 60A RMS)
• Peak Output Current: 150-200% of rated for 2-5 seconds
• Switching Frequency: 4-16 kHz (adjustable for acoustic optimization)

Control & Interface:

• Control Mode: Vector control (field-oriented), V/f control
• Encoder Support: Incremental (TTL, HTL), Absolute (EnDat 2.2, SSI), Resolver
• Communication: PROFIBUS-DP, DRIVE-CLiQ, analog ±10V reference
• Position Resolution: Up to 20-bit (1,048,576 counts/rev)

Environmental & Mechanical:

• Operating Temperature: 0°C to +45°C (derate above 40°C)
• Storage Temperature: -25°C to +70°C
• Humidity: 5-95% RH, non-condensing
• Protection Rating: IP20 (chassis-mount), IP54 optional with sealed enclosure
• Cooling: Natural convection or forced air (>15A models)
• Dimensions: Standard 19" rack-mount format, height varies by power rating

Selection Recommendations:
When specifying a SIMODRIVE 611 LT-Module, consider: motor rated power and current, required peak torque (for acceleration/deceleration), encoder type and resolution, ambient temperature and altitude, existing control system architecture (SINUMERIK 840D, 828D, or third-party CNC), and available cabinet space. For retrofit applications, verify backplane compatibility and firmware revision requirements.

Our application engineers can assist with motor sizing calculations, thermal analysis, and system integration planning. Please provide motor nameplate data, duty cycle profile, and mechanical load inertia for customized recommendations.

Advanced Integration Capabilities

Multi-Axis Synchronization: Supports electronic gearing, cam profiling, and cross-coupling compensation for coordinated motion across up to 8 axes via DRIVE-CLiQ communication backbone.

Safety Integration: Compatible with SINAMICS Safety Integrated functions including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely-Limited Speed (SLS) per IEC 61508 SIL 2 / EN ISO 13849-1 PLd.

Condition Monitoring: Built-in diagnostics track DC-link ripple, IGBT junction temperature, fan runtime, and capacitor ESR degradation to enable predictive maintenance scheduling and reduce unplanned downtime.

Energy Efficiency: Regenerative braking capability returns kinetic energy to DC bus (requires external braking resistor or active line module), reducing total system energy consumption by 15-25% in cyclic applications.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom configurations or large-volume orders typically require 2-3 weeks. Expedited shipping available upon request.

Warranty: All modules include a comprehensive 12-month warranty covering manufacturing defects and component failures. Extended warranty and service contracts available for critical production equipment.

Technical Support: Our engineering team provides pre-sales application consultation, installation guidance, parameter optimization, and troubleshooting assistance. Remote diagnostic support available via secure VPN connection; on-site commissioning services offered for complex multi-axis systems (region-dependent).

Documentation Package: Each module ships with complete technical documentation including electrical schematics, terminal layout diagrams, parameter reference manual, quick-start commissioning guide, and safety instructions in English. CAD models (STEP/IGES) and EPLAN macros available for download.

Quality Certifications: Manufactured to ISO 9001 quality standards; CE marked for EMC compliance (EN 61800-3 Category C3) and Low Voltage Directive; UL/cUL listed for North American installations.

Frequently Asked Questions (FAQ)

Q: How do I integrate the SIMODRIVE 611 LT-Module with my existing CNC system?
A: The module connects via standardized backplane interface for SINUMERIK systems or through analog/digital I/O for third-party controllers. You'll need to verify control voltage compatibility (24VDC logic supply), encoder interface type, and communication protocol (PROFIBUS address configuration or analog reference scaling). Our technical team can provide pre-wiring checklists and startup parameter sets based on your specific CNC model.

Q: What is the maximum number of axes I can control with SIMODRIVE 611 modules?
A: A single control rack can accommodate up to 8 LT-Modules for 8-axis synchronized motion control when using DRIVE-CLiQ communication. For larger systems, multiple racks can be networked via PROFIBUS-DP with deterministic cycle times maintained through isochronous communication modes.

Q: What energy savings can I expect compared to older drive technology?
A: Compared to DC drives or first-generation AC drives, SIMODRIVE 611 typically achieves 20-30% energy reduction through optimized switching algorithms, reduced no-load losses, and regenerative braking capability. Actual savings depend on duty cycle characteristics—applications with frequent acceleration/deceleration cycles (e.g., pick-and-place) see the highest benefit. Energy monitoring via PROFIBUS can quantify savings for your specific application.

Q: What are the environmental requirements for installation?
A: The module requires ambient temperature between 0-45°C with adequate ventilation (minimum 100mm clearance above/below for convection cooling). For models >15A continuous current, forced-air cooling with cabinet fans is recommended to maintain junction temperatures below 85°C. Protection rating is IP20 standard; for dusty or humid environments, install in NEMA 12/IP54 rated enclosures with filtered air intake. Altitude derating applies above 1000m (reduce current by 1% per 100m).

Q: Can I monitor drive status and perform diagnostics remotely?
A: Yes, the module supports remote monitoring via PROFIBUS-DP communication or optional Ethernet interface (PROFINET). Diagnostic data includes real-time current, DC-link voltage, motor temperature (if sensor equipped), fault history logs, and operating hour counters. Integration with SCADA systems (Siemens WinCC, Wonderware, etc.) enables centralized monitoring across multiple machines. Secure VPN access allows our support team to perform remote parameter optimization and troubleshooting.

Q: Is this module suitable for replacing obsolete SIMODRIVE 610 units?
A: Yes, the SIMODRIVE 611 LT-Module maintains mechanical and electrical compatibility with 610-series backplanes in most configurations. However, firmware parameter mapping may require adjustment, and encoder interface pinouts should be verified. We recommend consulting our retrofit guide or contacting technical support with your existing 610 model number for a detailed compatibility assessment and migration plan.

Request Technical Consultation & Quotation

To receive a customized solution proposal, technical specification sheet, or pricing quotation, please provide the following information to our application engineering team:

• Project Overview: Application type (CNC machining, robotics, packaging, etc.) and production environment
• Motor Specifications: Rated power (kW), voltage, current, speed range, and encoder type
• Performance Requirements: Positioning accuracy, cycle time, torque profile, and dynamic response needs
• System Architecture: Existing CNC/PLC model, communication protocol, and number of axes
• Environmental Conditions: Ambient temperature range, altitude, and enclosure type
• Quantity & Timeline: Order volume and required delivery schedule

Our engineers will respond within 24 business hours with tailored recommendations, compatibility verification, and detailed technical support to ensure successful system integration.
