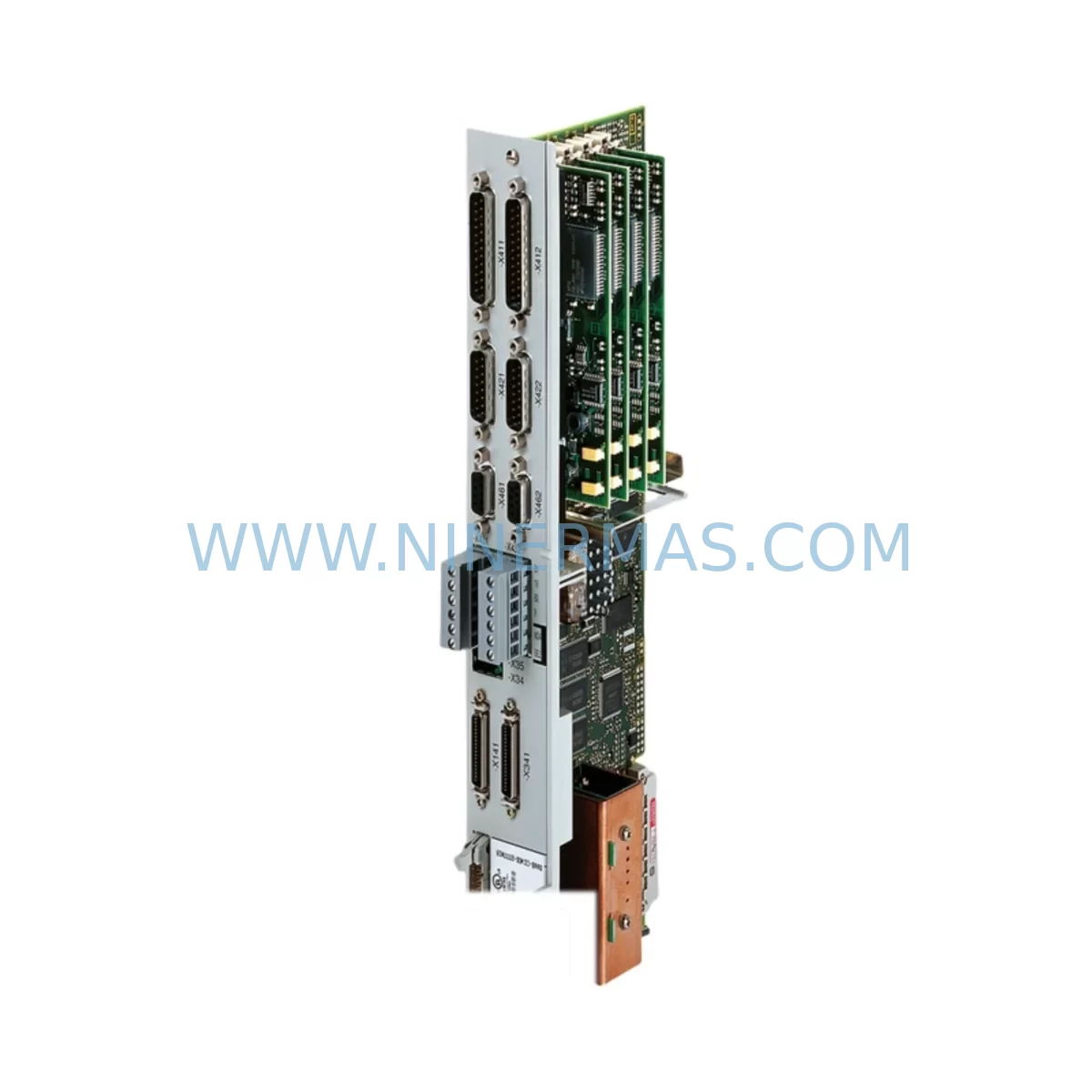

The Siemens 6SN1118-0DM33-0AA2 is a control module designed for the SIMODRIVE 611 servo drive platform — one of the most widely deployed motion control systems in CNC machining centers, transfer lines, and automated production equipment. As Siemens progressively phases out legacy SIMODRIVE 611 components, maintenance engineers and retrofit specialists face increasing pressure to source verified replacement units that can be installed without reprogramming the entire drive system or halting production for extended periods.

NINERMAS maintains ready stock of the 6SN1118-0DM33-0AA2 to support customers engaged in planned retrofits, emergency breakdowns, and long-term spare parts lifecycle management. Every unit is subject to pre-shipment functional testing and ships with a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6SN1118-0DM33-0AA2 in an active production environment requires careful pre-planning across multiple system layers. The SIMODRIVE 611 platform is typically installed in a drive cabinet alongside a SINUMERIK 840D sl or SINUMERIK 810D CNC controller, and the control module communicates with the NCU via the internal drive bus. Before removing the faulty module, engineers should use the SINUMERIK service menu or SIMODRIVE POSMO tool to upload and archive all axis parameters, including current controller gains, encoder feedback settings, and velocity limits.

The power supply module — commonly a 6SN1145 or 6SN1146 series infeed/regenerative unit — must be verified for adequate DC bus capacity to support the replacement module under full load. If the existing infeed module is also aging, this retrofit is an appropriate time to evaluate its condition and plan a parallel replacement to avoid a second unplanned outage.

Terminal wiring on the 6SN1118-0DM33-0AA2 follows the standard SIMODRIVE 611 connector layout. Technicians should photograph or document all existing wiring before disconnection, paying particular attention to the enable signals, speed setpoint inputs (analog ±10V or PROFIBUS), and the motor encoder feedback cable routed from the 1FK7 or 1FT6 series servo motor. Incorrect reconnection of the encoder cable is one of the most common causes of post-replacement faults.

For systems using PROFIBUS-DP as the primary communication backbone, the module address (node ID) must be set correctly on the replacement unit before the drive bus is re-energized. In multi-axis cabinets where several 6SN1118 or 6SN1123 modules share the same rack, address conflicts will prevent the NCU from recognizing the new module and will generate a drive fault on startup. Confirm the slot position and address assignment against the original machine documentation or the SINUMERIK drive configuration file.

If the machine uses a SIMATIC S7-300 or S7-400 PLC for auxiliary I/O control alongside the SIMODRIVE 611 drive system, verify that the PLC program’s axis enable and fault reset logic is compatible with the replacement module’s response timing. In some older installations, hardwired interlocks between the PLC digital output modules and the drive enable terminals may need to be re-verified after the swap.

HMI screens on SINUMERIK Operate or legacy MMC 103 operator panels typically do not require modification when replacing a like-for-like control module, but any axis-specific alarm messages or diagnostic screens should be tested after commissioning to confirm correct display behavior. Where the machine uses a standalone TP177 or TP270 HMI panel connected via MPI or PROFIBUS, no panel reprogramming is expected for a direct module replacement.

Physical installation space should be confirmed before ordering. The 6SN1118-0DM33-0AA2 occupies a standard SIMODRIVE 611 single-width slot. In densely populated drive cabinets, adjacent modules and cable harnesses may restrict access. Plan for adequate clearance and ensure the cabinet ventilation path is not obstructed during the installation procedure. A 6SN1162 series connecting cable or the appropriate shielded signal cable may be required if the existing cable shows signs of insulation degradation.

Downtime Control During System Migration

Minimizing production downtime during a SIMODRIVE 611 module replacement begins with preparation completed before the maintenance window opens. The most effective approach is to pre-configure the replacement 6SN1118-0DM33-0AA2 offline using a drive parameter file exported from the original unit or from a backup stored in the SINUMERIK NCU. When a valid parameter backup exists, the actual module swap and recommissioning sequence can typically be completed within two to four hours, depending on cabinet accessibility and the number of axes affected.

Where no parameter backup is available, the recommissioning time increases significantly. In this scenario, NINERMAS recommends requesting a copy of the original machine commissioning report from the machine builder or the end user’s maintenance archive before scheduling the outage. If neither source is available, a qualified drive engineer will need to re-tune the axis from scratch using the motor data sheet for the connected 1FK7 or 1FT6 servo motor.

To protect the original program logic in the SINUMERIK controller during the hardware swap, the NCU should remain powered where possible, with only the drive bus de-energized. This approach preserves the part program library, tool offsets, and work coordinate systems stored in the NCU memory, eliminating the risk of data loss during the module exchange. After the replacement module is seated and wired, the drive bus can be re-energized and the axis brought online through the standard SIMODRIVE 611 startup sequence.

For facilities operating continuous production schedules, a cold standby strategy — maintaining one pre-configured spare 6SN1118-0DM33-0AA2 on the shelf — is the most reliable method of controlling unplanned downtime risk. NINERMAS supports this strategy by offering volume pricing for spare parts procurement and maintaining ongoing stock availability for the SIMODRIVE 611 product family.

Retrofit Support FAQ

Q: Is the 6SN1118-0DM33-0AA2 a direct drop-in replacement for other 6SN1118 variants?
A: The 6SN1118-0DM33-0AA2 is designed for specific slot and axis configurations within the SIMODRIVE 611 platform. While it shares the same physical form factor as other 6SN1118 variants, the firmware version and parameter set must be verified against the original module before installation. NINERMAS can assist with compatibility confirmation based on your machine model and existing drive configuration.

Q: Does the replacement unit come pre-tested?
A: Yes. Every 6SN1118-0DM33-0AA2 unit shipped by NINERMAS undergoes pre-shipment functional testing to verify core drive control functions. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: What wiring changes are required during installation?
A: For a like-for-like replacement, no wiring changes are required beyond reconnecting the existing terminal blocks and encoder feedback cable to the new module. Technicians should verify connector seating and cable shield grounding after installation. If the machine has been modified since original commissioning, the current wiring should be compared against the original electrical schematic before proceeding.

Q: How quickly can the unit be shipped, and is stock available?
A: NINERMAS maintains stock of the 6SN1118-0DM33-0AA2 and can arrange expedited shipment for urgent breakdown situations. Standard lead time and availability can be confirmed by contacting our sales team directly. We support customers across Asia, Europe, and the Americas with reliable logistics and export documentation.
