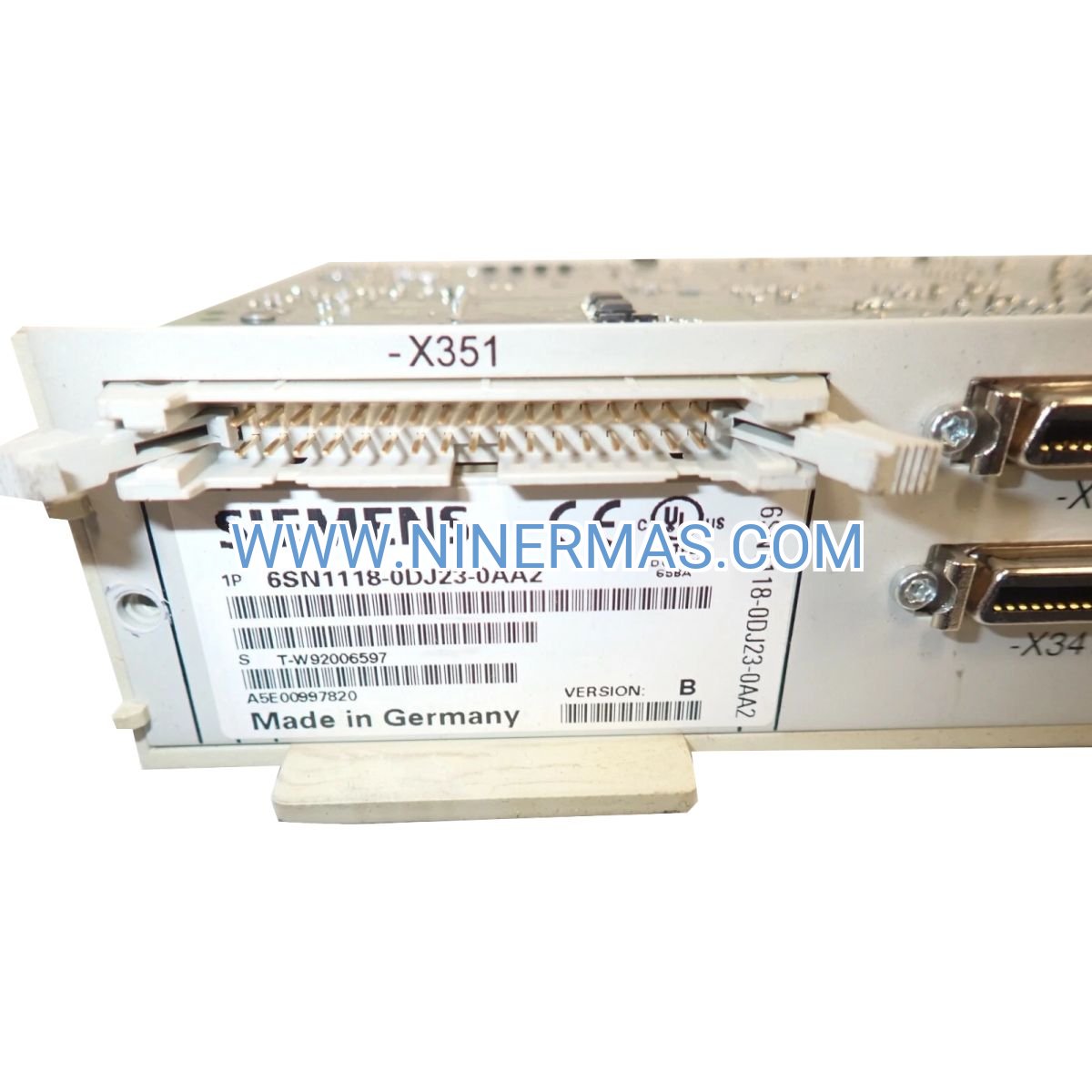

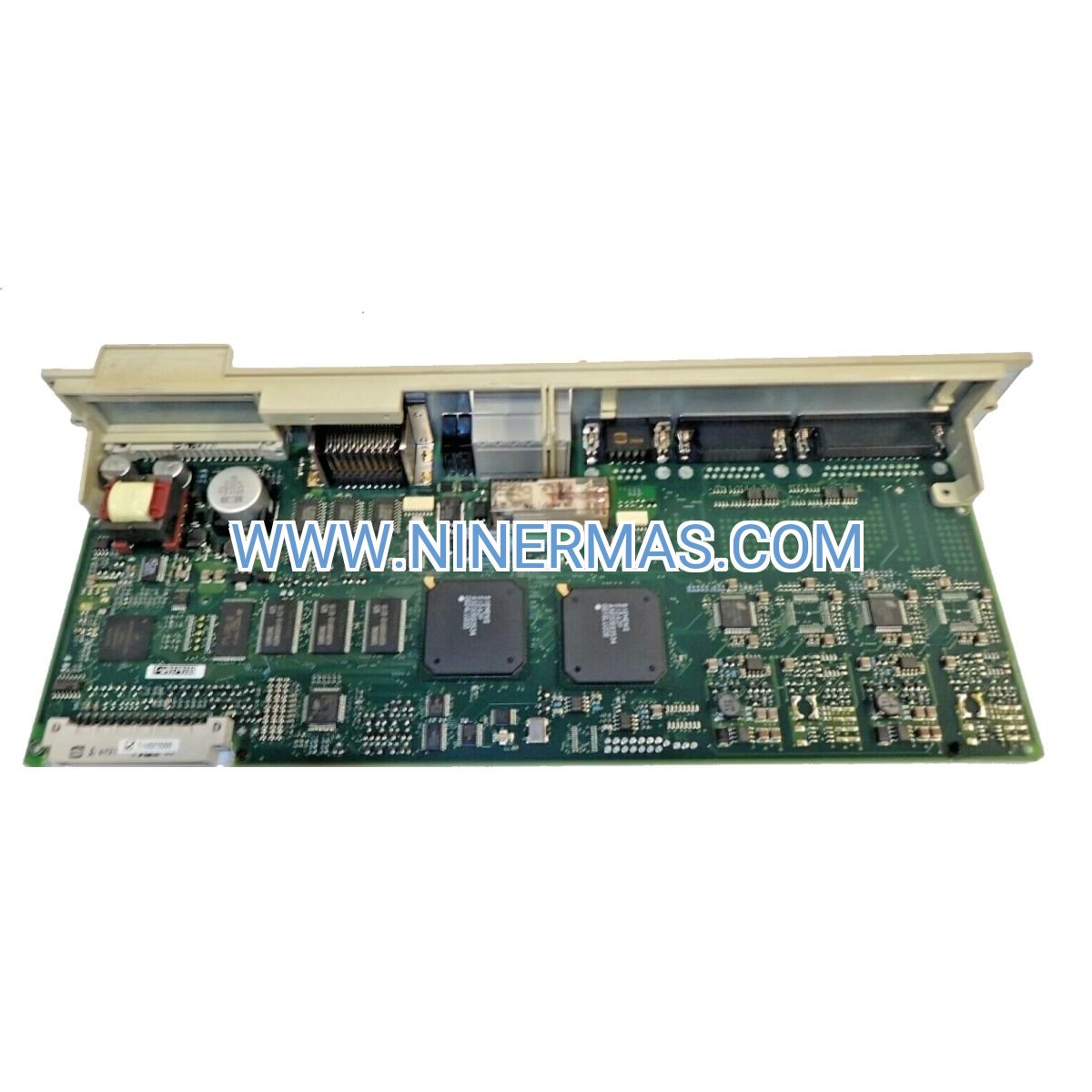

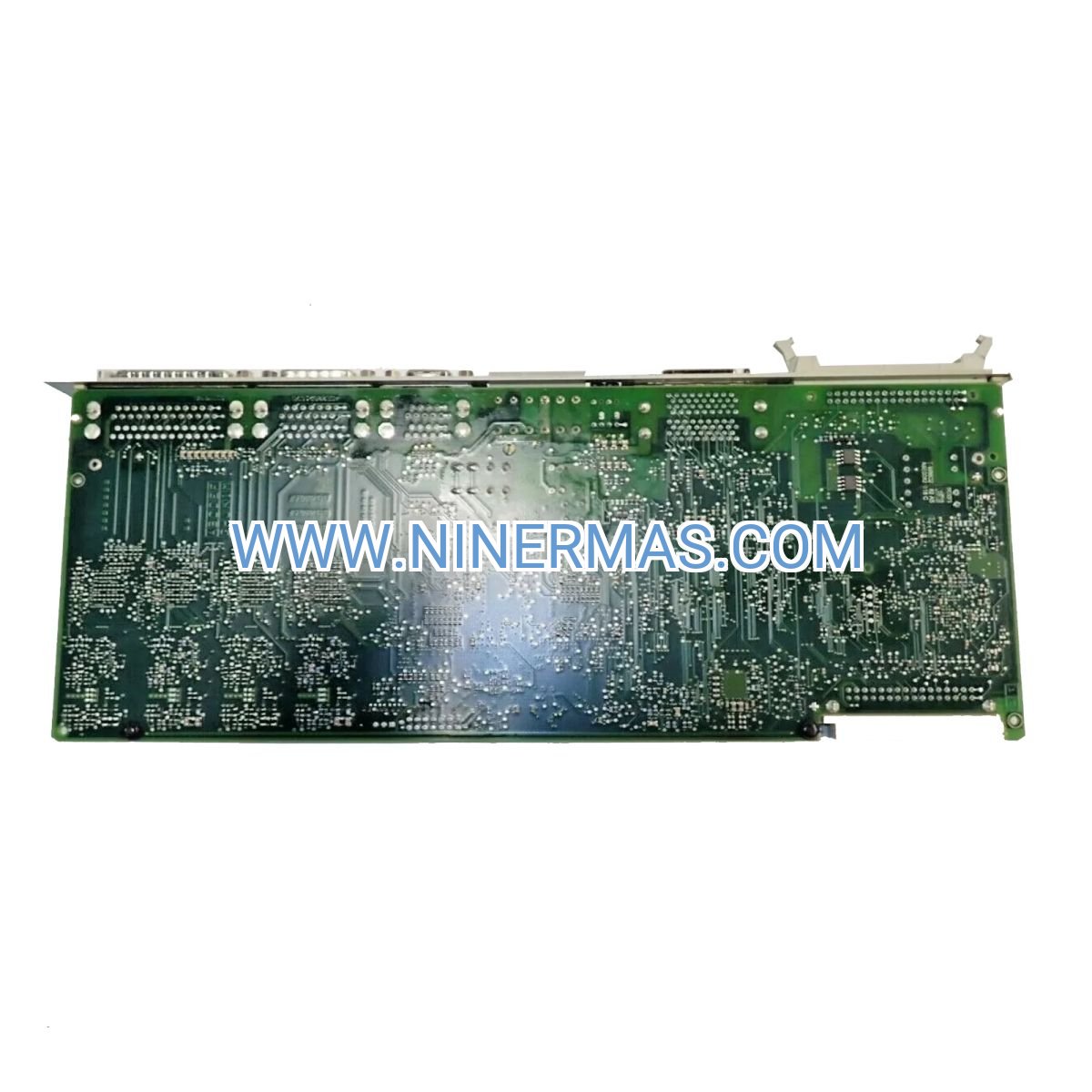

Siemens 6SN1118-0DJ23-0AA2 – Industrial-Grade Digital Control Loop Block

The Siemens 6SN1118-0DJ23-0AA2 is a high-performance digital control loop block engineered for precision motion control in SIMODRIVE 611 drive systems. This single-axis module delivers real-time position feedback through SIN/COS 1Vpp direct measuring systems, enabling micron-level accuracy in demanding CNC machining, robotics, and automated manufacturing environments. Designed as a critical spare component for legacy SIMODRIVE installations, it ensures operational continuity for production lines where downtime translates to significant revenue loss. With compatibility requirements tied to NC software version 06.04.09 or later, this module integrates seamlessly into existing control architectures while maintaining the rigorous performance standards expected in industrial automation.

Core Capabilities & Technical Advantages

✓ Single-Axis Precision Control
Dedicated 1-axis digital control loop processing ensures deterministic response times under 1ms, critical for high-speed machining operations where tool path accuracy directly impacts part quality and scrap rates.

✓ SIN/COS 1Vpp Direct Measurement Interface
Native support for industry-standard sinusoidal encoders eliminates signal conversion overhead, reducing position error accumulation in multi-stage motion sequences by up to 40% compared to interpolated systems.

✓ Legacy System Compatibility
Backward-compatible design allows drop-in replacement for aging control modules without requiring full system retrofits, extending equipment lifespan by 5-10 years and deferring capital expenditures exceeding $50,000 per machine.

✓ Compact 0.48kg Form Factor
Space-efficient chassis integration minimizes cabinet footprint while maintaining thermal performance, enabling deployment in space-constrained retrofit applications where panel real estate commands premium value.

✓ German-Engineered Reliability
Manufactured in Germany to Siemens' industrial-grade specifications, delivering MTBF ratings exceeding 100,000 hours in typical operating conditions—critical for 24/7 production environments.

Industrial Application Scenarios

→ CNC Machine Tool Retrofits
Machine shops operating legacy SIMODRIVE 611-equipped mills and lathes use this module to restore failed control loops, avoiding 6-12 week lead times for complete drive replacements. A mid-sized job shop recently avoided $80,000 in emergency replacement costs by maintaining spare inventory.

→ Automated Assembly Line Maintenance
Automotive tier-1 suppliers deploy these modules as planned maintenance components in robotic pick-and-place systems, where predictive replacement during scheduled downtime prevents unplanned stoppages that cost $15,000-$25,000 per hour in lost production.

→ Packaging Machinery Position Control
Food and beverage manufacturers integrate this control loop into servo-driven filling and labeling equipment, where precise registration control ensures label placement accuracy within ±0.5mm—meeting regulatory requirements while minimizing material waste.

→ Semiconductor Wafer Handling Systems
Cleanroom automation systems utilize the module's high-resolution feedback processing for wafer transfer robots, where positional repeatability of ±5 microns prevents costly substrate damage in 300mm wafer fabrication processes.

Technical Parameters & Selection Criteria

Selection Guidelines:
Verify NC software version compatibility before ordering—systems running pre-06.04.09 firmware require software updates to ensure proper module initialization. Confirm encoder signal levels match 1Vpp specification; 11µApp encoders require different control loop variants. For multi-axis applications, order one module per controlled axis.

Extended Functionality & Integration Options

System Diagnostics Integration
Built-in diagnostic interfaces enable real-time monitoring through SIMATIC HMI panels, providing early warning of encoder signal degradation or thermal anomalies before they escalate to failures.

Fieldbus Connectivity
When integrated with SIMODRIVE 611 communication modules, supports PROFIBUS-DP and PROFINET protocols for centralized motion control coordination across multi-machine cells.

Custom Tuning Profiles
Advanced users can optimize PID loop parameters via SIMOTION SCOUT software to match specific load inertias and mechanical compliance characteristics, improving settling times by 20-30% in high-dynamic applications.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct procurement of discontinued variants
Warranty Coverage: 12-month manufacturer's warranty against defects in materials and workmanship
Technical Support: Email and phone support for installation guidance, parameter configuration, and troubleshooting assistance
Documentation Package: Includes installation manual, wiring diagrams, NC software compatibility matrix, and RoHS/REACH compliance certificates

Frequently Asked Questions

Q: How do I verify compatibility with my existing SIMODRIVE 611 system?
A: Check your NC software version via the control panel diagnostics menu—compatibility requires version 06.04.09 or newer. Additionally, confirm your encoder outputs 1Vpp SIN/COS signals; incompatible encoder types will trigger initialization errors.

Q: What is the typical installation time for this control loop module?
A: Experienced technicians complete installation in 45-90 minutes, including chassis disassembly, module insertion, cable routing, and parameter verification. First-time installers should allocate 2-3 hours and review the installation manual beforehand.

Q: Can this module reduce energy consumption in my drive system?
A: While the module itself doesn't directly impact energy usage, optimized control loop tuning can reduce servo motor hunting and overshoot, potentially lowering average power draw by 5-8% in repetitive motion applications.

Q: Is remote diagnostics and monitoring supported?
A: Yes, when connected to SIMATIC controllers with Ethernet/IP or PROFINET interfaces, diagnostic data streams to SCADA systems or cloud-based condition monitoring platforms for predictive maintenance analytics.

Q: What are the storage requirements for spare inventory?
A: Store in climate-controlled environments (15-25°C, <60% RH) away from electromagnetic interference sources. Shelf life exceeds 10 years when stored per manufacturer guidelines, making it suitable for long-term spare parts programs.

Q: Does this module comply with current RoHS regulations?
A: This legacy component is not RoHS compliant and contains lead (CAS 7439-92-1 >0.1% w/w). It qualifies for spare parts exemptions under EU Directive 2011/65/EU Article 4(1) for equipment placed on market before July 2006.

Take the Next Step

Ensure uninterrupted operation of your SIMODRIVE 611 systems—add the 6SN1118-0DJ23-0AA2 to your spare parts inventory today. Our technical team is ready to assist with compatibility verification and integration planning.
