Siemens 6SN1114-0NB01-0AA0 Retrofit-Compatible PROFIBUS Module

Siemens 6SN1114-0NB01-0AA0 Retrofit-Compatible PROFIBUS Module: Legacy System Compatibility & Smooth Upgrade

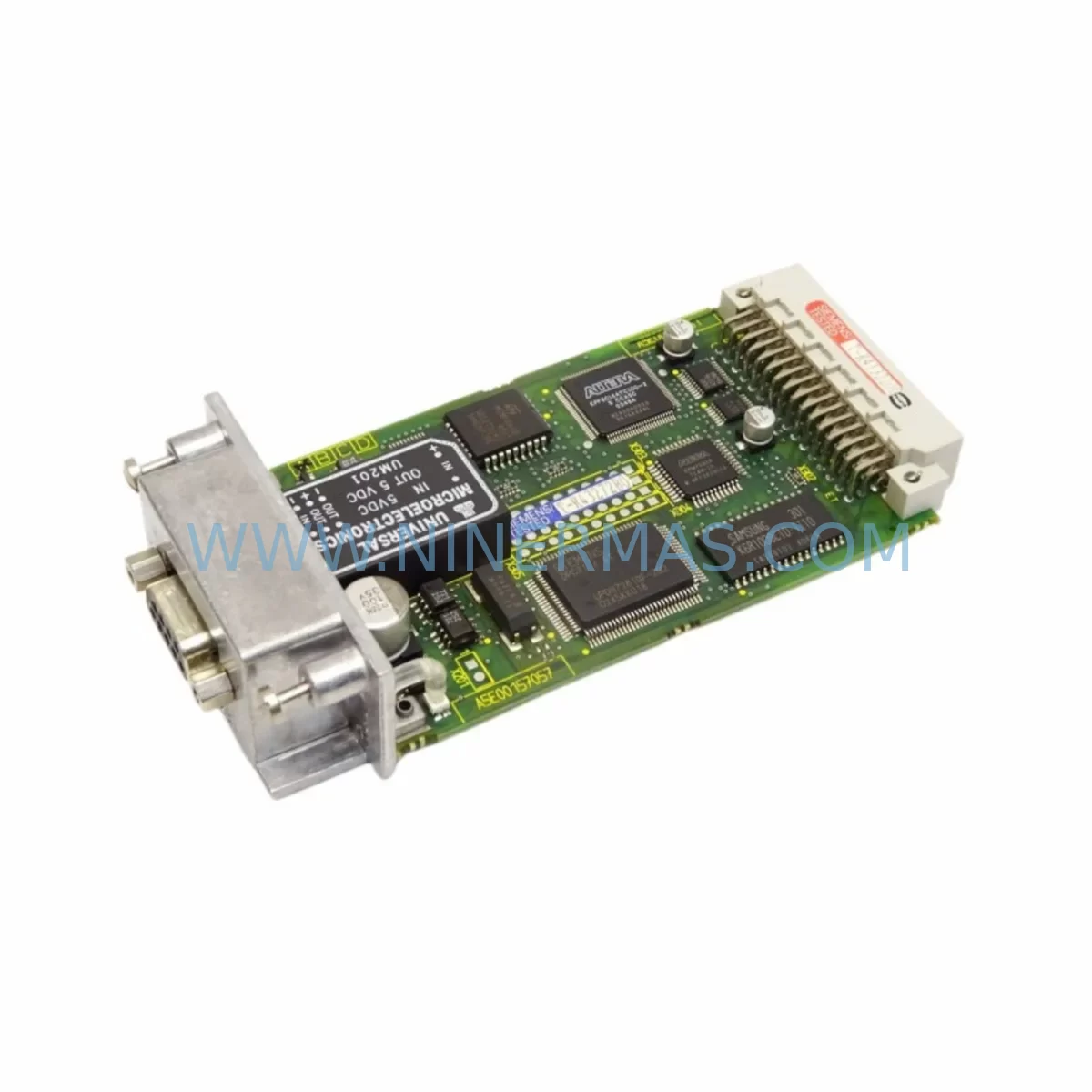

The Siemens 6SN1114-0NB01-0AA0 is a PROFIBUS option module designed for the SIMODRIVE 611 drive series — one of Siemens’ most widely deployed servo and spindle drive platforms in CNC machining centers, transfer lines, and automated production systems. As the SIMODRIVE 611 platform reaches end-of-life and spare parts become increasingly scarce, the 6SN1114-0NB01-0AA0 remains a critical component for engineers tasked with maintaining, retrofitting, or upgrading legacy control cabinets without full system replacement.

This module enables PROFIBUS-DP communication between the SIMODRIVE 611 drive unit and the upper-level controller — typically a SINUMERIK 840D or SINUMERIK 810D CNC system — allowing real-time cyclic data exchange for speed setpoints, torque limits, status words, and fault diagnostics. For plants still operating on PROFIBUS-based architectures, sourcing a verified replacement 6SN1114-0NB01-0AA0 is often the most cost-effective path to restoring drive communication without reengineering the entire control topology.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 6SN1114-0NB01-0AA0, the scope of work extends well beyond swapping a single module. Engineers must conduct a systematic review of the entire drive cabinet and communication chain before committing to a replacement strategy.

Power Supply Verification: The SIMODRIVE 611 system relies on a dedicated 6SN1145-series infeed/regenerative module to supply the DC bus. Before installing a replacement PROFIBUS option module, confirm that the infeed module’s DC bus voltage is within specification (typically 600–650 VDC for 400 V AC input). An aging or undersized infeed module can cause intermittent PROFIBUS communication faults that are incorrectly attributed to the option module itself.

Terminal Wiring and Connector Integrity: The PROFIBUS cable termination at the 9-pin Sub-D connector on the 6SN1114-0NB01-0AA0 must be inspected for correct shielding, bus termination resistors (active termination at both ends of the PROFIBUS segment), and cable impedance (typically 150 Ω for PROFIBUS-DP). Incorrect termination is a leading cause of cyclic communication errors after module replacement.

Backplane and Rack Compatibility: The 6SN1114-0NB01-0AA0 inserts into the option slot of the SIMODRIVE 611 control section. Verify that the host drive’s control board — such as the 6SN1118-0NH01-0AA0 (SIMODRIVE 611 Universal HR control board) — is compatible with the NB01 revision of the PROFIBUS module. Earlier NB00 control boards may require a firmware update before accepting the NB01 module.

Module Address Configuration: PROFIBUS node addresses on the 6SN1114-0NB01-0AA0 are set via an onboard DIP switch array. During retrofit, the node address must match the address configured in the PROFIBUS master — whether that is a SINUMERIK 840D NCU 572, an NCU 573, or a SIMATIC S7-315-2DP CPU. Address conflicts on the PROFIBUS segment will prevent the drive from entering cyclic data exchange and will generate alarm 380500 or equivalent on the CNC.

Program and Parameter Compatibility: After physical installation, the drive parameters stored in the 6SN1162-series memory card or in the SINUMERIK NCU must be verified against the new module’s firmware. Key parameters include P0918 (PROFIBUS address), P0922 (telegram type selection), and the process data word configuration (PPO type). If the original system used a non-standard telegram structure, the GSD file in the PROFIBUS master configuration (STEP 7 HW Config or TIA Portal) must be updated to match.

HMI Screen and Alarm Mapping: Plants using a SINUMERIK OP010 or OP012 operator panel connected to the 840D will display drive-specific alarms sourced via PROFIBUS. After module replacement, verify that alarm texts and drive status displays on the HMI are functioning correctly. A mismatch between the drive’s telegram type and the NCK’s expected data structure can cause blank or incorrect status displays without triggering a hard fault.

Communication Link Testing: Use the SIMATIC NET PROFIBUS diagnostic tools or the SINUMERIK service menu to verify cyclic data exchange after installation. Check the bus cycle time, confirm that all slave stations (including other 6SN1114-series modules on the same segment) are responding, and verify that no bus interruptions occur during axis movement commands.

Physical Space and Mounting: The 6SN1114-0NB01-0AA0 is a compact plug-in module. However, in densely populated SIMODRIVE 611 cabinets — particularly those combining multiple double-axis modules such as the 6SN1123-series — cable routing for the PROFIBUS trunk cable must be planned to avoid interference with the DC bus bars and motor power cables. Maintain minimum bend radius for the PROFIBUS cable and ensure the Sub-D connector is fully seated and locked.

On-Site Commissioning: Final commissioning should include a full drive enable sequence, a jog test on each controlled axis, and a verification of the speed/torque loop response. If the machine uses a 6FC5203-series SINUMERIK PCU or a 6FC5247-series NCU compact unit, confirm that the drive bus topology recognized by the NCK matches the physical installation before releasing the machine to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team replacing a PROFIBUS option module in a live production environment. The 6SN1114-0NB01-0AA0 is a hot-swap-capable module in the sense that it can be physically replaced without removing the entire SIMODRIVE 611 power section — but the drive must be powered down and the DC bus fully discharged before any option module work is performed.

Pre-Replacement Backup: Before removing the faulty module, use the SINUMERIK service functions or a SIMATIC S7 programming cable (such as the 6ES7972-0CB20-0XA0 PC adapter) to back up all drive parameters to the NCU memory card or an external programming device. This ensures that the parameter set — including axis-specific gain settings, encoder configurations, and PROFIBUS telegram definitions — can be restored immediately after the new module is installed, without requiring a full recommissioning from scratch.

Parallel Preparation: Where production schedules allow, pre-configure the replacement 6SN1114-0NB01-0AA0 on a bench setup before the maintenance window. Set the PROFIBUS node address DIP switches to match the original module, verify the firmware revision, and confirm the module passes a basic power-on self-test. This reduces the in-cabinet installation time to a simple plug-and-verify operation.

Protecting Original Program Logic: The PLC program running on the SIMATIC S7 master — which manages the PROFIBUS master/slave relationship with the SIMODRIVE 611 drives — does not need to be modified for a like-for-like module replacement. The PROFIBUS GSD file and hardware configuration in STEP 7 or TIA Portal remain valid as long as the replacement module uses the same telegram type and node address. This means the machine’s interlocking logic, safety circuits, and sequence programs are fully preserved across the replacement.

Staged Restart: After installation, bring the system up in stages: first verify PROFIBUS communication in the diagnostic view before enabling drive power stages. This allows the maintenance team to confirm that the communication layer is healthy before exposing the machine to full servo operation, reducing the risk of a secondary fault caused by a wiring error or address conflict.

Retrofit Support FAQ

Q1: Is the 6SN1114-0NB01-0AA0 a direct replacement for the 6SN1114-0NB00-0AA0?
In most cases, yes. The NB01 revision is the successor to the NB00 and is physically and functionally compatible with the same SIMODRIVE 611 option slot. However, if the host drive’s control board firmware is very early (pre-2003 production), a firmware update on the control board may be required. We recommend confirming the control board revision before ordering.

Q2: What commissioning steps are required after installing the replacement module?
At minimum: (1) Set the PROFIBUS node address DIP switches to match the original configuration. (2) Power on the drive and verify that the PROFIBUS master recognizes the slave without errors. (3) Confirm cyclic data exchange using the SINUMERIK service menu or SIMATIC NET diagnostics. (4) Perform a jog test on each axis to verify speed loop response. No changes to the PLC program or NCK machine data are required for a like-for-like replacement.

Q3: Do you provide pre-shipment testing and what does the 12-month warranty cover?
Yes. Every 6SN1114-0NB01-0AA0 unit is functionally tested before dispatch to verify PROFIBUS communication initialization, power-on self-test completion, and module identification. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical impact. Replacement or repair is provided at no charge within the warranty period.

Q4: What is your typical stock availability and lead time?
We maintain in-stock inventory of the 6SN1114-0NB01-0AA0 to support urgent maintenance requirements. Standard orders ship within 1–3 business days. For large-quantity orders or projects requiring multiple SIMODRIVE 611 spare modules — including infeed modules, control boards, or additional PROFIBUS option cards — please contact our team directly to confirm availability and arrange consolidated shipment.
