SINAMICS S120 Motor Module (Industrial-Grade Power Conversion)

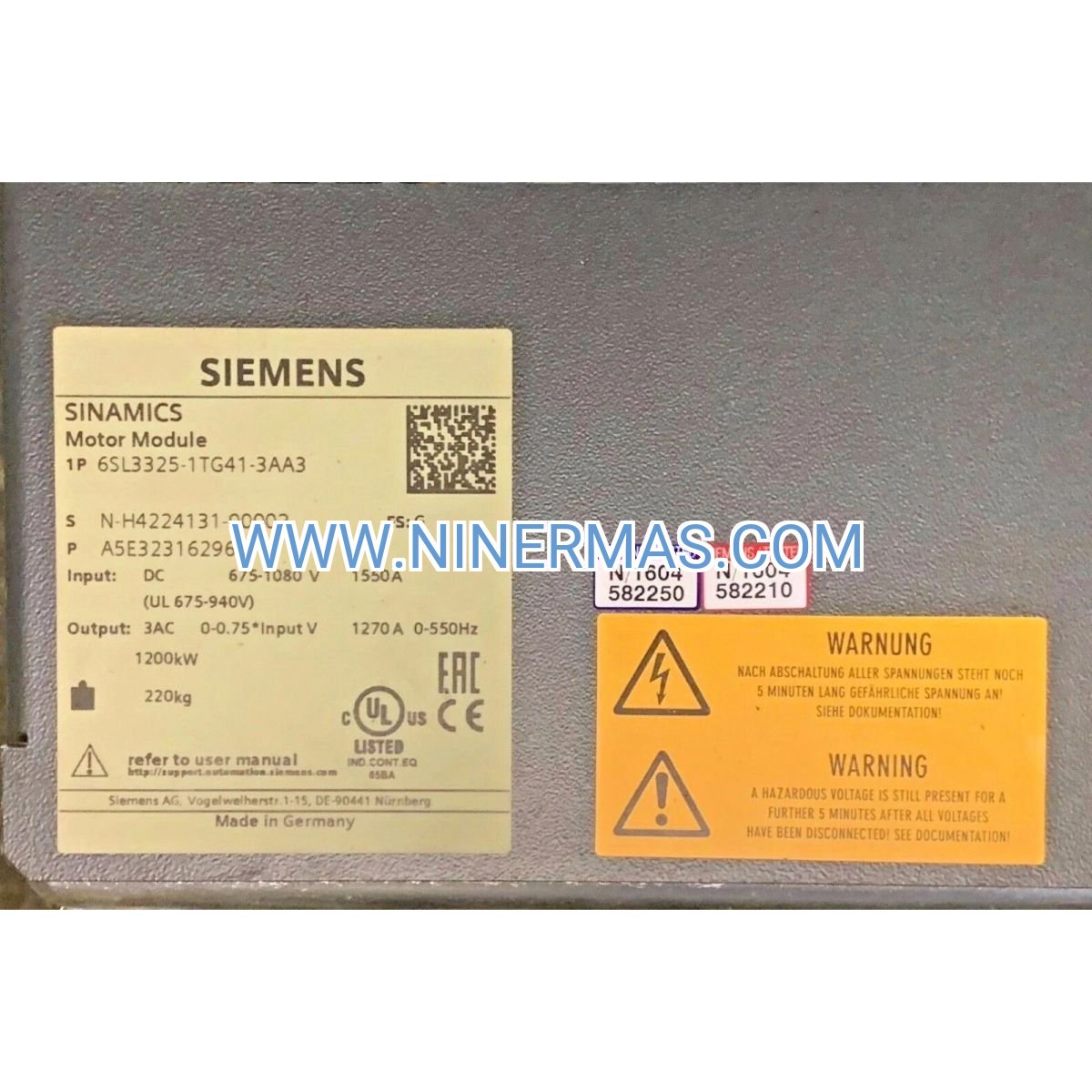

The Siemens 6SL3325-1TG41-3AA3 represents a professional-class motor module engineered for continuous-duty applications demanding exceptional power density and thermal management. This liquid-cooled drive system converts 675-1035V DC input to precisely regulated 500-690V three-phase AC output, delivering 1270 amperes at 1200 kilowatts rated capacity. Designed for cabinet integration with IP00 protection class, this module serves as the power conversion backbone in process industries, material handling systems, and large-scale manufacturing operations where reliability and performance cannot be compromised.

Industrial facilities operating high-torque motors, variable-speed conveyors, or precision positioning systems require drive solutions that maintain consistent performance under demanding thermal and electrical conditions. The SINAMICS S120 platform addresses these challenges through advanced liquid cooling architecture, enabling compact installation footprints while managing heat dissipation in enclosed control cabinets. Process engineers and automation specialists choose this module when application requirements exceed air-cooled drive capabilities or when space constraints demand maximum power-to-volume ratios.

Key differentiators include German-engineered construction quality, compatibility with SINAMICS ecosystem components, and field-proven reliability in 24/7 industrial environments. The module's 1200kW power rating positions it for large motor control applications, while the liquid cooling system ensures stable operation across ambient temperature variations. Whether retrofitting legacy drive systems or designing new automation architectures, this motor module provides the foundation for scalable, high-performance motion control solutions.

Core Capabilities & Technical Advantages

→ High-Current Output Architecture
Delivers 1270 amperes continuous output current with 1200kW rated power, enabling direct control of large three-phase induction motors and synchronous machines without external power staging. Reduces system complexity and improves overall drive train efficiency in heavy-duty applications.

→ Liquid Cooling Technology

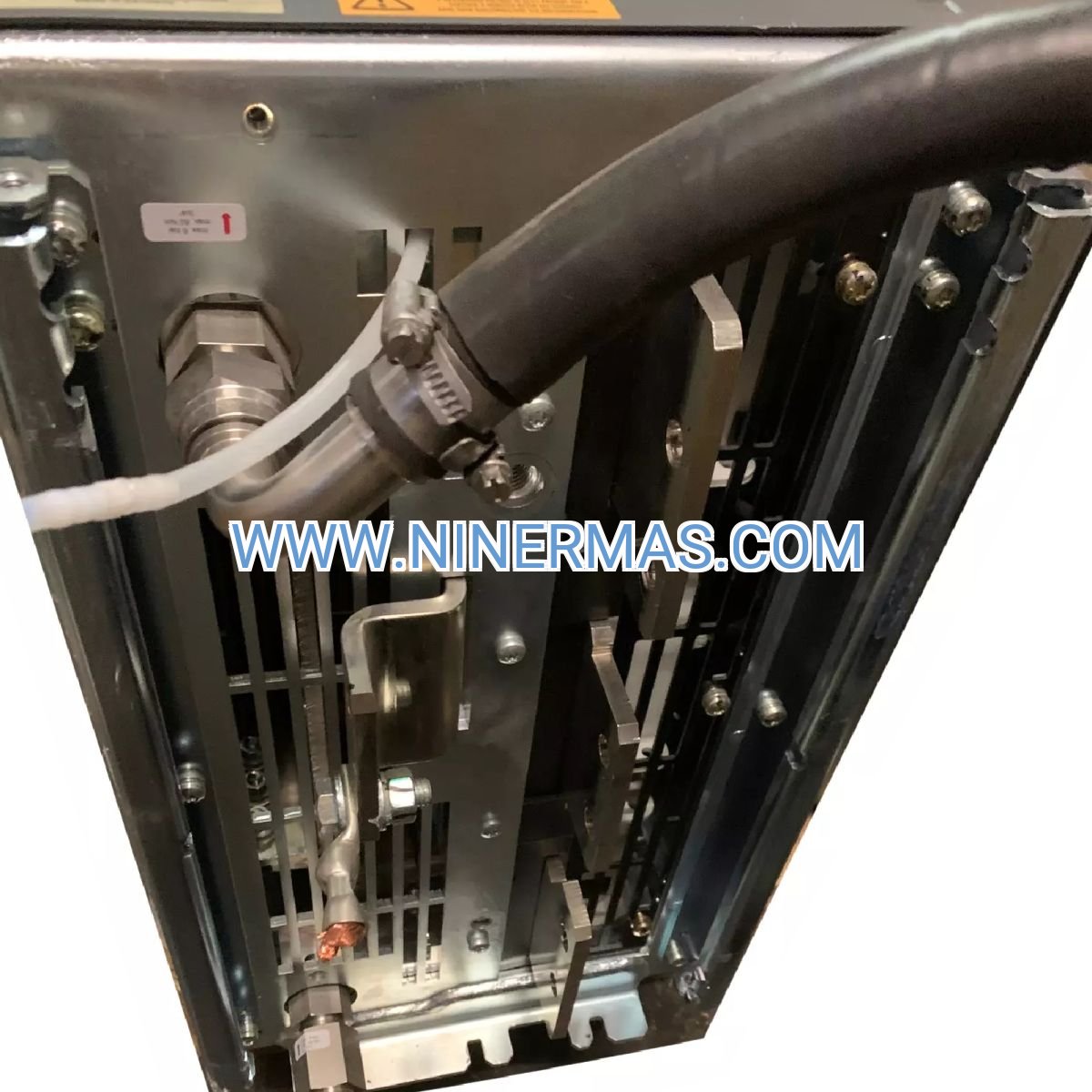

Integrated water-glycol cooling circuit removes heat directly from power semiconductors, maintaining junction temperatures within optimal operating ranges. Enables 40-60% size reduction compared to equivalent air-cooled modules while extending component service life through reduced thermal cycling stress.

✓ Wide Input Voltage Range
Accepts 675-1035V DC bus voltage with active front-end compatibility, accommodating supply variations and regenerative braking energy without auxiliary conditioning equipment. Simplifies DC link design and improves power quality in multi-drive installations.

✓ Modular System Integration
Built-in chassis design (IP00) facilitates seamless integration with SINAMICS S120 control units, communication modules, and safety components. Standardized mounting dimensions and connection interfaces accelerate installation and reduce engineering time for custom drive configurations.

• Precision Output Control
Generates clean three-phase AC output at 500-690V with advanced PWM modulation, minimizing motor losses and acoustic noise. Supports both 50Hz and 60Hz operation with field-oriented control algorithms for optimal torque response across the speed range.

• Industrial-Grade Construction
Manufactured in Germany with RoHS-compliant materials and processes, meeting stringent European quality standards. 220kg robust mechanical design withstands industrial vibration and provides long-term dimensional stability in harsh operating environments.

Application Scenarios & Industry Solutions

Process Industry Pumping Systems
Chemical processing plants and water treatment facilities deploy this module to control large centrifugal pumps requiring variable flow rates. The liquid cooling system maintains consistent performance in high-ambient-temperature pump rooms, while the high current capacity eliminates the need for motor downsizing. Operators achieve 20-35% energy savings through optimized pump speed control compared to throttle valve regulation.

Metal Rolling Mill Drives
Steel and aluminum production lines utilize the 6SL3325-1TG41-3AA3 for main stand motors requiring precise torque control and rapid speed changes. The module's high power density allows installation in space-constrained mill control rooms, while the wide input voltage range accommodates regenerative energy from deceleration cycles. Maintenance teams benefit from reduced cooling system footprint and simplified thermal management.

Mining Conveyor Systems
Underground and surface mining operations integrate this drive module into long-distance belt conveyor controls where continuous-duty ratings and reliability are critical. The liquid cooling architecture performs reliably in dusty environments when properly enclosed, and the 1200kW capacity handles fully loaded belt starting torque requirements. Downtime reduction of 15-25% is typical compared to legacy drive technologies.

Marine Propulsion & Auxiliary Drives
Shipboard installations leverage the module's compact size and liquid cooling compatibility with vessel cooling water systems. Naval architects specify this solution for azimuth thrusters, bow thrusters, and cargo handling winches where space and weight constraints are paramount. The IP00 design integrates cleanly into marine-rated enclosures meeting classification society requirements.

Test Bench & Dynamometer Applications
Automotive and aerospace testing facilities employ the SINAMICS S120 module in engine dynamometer systems requiring four-quadrant operation and precise torque simulation. The regenerative capability returns braking energy to the DC bus, reducing facility power consumption during extended test cycles. Engineers value the module's fast dynamic response for transient load simulation.

Technical Parameters & Selection Criteria

Selection Guidelines: Calculate total system power requirements including motor losses and mechanical load characteristics. For applications with frequent starts, high inertia loads, or regenerative operation, consult Siemens engineering tools for thermal analysis. Liquid cooling systems must provide adequate flow rate and temperature control—undersized cooling circuits will trigger thermal protection and reduce available output current. Coordinate with control unit selection to ensure communication protocol compatibility (PROFINET, PROFIBUS, EtherNet/IP).

Extended Functionality & Integration Options

SINAMICS Ecosystem Compatibility: The motor module integrates with CU320-2 control units for advanced motion control, supporting position synchronization, electronic camming, and multi-axis coordination. DRIVE-CLiQ communication interface enables plug-and-play connection of encoder modules, safety integrated functions, and distributed I/O components.

Safety Integrated Functions: When paired with appropriate control units and motor feedback devices, the system supports SIL 2/PLd safety functions including Safe Torque Off (STO), Safe Stop 1 (SS1), and Safely-Limited Speed (SLS). Reduces need for external safety relays and contactors in machine safety architectures.

Predictive Maintenance Capabilities: Built-in diagnostics monitor DC link voltage, output current, semiconductor junction temperatures, and cooling system performance. Data logging and trend analysis through SINAMICS Startdrive software enable condition-based maintenance scheduling and early fault detection.

Custom Engineering Services: Siemens application engineers provide system-level design support for complex multi-drive installations, including DC bus sizing, harmonic analysis, and cooling system specification. Custom firmware configurations available for specialized control algorithms or industry-specific requirements.

Delivery, Warranty & Technical Support

Lead Time: Standard configuration units typically ship within 8-12 weeks from order confirmation. Custom-engineered variants or large quantity orders may require 12-16 weeks. Expedited delivery options available for critical replacement applications—contact our sales team for current availability.

Warranty Coverage: 24-month manufacturer warranty from date of shipment covering defects in materials and workmanship. Extended warranty programs available for up to 60 months with optional preventive maintenance packages. Warranty terms comply with Siemens standard conditions of sale.

Technical Documentation: Each module ships with installation manual, quick start guide, dimensional drawings, and cooling system specifications. Complete technical documentation including parameter lists, communication protocols, and troubleshooting guides available through Siemens Industry Online Support portal.

Application Support: Our engineering team provides pre-sales technical consultation, system design review, and commissioning assistance. Post-installation support includes remote diagnostics, parameter optimization, and on-site service when required. Training programs available for maintenance personnel and system integrators.

Frequently Asked Questions

What cooling system requirements does the 6SL3325-1TG41-3AA3 motor module have?
The module requires a closed-loop liquid cooling system delivering 15-25 liters per minute of water-glycol mixture (40-60% glycol concentration) at 20-40°C inlet temperature. Maximum allowable pressure drop is 2.5 bar, and the system must maintain coolant cleanliness to ISO 4406 16/14/11 or better to prevent heat exchanger fouling.

Can this SINAMICS S120 module operate with motors rated below 1200kW?
Yes, the module can control motors from approximately 600kW to 1200kW at 690V output voltage. For smaller motors, consider lower-rated modules in the SINAMICS S120 family to optimize cost and efficiency. Oversizing the drive by more than 100% may result in reduced low-speed performance and increased no-load losses.

How does liquid cooling improve energy efficiency compared to air-cooled drives?
Liquid cooling removes heat more efficiently than forced air, allowing power semiconductors to operate at lower junction temperatures. This reduces conduction losses by 3-5% and enables higher switching frequencies for improved motor current waveforms. Additionally, eliminating cabinet cooling fans reduces auxiliary power consumption by 500-1500W in typical installations.

What installation clearances are required for proper thermal management?
The IP00 chassis design requires mounting in an enclosed cabinet with minimum 150mm clearance on sides for DC bus bar connections and 200mm clearance at top for liquid cooling connections. Ensure cabinet ambient temperature does not exceed 40°C and provide adequate ventilation for control electronics heat dissipation.

Is the module compatible with regenerative braking applications?
Yes, when used with an active front-end (AFE) rectifier or braking chopper, the module supports full four-quadrant operation with regenerative energy return to the AC supply or dissipation through braking resistors. Regenerative capability is essential for applications with frequent deceleration cycles or overhauling loads.

What communication protocols does the SINAMICS S120 system support?
The system supports PROFINET IRT, PROFIBUS DP, EtherNet/IP, and Modbus TCP through appropriate control unit selection. DRIVE-CLiQ provides deterministic communication between motor module and control components. For integration with third-party automation systems, standard industrial Ethernet protocols ensure broad compatibility.
