Siemens BOP-2 Operator Panel 6SL3255-0AA00-4BA1 | G120 Drive Control Interface

Siemens BOP-2 Basic Operator Panel – Industrial-Grade Control Interface for SINAMICS G120 Drives

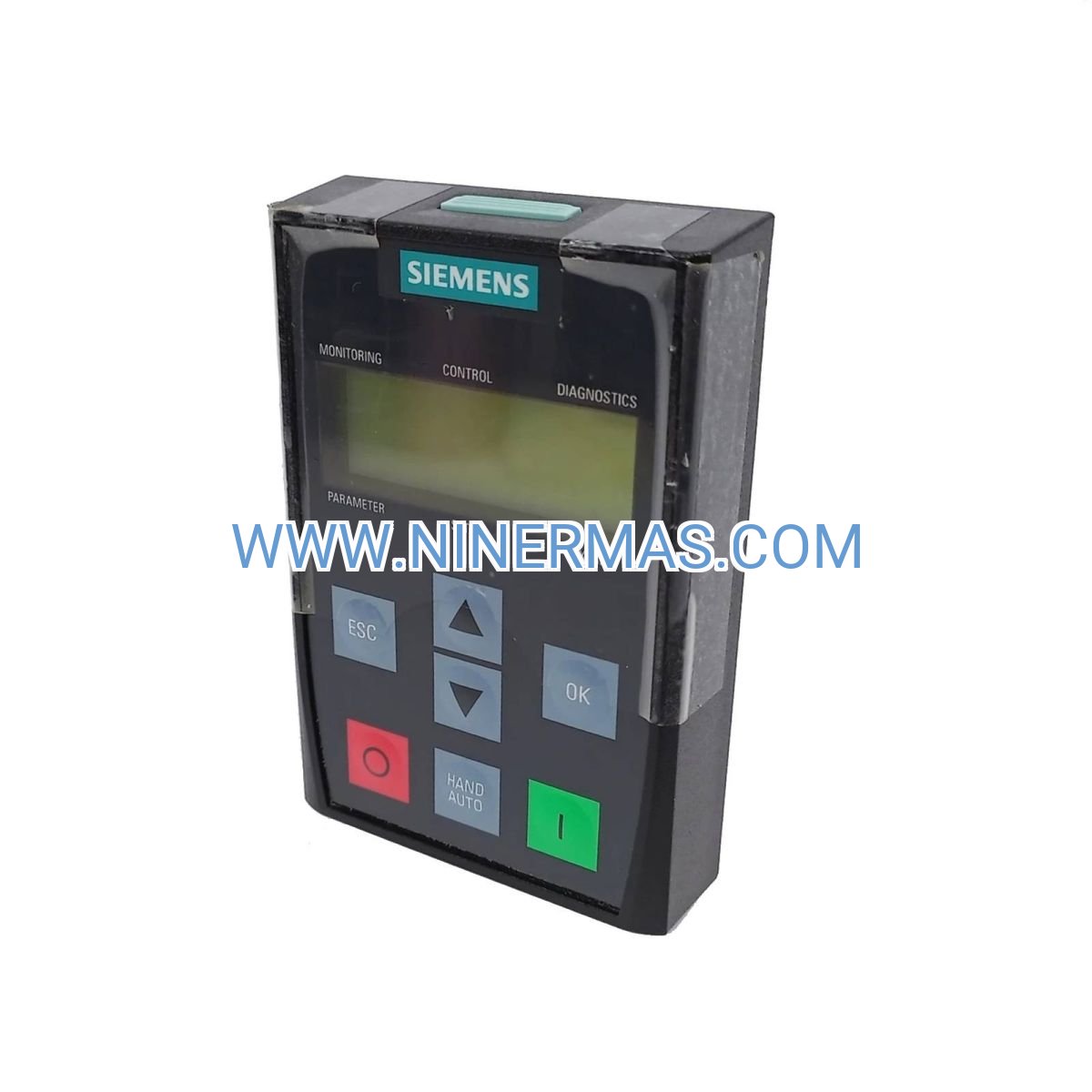

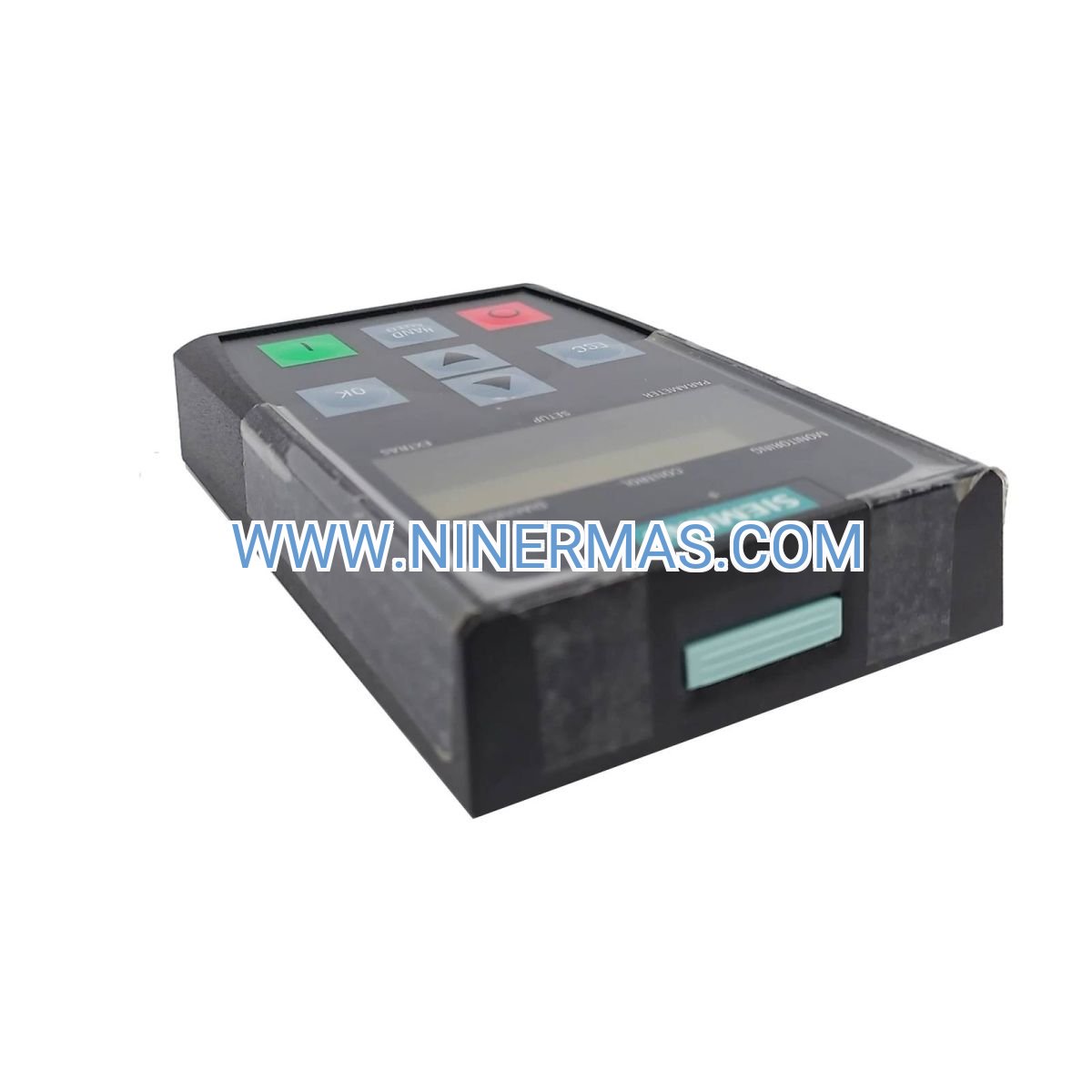

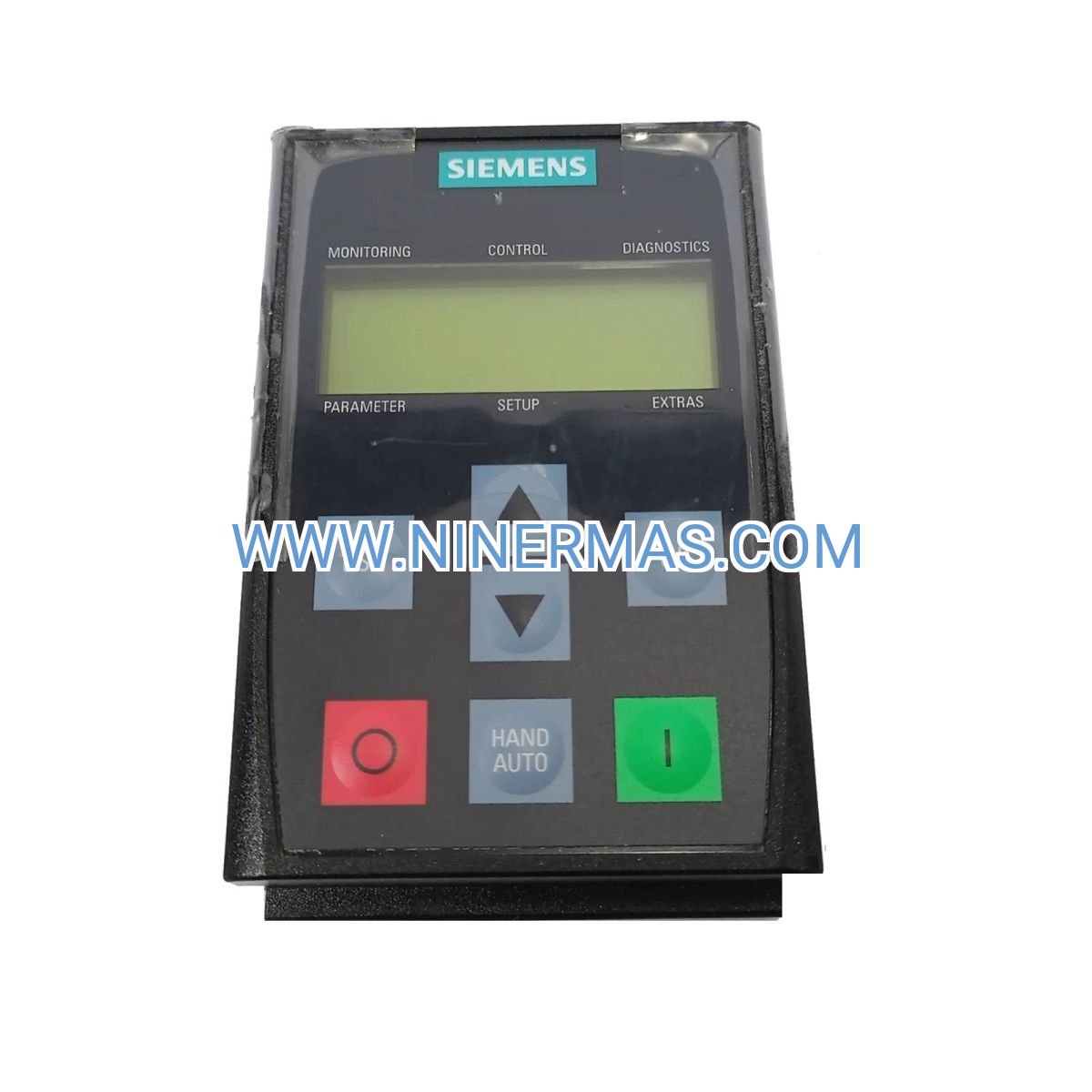

The Siemens 6SL3255-0AA00-4BA1 BOP-2 (Basic Operator Panel) is a professional-grade human-machine interface designed specifically for SINAMICS G120 variable frequency drives. Through its intuitive 2-line LCD display and ergonomic keypad, it enables real-time parameter configuration, drive commissioning, and operational monitoring—delivering precise motor control for industrial automation applications.

Ideal for manufacturing plants, HVAC systems, water treatment facilities, conveyor systems, and process automation environments, this operator panel addresses common challenges including complex drive setup procedures, limited on-site parameter visibility, time-consuming commissioning workflows, and the need for quick fault diagnostics without external programming tools.

Featuring standardized Siemens engineering with flexible mounting options, the BOP-2 offers rapid commissioning capability, parameter cloning functionality for multi-drive installations, robust industrial-grade construction, and seamless compatibility with the entire G120 drive family. Suitable for automation engineers, system integrators, OEM equipment manufacturers, and maintenance teams. Contact our technical specialists for application-specific configuration guidance and quotations.

Core Functions & Advantages

• Intuitive Parameter Access
  Direct access to all G120 drive parameters via structured menu navigation with 2-line backlit LCD display, eliminating the need for external programming devices during routine adjustments and commissioning tasks.
• Rapid Commissioning & Cloning
  Built-in parameter cloning function allows engineers to copy complete drive configurations between multiple units, reducing commissioning time by up to 70% in multi-drive installations and ensuring consistent system performance.
• Real-Time Monitoring & Diagnostics
  Live display of critical operating parameters including motor speed, output frequency, DC bus voltage, current draw, and fault codes—enabling immediate troubleshooting and reducing mean time to repair (MTTR).
• Flexible Mounting Options
  Supports both panel-mount installation (IP54 front protection) and direct drive-mount configuration, adapting to diverse cabinet layouts and space constraints in industrial control environments.
• Robust Industrial Design
  Engineered for harsh industrial conditions with membrane keypad resistant to dust and moisture, operating temperature range -10°C to +50°C, and proven reliability in continuous 24/7 operation across manufacturing sectors.
• User-Friendly Interface
  Plain-language parameter descriptions with multi-language support (English/German/French/Spanish/Italian/Chinese), reducing training requirements and minimizing configuration errors for maintenance personnel.

Typical Application Scenarios

The BOP-2 operator panel is engineered for industrial environments requiring reliable local control and parameter access for variable frequency drives, particularly in:

• HVAC & Building Automation
  Local control and adjustment of fan speed, pump flow rates, and air handling units in commercial buildings, data centers, and industrial facilities—enabling on-site optimization without accessing central BMS systems.
• Water & Wastewater Treatment
  Commissioning and monitoring of pump drives in municipal water supply, sewage treatment plants, and industrial process water systems—facilitating pressure control adjustments and flow optimization during system startup and maintenance.
• Manufacturing & Material Handling
  Drive parameter tuning for conveyor systems, mixer drives, extruders, and packaging machinery across food processing, automotive, pharmaceutical, and general manufacturing industries—supporting production line optimization and troubleshooting.
• Process Industries
  Local operator interface for agitators, compressors, and process pumps in chemical plants, oil & gas facilities, and mining operations—providing field technicians with direct access to drive parameters without requiring laptop-based tools.
• OEM Equipment Integration
  Embedded control interface for machine builders integrating G120 drives into custom equipment such as CNC machines, textile machinery, printing presses, and industrial automation systems—offering end users straightforward operational control.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide comprehensive technical specifications for the Siemens BOP-2 operator panel. Custom configurations and technical consultation are available for project-specific requirements.

Selection Recommendations: When specifying the BOP-2 panel, consider the following factors: drive series compatibility (confirm G120 variant), mounting method (panel vs. drive-mount based on cabinet design), environmental conditions (temperature and IP rating requirements), and operational workflow (parameter access frequency and user skill level). For applications requiring advanced visualization, data logging, or multi-drive coordination, consider upgrading to IOP-2 (Intelligent Operator Panel) or integrating with SIMATIC HMI systems. Our application engineers can provide detailed selection guidance based on your specific automation architecture—please provide drive model, control cabinet layout, and operational requirements for customized recommendations.

Extended Functionality

• Parameter Cloning & Backup: Save complete drive parameter sets to BOP-2 internal memory and transfer to additional drives, ideal for standardizing configurations across production lines or maintaining backup configurations for rapid replacement scenarios.
• Password Protection: Multi-level access control prevents unauthorized parameter changes, protecting critical process settings while allowing operators to monitor performance and acknowledge alarms.
• Custom Parameter Lists: Create application-specific quick-access parameter groups for frequently adjusted values (e.g., speed setpoints, acceleration ramps, PID parameters), streamlining routine operational adjustments.
• Alarm History & Diagnostics: Review fault logs and diagnostic information directly on the panel display, supporting predictive maintenance strategies and reducing troubleshooting time during unplanned downtime events.
• Integration with Drive Safety Functions: Monitor Safe Torque Off (STO) status and other safety-related parameters when used with G120 drives equipped with integrated safety technology, enhancing operational safety visibility.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock. For bulk orders or project-specific configurations, delivery timeframes range from 7-14 days depending on quantity and customization requirements.

Warranty: All Siemens BOP-2 panels are covered by a comprehensive 12-month manufacturer warranty against defects in materials and workmanship, with extended warranty options available for critical applications.

Technical Support: Our certified automation specialists provide remote technical assistance for installation, commissioning, and troubleshooting. On-site commissioning support and training services are available for large-scale projects (subject to location and scope).

Documentation Package: Each unit includes complete technical documentation: operating instructions manual, quick start guide, dimensional drawings, panel cutout template, and wiring diagrams—ensuring seamless integration and compliance with engineering documentation requirements.

Genuine OEM Parts: We supply factory-sealed Siemens original equipment with full traceability, ensuring compatibility, reliability, and compliance with industrial quality standards. All products are sourced through authorized distribution channels.

Frequently Asked Questions (FAQ)

Q: How do I connect the BOP-2 Basic Operator Panel to my SINAMICS G120 drive?
A: The BOP-2 connects directly to the G120 Control Unit via the dedicated operator panel interface port (typically labeled "BOP"). No external power supply is required—the panel draws power from the drive. For panel-mount installations, use the supplied connection cable (typically 2-3 meters standard length; extended cables available up to 10 meters). Detailed wiring instructions are provided in the operating manual, and our technical team can assist with first-time installations.

Q: Can one BOP-2 panel control multiple G120 drives simultaneously?
A: The BOP-2 is designed for single-drive connection at any given time. However, it can be physically disconnected and reconnected to different drives as needed for commissioning or maintenance tasks. For permanent multi-drive monitoring and control, consider implementing a PROFINET/PROFIBUS network with centralized HMI or using individual panels for each critical drive.

Q: What energy savings can be achieved by using the BOP-2 with G120 drives?
A: The BOP-2 itself is a control interface and does not directly generate energy savings. However, it facilitates optimal drive parameter tuning—enabling engineers to fine-tune motor control algorithms, adjust V/f curves, optimize acceleration/deceleration ramps, and implement energy-saving modes. When properly configured, G120 VFD systems typically achieve 20-40% energy reduction compared to fixed-speed motor control in variable-load applications such as pumps and fans.

Q: What are the environmental requirements for installing the BOP-2 panel?
A: The BOP-2 is rated for industrial environments with operating temperatures from -10°C to +50°C and front-panel protection of IP54 when panel-mounted (IP20 for rear housing). It is suitable for typical control cabinet installations with adequate ventilation. Avoid direct exposure to corrosive chemicals, excessive vibration, or condensing humidity. For harsh environments (e.g., outdoor installations, high-contamination areas), consider installing within a sealed NEMA-rated enclosure with appropriate climate control.

Q: Does the BOP-2 support remote monitoring and data acquisition protocols?
A: The BOP-2 is a local operator interface without built-in communication protocols for remote SCADA/MES integration. For remote monitoring, data logging, and industrial network connectivity, the G120 drive itself supports PROFINET, PROFIBUS DP, Modbus RTU, EtherNet/IP, and USS communication protocols (depending on Control Unit variant). The BOP-2 complements these systems by providing local parameter access and diagnostics at the drive location.

Q: Is the BOP-2 compatible with older SINAMICS G110 or MICROMASTER drives?
A: No, the BOP-2 (6SL3255-0AA00-4BA1) is specifically designed for SINAMICS G120 series drives and is not backward-compatible with G110, MICROMASTER 4, or other legacy Siemens drive families. For those platforms, use the appropriate operator panels: BOP (6SE6400-0BP00-0AA1) for MICROMASTER 4 or AOP (6SL3255-0AA00-4JA1) for advanced applications. Contact us for compatibility verification if you're upgrading existing systems.
