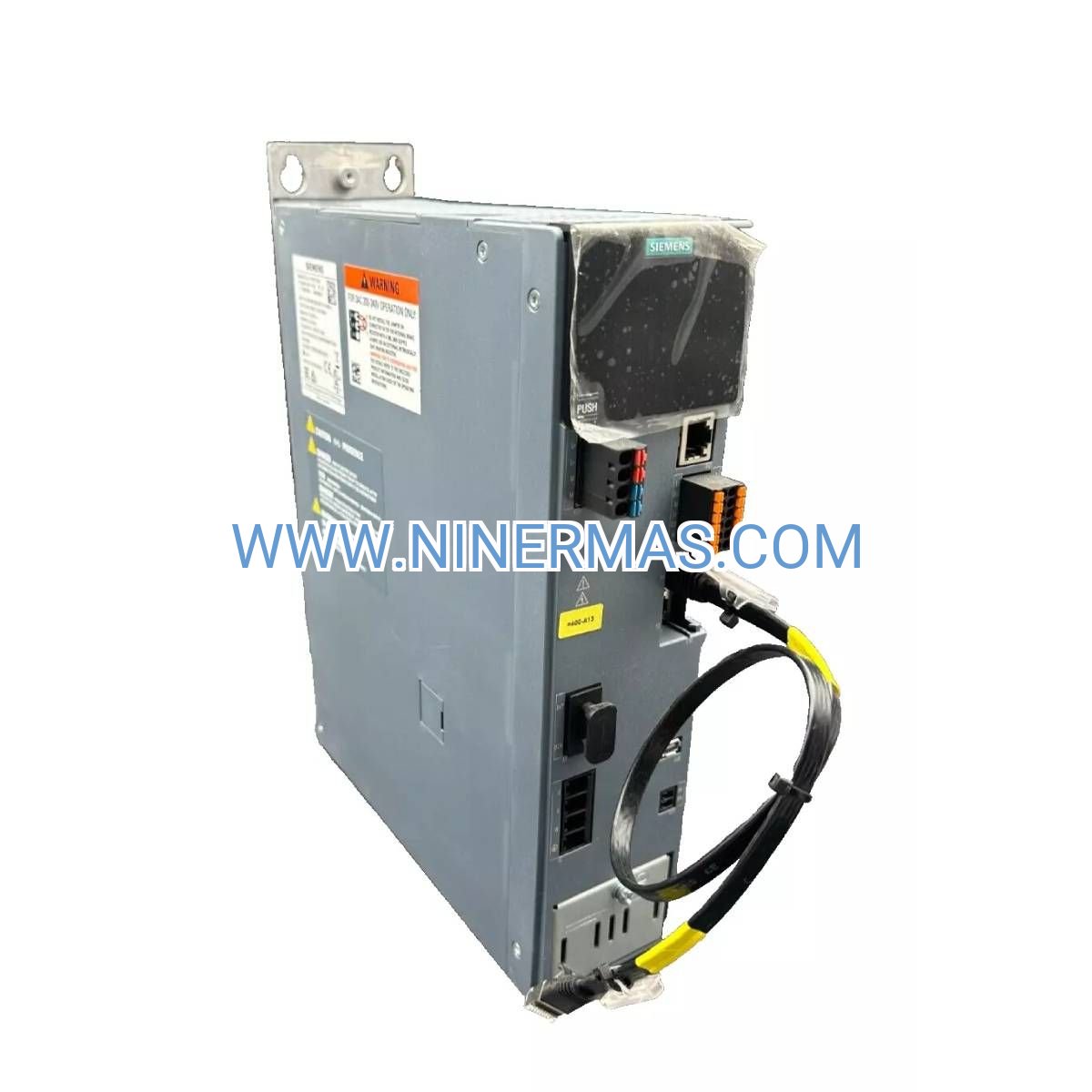

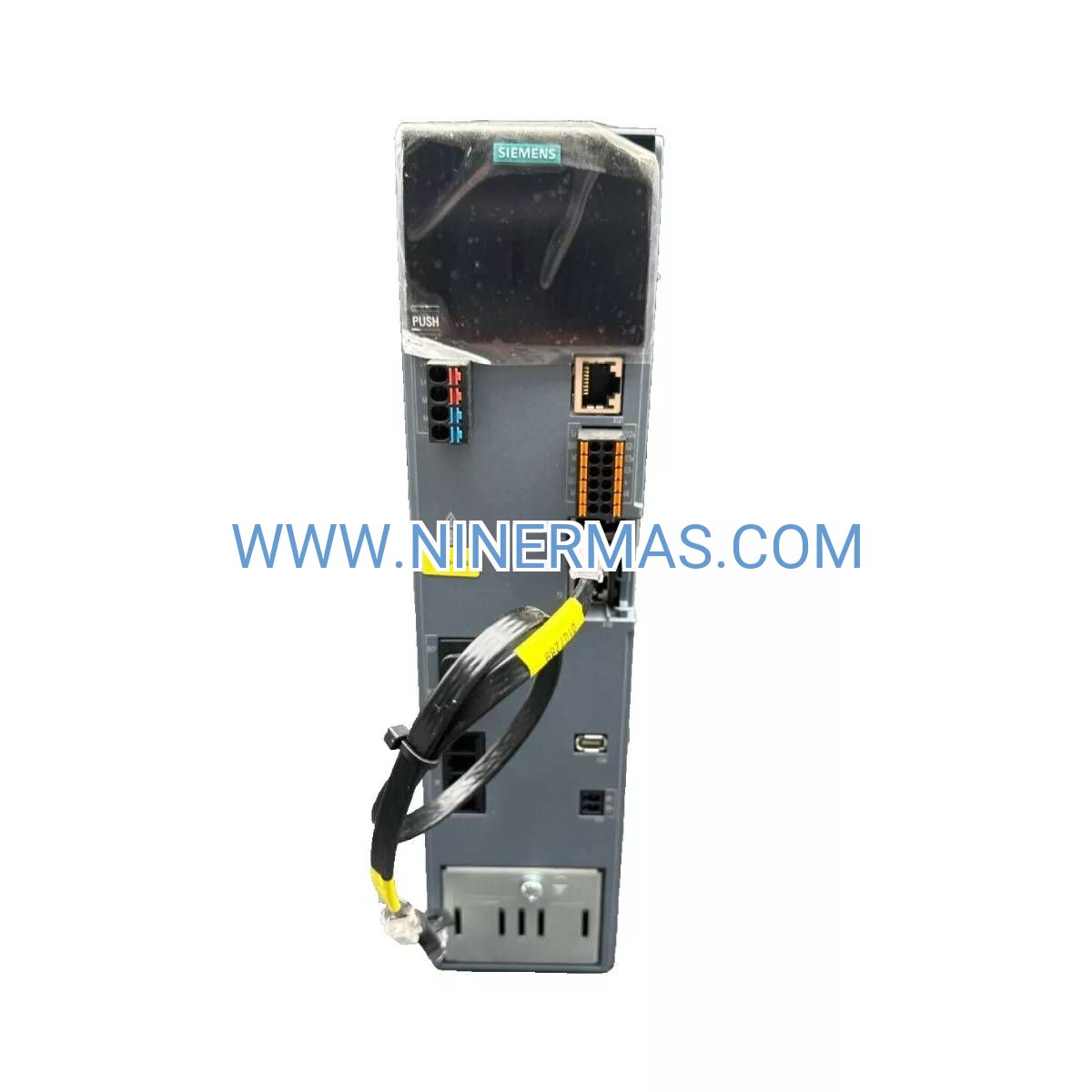

Siemens 6SL3210-5HE11-5UF0 Servo Drive (Industrial-Grade Motion Control Solution)

The Siemens 6SL3210-5HE11-5UF0 is a precision-engineered 1.5 kW servo drive designed for demanding industrial automation applications requiring accurate speed and position control. This compact FSB frame-size unit delivers reliable 3-phase AC motor control with wide voltage compatibility (200-480V) and advanced pulse-width modulation at 8 kHz for smooth, responsive operation.

Manufacturing facilities, packaging lines, and material handling systems face constant pressure to improve throughput while maintaining precision. This servo drive addresses these challenges by providing robust torque control, rapid response times, and flexible integration capabilities that reduce downtime and enhance production quality. Ideal for OEMs, system integrators, and maintenance teams managing CNC machinery, conveyor systems, and automated assembly equipment.

Key advantages include universal voltage input eliminating the need for multiple inventory SKUs, IP20 enclosure protection suitable for controlled industrial environments, and proven Siemens engineering that ensures long-term reliability. The drive's 19.0A peak current capability handles demanding acceleration profiles while maintaining thermal stability within compact dimensions (70mm width).

Core Performance Features & Technical Benefits

→ Wide Voltage Range Compatibility
Accepts 200-480V ±10% three-phase input across 45-66 Hz frequencies, enabling deployment across global power standards without modification. Reduces spare parts inventory and simplifies multi-site installations.

→ Dual Power Rating Optimization
Delivers 1.50 kW at 400V or 0.90 kW at 240V, allowing flexible application matching. Rated output current of 5.0A with 19.0A maximum ensures headroom for peak torque demands during rapid positioning cycles.

→ High-Frequency PWM Control
8 kHz pulse frequency minimizes motor noise and vibration while improving current regulation accuracy. Supports output frequencies up to 550 Hz for high-speed spindle and servo motor applications.

→ Compact FSB Frame Design
Space-efficient 70mm width footprint (280mm height × 222.8mm depth) maximizes panel density. Vertical wall-mounting orientation with IP20 protection suits standard control cabinet environments.

→ Thermal & Electrical Protection
Integrated overcurrent, overvoltage, and thermal monitoring safeguards connected motors and mechanical systems. 6.0A rated input current with 8.6A inrush specification aids circuit breaker and contactor sizing.

Application Scenarios & Industry Solutions

✓ CNC Machine Tool Positioning
Precise axis control for milling centers, lathes, and grinding machines requiring repeatable positioning within microns. The drive's rapid response and smooth torque delivery eliminate stick-slip phenomena that compromise surface finish quality.

✓ Packaging & Labeling Equipment
Synchronized motion control for form-fill-seal machines, cartoners, and label applicators. Handles variable speed profiles and registration control that maintain product quality at speeds exceeding 200 packages per minute.

✓ Material Handling Conveyors
Controlled acceleration/deceleration for belt conveyors, roller tables, and sortation systems. Reduces mechanical stress on gearboxes and extends belt life while improving throughput in distribution centers.

✓ Textile & Printing Machinery
Tension control and web handling for printing presses, winding systems, and fabric processing lines. Maintains consistent material tension across speed changes, preventing defects and material waste.

✓ Food & Beverage Processing
Hygienic automation for filling lines, mixers, and conveyor systems in controlled environments. IP20 rating suitable for clean production areas when installed in properly sealed control panels.

Technical Specifications & Selection Guide

Selection Criteria: Match drive rated current (5.0A) to motor nameplate current for optimal thermal performance. Verify supply voltage stability remains within ±10% tolerance. Allow minimum 100mm top/bottom clearance for convection cooling. For applications requiring IP54 or higher protection, install drive within appropriately rated control cabinet.

Extended Capabilities & Integration Options

Communication Interfaces: Compatible with standard industrial fieldbus protocols for integration into Siemens SIMATIC automation ecosystems and third-party PLC systems. Enables remote parameter adjustment and diagnostic monitoring.

Advanced Motion Functions: Supports positioning modes, electronic gearing, and cam profile execution when paired with appropriate control hardware. Facilitates complex multi-axis coordination in packaging and assembly applications.

Customization Services: Pre-configured parameter sets available for common motor types and application profiles. Custom firmware configurations can be specified for OEM volume orders to reduce commissioning time.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-3 business days via expedited carrier services. Typical delivery to major industrial centers: 3-7 business days.

Custom Configuration: Factory-programmed units with specific parameter sets available with 10-15 business day lead time for orders of 5+ units.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Application engineering assistance for drive sizing, parameter optimization, and troubleshooting. Access to Siemens technical documentation, wiring diagrams, and commissioning guides included with purchase.

Included Documentation: Quick start guide, full technical manual (PDF), dimensional drawings (DXF/PDF), and compliance certifications (CE, UL).

Frequently Asked Questions

Q: What communication protocols does this servo drive support for PLC integration?
A: The 6SL3210-5HE11-5UF0 supports standard industrial protocols including PROFINET and EtherNet/IP when equipped with appropriate communication modules. Consult our technical team to specify the correct interface card for your control architecture.

Q: Can this drive handle a 2.0 kW motor if operated below rated speed?
A: While the drive can control larger motors at reduced power levels, we recommend matching drive rated power (1.5 kW at 400V) to motor nameplate rating for optimal performance and protection coordination. Oversizing the motor may compromise low-speed torque control and thermal protection accuracy.

Q: What energy efficiency improvements can I expect compared to older drive technology?
A: Modern servo drives with 8 kHz PWM typically achieve 95-97% conversion efficiency, reducing heat generation by 30-40% versus legacy 4 kHz designs. This translates to lower cooling requirements and reduced electrical operating costs in continuous-duty applications.

Q: What are the minimum clearance requirements for panel mounting?
A: Maintain 100mm (4") clearance above and below the drive for adequate convection cooling. Side-by-side mounting is acceptable with drives touching, but ensure ambient temperature remains below 40°C and provide forced ventilation for enclosed panels.

Q: Does this drive include built-in braking resistor capability?
A: The FSB frame size includes internal braking circuitry suitable for intermittent regenerative loads. For applications with frequent deceleration cycles or vertical axis control, external braking resistors may be required—contact our engineering team for duty cycle analysis.

Q: Is remote monitoring and diagnostics possible for predictive maintenance programs?
A: Yes, when networked via industrial Ethernet, the drive provides real-time access to operating parameters, fault history, and thermal status. This data integrates with SCADA systems and Industry 4.0 platforms for condition-based maintenance scheduling.
