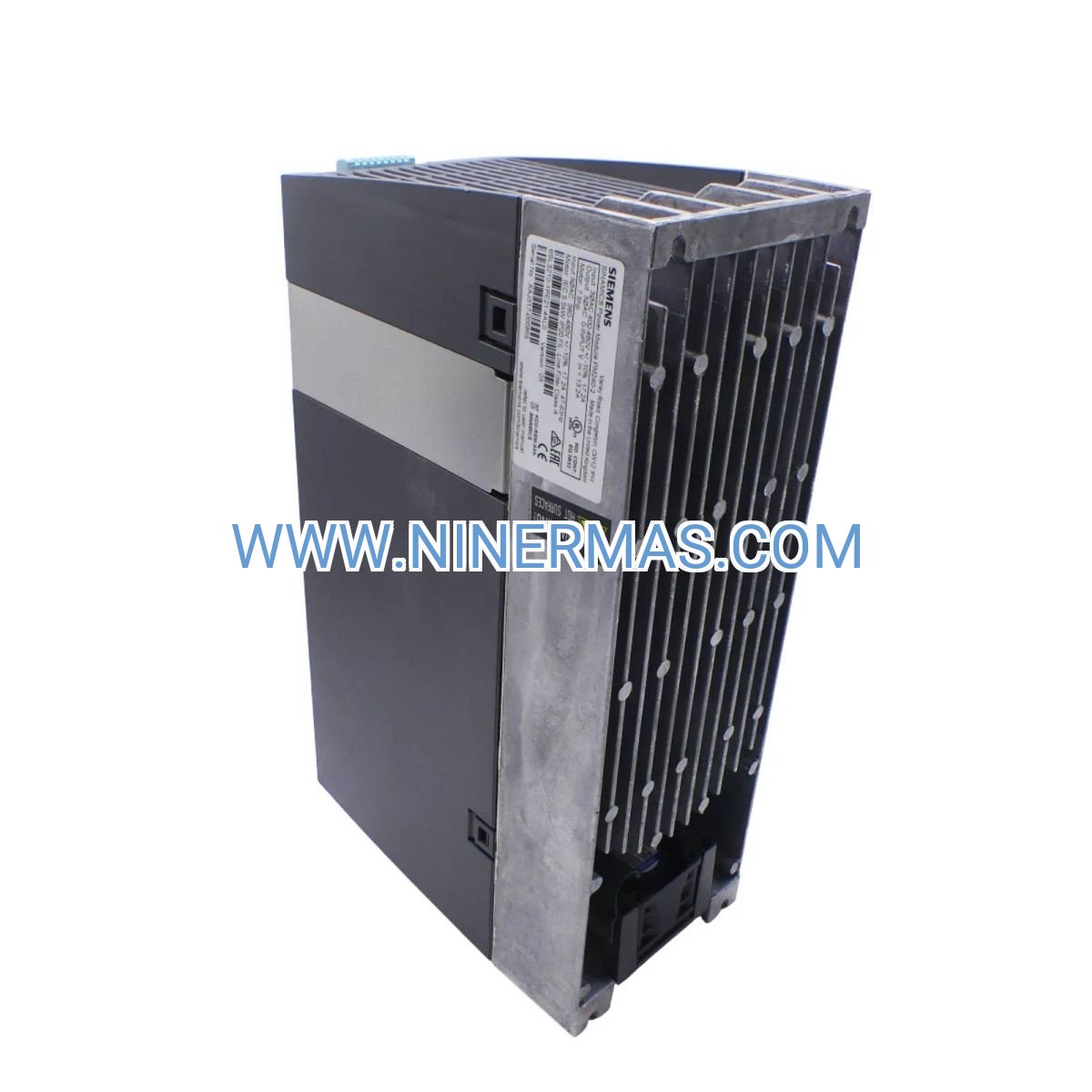

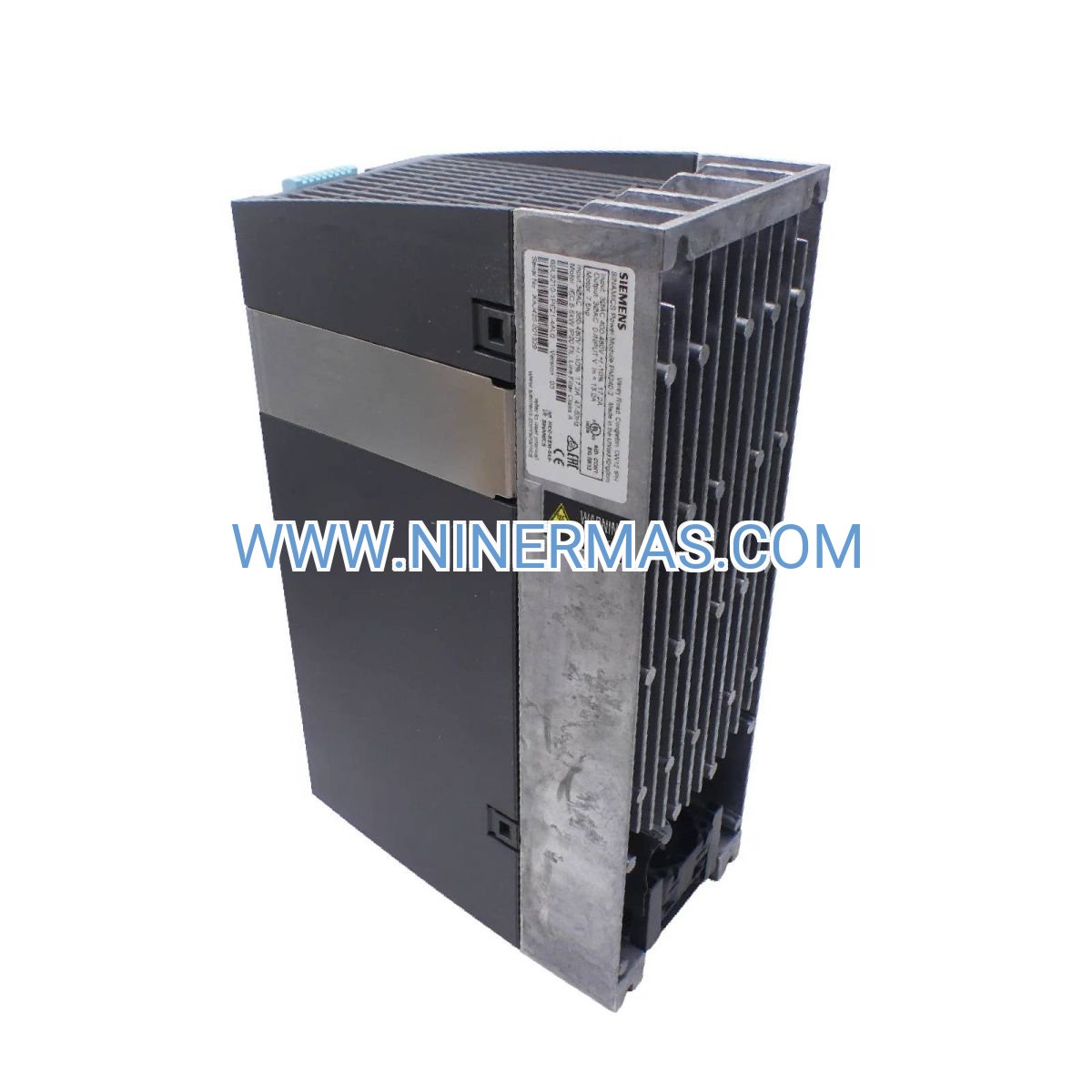

Siemens SINAMICS PM240-2 Power Module 6SL3210-1PE18-0UL1 | 0.75kW VFD Inverter Drive

Siemens SINAMICS PM240-2 Power Module – Industrial VFD for Precision Motor Control

The Siemens 6SL3210-1PE18-0UL1 SINAMICS PM240-2 is a compact, high-performance variable frequency drive (VFD) designed for industrial motor control applications. Leveraging advanced vector control technology and integrated safety features, this power module delivers precise speed regulation, smooth torque output, and exceptional energy efficiency across HVAC systems, pump stations, conveyor lines, and general machinery automation.

Engineered for OEMs, system integrators, and facility maintenance teams, the PM240-2 series addresses common challenges such as motor inrush current, mechanical wear from hard starts, energy waste during partial-load operation, and limited process flexibility. With its intuitive commissioning workflow and robust protection mechanisms, this drive reduces downtime, extends equipment lifespan, and lowers total cost of ownership.

Built on Siemens' proven SINAMICS platform, the 6SL3210-1PE18-0UL1 combines reliability, scalability, and seamless integration with industrial networks (USS, Modbus RTU). Whether retrofitting legacy systems or deploying new automation projects, this VFD offers a future-proof solution backed by comprehensive technical documentation and global service support.

Core Features & Performance Advantages

Precision Vector Control Technology
Employs sensorless vector control (VC) to maintain stable motor speed and torque across varying load conditions, ensuring consistent process quality and minimizing mechanical stress on driven equipment.

Significant Energy Savings
Optimizes motor operation by matching speed to actual demand, reducing energy consumption by up to 30–50% compared to fixed-speed systems—particularly effective in variable-torque applications like fans and pumps.

Comprehensive Motor Protection
Integrated safeguards include overcurrent, overvoltage, undervoltage, overtemperature, ground fault, and motor overload protection, reducing unplanned shutdowns and maintenance costs.

Compact & Space-Efficient Design
IP20-rated enclosure with optimized thermal management allows side-by-side mounting in control cabinets, ideal for space-constrained installations without compromising cooling performance.

User-Friendly Commissioning
Quick startup wizard via BOP-2 (Basic Operator Panel) or STARTER software enables parameter configuration in minutes, with auto-tuning functions for motor identification and performance optimization.

Flexible Communication Interfaces
Standard USS protocol and optional Modbus RTU support enable seamless integration with PLCs, SCADA systems, and building management platforms for centralized monitoring and control.

Typical Application Scenarios

The SINAMICS PM240-2 is engineered for industries and processes demanding reliable motor control, energy efficiency, and operational flexibility:

HVAC & Building Automation
Controls fan speed in air handling units, rooftop units, and ventilation systems to maintain indoor air quality while minimizing energy waste. Ideal for commercial buildings, data centers, and cleanroom facilities.

Water & Wastewater Management
Regulates pump speed in booster stations, irrigation systems, and wastewater treatment plants to match flow demand, reduce hydraulic shock, and extend pump service life.

Material Handling & Conveyor Systems
Provides smooth acceleration and deceleration for belt conveyors, roller tables, and sorting lines in logistics, food processing, and packaging industries, preventing product damage and improving throughput.

General Machinery & OEM Equipment
Drives mixers, agitators, compressors, and small machine tools in manufacturing environments, offering precise speed control and torque management for diverse production processes.

Retrofit & Modernization Projects
Replaces obsolete starters and contactors in legacy systems, adding variable-speed capability without major infrastructure changes, reducing energy bills and improving process control.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility, review the following key parameters before ordering. For custom configurations or project-specific requirements, consult our application engineers.

Selection Considerations
When specifying a VFD, evaluate motor nameplate data (voltage, current, power), load characteristics (constant/variable torque), duty cycle (continuous/intermittent), environmental conditions (temperature, humidity, altitude), and control requirements (local/remote, analog/digital). For applications exceeding 50°C ambient or requiring IP54/IP65 protection, consider external enclosures or higher-rated models. Our engineering team can assist with load calculations, harmonic analysis, and system integration planning.

Advanced Capabilities & Customization Options

Multi-Motor Control
Single drive can sequentially control multiple motors via external contactors, reducing hardware costs in applications with intermittent operation patterns.

PID Process Controller
Built-in PID function enables closed-loop control for pressure, temperature, or flow regulation without external controllers, simplifying system architecture.

Programmable Digital I/O
Configurable inputs/outputs support multi-speed presets, external fault signals, run/stop commands, and status monitoring for flexible automation integration.

Brake Chopper & Braking Resistor Support
Handles regenerative energy in high-inertia or frequent-braking applications (elevators, cranes, test benches) to prevent DC bus overvoltage trips.

EMC Filter Options
Optional integrated or external EMC filters ensure compliance with stringent electromagnetic compatibility standards in sensitive environments (medical, laboratory, residential).

Delivery, Warranty & Technical Support

Lead Time & Availability
Standard catalog items typically ship within 3–5 business days from our regional distribution centers. Custom-configured units or large-volume orders may require 10–15 business days. Contact our sales team for expedited delivery options.

Warranty Coverage
All SINAMICS PM240-2 drives include a 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans and preventive maintenance contracts are available upon request.

Installation & Commissioning Assistance
We provide remote technical guidance via phone/email and can arrange on-site startup support for complex installations (subject to location and project scope). Detailed user manuals, wiring diagrams, and parameter lists are included with every shipment.

Technical Documentation Package

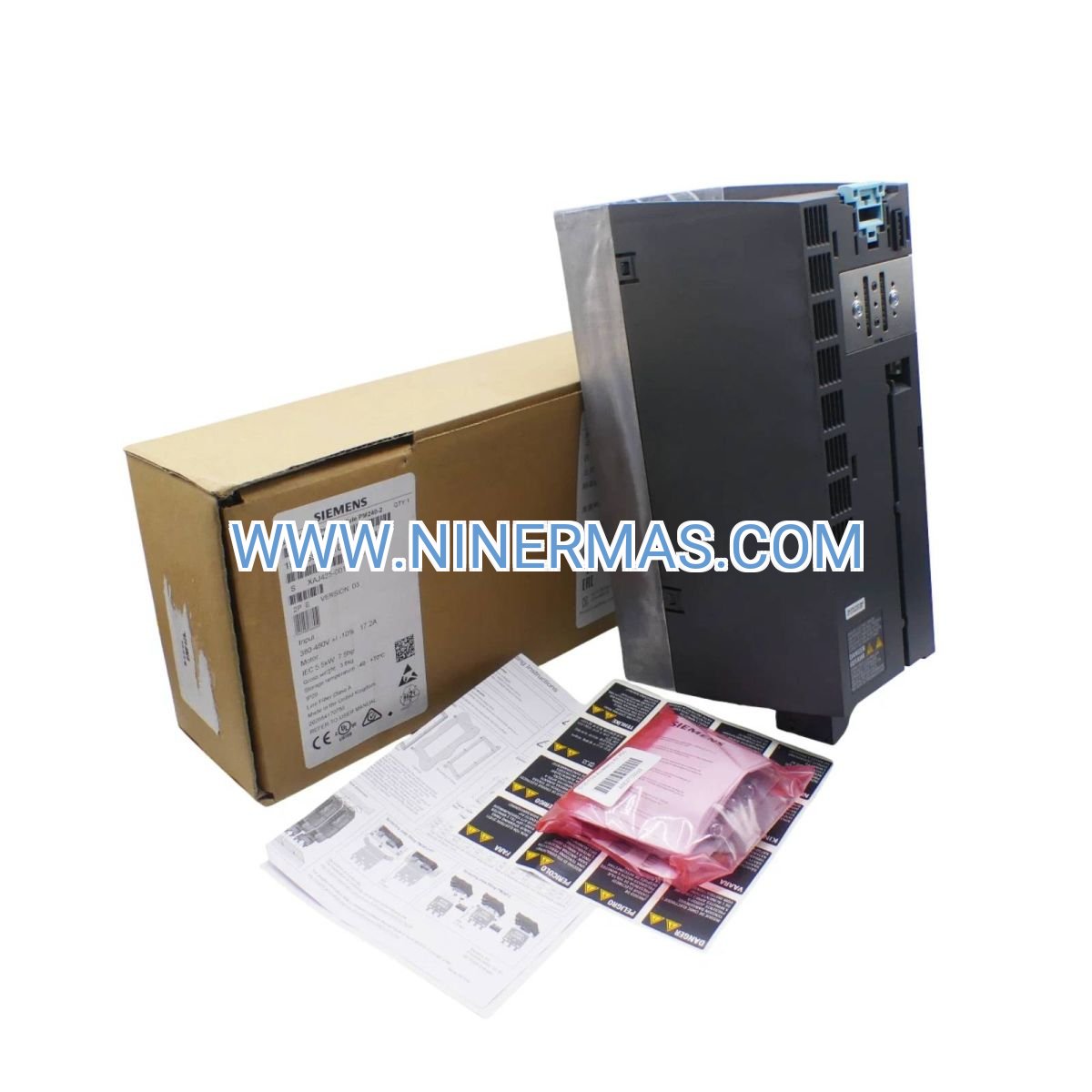

Each drive ships with operating instructions, quick start guide, electrical schematics, dimensional drawings, and safety notices in multiple languages. Digital copies and CAD files are available for download from our technical library.

Frequently Asked Questions (FAQ)

Q: Can the Siemens PM240-2 VFD control both induction and permanent magnet motors?
A: Yes, the PM240-2 supports standard three-phase asynchronous (induction) motors. For permanent magnet synchronous motors (PMSM), verify parameter compatibility or consider the SINAMICS G120 series with encoder feedback for optimal performance.

Q: What is the maximum cable length between the VFD and motor?
A: For unshielded cables, recommend ≤25 meters (82 feet); for shielded cables, up to 50 meters (164 feet). Longer runs may require output reactors or dV/dt filters to minimize motor insulation stress and bearing currents.

Q: Does this drive require external line reactors or DC chokes?
A: Not mandatory for most applications, but recommended when supply impedance is low (<1%), input voltage distortion is high (>3% THD), or multiple drives share a common DC bus to improve power quality and extend capacitor life.

Q: How much energy savings can I expect in a typical HVAC fan application?
A: Energy reduction varies by load profile, but field studies show 30–50% savings in variable-air-volume (VAV) systems compared to inlet damper control, with payback periods often under 18 months depending on electricity rates and operating hours.

Q: Can I monitor and control this VFD remotely via Ethernet or wireless networks?
A: The base model supports USS/Modbus RTU over RS485. For Ethernet/IP, PROFINET, or IoT connectivity, consider adding a communication module (e.g., Siemens CM-Compact) or upgrading to the SINAMICS G120 platform with integrated web server.

Q: What protection features prevent motor damage during fault conditions?
A: The drive includes electronic thermal overload (I²t), stall prevention, phase loss detection, ground fault monitoring, and safe torque-off (STO) readiness, ensuring comprehensive motor and personnel protection per IEC 61800-5-2 standards.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific engineering support, please provide the following information:

• Project name and industry sector
• Motor specifications (power, voltage, current, speed)
• Load type (pump, fan, conveyor, etc.) and duty cycle
• Control requirements (local keypad, remote PLC, analog setpoint)
• Environmental conditions (temperature, altitude, enclosure rating)
• Quantity and delivery timeline

Our application engineers will respond within one business day with a customized solution, including drive selection, accessory recommendations, wiring guidance, and commercial terms.
