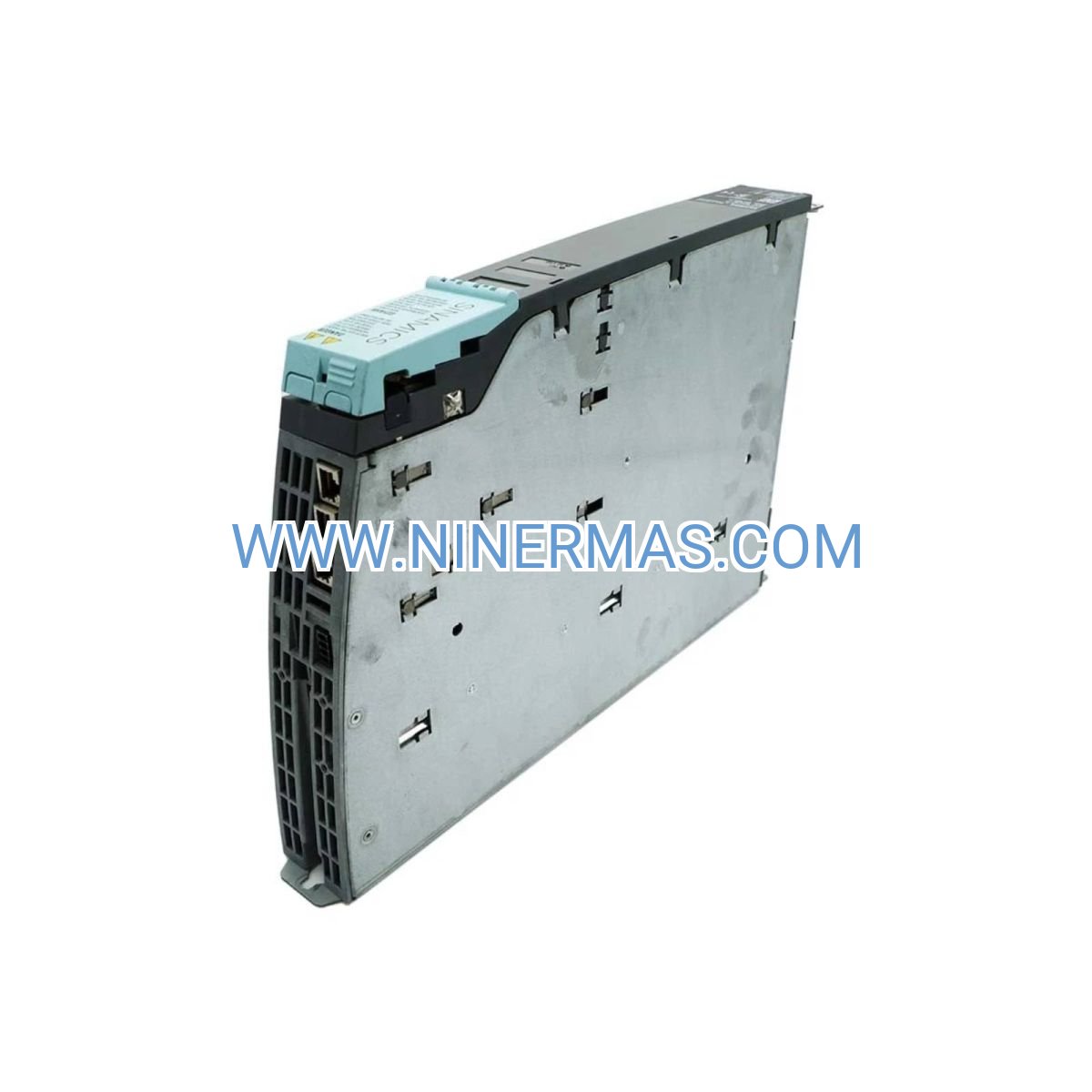

SINAMICS S120 Single Motor Module (Industrial-Grade Drive Control System)

The Siemens 6SL3120-1KE21-3UP1 SINAMICS S120 single motor module is an industrial-grade variable frequency drive component designed for precision motor control applications. Through advanced vector control technology and regenerative braking capability, it delivers precise speed regulation, torque management, and intelligent monitoring for demanding industrial processes.

Ideal for manufacturing automation, process control systems, material handling equipment, HVAC industrial applications, and machine tool operations. This module addresses critical challenges including motor speed instability, excessive energy consumption, mechanical stress from direct-on-line starting, limited process flexibility, and inadequate fault diagnostics.

Engineered with standardized design and flexible configuration options, this drive module offers superior energy efficiency, exceptional control precision, robust protection features, seamless system integration, and comprehensive diagnostic capabilities. Suitable for automation engineers, system integrators, OEM manufacturers, and industrial facility operators. Contact our engineering team for application-specific selection guidance and technical quotations.

Core Functions & Advantages

• Precision Vector Control
  Utilizes closed-loop field-oriented control (FOC) with encoder feedback, delivering accurate speed regulation within ±0.01% and dynamic torque response down to zero speed, eliminating mechanical shock and extending equipment lifespan.
• Significant Energy Savings
  Compared to fixed-speed operation, achieves up to 30% energy reduction through optimized motor efficiency curves and regenerative braking capability, substantially lowering operational costs in continuous-duty applications.
• Modular System Architecture
  Supports flexible multi-axis configurations with hot-swappable modules, enabling rapid maintenance, scalable capacity expansion, and minimized system downtime for production-critical environments.
• Comprehensive Protection Suite
  Equipped with overcurrent, undervoltage, overvoltage, ground fault, motor overtemperature, and short-circuit protection, reducing unplanned shutdowns and maintenance expenses while ensuring personnel safety.
• Advanced Diagnostic Interface
  Features integrated PROFINET/PROFIBUS connectivity with real-time parameter monitoring, fault logging, and predictive maintenance alerts through SINAMICS Startdrive software, enabling proactive system management.
• Wide Application Compatibility
  Compatible with induction motors, synchronous motors, and servo motors ranging from 0.55 kW to 250 kW, supporting various voltage classes (380-480V AC) and international electrical standards.

Typical Application Scenarios

This drive module excels in applications requiring precise speed control, energy efficiency, and continuous reliability, particularly in:

• Manufacturing Automation & CNC Machining
  Provides precise spindle speed control and feed axis positioning for milling, turning, and grinding operations, ensuring consistent surface finish quality and dimensional accuracy in precision manufacturing.
• Process Industry & Chemical Plants
  Controls pumps, compressors, mixers, and extruders in chemical processing, pharmaceuticals, and food production, maintaining stable process parameters while reducing energy consumption and mechanical wear.
• Material Handling & Conveyor Systems
  Manages conveyor belts, elevators, and automated storage systems with smooth acceleration/deceleration profiles, preventing product damage and optimizing throughput in logistics and warehousing operations.
• HVAC & Building Automation
  Regulates industrial fans, blowers, and large-scale air handling units in commercial buildings and industrial facilities, achieving significant energy savings through demand-based speed modulation.
• Metal Processing & Rolling Mills
  Delivers high-torque performance and synchronized multi-motor control for rolling stands, winders, and tension control applications in steel, aluminum, and wire production lines.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized electrical ratings, control specifications, and environmental parameters. Custom configurations are available based on specific project requirements.

Key Specifications:

• Power Rating: Configurable from 0.55 kW to 250 kW (application-dependent)
• Input Voltage: 3-phase 380-480V AC ±10%, 50/60 Hz
• Control Method: Vector control (sensorless/encoder feedback), V/f control
• Communication Protocols: PROFINET, PROFIBUS DP, EtherNet/IP, Modbus RTU
• Overload Capacity: 150% rated current for 60 seconds, 200% for 3 seconds
• Protection Rating: IP20 (standard enclosure), IP54 available with optional kit
• Operating Temperature: -10°C to +50°C (derate above 40°C)
• Cooling Method: Forced air cooling with intelligent fan control
• Compliance Standards: CE, UL, cUL, RoHS, IEC 61800-5-1

Selection Recommendations:
When selecting a drive module, consider: motor rated power and current, load torque characteristics (constant/variable torque), required speed range and accuracy, ambient temperature and installation altitude, control interface requirements (analog/fieldbus), and available electrical infrastructure. For application-specific sizing, please provide motor nameplate data, load profile, and process requirements—our engineering team will recommend the optimal configuration.

Extended Functionality & Integration Options

• Safety Integration: Compatible with SINAMICS Safety Integrated functions (STO, SS1, SLS) for compliance with ISO 13849-1 and IEC 61508 safety standards
• Energy Monitoring: Built-in energy metering and power quality analysis for ISO 50001 energy management compliance
• Predictive Maintenance: Condition monitoring with vibration analysis, bearing temperature tracking, and remaining service life calculation
• Cloud Connectivity: Optional MindSphere integration for remote diagnostics, performance analytics, and fleet management

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3-5 business day delivery. Custom-configured solutions require 10-15 business days lead time depending on specification complexity. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship.

We provide comprehensive technical support including remote commissioning assistance, on-site startup services (region-dependent), and application engineering consultation. Complete documentation package includes electrical schematics, terminal connection diagrams, parameter reference manuals, and SINAMICS Startdrive project files for streamlined installation and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the SINAMICS S120 motor module integrate with existing PLC control systems?
A: The S120 module supports multiple industrial communication protocols including PROFINET, PROFIBUS DP, EtherNet/IP, and Modbus RTU. Integration requires configuring the appropriate communication card, setting network parameters (IP address, baud rate), and mapping process data objects (PDOs) in your PLC program. We provide pre-configured GSD/EDS files and sample PLC code to accelerate commissioning.

Q: What is the maximum number of motors that can be controlled by a single S120 system?
A: A single SINAMICS S120 control unit can manage up to 12 motor modules simultaneously in a multi-axis configuration, with each module controlling one motor independently. The system supports synchronized motion control, electronic gearing, and cam profiling across all axes.

Q: What level of energy savings can be realistically achieved, and what conditions are required?
A: Energy savings of 20-40% are typical in variable-torque applications (pumps, fans, compressors) when replacing fixed-speed operation. Actual savings depend on load profile variability, operating duty cycle, and baseline system efficiency. Constant-torque applications (conveyors, extruders) typically see 10-15% savings through optimized acceleration and regenerative braking.

Q: What are the installation environment requirements and protection rating options?
A: Standard modules are IP20 rated for installation in climate-controlled electrical rooms with ambient temperatures between -10°C and +50°C. For harsh environments, IP54-rated enclosure kits are available. Ensure adequate ventilation clearances (minimum 100mm top/bottom, 50mm sides) and avoid exposure to corrosive gases, conductive dust, or excessive humidity above 95% RH non-condensing.

Q: Does the system support remote monitoring and data acquisition? Which protocols are compatible?
A: Yes, the S120 supports comprehensive remote monitoring via PROFINET, OPC UA, and MQTT protocols. Real-time data including motor speed, torque, current, temperature, and fault status can be transmitted to SCADA systems, MES platforms, or cloud-based analytics services. Optional SINAMICS Connect 300 gateway enables secure remote access and predictive maintenance capabilities.

Q: What is the typical service life and recommended maintenance interval?
A: Under normal operating conditions (40°C ambient, 80% average load), the expected service life exceeds 10 years. Recommended maintenance includes: quarterly visual inspection and air filter cleaning, annual capacitor bank testing, and fan bearing replacement every 3-5 years depending on runtime hours. The drive's diagnostic system provides automated maintenance reminders based on actual operating conditions.

Request Technical Support

For detailed application engineering, product selection assistance, or technical quotations, please provide the following information: project name and industry sector, application type and process description, motor specifications (power, voltage, speed range), quantity of axes required, control system architecture (PLC brand/model), environmental conditions (temperature, altitude, protection requirements), and any special functional requirements.

Our application engineers will provide personalized selection recommendations, system configuration proposals, and competitive pricing within 24 business hours.
