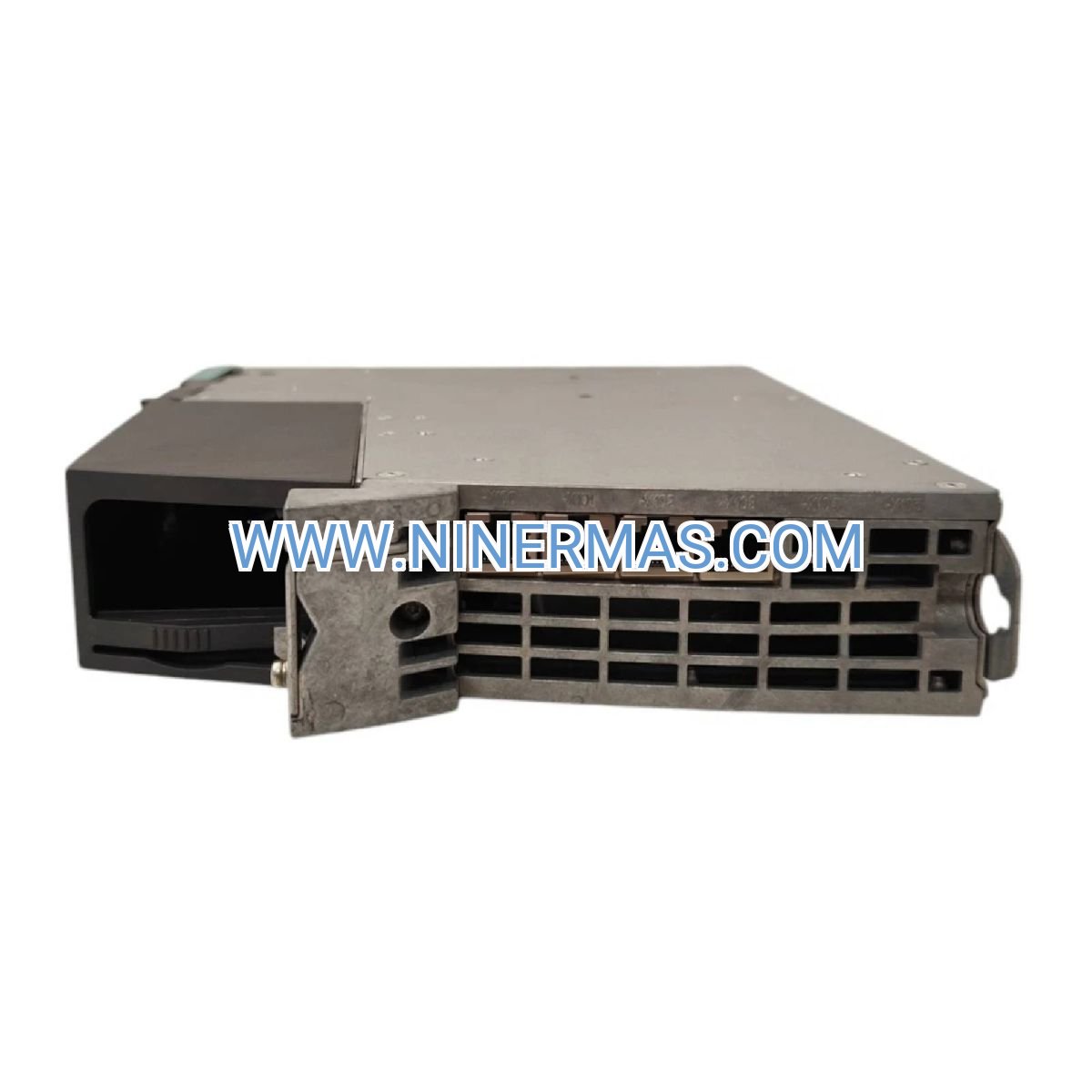

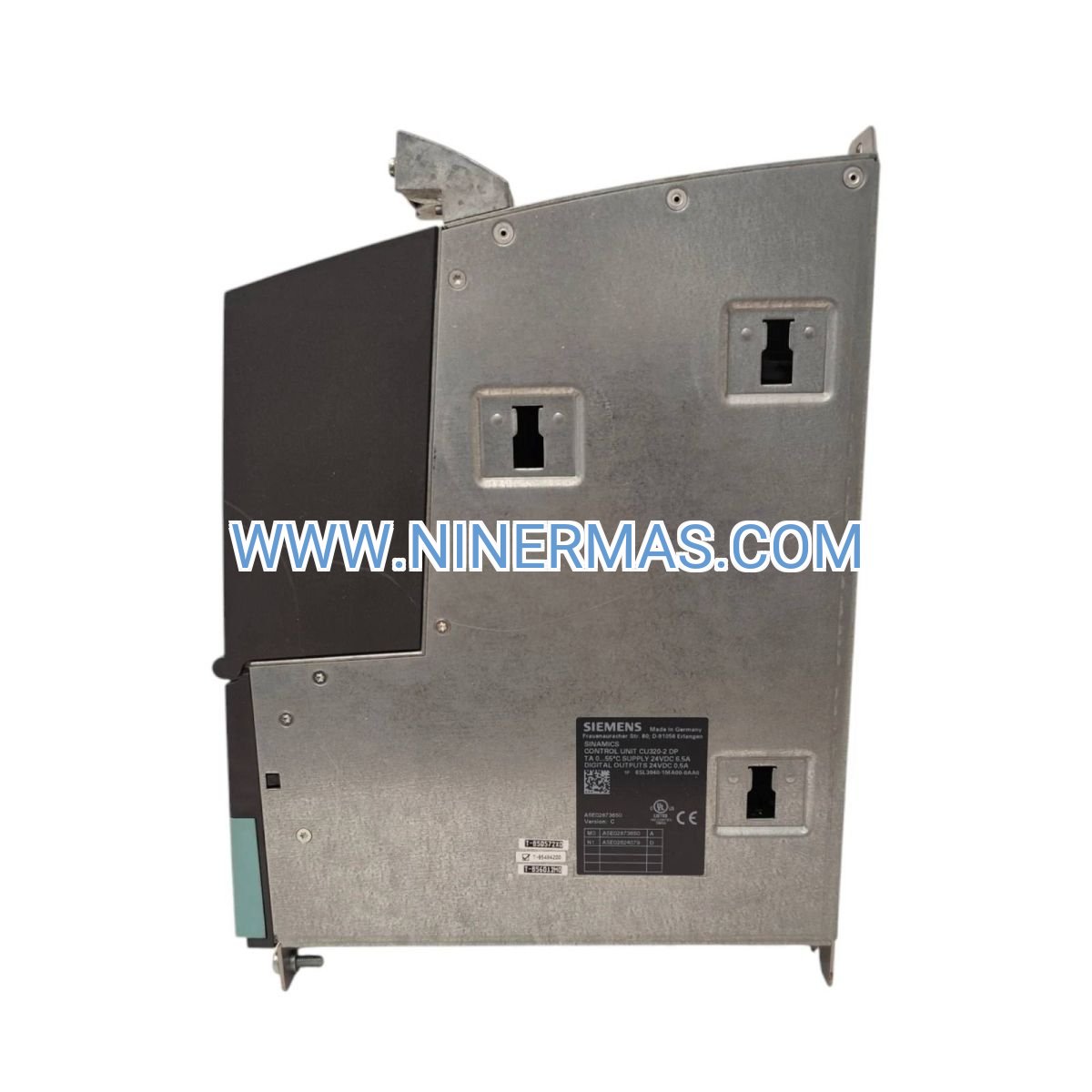

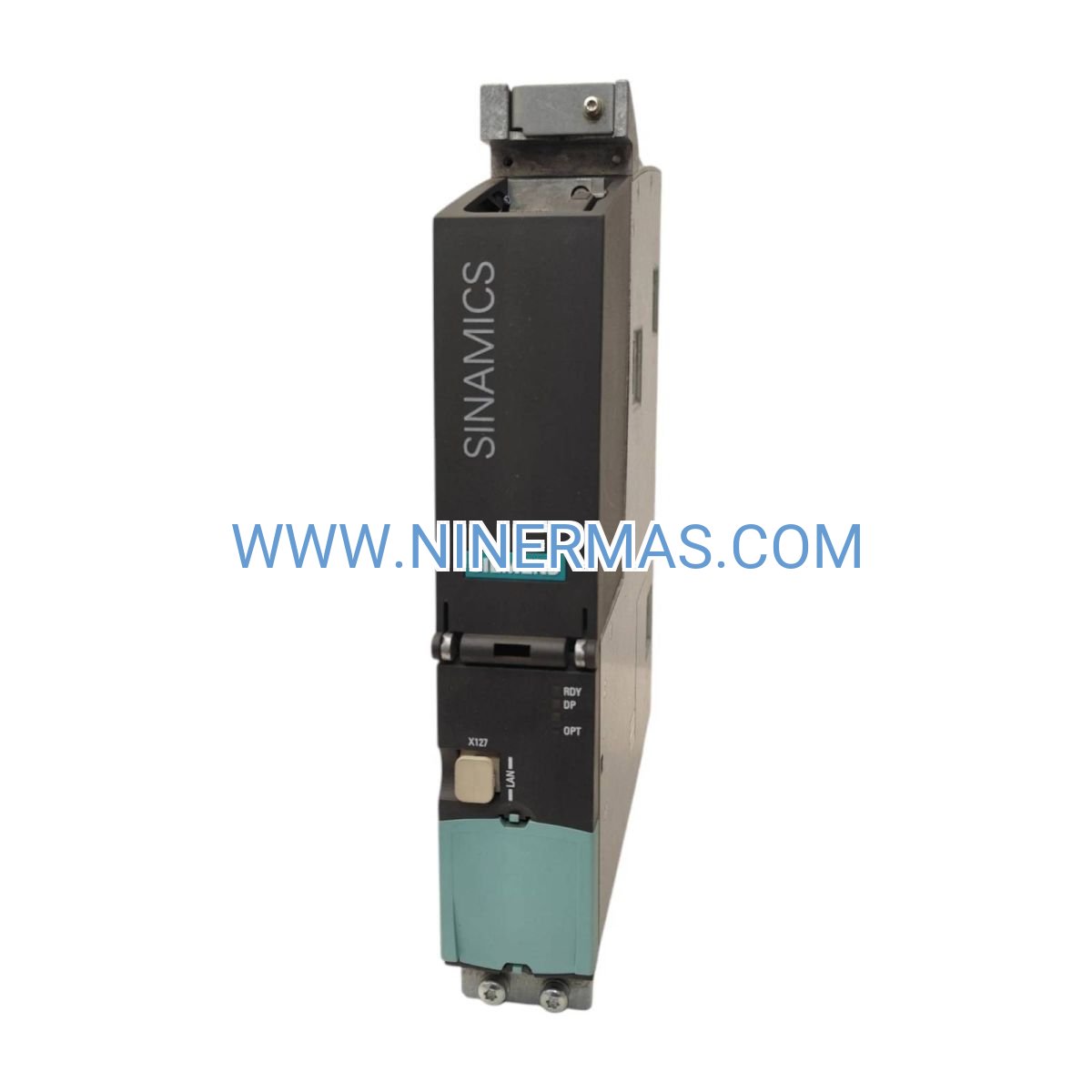

Siemens SINAMICS S120 CU320-2 PN Control Unit | 6SL3040-1LA00-0AA0 Drive Controller

Siemens SINAMICS S120 CU320-2 PN Control Unit (Industrial-Grade Drive Control System)

The Siemens 6SL3040-1LA00-0AA0 CU320-2 PN Control Unit is a high-performance industrial drive controller designed for precision motor control in demanding automation environments. Through advanced PROFINET communication, multi-axis coordination capabilities, and integrated safety functions, this control unit delivers reliable, energy-efficient operation for complex drive applications across manufacturing, process automation, and material handling systems.

Engineered for multi-motor drive systems, production lines, CNC machinery, packaging equipment, and industrial robotics, the CU320-2 PN addresses critical challenges including synchronization accuracy, communication latency, system scalability, and real-time diagnostic requirements. It eliminates issues such as drive coordination errors, network bottlenecks, limited expansion capacity, and delayed fault detection.

Built on Siemens' proven SINAMICS platform with field-tested reliability, this control unit offers seamless PROFINET integration, flexible I/O expansion, comprehensive diagnostic tools, energy-optimized control algorithms, and robust EMC protection—making it the preferred choice for design engineers, system integrators, OEM manufacturers, and plant automation teams. Contact our application engineers for customized drive configuration, technical specifications, and project quotations.

Core Functions & Technical Advantages

Advanced Multi-Axis Coordination
Supports up to 6 drive axes with precise electronic gearing and cam profiling capabilities, enabling synchronized motion control for complex production processes. Real-time interpolation ensures positioning accuracy within ±0.01mm for demanding applications.

High-Speed PROFINET Communication
Integrated PROFINET interface with IRT (Isochronous Real-Time) support delivers deterministic cycle times down to 250μs, ensuring rapid response for time-critical automation tasks. Seamlessly integrates with Siemens TIA Portal and third-party PROFINET controllers.

Scalable Drive Architecture
Modular design allows flexible expansion from single-axis to multi-axis configurations without controller replacement. Supports power modules from 0.55kW to 250kW, accommodating diverse motor types including induction, synchronous, and servo motors.

Comprehensive Safety Integration
Built-in Safety Integrated functions (STO, SS1, SLS) comply with EN ISO 13849-1 PLd/SIL2 standards, reducing external safety relay requirements and simplifying machine certification processes.

Energy Optimization Technology
Intelligent energy management algorithms reduce power consumption by up to 35% compared to conventional drive systems through optimized flux control, regenerative braking, and dynamic motor adaptation.

Industrial-Grade Diagnostics
Advanced trace functions and integrated web server provide real-time monitoring of drive parameters, fault history logging, and predictive maintenance alerts—minimizing unplanned downtime and maintenance costs.

Robust Environmental Protection
Conformal-coated PCBs and IP20 enclosure rating ensure reliable operation in harsh industrial environments with temperature ranges from 0°C to +50°C, resistance to vibration (IEC 60068-2-6), and EMC compliance per EN 61800-3 Category C3.

Typical Application Scenarios

The CU320-2 PN control unit excels in applications requiring high precision, multi-axis coordination, and deterministic communication performance:

Manufacturing & Production Lines
Coordinates conveyor systems, robotic pick-and-place operations, and assembly stations with microsecond-level synchronization. Ideal for automotive manufacturing, electronics assembly, and food & beverage packaging where production throughput and quality consistency are critical.

CNC Machine Tools & Metal Forming
Provides precise spindle control, feed axis coordination, and tool changer positioning for milling centers, lathes, and press brakes. Supports high-dynamic applications with acceleration rates exceeding 10m/s² while maintaining position accuracy.

Material Handling & Logistics
Manages automated storage/retrieval systems (AS/RS), overhead cranes, and sorting conveyors with smooth acceleration profiles and anti-sway control. Reduces cycle times by 20-30% compared to traditional relay-based systems.

Process Industry Applications
Controls extruders, winders, and coating lines requiring precise tension control and speed synchronization across multiple process zones. Maintains product quality through closed-loop regulation of torque, speed, and position.

Textile & Printing Machinery
Enables electronic line shafting for weaving looms, rotary printing presses, and fiber processing equipment. Eliminates mechanical gearboxes while providing flexible ratio changes and registration control.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide standardized technical parameters. Custom configurations are available based on specific application requirements.

Key Technical Specifications:

• Control Unit Type: CU320-2 PN (PROFINET interface)
• Max Drive Axes: 6 axes (expandable with additional CU units)
• Communication Interface: 2× PROFINET ports (RJ45), 1× RS232 service port
• Cycle Time: 250μs to 4ms (configurable)
• Power Module Compatibility: PM240-2, PM250, PM260, PM340 series
• Power Range: 0.55kW to 250kW (per axis)
• Control Voltage: 24VDC ±20% (typical consumption 15W)
• Digital I/O: Expandable via TM31/TM41/TM54F terminal modules
• Encoder Interfaces: Up to 6× encoder inputs (TTL, HTL, EnDat 2.2, DRIVE-CLiQ)
• Operating Temperature: 0°C to +50°C (derate above 40°C)
• Protection Rating: IP20 (suitable for control cabinet mounting)
• Dimensions (H×W×D): 275mm × 80mm × 295mm
• Mounting: Standard 35mm DIN rail or direct panel mount
• Certifications: CE, UL, cUL, EAC, RCM

Selection Recommendations:
When specifying the CU320-2 PN, consider the following application parameters: total number of controlled axes, maximum motor power per axis, required positioning accuracy, communication network architecture (PROFINET topology), safety function requirements (SIL level), environmental conditions (temperature, humidity, vibration), and available control cabinet space. For complex applications involving coordinated motion, gantry systems, or electronic cam profiles, consult our drive specialists to optimize controller configuration and ensure adequate processing capacity.

Extended Functionality & Integration Options

TIA Portal Integration: Full compatibility with Siemens TIA Portal V17 and later versions enables unified engineering, commissioning, and diagnostics across automation systems. Pre-configured function blocks accelerate programming and reduce commissioning time by up to 40%.

Third-Party PLC Connectivity: Standard PROFINET interface supports integration with Allen-Bradley, Schneider Electric, Mitsubishi, and other major PLC brands via GSD files and standardized PROFIdrive profiles.

Cloud Connectivity & IIoT: Optional SINAMICS Connect 300 module enables secure cloud connectivity for remote monitoring, predictive maintenance analytics, and production data aggregation via OPC UA and MQTT protocols.

Functional Safety Extensions: Upgrade to PROFIsafe communication enables SIL3/PLe safety functions including Safe Torque Off (STO), Safe Stop 1 (SS1), Safely-Limited Speed (SLS), and Safe Direction (SDI) without additional safety controllers.

Delivery, Service & Quality Assurance

Lead Time: Standard CU320-2 PN units typically ship within 3-5 business days from regional stock. Custom-configured systems with specific firmware versions or terminal module combinations require 10-15 business days.

Warranty Coverage: All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical production applications.

Technical Support: Our certified Siemens drive specialists provide remote commissioning assistance, parameter optimization guidance, and troubleshooting support via phone, email, and remote desktop sessions. On-site startup services available for complex multi-axis installations (regional availability applies).

Documentation Package: Each unit ships with complete technical documentation including hardware installation manual, parameter reference guide, PROFINET GSD file, CAD drawings (STEP/DXF formats), and sample TIA Portal project files—ensuring rapid integration and minimizing engineering effort.

Quality Certifications: Manufactured in Siemens ISO 9001:2015 certified facilities with full traceability. All units undergo factory acceptance testing including communication verification, safety function validation, and environmental stress screening per Siemens quality standards.

Frequently Asked Questions (FAQ)

Q: How does the SINAMICS S120 CU320-2 PN integrate with existing PROFINET networks?
A: The CU320-2 PN features two integrated PROFINET ports supporting line topology and IRT communication. Simply import the provided GSD file into your engineering tool (TIA Portal, Step 7, or third-party configurators), assign IP addresses via DCP protocol, and configure PROFIdrive telegram types based on your control requirements. The unit auto-negotiates 100Mbps full-duplex connections and supports network redundancy via MRP (Media Redundancy Protocol).

Q: What is the maximum number of drive axes one CU320-2 PN can control simultaneously?
A: A single CU320-2 PN supports up to 6 independent drive axes with full closed-loop control, electronic gearing, and cam profiling capabilities. For applications requiring more than 6 axes, multiple CU units can be synchronized via PROFINET with deterministic communication, or you can upgrade to the CU320-2 DP/PN variant which supports expanded axis configurations through DRIVE-CLiQ topology.

Q: What energy savings can be achieved with the CU320-2 PN control unit?
A: Energy savings typically range from 20% to 35% compared to conventional fixed-speed or DC drive systems, depending on application load profiles. Key contributing factors include: optimized flux control that reduces motor magnetization losses during partial load operation, regenerative braking that recovers kinetic energy back to the DC bus, intelligent sleep modes during idle periods, and dynamic motor parameter adaptation. Maximum savings occur in applications with frequent start/stop cycles, variable load conditions, or positioning operations.

Q: What are the environmental requirements for installing the CU320-2 PN?
A: The control unit requires installation in a clean, dry control cabinet with IP20 minimum protection rating. Operating temperature range is 0°C to +50°C (derate power modules above 40°C or provide forced ventilation). Maintain minimum clearances: 50mm above/below for airflow, 25mm on sides for cable routing. Relative humidity should not exceed 95% non-condensing. The unit is rated for vibration resistance per IEC 60068-2-6 (2g, 10-150Hz) and meets industrial EMC standards EN 61800-3 Category C3 for use in industrial environments with proper grounding and shielded cabling.

Q: Can the CU320-2 PN support remote monitoring and predictive maintenance?
A: Yes, the control unit provides multiple remote access options. The integrated web server allows browser-based monitoring of drive status, parameter values, and diagnostic buffers without additional software. For advanced analytics, the optional SINAMICS Connect 300 module enables secure cloud connectivity supporting OPC UA, MQTT, and Siemens MindSphere integration. This enables predictive maintenance features including bearing wear analysis, thermal monitoring trends, and automated alarm notification via email or SMS. All communication protocols support industry-standard encryption (TLS 1.2+) and user authentication for secure remote access.

Q: What encoder types are compatible with the CU320-2 PN for closed-loop control?
A: The CU320-2 PN supports a wide range of encoder interfaces including: TTL/RS422 incremental encoders (up to 300kHz), HTL incremental encoders (10-30VDC), EnDat 2.2 absolute encoders, SSI absolute encoders, DRIVE-CLiQ encoders (SMC30, SME120, SME125), and resolver inputs (via SMC30 sensor module). Each axis can be configured independently, allowing mixed encoder types within the same system. For highest precision applications, we recommend EnDat 2.2 or DRIVE-CLiQ encoders which provide 20-bit resolution and integrated cable break detection.

Request Technical Support & Quotation

To receive detailed application engineering support, customized drive configuration recommendations, or project quotations, please provide the following information to our technical team:

• Project name and application type (machine tool, packaging line, material handling, etc.)
• Number of controlled axes and motion coordination requirements
• Motor specifications per axis (power rating, voltage, speed range, encoder type)
• Load characteristics (inertia ratio, duty cycle, positioning accuracy requirements)
• Control network architecture (PROFINET controller type, cycle time requirements)
• Safety function requirements (SIL level, required safety functions)
• Environmental conditions (ambient temperature, altitude, vibration levels)
• Delivery timeline and installation support needs

Our certified drive application engineers will provide one-on-one consultation, system sizing calculations, and complete bill of materials within 24-48 hours.
