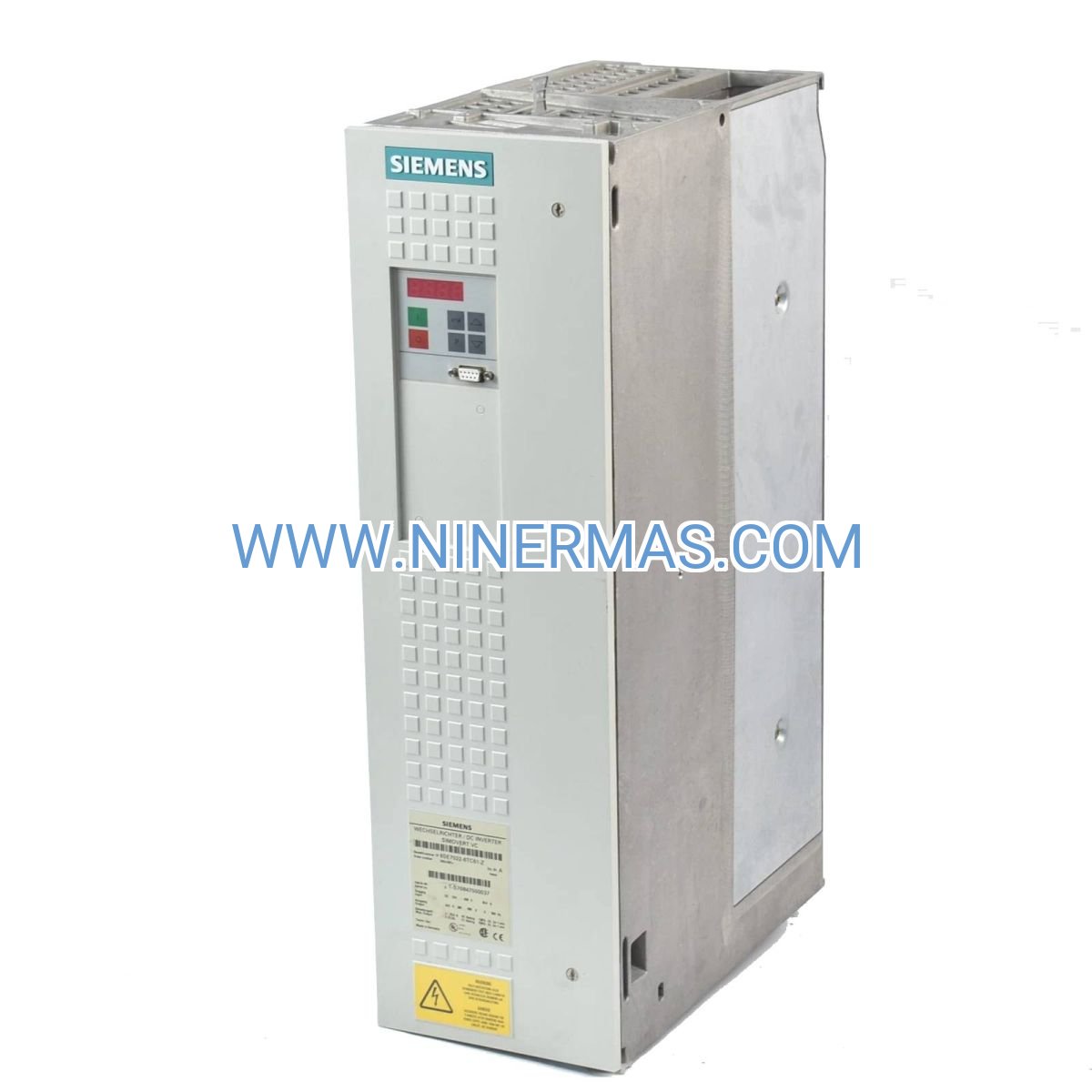

Siemens 6SE7021-8TP50 SIMOVERT MASTERDRIVES Vector Control Inverter (Industrial-Grade Precision Drive System)

The Siemens 6SE7021-8TP50 SIMOVERT MASTERDRIVES is a professional-grade vector control inverter designed for demanding industrial motor control applications. Through advanced vector control technology and integrated PROFIBUS communication, this 2.2kW compact drive delivers precise speed regulation, superior torque response, and exceptional dynamic performance across a wide operating range.

Ideal for applications in manufacturing automation, material handling systems, process control equipment, and precision machinery, this inverter addresses critical challenges including motor speed instability, poor low-speed torque performance, limited communication capabilities, and complex parameter configuration requirements. The MASTERDRIVES platform combines German engineering excellence with field-proven reliability.

Featuring standardized configuration with extensive customization options, this drive system offers rapid commissioning, comprehensive protection functions, flexible I/O expansion, and seamless integration with Siemens automation ecosystems. Suitable for OEM machine builders, system integrators, plant engineers, and maintenance professionals seeking reliable, high-performance motor control solutions. Contact our application engineers for drive selection assistance and technical specifications.

Core Features & Technical Advantages

Advanced Vector Control Technology
Implements sensorless vector control algorithms with automatic motor parameter identification, delivering precise speed regulation (±0.01% accuracy) and excellent torque characteristics from zero speed to rated speed, eliminating mechanical transmission losses and improving process quality.

Superior Energy Efficiency
Optimized PWM modulation and energy-saving control modes reduce power consumption by up to 30-50% compared to fixed-speed operation, significantly lowering operational costs in continuous-duty applications while minimizing heat generation and extending component lifespan.

Comprehensive Protection Suite
Equipped with overcurrent, overvoltage, undervoltage, overtemperature, ground fault, motor overload, and phase loss protection functions, ensuring maximum system uptime and protecting both the drive and connected motor from damage under abnormal operating conditions.

Industrial Communication Capability
Native PROFIBUS-DP interface enables seamless integration with Siemens SIMATIC PLCs and distributed control systems, supporting real-time parameter monitoring, remote diagnostics, and centralized control architecture for Industry 4.0 applications.

Compact & Robust Design
IP20-rated enclosure with optimized thermal management, designed for panel mounting in industrial control cabinets. Rugged construction withstands harsh industrial environments including temperature variations, electrical noise, and mechanical vibration.

User-Friendly Interface
Intuitive parameter setting via BOP-2 (Basic Operator Panel) with multi-language support, plain-text parameter descriptions, and quick commissioning wizards. Real-time status monitoring and diagnostic information accessible at a glance.

Typical Application Scenarios

This SIMOVERT MASTERDRIVES inverter is engineered for applications demanding precise speed control, high dynamic response, and reliable continuous operation, particularly in:

Manufacturing & Process Automation
Controls conveyor systems, mixers, extruders, and packaging machinery where variable speed operation improves product quality, reduces material waste, and enables flexible production scheduling across diverse manufacturing sectors.

Material Handling Systems
Drives hoists, cranes, elevators, and automated storage/retrieval systems requiring smooth acceleration, precise positioning, and controlled deceleration to protect loads and ensure operator safety in logistics and warehousing operations.

HVAC & Building Systems
Regulates pumps, fans, and compressors in commercial HVAC installations, achieving significant energy savings through demand-based speed control while maintaining optimal environmental conditions and reducing acoustic noise levels.

Machine Tool & Metalworking
Powers spindle drives, feed axes, and auxiliary equipment in CNC machines, lathes, and milling centers where precise speed control directly impacts surface finish quality, tool life, and dimensional accuracy.

Chemical & Pharmaceutical Processing
Controls agitators, dosing pumps, and reactor drives in process industries requiring consistent mixing speeds, accurate flow rates, and compliance with stringent quality standards and regulatory requirements.

Technical Specifications & Selection Guide

To facilitate engineering design and drive selection, key technical parameters are provided below. Custom configurations available for specialized applications.

Selection Considerations
When specifying this drive, engineers should evaluate: motor rated power and current, load torque characteristics (constant/variable torque), required speed range and accuracy, environmental conditions (temperature, altitude, humidity), control interface requirements (analog/digital/fieldbus), and available input power supply specifications. Our application engineering team provides complimentary drive sizing, configuration support, and technical documentation including wiring diagrams, parameter lists, and commissioning procedures.

Advanced Functionality & Customization

Multi-Motor Control
Supports motor switching applications allowing one inverter to control multiple motors sequentially, ideal for batch processing or multi-zone systems requiring independent operation with centralized control.

PID Process Control
Built-in PID controller enables closed-loop process regulation for pressure, flow, temperature, or level control applications without external controllers, simplifying system architecture and reducing installation costs.

Flying Start Function
Automatically detects and synchronizes with spinning motors, enabling seamless restart after momentary power interruptions without motor coast-down, critical for high-availability applications.

Programmable Logic Functions
Configurable digital inputs/outputs and internal logic functions allow implementation of custom control sequences, interlocks, and automation logic directly within the drive, reducing external PLC requirements.

Brake Chopper Interface
Supports external braking resistor connection for applications requiring rapid deceleration or regenerative energy dissipation, protecting the DC bus from overvoltage during braking cycles.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured drives or application-specific packages typically require 10-15 business days lead time depending on specification complexity and current production schedules.

All units include comprehensive 12-month manufacturer warranty covering materials and workmanship. Extended warranty programs and preventive maintenance contracts available for critical applications. Technical support includes remote diagnostic assistance, on-site commissioning services (subject to location and scope), and access to certified Siemens service partners worldwide.

Complete technical documentation package provided with each drive: installation manual, quick start guide, detailed parameter reference, electrical connection diagrams, and dimensional drawings in PDF and CAD formats. Compliance certifications include CE, UL, cUL, and RoHS directives.

Frequently Asked Questions (FAQ)

Q: How does the Siemens MASTERDRIVES vector control inverter integrate with existing automation systems?
A: The 6SE7021-8TP50 features native PROFIBUS-DP communication enabling direct connection to Siemens SIMATIC S7 PLCs and other PROFIBUS-compatible controllers. Alternative communication options include USS protocol via RS485 and analog control via 0-10V or 4-20mA signals. Our engineering team can provide sample PLC code and communication setup guidance for your specific control platform.

Q: What motor types are compatible with this vector control drive?
A: This inverter is designed for standard three-phase asynchronous (induction) motors rated 2.2kW or lower. The sensorless vector control automatically adapts to motor parameters through auto-tuning procedures. For optimal performance, motor nameplate data (voltage, current, frequency, speed, power factor) should be entered during commissioning. Permanent magnet motors require different drive configurations.

Q: What energy savings can be expected compared to traditional motor starters?
A: Energy savings vary significantly based on application load profile. In variable-torque applications (fans, pumps) operating at reduced speeds, savings typically range from 30-50% compared to throttle/damper control methods. Constant-torque applications (conveyors, extruders) see more modest savings of 10-20% through optimized motor efficiency and elimination of mechanical losses. We can perform application-specific energy audits to quantify potential savings.

Q: What are the installation environment requirements and protection rating?
A: The drive is rated IP20 for chassis mounting inside industrial control cabinets or enclosures. Ambient operating temperature range is -10°C to +50°C with derating required above 40°C (consult derating curves in technical manual). Installation altitude up to 1000m without derating; above 1000m requires output current reduction. Ensure adequate ventilation clearances (minimum 100mm top/bottom) and protect from conductive dust, corrosive gases, and direct moisture exposure.

Q: Does this drive support remote monitoring and predictive maintenance capabilities?
A: Yes, through PROFIBUS communication the drive provides real-time access to operational parameters including output frequency, motor current, DC bus voltage, drive temperature, and diagnostic status codes. This data can be logged by SCADA systems for trend analysis and predictive maintenance. The drive also features configurable warning thresholds and maintenance interval counters to support condition-based maintenance strategies.

Q: What technical support and documentation is available for system integration?
A: Comprehensive technical documentation includes installation/operation manuals, parameter reference guides, communication protocol specifications, and application examples. Our technical support team provides pre-sales application consulting, drive selection assistance, parameter configuration guidance, and troubleshooting support. On-site commissioning services and training programs available for complex installations or multi-drive systems.

Contact & Technical Consultation

For detailed drive selection assistance, custom configuration requirements, or technical specifications, please provide the following project information: application description and industry sector, motor specifications (power, voltage, speed), load characteristics and duty cycle, required control interface and communication protocol, environmental conditions and installation constraints, and any special functional requirements.

Our application engineering team will provide personalized drive recommendations, configuration proposals, budget quotations, and technical documentation to support your project success.
