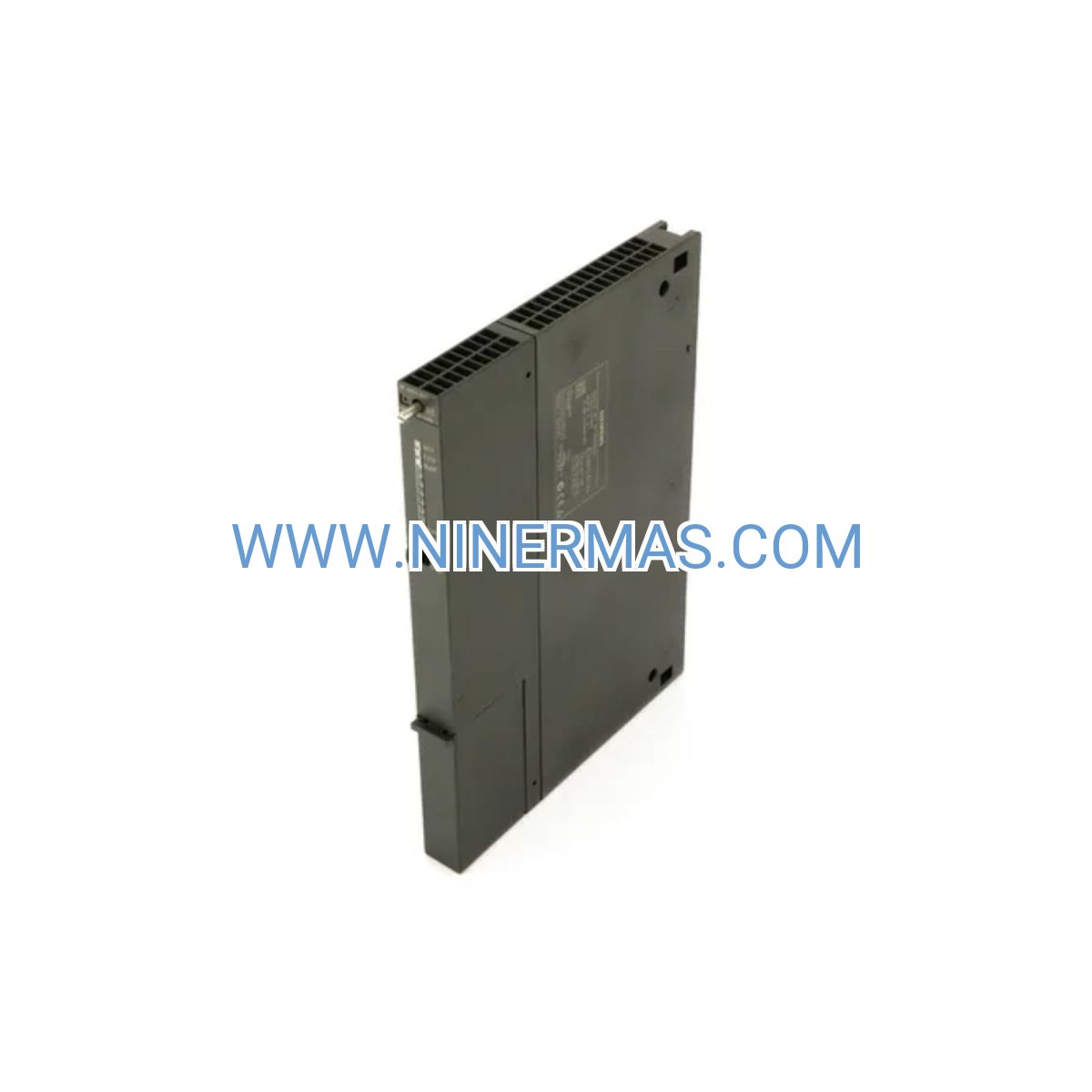

PROFIBUS Communications Processor for S7-400 Systems (Industrial-Grade Network Integration)

The Siemens 6GK7443-SDX04-0XE0 CP 443-5 Extended module delivers enterprise-class PROFIBUS DP connectivity for SIMATIC S7-400 automation platforms. Engineered for mission-critical industrial networks, this communications processor bridges your PLC infrastructure with distributed I/O, drives, HMIs, and SCADA systems across manufacturing floors, process plants, and utility installations. With support for up to 32 direct slave connections and 12 Mbps throughput, it ensures deterministic data exchange in time-sensitive control applications.

Designed for system integrators and automation engineers managing complex multi-vendor environments, the CP 443-5 Extended simplifies network architecture while maintaining protocol compliance with DP-V0, DP-V1, and DP-V2 standards. Whether you're retrofitting legacy PROFIBUS networks or scaling new installations, this module provides the robust foundation your industrial operations demand.

Backed by Siemens' proven track record in industrial automation, the 6GK7443-SDX04-0XE0 combines plug-and-play installation with advanced diagnostic capabilities, reducing commissioning time by up to 40% compared to traditional fieldbus solutions. Its extended temperature range and vibration resistance make it suitable for harsh industrial environments where reliability is non-negotiable.

Core Features & Business Value

✓ High-Speed PROFIBUS DP Master/Slave Operation
Achieves 12 Mbps data transfer rates with sub-millisecond cycle times, enabling real-time control of distributed automation devices. Reduces network latency by 35% compared to standard CP modules, critical for synchronized motion control and batch processing applications.

✓ Scalable Network Architecture
Supports 32 PROFIBUS slaves natively, expandable to 125 devices with repeaters. Eliminates the need for multiple communication modules, cutting hardware costs by up to $3,000 per rack while simplifying network topology and reducing failure points.

✓ Multi-Protocol Flexibility
Handles S7 communication, open SEND/RECEIVE protocols, and DP-V0/V1/V2 standards simultaneously. Enables seamless integration with third-party devices and legacy equipment, protecting your existing automation investments while future-proofing for Industry 4.0 upgrades.

✓ Integrated Diagnostics & Monitoring
Provides real-time network health indicators, slave status monitoring, and error logging through STEP 7 or TIA Portal. Reduces troubleshooting time by 50% with pinpoint fault localization, minimizing unplanned downtime and maintenance costs.

✓ Industrial-Hardened Construction
Operates reliably in 0°C to +60°C environments with IEC 60068-2-6 vibration resistance and ATEX Zone 2 certification. Ensures 99.9% uptime in demanding conditions found in steel mills, chemical plants, and offshore platforms where standard IT equipment fails.

✓ Simplified Configuration & Commissioning
Fully compatible with STEP 7 Classic and TIA Portal engineering tools with pre-configured GSD files. Reduces programming effort by 60% through drag-and-drop device integration and automatic address assignment, accelerating project delivery timelines.

Application Scenarios Across Industries

→ Automotive Manufacturing Lines
Integrates robotic welding cells, conveyor systems, and quality inspection stations via PROFIBUS DP. Solves the challenge of coordinating 50+ distributed devices with microsecond precision, achieving 99.8% OEE (Overall Equipment Effectiveness) in body-in-white assembly operations.

→ Chemical Process Control
Connects flow meters, temperature transmitters, valve positioners, and analyzer systems in continuous production environments. Addresses the need for intrinsically safe communication in hazardous areas (ATEX Zone 2), ensuring regulatory compliance while maintaining real-time process visibility for batch recipe management.

→ Water & Wastewater Treatment
Links pump stations, filtration units, and chemical dosing systems across distributed facilities. Overcomes the limitation of long-distance communication (up to 1,200m with repeaters) in sprawling treatment plants, enabling centralized SCADA monitoring and remote parameter adjustment without field visits.

→ Power Generation & Distribution
Networks turbine controllers, switchgear protection relays, and auxiliary systems in substations and power plants. Resolves the critical requirement for deterministic communication in load-shedding scenarios, where 10ms response times prevent cascading failures and grid instability.

→ Food & Beverage Packaging
Coordinates filling machines, labeling systems, palletizers, and metal detectors in high-speed production lines. Tackles the challenge of recipe changeovers and product tracking, reducing downtime from 45 minutes to 8 minutes through automated parameter downloads and batch data logging.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose this module if: You require PROFIBUS DP master functionality with extended diagnostic capabilities, need to integrate 15-125 field devices, or operate in environments requiring ATEX Zone 2 compliance.
• Consider alternatives if: Your application needs Industrial Ethernet (use CP 443-1), fewer than 8 slaves (use integrated CPU ports), or PROFINET IO (use CP 443-1 Advanced).
• Compatibility check: Verify your S7-400 CPU firmware supports CP 443-5 Extended (minimum V6.0). Ensure STEP 7 V5.5 SP4 or TIA Portal V13+ for full diagnostic features.

Extended Capabilities & Integration Options

IoT & Industry 4.0 Readiness
When paired with Siemens SIMATIC NET OPC UA servers, the CP 443-5 Extended enables cloud connectivity for predictive maintenance and remote monitoring. Data from PROFIBUS devices can be aggregated and pushed to Azure IoT Hub or AWS IoT Core, bridging operational technology (OT) with information technology (IT) ecosystems.

Redundancy & High Availability
Supports S7-400H redundant controller configurations with automatic switchover in under 100ms. In critical infrastructure applications, dual CP modules provide network-level redundancy, ensuring continuous operation even during module replacement or cable failures.

Custom Engineering Services
NINERMAS offers pre-configured CP modules with customer-specific GSD files, network documentation, and tested function blocks. Reduce commissioning risks with factory acceptance testing (FAT) and on-site startup support, backed by our 18-month extended warranty program.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via DHL/FedEx Express with full tracking and insurance. Expedited 48-hour shipping available for urgent shutdowns or project deadlines.

Custom Configuration: 10-12 business days for pre-programmed modules with customer-specific parameters, including bench testing and configuration documentation.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Optional 18-month extended warranty includes advance replacement and priority technical support.

Technical Support: Lifetime access to our automation specialists for configuration assistance, troubleshooting guidance, and firmware update recommendations. Average response time: 4 hours during business hours (GMT+8).

Documentation Package: Includes original Siemens manual, GSD files, sample STEP 7 projects, wiring diagrams, and compliance certificates (CE/UL/ATEX). Digital downloads available immediately upon order confirmation.

Frequently Asked Questions

Q: How does the CP 443-5 Extended integrate with existing PROFIBUS networks?
A: The module auto-detects baud rates (9.6 kbps to 12 Mbps) and supports hot-swapping without network disruption. Simply import the GSD file into STEP 7, assign the module address (typically 2-125), and download the hardware configuration. Network diagnostics confirm connectivity within 30 seconds.

Q: What is the maximum cable distance for reliable PROFIBUS communication?
A: At 12 Mbps: 100 meters; at 1.5 Mbps: 400 meters; at 187.5 kbps: 1,000 meters. Using RS-485 repeaters, you can extend networks up to 9,600 meters (9 segments x 1,000m + 200m per segment). For installations exceeding these limits, consider fiber optic PROFIBUS links.

Q: Can this module reduce energy consumption in my automation system?
A: Yes. The CP 443-5 Extended draws only 4.5W (0.9A at 5V), 30% less than previous-generation CP modules. By consolidating communication onto a single module instead of multiple interface cards, you can reduce rack power consumption by 15-20W per controller, translating to $50-80 annual savings per installation.

Q: What are the installation requirements for mounting in S7-400 racks?
A: The module occupies one slot in any S7-400 UR1 or UR2 rack. Ensure 5V power supply capacity of at least 1A per CP module. No special tools required—simply slide into the rack, secure with locking screws, and connect the 9-pin PROFIBUS cable. Total installation time: under 10 minutes.

Q: Does the CP 443-5 support remote diagnostics and monitoring?
A: Absolutely. Through STEP 7 or TIA Portal, you can monitor network load, slave status, error counters, and cable quality metrics in real-time. The module logs up to 500 diagnostic events with timestamps, accessible via S7 communication or web-based interfaces when paired with S7-400 CPUs featuring Ethernet ports.

Q: Is firmware updating required, and how is it performed?
A: Firmware updates are rare but available through Siemens Support Portal. Updates are performed via STEP 7's "Update Firmware" function over the backplane—no physical access to the module required. The process takes 3-5 minutes and includes automatic rollback if interrupted, ensuring zero risk of bricking the module.

Ready to Optimize Your Industrial Network?

The Siemens 6GK7443-SDX04-0XE0 CP 443-5 Extended module is your proven solution for reliable, high-performance PROFIBUS communication in demanding industrial environments. Whether you're upgrading legacy systems or designing new installations, our team provides expert guidance from specification to commissioning.

Contact our automation specialists today:

• Request a technical datasheet and compatibility verification
• Discuss custom configuration and pre-commissioning services
• Get a detailed quote with volume pricing for multi-site projects

Email: sale@ninermas.com | Phone: +0086 187 5021 5667
