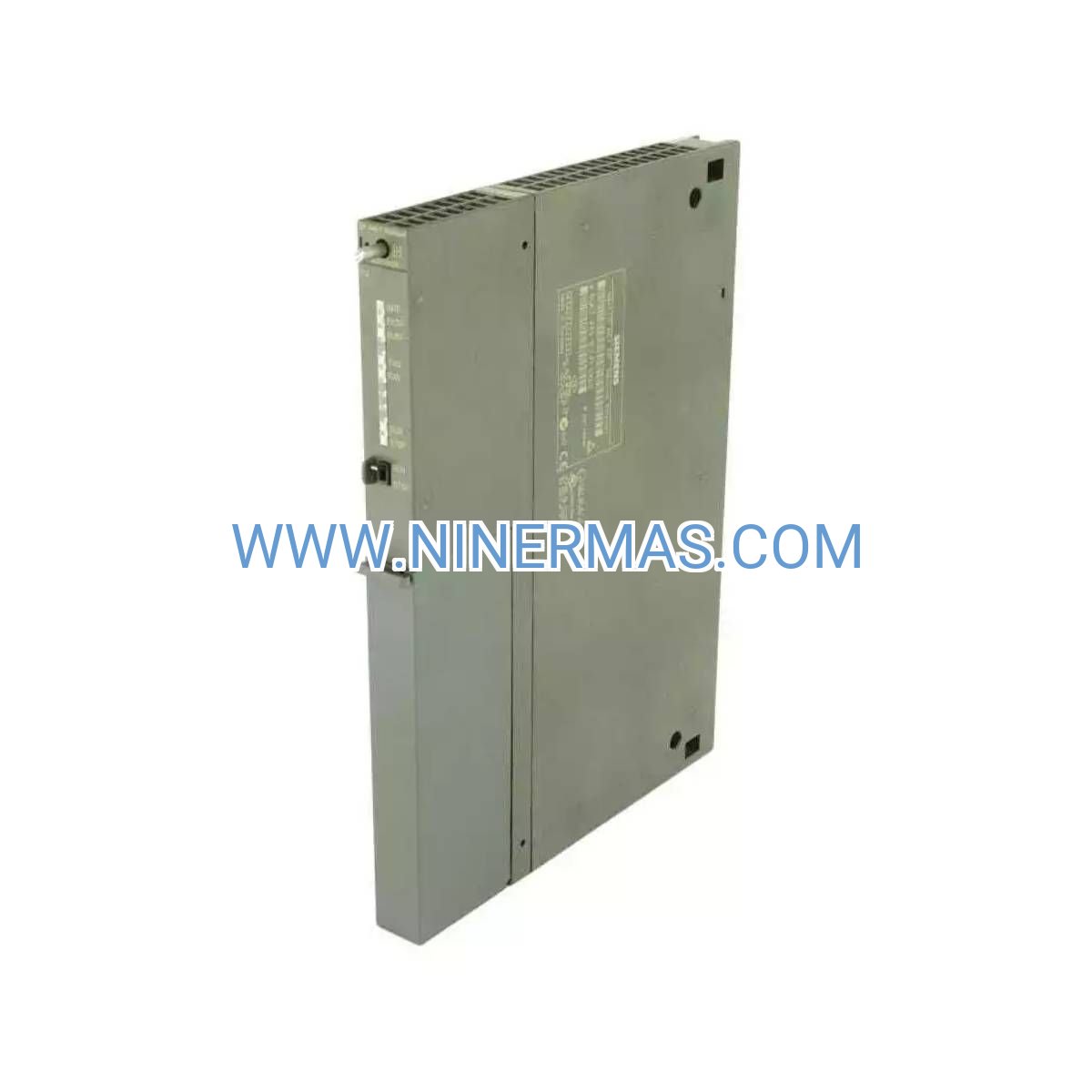

Siemens CP 443-1EX41 Advanced Ethernet Processor (Industrial-Grade Connectivity)

The Siemens 6GK7443-1EX41-0XE0 represents a next-generation communications solution engineered for SIMATIC S7-400 automation platforms. This CP 443-1EX41 module integrates a 4-port Industrial Ethernet switch with advanced networking protocols, delivering enterprise-class connectivity for distributed control systems in manufacturing, process automation, and critical infrastructure applications.

Designed for system integrators and automation engineers managing complex multi-controller architectures, this processor eliminates the need for external network switches while providing Media Redundancy Protocol (MRP) support for fault-tolerant topologies. With 10/100 Mbit/s auto-sensing ports and comprehensive protocol support including TCP/IP, S7 communication, and UDP, the CP 443-1EX41 enables seamless integration between legacy SIMATIC systems and modern Industrial IoT platforms.

Key advantages include reduced installation costs through integrated switching, sub-200ms network recovery during cable failures, and support for up to 64 simultaneous S7 connections—making it the optimal choice for high-availability production environments where downtime translates directly to revenue loss.

Core Features & Business Value

✓ Integrated 4-Port Ethernet Switch
Eliminates external switch requirements in compact control cabinets, reducing hardware costs by 30-40% while simplifying network topology. Ideal for machine builders and panel fabricators working with space-constrained installations.

✓ Media Redundancy Protocol (MRP) Support
Achieves network failover in under 200 milliseconds during cable breaks or port failures. Critical for automotive assembly lines, pharmaceutical batch processes, and water treatment facilities where continuous operation is mandatory.

✓ 64 Concurrent S7 Connections
Supports extensive PLC-to-PLC communication, HMI integration, and SCADA connectivity without performance degradation. Enables centralized data collection from distributed S7-400 controllers across multi-building facilities.

→ VLAN Segmentation Capability
Isolates control network traffic from enterprise IT systems, enhancing cybersecurity posture and reducing broadcast storms. Meets IEC 62443 industrial security standards for critical infrastructure protection.

→ Web-Based Diagnostics Interface
Provides remote troubleshooting via standard web browsers without STEP 7 software installation. Reduces mean time to repair (MTTR) by enabling off-site engineering support and 24/7 monitoring.

→ SNMP Network Management
Integrates with enterprise network monitoring systems for proactive maintenance alerts. Enables IT/OT convergence strategies by providing unified visibility across plant-floor and business networks.

Industrial Application Scenarios

Automotive Production Lines
Connect S7-400 master controllers to robotic welding cells, automated guided vehicles (AGVs), and vision inspection systems. The CP 443-1EX41's deterministic communication ensures synchronized motion control across 50+ networked devices, while MRP redundancy prevents line stoppages during network maintenance.

Chemical Process Automation
Interface distributed control systems (DCS) with S7-400 safety PLCs managing reactor temperature, pressure relief valves, and emergency shutdown sequences. ISO-on-TCP protocol support enables integration with legacy Honeywell and Yokogawa systems during brownfield upgrades.

Water & Wastewater Treatment
Network geographically dispersed pump stations, clarifiers, and filtration plants across fiber-optic Ethernet infrastructure. Email notification functionality alerts operators to alarm conditions, while FTP services enable automated data logging for EPA compliance reporting.

Power Generation Facilities
Link turbine control systems, generator protection relays, and plant-wide SCADA networks through secure VLAN-segmented architecture. The processor's 0°C to +60°C operating range withstands harsh substation environments without climate control.

Warehouse Automation Systems
Coordinate S7-400 controllers managing conveyor networks, automated storage/retrieval systems (AS/RS), and sortation equipment. UDP multicast support enables efficient broadcast of inventory updates to multiple warehouse management system (WMS) clients simultaneously.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CP 443-1EX41 when your application requires integrated switching to reduce cabinet space, MRP redundancy for high-availability networks, or VLAN segmentation for security compliance. For simpler point-to-point connections without switching needs, consider the 2-port CP 443-1EX30 variant. For PROFINET-based architectures, evaluate the CP 443-1 Advanced model with IRT support.

Extended Functionality

Industrial IoT Integration: The CP 443-1EX41 supports OPC UA client/server functionality via S7-400 CPU integration, enabling direct connectivity to cloud platforms like AWS IoT Core, Azure IoT Hub, and Siemens MindSphere. JSON data formatting and MQTT protocol support (via third-party gateways) facilitate Industry 4.0 digital twin implementations.

Time Synchronization: Built-in NTP client maintains microsecond-level time accuracy across distributed controllers, essential for batch record timestamping in FDA 21 CFR Part 11 compliant pharmaceutical manufacturing. Supports both unicast and broadcast NTP modes.

Advanced Diagnostics: SNMP v1/v2c/v3 support enables integration with enterprise network management systems like SolarWinds, PRTG, and Nagios. Custom MIBs provide access to S7-400 CPU diagnostics, I/O module status, and communication statistics for predictive maintenance analytics.

Customization Options: Firmware can be field-upgraded to add new protocol support or security patches without module replacement. Custom communication function blocks (FBs) developed in STEP 7 SCL language enable proprietary protocol implementation for specialized equipment integration.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units via DHL/FedEx express shipping. Custom-configured modules with pre-loaded firmware available within 7-10 business days. Expedited same-day shipping available for emergency breakdown situations (additional fees apply).

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended 36-month warranty available for critical infrastructure applications. Advance replacement program ensures <24-hour module swap for mission-critical installations.

Technical Support: Unlimited email and phone support from Siemens-certified automation engineers. Remote diagnostic assistance via TeamViewer or AnyDesk for network configuration troubleshooting. On-site commissioning services available for complex multi-rack S7-400H redundant systems.

Documentation Package: Includes product manual (English/German/Chinese), STEP 7 GSD file for hardware configuration, sample ladder logic for S7 connection setup, and network topology design guidelines. CAD drawings (DXF/STEP formats) provided for panel layout planning.

Frequently Asked Questions

Q: Can the CP 443-1EX41 replace an external Ethernet switch in my S7-400 system?
A: Yes, the integrated 4-port switch eliminates the need for external switches in applications with up to 4 networked devices per controller. For larger networks, the CP 443-1EX41 can serve as a distributed switch in a line topology, with additional modules cascaded via MRP ring architecture.

Q: What is the maximum cable distance between CP 443-1EX41 modules using standard Ethernet?
A: 100 meters per segment using Cat5e/Cat6 copper cabling per IEEE 802.3 standards. For longer distances, deploy fiber-optic media converters or Industrial Ethernet switches with SFP ports to extend reach up to 80 km over single-mode fiber.

Q: How does MRP redundancy improve network uptime compared to standard Ethernet?
A: MRP (Media Redundancy Protocol) provides automatic failover in under 200ms when a cable break or switch failure occurs, compared to 30-50 seconds for Spanning Tree Protocol (STP). This prevents production line stoppages and maintains real-time control during network faults.

Q: Is the CP 443-1EX41 compatible with S7-300 controllers or only S7-400 systems?
A: This module is exclusively designed for S7-400 rack mounting and backplane communication. For S7-300 systems, use the CP 343-1 Advanced or CP 343-1 Lean communication processors, which offer similar Ethernet connectivity in the compact S7-300 form factor.

Q: Can I monitor CP 443-1EX41 network performance remotely without visiting the control cabinet?
A: Absolutely. The integrated web server provides real-time diagnostics accessible via any standard browser—view port statistics, connection tables, error counters, and configuration parameters. SNMP integration enables centralized monitoring through enterprise network management platforms.

Q: What cybersecurity features protect the CP 443-1EX41 from unauthorized access?
A: Security mechanisms include IP access control lists (ACLs) to whitelist authorized devices, password-protected configuration access, port-level enable/disable controls, and support for VLANs to isolate control traffic. For enhanced security, deploy in conjunction with SCALANCE S industrial firewalls.

Get Your S7-400 Network Upgrade Started

Transform your SIMATIC S7-400 infrastructure with enterprise-grade Ethernet connectivity. Contact our automation specialists today for application-specific configuration guidance, network topology design assistance, or volume pricing for multi-site deployments. Request a technical datasheet or schedule a live demonstration of MRP redundancy and VLAN segmentation capabilities.

Ready to order? Add to cart now for fast global shipping, or reach out to discuss custom firmware configurations and integration services for your specific automation requirements.
