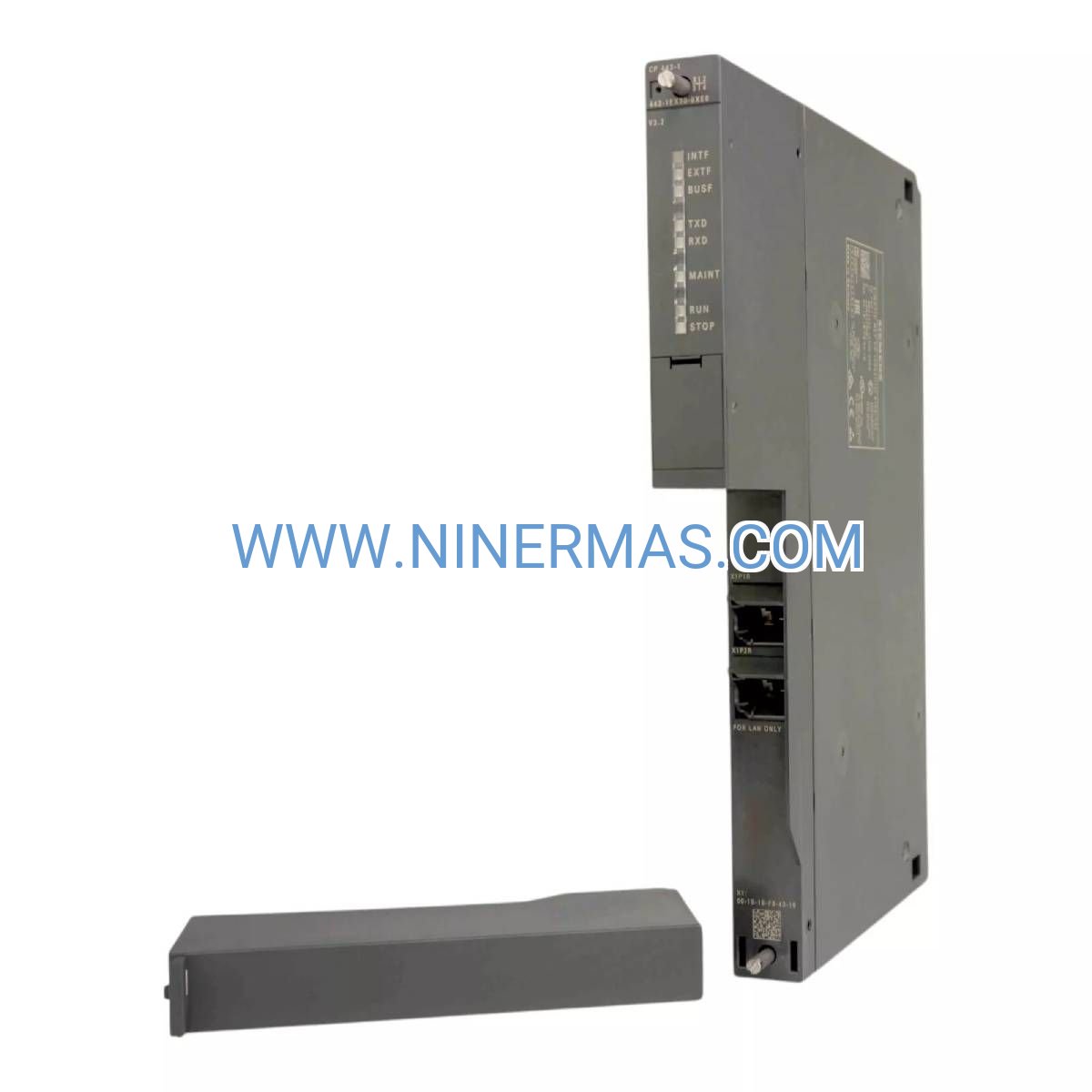

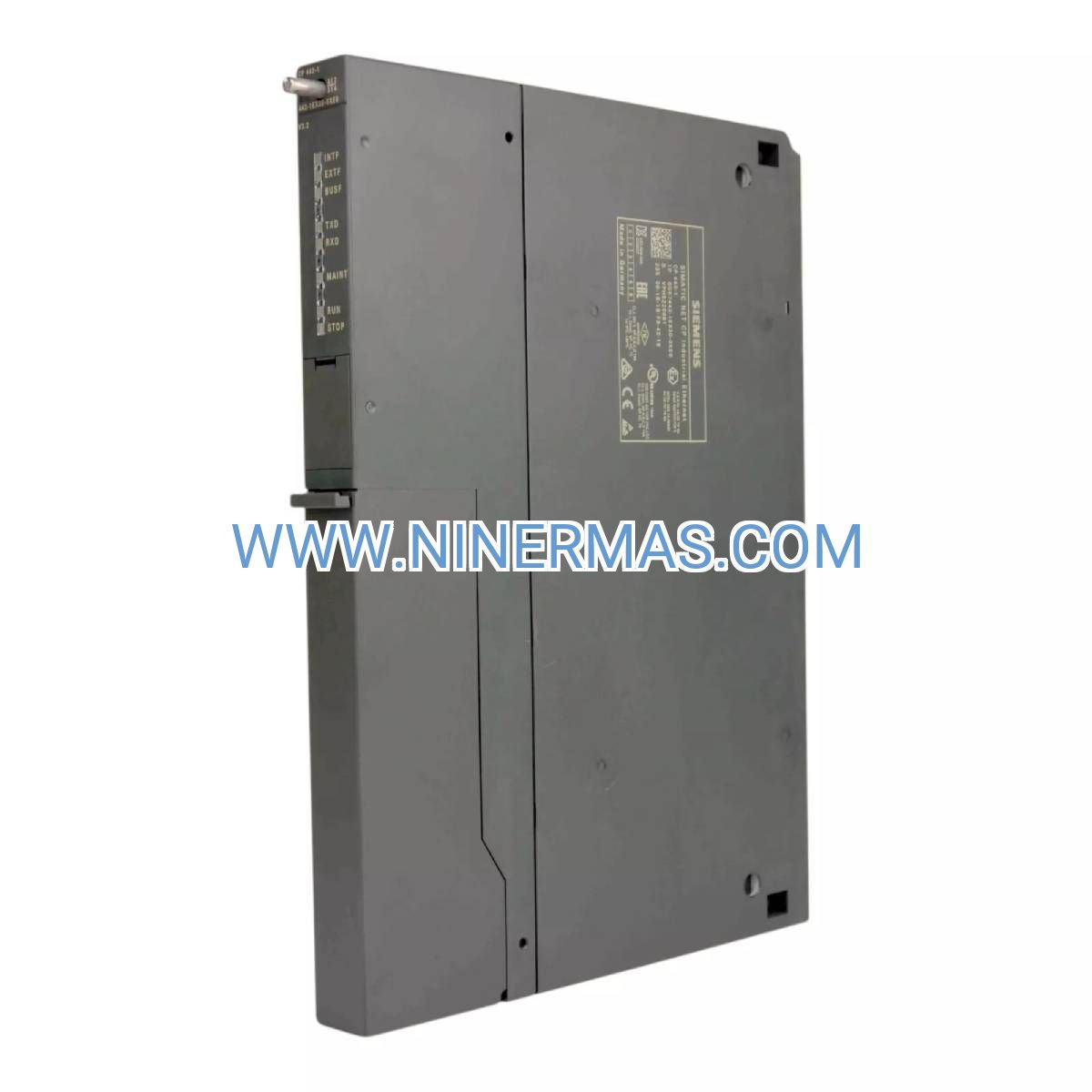

Siemens CP 443-1 EX30 Communication Processor (Industrial-Grade Network Interface)

The Siemens 6GK7443-1EX30-0XE0 is a compact Industrial Ethernet communication processor engineered for seamless integration into S7-400 automation architectures. This single-width module delivers robust network connectivity with dual RJ45 interfaces supporting 10 to 100 Mbit/s data transfer rates, enabling real-time communication between PLCs, HMIs, and SCADA systems in demanding industrial environments.

Designed for manufacturers facing challenges with legacy serial communication bottlenecks, this CP 443-1 module eliminates data latency issues while providing deterministic Ethernet performance. Process engineers, automation integrators, and plant managers rely on this processor to modernize control networks without overhauling existing S7-400 infrastructure.

Key advantages include hot-swappable installation for minimal downtime, IP20-rated protection for standard control cabinet mounting, and proven compatibility with SIMATIC NET software suites. The module's low 7.25W power consumption and wide operating temperature range (-40°C to +70°C storage) make it ideal for continuous operation in manufacturing, utilities, and process industries.

Core Features & Technical Advantages

✓ Dual Industrial Ethernet Ports
Two independent RJ45 connections enable network redundancy or segmented topology configurations, reducing single-point-of-failure risks in critical control systems.

✓ Auto-Negotiation Speed Adaptation
10/100 Mbit/s auto-sensing ensures compatibility with mixed-speed networks while optimizing bandwidth utilization for time-sensitive data exchange.

✓ Compact S7-400 Form Factor
Single-width module design (25mm × 290mm × 210mm) conserves valuable rack space, allowing up to 18 modules per standard UR2 rack configuration.

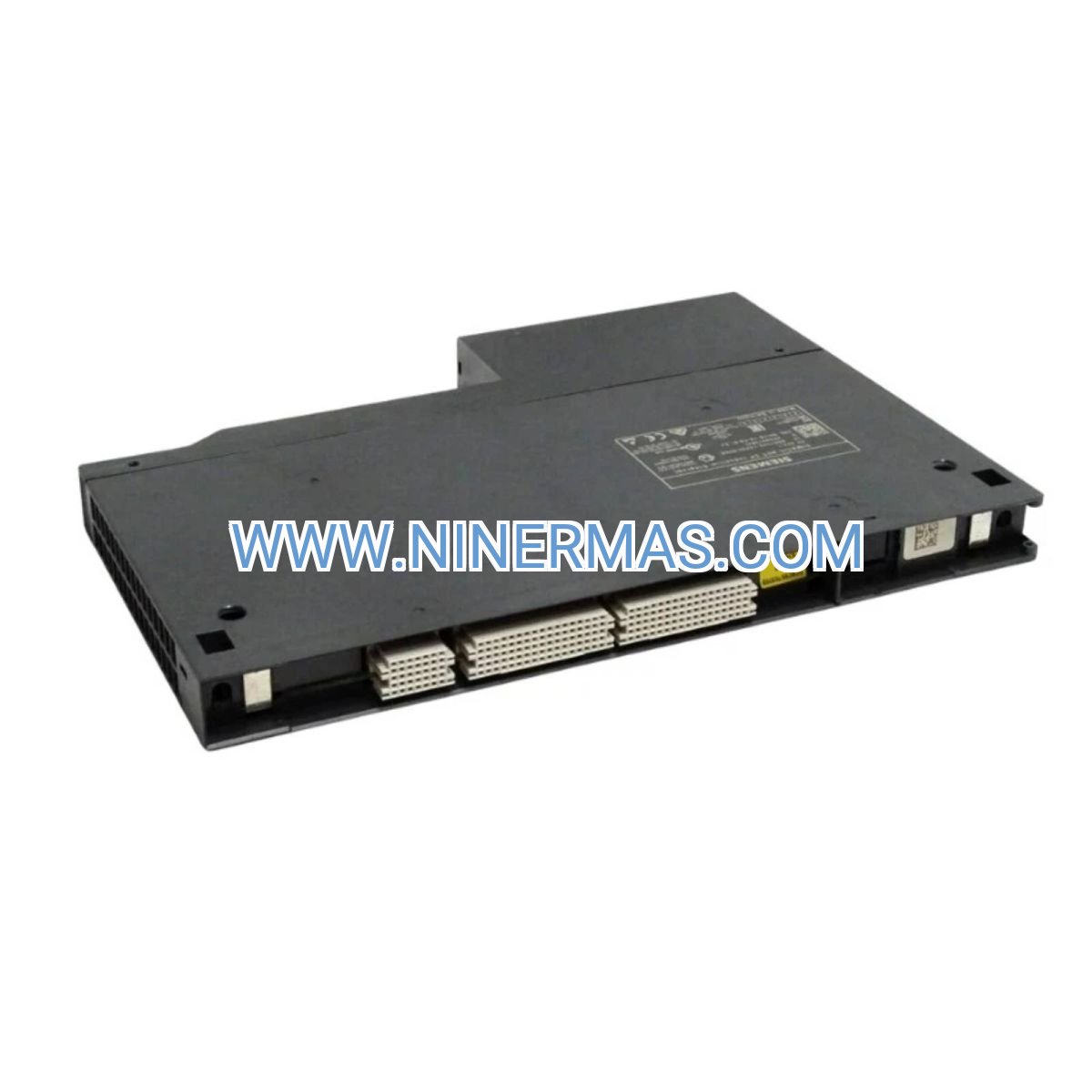

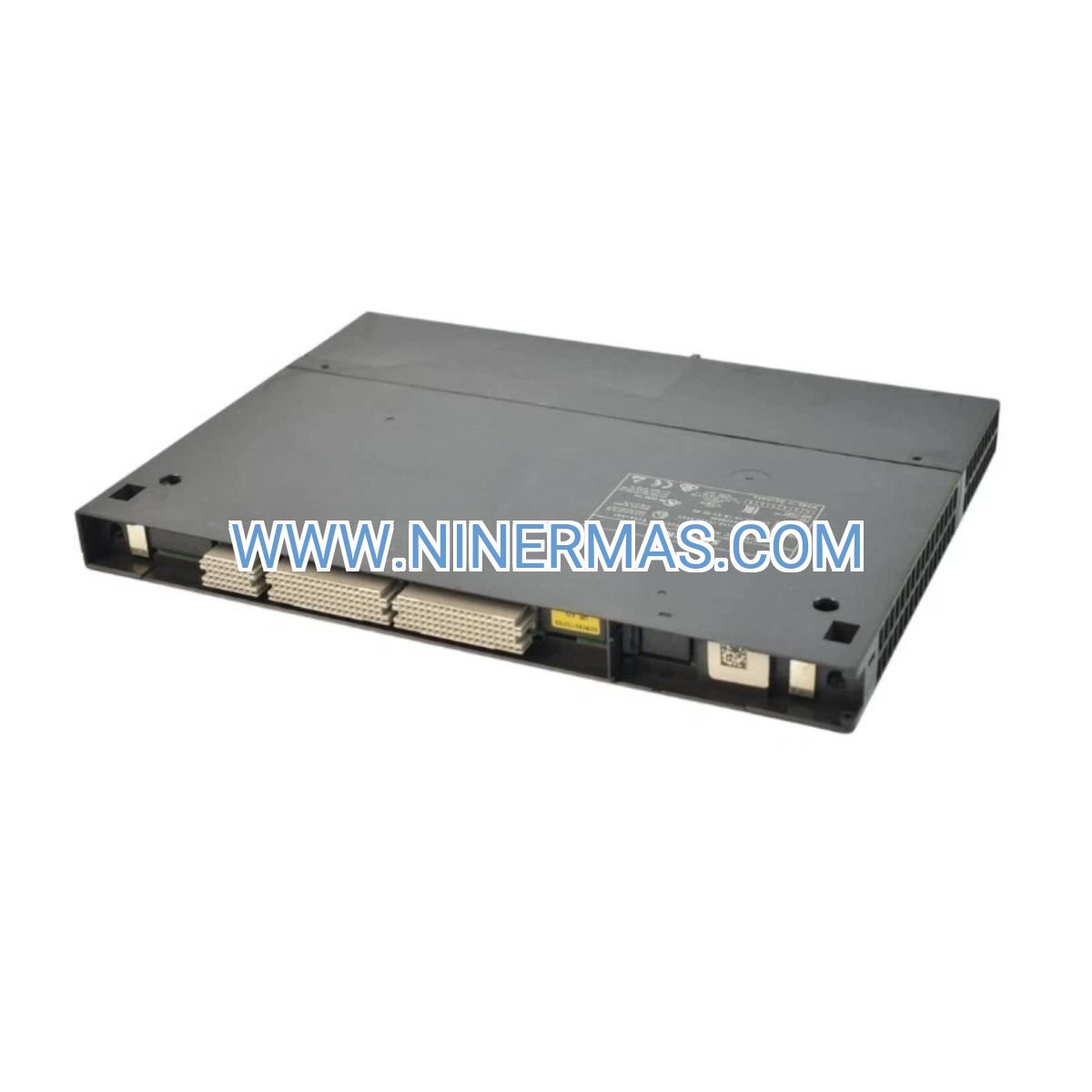

✓ Backplane Bus Integration
Direct 5V DC power supply from S7-400 backplane eliminates external power requirements, simplifying installation and reducing wiring complexity by 40% compared to standalone gateways.

✓ Industrial-Grade Environmental Resilience
95% relative humidity tolerance and 0-60°C operational range ensure reliable performance in harsh factory floors, wastewater treatment plants, and outdoor substations.

✓ Plug-and-Produce Configuration
Pre-configured via STEP 7 software with automatic IP address assignment through DHCP or manual setup, reducing commissioning time from hours to minutes.

Application Scenarios & Industry Solutions

→ Automotive Assembly Line Integration
Connects robotic welding stations, conveyor PLCs, and quality inspection systems over a unified Ethernet backbone. Solves the challenge of coordinating 50+ distributed I/O nodes with sub-10ms cycle times, enabling just-in-time production synchronization.

→ Water Treatment SCADA Networks
Links remote pump stations, chemical dosing controllers, and central monitoring systems across multi-site facilities. Addresses the pain point of unreliable serial communication over long distances, providing secure TCP/IP tunneling for encrypted data transmission.

→ Pharmaceutical Batch Process Control
Facilitates recipe management and audit trail logging between S7-400 batch controllers and MES databases. Resolves compliance requirements for 21 CFR Part 11 by enabling timestamped event recording with 1ms resolution.

→ Energy Management Systems
Integrates substation automation units with grid management platforms for real-time load balancing. Overcomes latency issues in IEC 61850 protocol implementations, delivering deterministic performance for protective relay coordination.

→ Food & Beverage Production Lines
Synchronizes filling machines, labeling systems, and packaging robots through PROFINET RT communication. Eliminates production stoppages caused by network congestion, achieving 99.9% uptime in high-speed bottling operations.

Technical Specifications & Selection Guide

Selection Criteria:
Choose the CP 443-1 EX30 when your application requires standard Ethernet connectivity without advanced PROFINET IRT capabilities. For applications demanding isochronous real-time performance (<1ms jitter), consider the CP 443-1 Advanced variant. Verify compatibility with your S7-400 CPU firmware version (minimum V6.0 recommended) and ensure STEP 7 V5.5 SP4 or TIA Portal V13+ for configuration support.

Extended Capabilities & Integration Options

SNMP Network Management
Built-in SNMP v1/v2c agent enables centralized monitoring through industrial network management systems, providing real-time diagnostics of port status, traffic statistics, and error counters.

Security Features
Supports IP access control lists (ACLs) to restrict communication to authorized devices, reducing vulnerability to unauthorized network access in converged IT/OT environments.

Redundancy Protocols
Compatible with Media Redundancy Protocol (MRP) for sub-200ms failover times in ring topologies, ensuring continuous operation during cable breaks or switch failures.

Third-Party System Connectivity
Open TCP/IP and UDP/IP socket communication allows integration with non-Siemens devices, databases, and cloud platforms via standard Ethernet protocols.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific IP settings

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Lifetime email/phone support for configuration assistance, troubleshooting, and firmware updates

Documentation Package:
• Product manual with wiring diagrams
• STEP 7 GSD file for device integration
• Certificate of conformity (CE, UL, cULus)
• Sample configuration scripts

Return Policy: 30-day satisfaction guarantee with full refund for unused, unopened units

Frequently Asked Questions

Q: How do I connect the CP 443-1 to an existing Ethernet switch?
A: Use standard Cat5e or Cat6 Ethernet cables with RJ45 connectors. The module auto-detects crossover requirements (Auto-MDI/MDIX), eliminating the need for specialized crossover cables. Maximum cable length is 100 meters per IEEE 802.3 standards.

Q: What is the maximum data throughput for simultaneous connections?
A: The processor supports up to 16 concurrent TCP connections with aggregate throughput of 8-10 MB/s, sufficient for typical HMI polling, database logging, and peer-to-peer PLC communication in mid-sized automation systems.

Q: Does this module reduce energy consumption compared to older CP models?
A: Yes, the EX30 variant consumes 15-20% less power than legacy CP 443-1 models (6GK7443-1EX20 series) due to optimized chipset design, translating to approximately 12 kWh annual savings per module in 24/7 operations.

Q: Can I hot-swap this module without shutting down the S7-400 rack?
A: The CP 443-1 supports hot-swapping when the S7-400 CPU is in RUN mode, but active connections will be interrupted during replacement. Best practice is to perform swaps during scheduled maintenance windows or use redundant network paths to maintain communication.

Q: Is remote diagnostics possible through the Ethernet interface?
A: Absolutely. STEP 7 and TIA Portal provide remote access to module diagnostics, including port statistics, error logs, and firmware version information via Ethernet, eliminating the need for on-site visits for routine health checks.

Q: What installation requirements are needed for proper ventilation?
A: Maintain minimum 25mm clearance above and below the module for convective cooling. Ensure control cabinet ambient temperature does not exceed 55°C when fully loaded. No forced-air cooling is required for standard rack configurations with up to 12 modules.

Upgrade Your Automation Network Today

Ready to eliminate communication bottlenecks in your S7-400 control system? The Siemens CP 443-1 EX30 delivers proven Industrial Ethernet performance with minimal integration effort. Contact our automation specialists for application-specific configuration guidance, bulk pricing for multi-site deployments, or technical compatibility verification with your existing infrastructure.

Request a quote now or speak with our engineering team to discuss your network modernization requirements.
