Siemens CP 443-1 Ethernet Processor 6GK7443-1EX20-0XE0 | S7-400 PLC Communication Module

CP 443-1 Industrial Ethernet Communication Processor (Enterprise-Grade Network Integration)

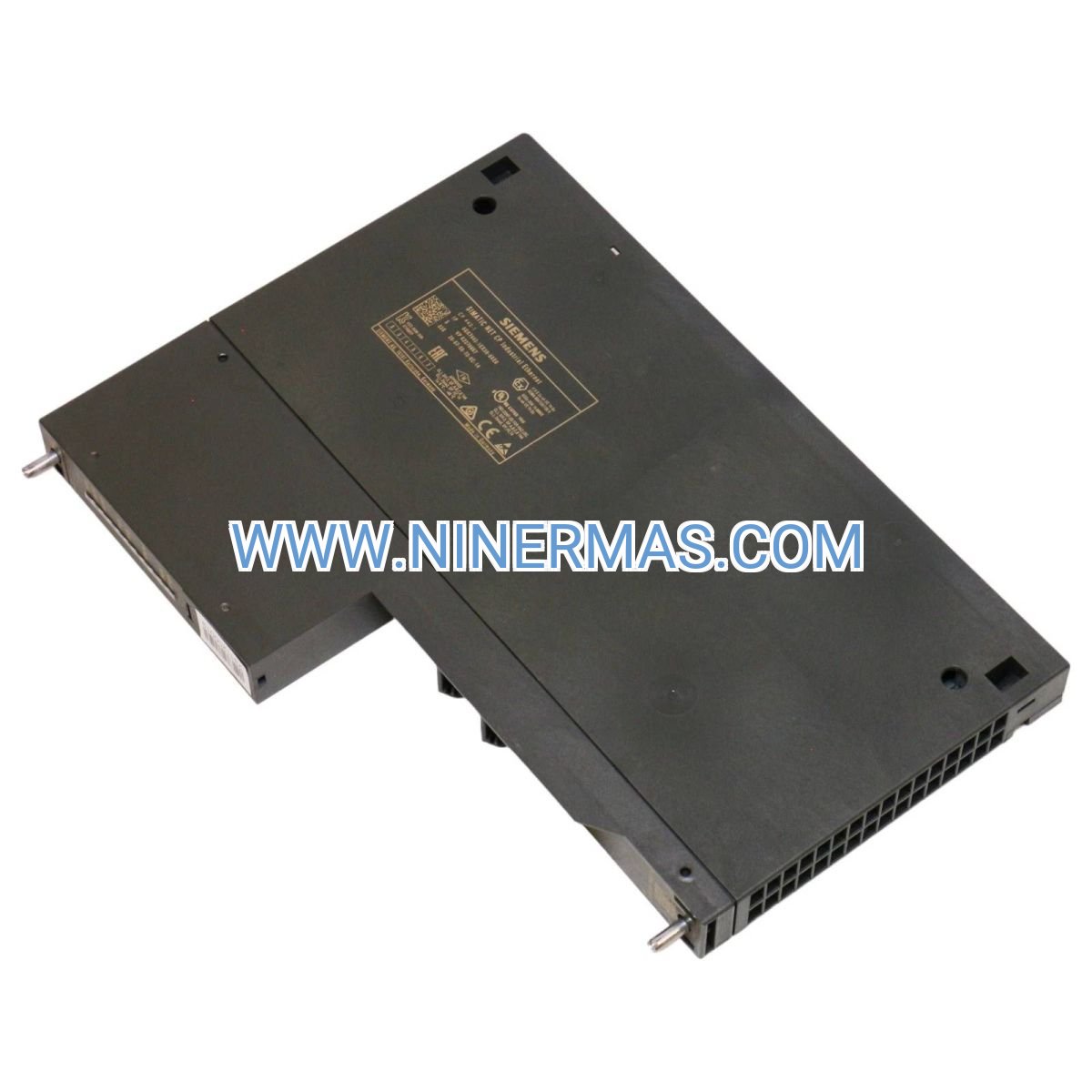

The Siemens 6GK7443-1EX20-0XE0 CP 443-1 is a high-performance communication processor designed for S7-400 PLC systems, enabling seamless Industrial Ethernet connectivity through advanced protocol support including TCP/IP, ISO-on-TCP, and S7 communication. This module transforms your automation controller into a fully networked node within enterprise IT/OT infrastructure.

Ideal for manufacturing plants, process industries, energy facilities, and large-scale automation projects requiring reliable data exchange between field devices, SCADA systems, MES platforms, and enterprise resource planning (ERP) networks. It addresses critical challenges such as protocol incompatibility, network latency, limited diagnostic visibility, and the complexity of integrating legacy PLC systems with modern Ethernet-based architectures.

Through standardized design and flexible configuration options, this communication processor delivers robust performance, deterministic data transfer, comprehensive diagnostic capabilities, and seamless integration with Siemens TIA Portal engineering environment. Suitable for system integrators, automation engineers, plant maintenance teams, and OEMs seeking proven industrial networking solutions. Contact our engineering team for application-specific configuration guidance and technical support.

Core Features & Technical Advantages

• Multi-Protocol Ethernet Communication
  Supports TCP/IP, ISO-on-TCP (RFC 1006), and S7 communication protocols simultaneously, enabling flexible connectivity to HMI systems, databases, third-party devices, and IT networks without protocol conversion overhead.
• High-Speed Data Exchange
  Delivers deterministic communication performance with optimized data throughput up to 100 Mbps, ensuring real-time synchronization between distributed control systems and reducing cycle times in time-critical applications.
• Integrated Diagnostics & Monitoring
  Provides comprehensive network diagnostics through LED status indicators, STEP 7 diagnostic buffers, and web-based management interface, enabling rapid fault identification and minimizing unplanned downtime.
• Scalable Connection Architecture
  Supports multiple simultaneous connections (up to 32 active links), allowing parallel communication with SCADA servers, historian databases, remote I/O systems, and peer controllers within the same network segment.
• Industrial-Grade Reliability
  Built with conformal-coated PCB, extended temperature range (-25°C to +60°C), and EMC compliance to EN 61000 standards, ensuring stable operation in harsh industrial environments with electrical noise and vibration.
• Seamless TIA Portal Integration
  Fully compatible with Siemens TIA Portal V13 and later versions, offering intuitive configuration wizards, pre-built function blocks, and integrated commissioning tools that reduce engineering time by up to 40%.

Typical Application Scenarios

This communication processor is engineered for industrial environments demanding high availability, secure data transfer, and seamless IT/OT convergence, particularly in:

• Automotive & Discrete Manufacturing
  Connects S7-400 controllers to MES systems for real-time production tracking, quality data logging, and traceability compliance. Enables integration with robotic cells, vision systems, and automated guided vehicles (AGVs) via Ethernet/IP gateways.
• Process Industries (Chemical, Pharmaceutical, Food & Beverage)
  Facilitates batch recipe management, historian data archiving, and regulatory compliance reporting by linking DCS/PLC systems to enterprise databases. Supports OPC UA server functionality for vendor-neutral data access.
• Energy & Utilities (Power Generation, Water Treatment)
  Provides secure remote monitoring and control of distributed substations, pump stations, and renewable energy assets. Implements IEC 60870-5-104 and DNP3 protocol conversion through external gateways for SCADA integration.
• Building Automation & Infrastructure
  Integrates HVAC control systems, fire safety networks, and access control platforms into unified building management systems (BMS). Enables cloud connectivity for predictive maintenance and energy optimization analytics.
• Material Handling & Logistics
  Coordinates warehouse automation systems including conveyor networks, sorting machines, and automated storage/retrieval systems (AS/RS). Synchronizes with warehouse management systems (WMS) for inventory accuracy and order fulfillment efficiency.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, the CP 443-1 processor offers the following technical characteristics:

Selection Recommendations: When specifying this module, consider the following factors: total number of required Ethernet connections, network topology (star/ring/linear), required data throughput per connection, cybersecurity requirements (firewall/VPN integration), and compatibility with existing SCADA/MES infrastructure. For applications requiring redundant communication paths, consider pairing with CP 443-1 Advanced or implementing network-level redundancy protocols. Our application engineers can provide detailed network architecture design and performance calculations based on your specific project requirements.

Advanced Configuration Options

• IP Address Assignment: Static IP, DHCP client, or DCP (Discovery and Configuration Protocol) for automated commissioning
• Security Features: IP access control lists (ACL), MAC address filtering, HTTPS encryption for web diagnostics
• Time Synchronization: NTP client support for network-wide time stamping and event correlation
• SNMP Monitoring: MIB-II compliance for integration with enterprise network management systems (NMS)
• Firmware Updates: Field-upgradable via TIA Portal or web interface without hardware replacement

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules or bulk orders may require 10-15 business days depending on current production schedules.

Warranty Coverage: All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services are available for mission-critical installations.

Technical Support: Our certified Siemens automation specialists provide remote configuration assistance, network troubleshooting, and firmware upgrade guidance. On-site commissioning services and training workshops can be arranged for complex multi-site deployments (availability varies by region).

Documentation Package: Each module ships with complete technical documentation including hardware installation manual, communication function manual, GSD files for third-party integration, sample STEP 7/TIA Portal projects, and detailed wiring diagrams for Ethernet cabling and grounding best practices.

Frequently Asked Questions (FAQ)

Q: How does the CP 443-1 communication processor integrate with existing S7-400 PLC systems?
A: The CP 443-1 installs directly into any available slot on the S7-400 rack (UR1/UR2 configuration). It draws power from the backplane bus and communicates with the CPU via the internal K-bus. Configuration is performed through TIA Portal or STEP 7, where you define IP parameters, connection tables, and communication function blocks (FB/FC). No external power supply or special cabling is required beyond the standard Ethernet connection.

Q: What is the maximum number of devices that can communicate simultaneously with one CP 443-1 module?
A: The CP 443-1 supports up to 32 active TCP/IP or ISO-on-TCP connections concurrently. This includes connections to SCADA systems, HMI panels, databases, and peer PLCs. For applications requiring more connections, multiple CP modules can be installed in the same rack, or connection pooling strategies can be implemented at the application layer.

Q: What level of energy savings or performance improvement can be expected compared to legacy serial communication?
A: Ethernet-based communication via CP 443-1 typically delivers 10-50× faster data transfer rates compared to RS-232/RS-485 serial links, reducing polling cycles and enabling near-real-time data visibility. While the module itself doesn't directly save energy, faster communication enables more responsive control algorithms, optimized process setpoints, and reduced machine idle time—often resulting in 5-15% overall system efficiency gains in coordinated multi-machine applications.

Q: What are the environmental and installation requirements for reliable operation?
A: The CP 443-1 is rated IP20 and designed for installation inside climate-controlled electrical cabinets. Ambient temperature should remain within -25°C to +60°C (horizontal mounting; derate for vertical installation). Ensure adequate ventilation, avoid direct exposure to corrosive gases or conductive dust, and follow proper Ethernet cable shielding and grounding practices per Siemens installation guidelines to minimize EMI/RFI interference.

Q: Does the CP 443-1 support remote monitoring, data logging, and integration with cloud platforms or IIoT systems?
A: Yes. The CP 443-1 can establish TCP/IP connections to cloud gateways, edge computing devices, or IIoT platforms using standard Ethernet protocols. It supports S7 communication for Siemens-native data access, as well as open protocols like Modbus TCP (via gateway) and OPC UA (through S7-400 CPU with appropriate licensing). For secure cloud connectivity, implement VPN routers or industrial firewalls at the network perimeter, and use encrypted tunnels (IPsec, OpenVPN) to protect data in transit.

Q: Is firmware update or configuration change possible without halting production?
A: Firmware updates and major configuration changes typically require a brief module restart, which may interrupt active communication sessions. For high-availability systems, implement redundant communication paths using dual CP modules or network-level failover mechanisms. Minor parameter adjustments (e.g., connection timeouts, diagnostic settings) can often be modified online via TIA Portal without disrupting established connections, but always consult the module's operating manual and test changes in a non-production environment first.

Request Technical Support & Custom Configuration

To receive a detailed selection proposal, pricing quotation, or application-specific engineering support, please provide the following project information: application type and industry sector, S7-400 CPU model and firmware version, number of required Ethernet connections and data volume per connection, network architecture (flat/segmented/VLAN), cybersecurity requirements, and any special certifications needed (ATEX, marine, railway). Our automation engineers will respond within one business day with tailored recommendations and technical documentation.
