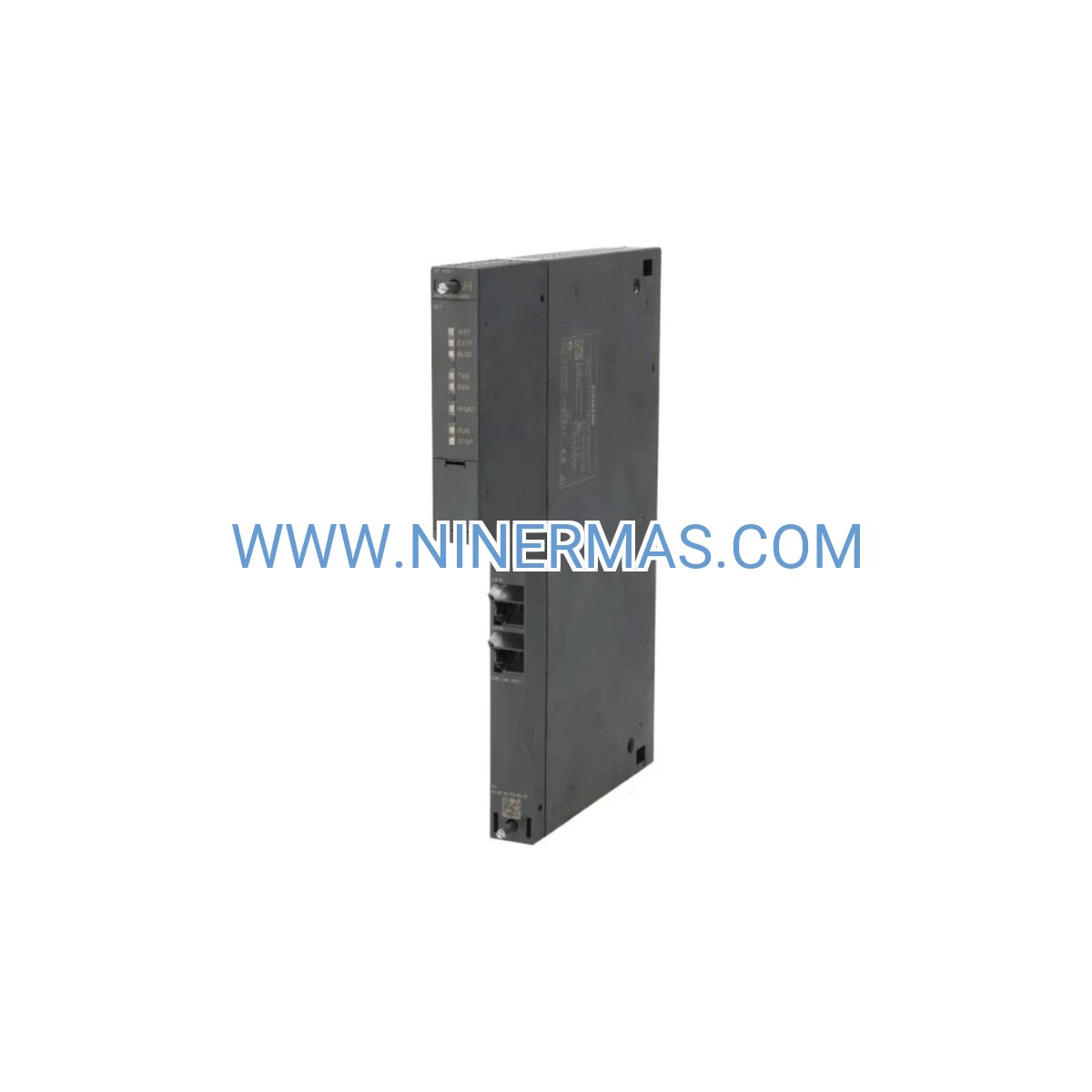

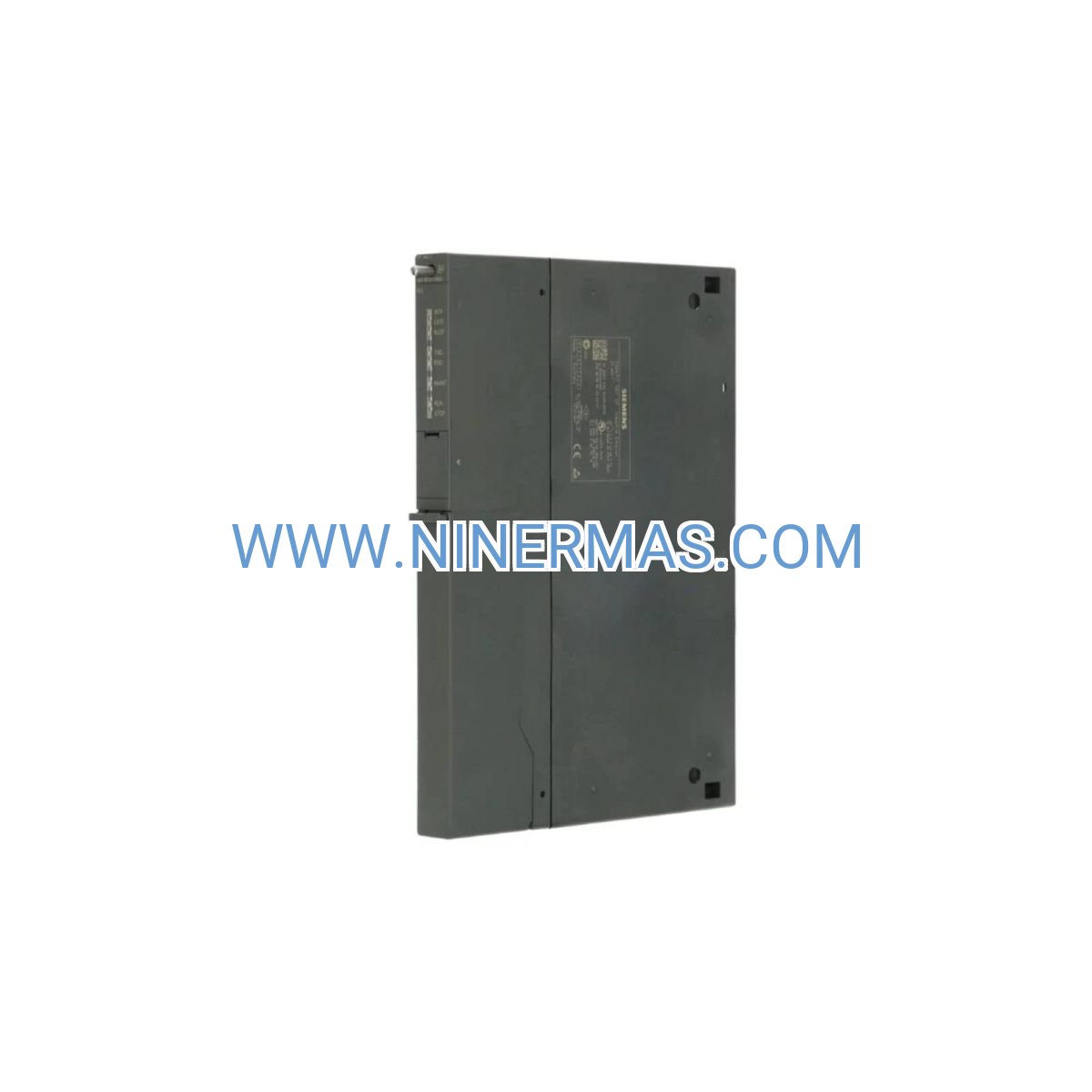

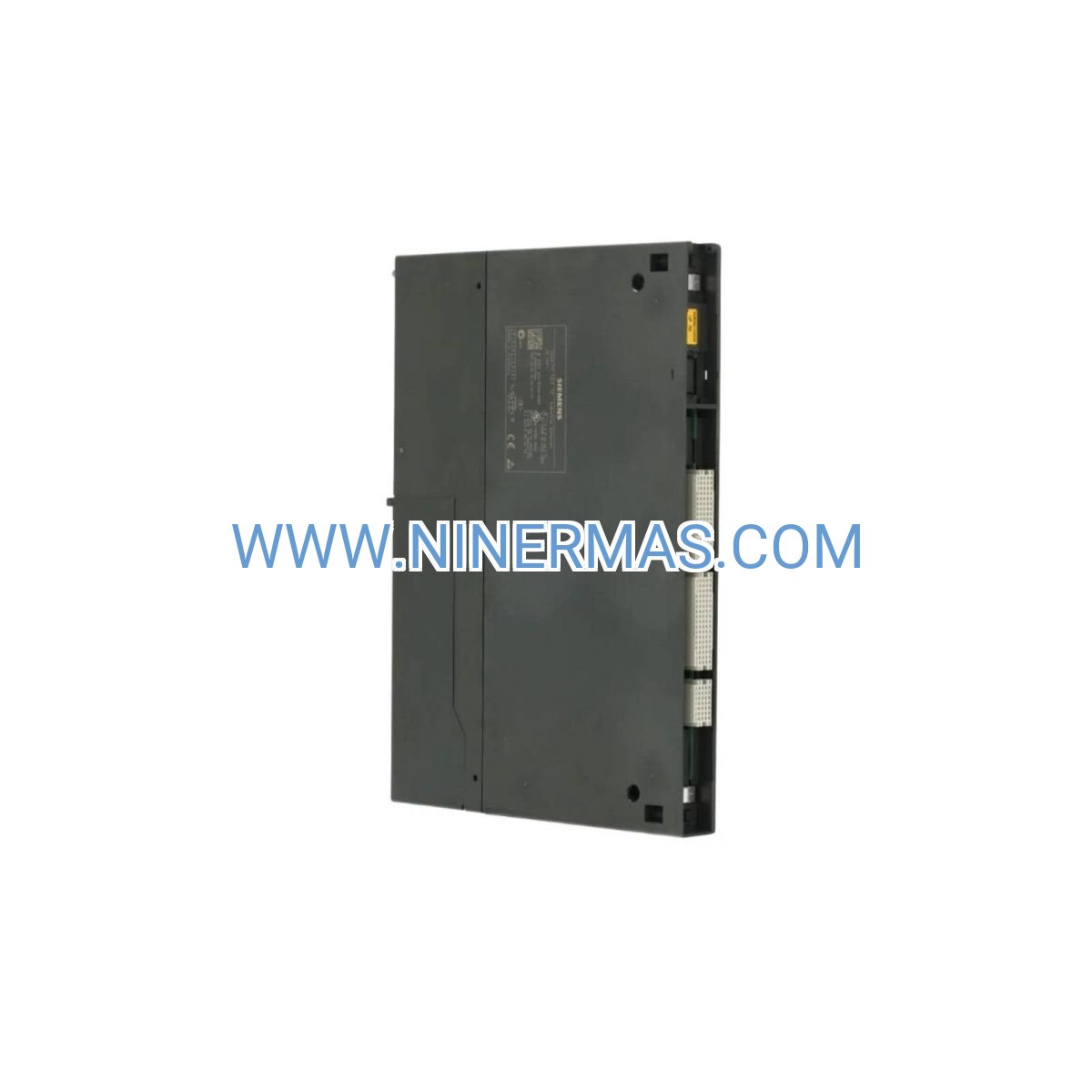

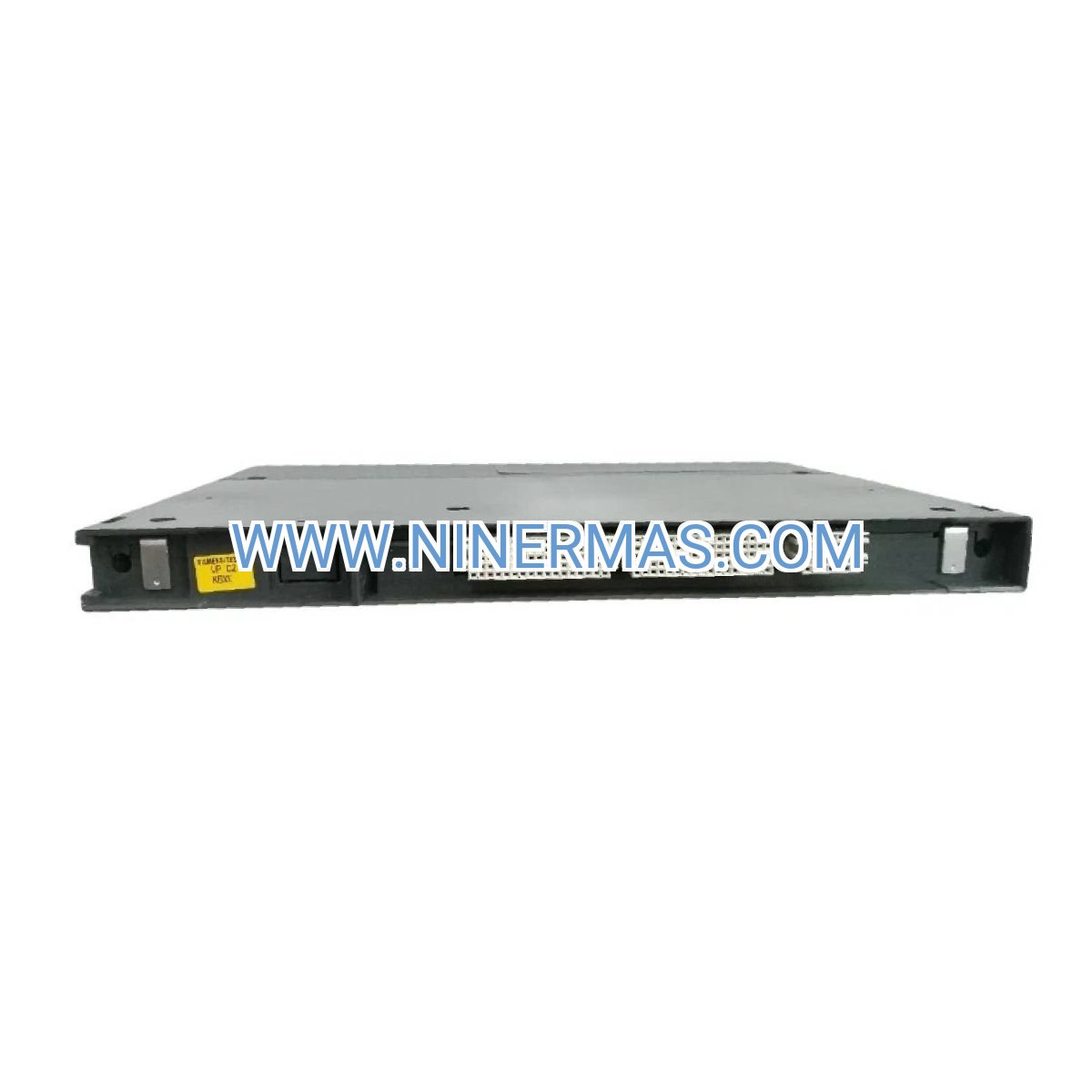

Siemens CP 343-1 Ethernet Processor 6GK7343-1CX10-0XE0 | S7-300 PLC Communication Module

CP 343-1 Industrial Ethernet Communication Processor (S7-300 PLC Networking Solution)

The Siemens CP 343-1 (6GK7343-1CX10-0XE0) is an industrial-grade Ethernet communication processor designed for seamless integration with S7-300 PLC systems. Through advanced TCP/IP, ISO-on-TCP, and UDP protocol support, it enables reliable data exchange, remote monitoring, and multi-device connectivity across distributed automation networks.

Engineered for environments demanding high uptime and deterministic communication—such as manufacturing plants, process control systems, and SCADA infrastructures—this module addresses challenges including protocol incompatibility, network latency, limited I/O expansion, and lack of real-time diagnostics. It empowers system integrators, control engineers, and plant operators to build scalable, future-proof industrial networks.

With standardized mounting, plug-and-play configuration via STEP 7, and robust EMC compliance, the CP 343-1 delivers fast commissioning, minimal downtime, and long-term reliability. Suitable for design institutes, automation contractors, OEM machine builders, and end-user facilities. Contact our engineering team for application-specific configuration, protocol mapping, and quotation assistance.

Core Features & Advantages

• Multi-Protocol Ethernet Communication
  Supports TCP/IP, ISO-on-TCP (RFC 1006), and UDP protocols, enabling flexible connectivity to HMI, SCADA, MES systems, and third-party devices without additional gateways.
• High-Speed Data Transfer
  10/100 Mbit/s auto-negotiation Ethernet interface ensures fast, stable communication for time-critical process data and large-volume logging, reducing cycle times and improving system responsiveness.
• Seamless S7-300 Integration
  Direct mounting on S7-300 backplane with automatic addressing and power supply from the rack, simplifying installation and reducing wiring complexity.
• Advanced Diagnostic Capabilities
  Built-in LED indicators and STEP 7 diagnostic buffers provide real-time status monitoring, fault localization, and event logging, minimizing troubleshooting time and unplanned downtime.
• Robust Industrial Design
  Conformal coating, wide operating temperature range (-25°C to +60°C), and compliance with IEC 61131-2, UL, and CE standards ensure reliable operation in harsh factory environments with dust, vibration, and EMI.
• Scalable Network Architecture
  Supports up to 16 simultaneous connections, enabling star, line, or ring topologies for distributed control systems, multi-site coordination, and cloud-based data acquisition.

Typical Application Scenarios

This communication processor is ideal for industrial automation systems requiring stable Ethernet connectivity, protocol conversion, and centralized data management, particularly in:

• Factory Automation & Production Lines
  Connects S7-300 controllers to HMI panels, industrial PCs, and MES servers for real-time production monitoring, recipe management, and quality traceability in automotive, electronics, and packaging industries.
• Process Control & SCADA Systems
  Integrates with SCADA platforms (WinCC, Ignition, Wonderware) for remote supervision, alarm management, and historical data logging in chemical plants, water treatment facilities, and energy generation sites.
• Building Automation & HVAC Control
  Enables centralized control of HVAC, lighting, and access systems via Ethernet/IP or Modbus TCP gateways, reducing installation costs and improving energy efficiency in commercial buildings and data centers.
• Machine Networking & OEM Equipment
  Provides standardized Ethernet interface for packaging machines, CNC systems, and robotic cells, facilitating remote diagnostics, firmware updates, and predictive maintenance by OEMs and service teams.
• Multi-Site Coordination & Cloud Integration
  Supports VPN tunneling and secure data forwarding to cloud platforms (AWS IoT, Azure IoT Hub) for cross-plant analytics, remote troubleshooting, and digital twin applications.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide key specifications below. Custom configurations (firmware versions, cable assemblies, redundancy options) are available upon request.

Selection Recommendations:
When specifying, consider: required number of Ethernet connections, protocol requirements (e.g., Modbus TCP via FC/FB), network topology (star/ring), cybersecurity needs (firewall rules, VPN), and integration with existing SCADA/MES infrastructure. For assistance, provide: PLC CPU model, network architecture diagram, protocol list, and environmental conditions. Our engineers will recommend optimal configuration and compatible accessories (cables, switches, media converters).

Extended Functionality

• Email & FTP Client Functions: Send alarm notifications, production reports, or log files to email servers or FTP repositories via built-in client FBs.
• NTP Time Synchronization: Synchronize S7-300 system time with NTP servers for accurate event timestamping and coordinated multi-controller operations.
• SNMP Monitoring: Integrate with network management systems (NMS) for centralized health monitoring, bandwidth analysis, and proactive maintenance.
• Security Features: IP access control lists (ACLs), MAC address filtering, and encrypted communication (via external VPN routers) to protect against unauthorized access.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3–5 business days; custom-configured modules require 10–15 days. Express logistics available for urgent projects.

Warranty: 12-month manufacturer warranty covering material defects and workmanship. Extended warranty and spare parts programs available.

Technical Support: Remote commissioning assistance, STEP 7 programming guidance, and network troubleshooting via phone/email. On-site service available in select regions (subject to terms).

Documentation Package: Includes product datasheet, wiring diagram, STEP 7 GSD file, sample program blocks (FCs/FBs), and quick-start guide in English. CAD drawings (DXF/STEP) provided upon request.

Certifications: All units are genuine Siemens OEM products with traceable serial numbers, CE/UL markings, and compliance certificates. RoHS and REACH compliant.

Frequently Asked Questions (FAQ)

Q: How does the CP 343-1 Ethernet processor integrate with existing S7-300 PLC systems?
A: The module mounts directly onto the S7-300 DIN rail backplane, auto-assigns a slot address, and draws power from the rack. Configuration is performed in STEP 7 via hardware catalog insertion, IP address assignment, and connection parameter setup. No external power supply or complex wiring required.

Q: Can this communication processor support Modbus TCP or other third-party protocols?
A: Yes. While native support includes TCP/IP, ISO, and UDP, Modbus TCP can be implemented using Siemens-provided function blocks (FCs/FBs) or third-party libraries. OPC UA and MQTT require external gateways or TIA Portal programming.

Q: What is the maximum number of devices that can connect simultaneously?
A: The CP 343-1 supports up to 16 concurrent TCP/IP connections. This allows multiple HMIs, SCADA clients, and data loggers to communicate with the S7-300 simultaneously. Connection pooling and load balancing may be required for larger networks.

Q: What are the installation environment requirements and protection rating?
A: Operating temperature: -25°C to +60°C (horizontal mounting); storage: -40°C to +70°C. Humidity: 5% to 95% RH (non-condensing). Protection rating: IP20 (requires enclosure for dusty/wet environments). Conformal coating provides additional protection against corrosive gases.

Q: Does this module support remote monitoring and data acquisition for cloud platforms?
A: Yes. The CP 343-1 can forward data to cloud IoT platforms (AWS, Azure, Alibaba Cloud) via secure VPN tunnels or industrial IoT gateways. Supported protocols include MQTT (via gateway), OPC UA (via server), and RESTful APIs (via custom programming).

Q: What diagnostic and troubleshooting features are available?
A: Built-in LEDs indicate power, link status, and communication activity. STEP 7 diagnostic buffer logs connection errors, timeout events, and protocol violations. Online monitoring tools display real-time packet statistics, connection states, and error counters for rapid fault isolation.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or application-specific technical support, please provide the following information: project name, application scenario, S7-300 CPU model, number of Ethernet connections required, protocol requirements (TCP/IP, Modbus TCP, etc.), network topology, power supply specifications, and environmental conditions. Our engineering team will deliver a one-on-one consultation with recommended part numbers, wiring diagrams, and budget estimates.
