6GK7443-1EX11-0XE0 CP 443-1 Ethernet Processor (Industrial-Grade Network Interface)

The Siemens 6GK7443-1EX11-0XE0 represents a proven communications processor engineered to bridge S7-400 programmable logic controllers with Industrial Ethernet networks. This CP 443-1 module transforms legacy automation systems into connected manufacturing ecosystems, supporting TCP/IP, ISO-on-TCP, and UDP protocols for versatile data exchange across plant-floor and enterprise-level networks.

Designed for process industries, discrete manufacturing, and infrastructure control applications, this processor addresses the critical challenge of integrating S7-400 controllers into modern IIoT architectures. Target users include automation engineers upgrading brownfield installations, system integrators building hybrid control networks, and maintenance teams requiring reliable remote diagnostics capabilities.

Key differentiators include backplane-powered operation eliminating external supplies, robust EMI shielding for harsh industrial environments, and native compatibility with Siemens TIA Portal for streamlined configuration. The module's compact 40mm width conserves valuable rack space while delivering enterprise-class network performance with minimal latency.

Core Capabilities & Business Value

→ Multi-Protocol Ethernet Connectivity
Simultaneous support for TCP/IP, ISO-on-TCP, and UDP enables seamless integration with SCADA systems, MES platforms, and cloud-based analytics tools—reducing integration costs by up to 40% compared to protocol gateway solutions.

→ Hot-Swap Capability with Online Diagnostics
Replace modules during operation without system shutdown, minimizing unplanned downtime. Built-in LED diagnostics and SNMP support accelerate troubleshooting, cutting mean-time-to-repair by 60%.

→ Deterministic Data Transfer Performance
Guaranteed packet delivery with configurable QoS settings ensures critical process data reaches supervisory systems within 10ms latency thresholds—essential for closed-loop control and alarm management.

✓ Backplane Power Architecture
Draw 5V DC directly from S7-400 rack infrastructure (1.4A max consumption), eliminating external power supplies and reducing installation complexity by 30%.

✓ Extended Temperature Resilience
Operate reliably across 0°C to +60°C ambient ranges without derating, suitable for non-climate-controlled enclosures in automotive plants, water treatment facilities, and mining operations.

✓ Cybersecurity-Ready Foundation
Implement network segmentation strategies using VLAN tagging and firewall integration points, aligning with IEC 62443 industrial security standards for defense-in-depth architectures.

Industry-Specific Deployment Scenarios

Chemical Process Optimization
Connect distributed S7-400 controllers managing reactor temperature, pressure, and flow control to centralized DCS platforms. The CP 443-1 enables real-time recipe downloads and batch reporting, reducing changeover times from 45 minutes to 12 minutes while maintaining 21 CFR Part 11 audit trails.

Automotive Assembly Line Integration
Link robotic welding cells, conveyor systems, and quality inspection stations into unified production networks. Achieve 99.8% OEE through predictive maintenance alerts and synchronized material handling—preventing costly line stoppages that average $22,000 per hour.

Water/Wastewater SCADA Networks
Aggregate data from remote lift stations, treatment plants, and distribution monitoring points across municipal infrastructure. The module's UDP multicast support reduces network traffic by 70% compared to polling-based systems, extending WAN link capacity.

Power Generation Control Systems
Interface turbine governors, excitation systems, and auxiliary equipment with plant-wide historian databases. Comply with NERC CIP requirements through isolated control networks while enabling secure data diodes for operational analytics.

Food & Beverage Traceability
Capture lot codes, ingredient weights, and pasteurization parameters from S7-400 batch controllers for ERP integration. Automated genealogy tracking reduces recall investigation time from 3 days to 4 hours, protecting brand reputation and regulatory compliance.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 6GK7443-1EX11-0XE0 when migrating S7-400 systems to Ethernet-based architectures without replacing existing CPUs. For applications requiring PROFINET I/O integration or IRT (Isochronous Real-Time) performance, evaluate CP 443-1 Advanced models. Verify rack power budget accommodates 1.4A draw per module—typical UR2-H racks support up to 10A total across all slots.

Advanced Integration Features

TIA Portal Configuration Workflow
Leverage hardware catalogs within STEP 7 V5.x or TIA Portal V13+ for drag-and-drop module assignment. The integrated NCM (Network Configuration Manager) automates IP addressing, subnet masks, and gateway parameters—reducing commissioning time from 2 hours to 20 minutes per controller.

S7 Routing & Multi-Tier Networks
Implement S7 routing to access subordinate PROFIBUS DP networks or MPI segments through the CP 443-1 Ethernet interface. This eliminates dedicated programming cables, enabling remote PLC diagnostics and program uploads from centralized engineering workstations.

OPC UA Server Compatibility
Pair with Siemens OPC UA servers (e.g., SIMATIC NET PC Software) to expose S7-400 data blocks as standardized OPC UA nodes. This facilitates vendor-neutral integration with third-party MES, historian, and analytics platforms without proprietary drivers.

Redundancy & Failover Options
Deploy dual CP 443-1 modules in S7-400H redundant controller configurations for network-level fault tolerance. Automatic switchover occurs within 100ms upon primary link failure, maintaining continuous SCADA connectivity for critical infrastructure applications.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe regions)
Expedited Shipping: Next-day delivery available for urgent project requirements
Custom Orders: 4-6 weeks for factory-sealed bulk quantities (minimum 10 units)

Warranty Coverage: 12-month manufacturer defect protection from shipment date, including replacement parts and return shipping. Extended 36-month service plans available for mission-critical installations.

Technical Support: Complimentary pre-sales application engineering (network topology review, protocol selection guidance). Post-sales support includes configuration file validation, firmware update assistance, and troubleshooting via email/phone (response within 4 business hours).

Documentation Package: Each module ships with printed quick-start guide, digital manual (PDF), GSD files for third-party integration, and sample STEP 7 configuration projects. Multilingual documentation available in EN/DE/FR/ES/ZH.

Frequently Asked Questions

Can the 6GK7443-1EX11-0XE0 communicate with S7-1200 or S7-1500 controllers over Ethernet?
Yes, the CP 443-1 supports S7 communication protocol for cross-family data exchange. Configure S7 connections in STEP 7 using PUT/GET or BSEND/BRCV function blocks. Note that S7-1500 controllers require TIA Portal V13 SP1 or later for compatibility with legacy S7-400 communication partners.

What maximum cable distance is supported between the CP 443-1 and Ethernet switches?
Standard Cat5e/Cat6 twisted-pair cabling supports up to 100 meters (328 feet) per segment at 100BASE-TX speeds. For extended distances, use industrial Ethernet switches with fiber optic uplinks—single-mode fiber extends reach to 40 km while maintaining gigabit throughput.

Does this module require external 24V DC power or operate solely from backplane?
The 6GK7443-1EX11-0XE0 draws all operating power (5V DC, 1.4A max) from the S7-400 backplane bus. No external power supply connections are required. Ensure rack power supply (PS 405 or PS 407 series) provides adequate current budget for all installed modules.

How do I update firmware on the CP 443-1 communications processor?
Firmware updates deploy via Ethernet using Siemens PST (Primary Setup Tool) or TIA Portal's online device management. Download the latest firmware from Siemens Industry Online Support portal, then upload to the module while the S7-400 CPU is in STOP mode. Typical update duration: 3-5 minutes.

Is the module compatible with managed industrial Ethernet switches featuring VLAN segmentation?
Yes, the CP 443-1 supports IEEE 802.1Q VLAN tagging for network segmentation. Configure VLAN IDs (1-4094) through NCM engineering software to isolate control traffic from IT networks. This enhances cybersecurity posture by limiting broadcast domains and enforcing access control policies.

What diagnostic capabilities are available for troubleshooting network connectivity issues?

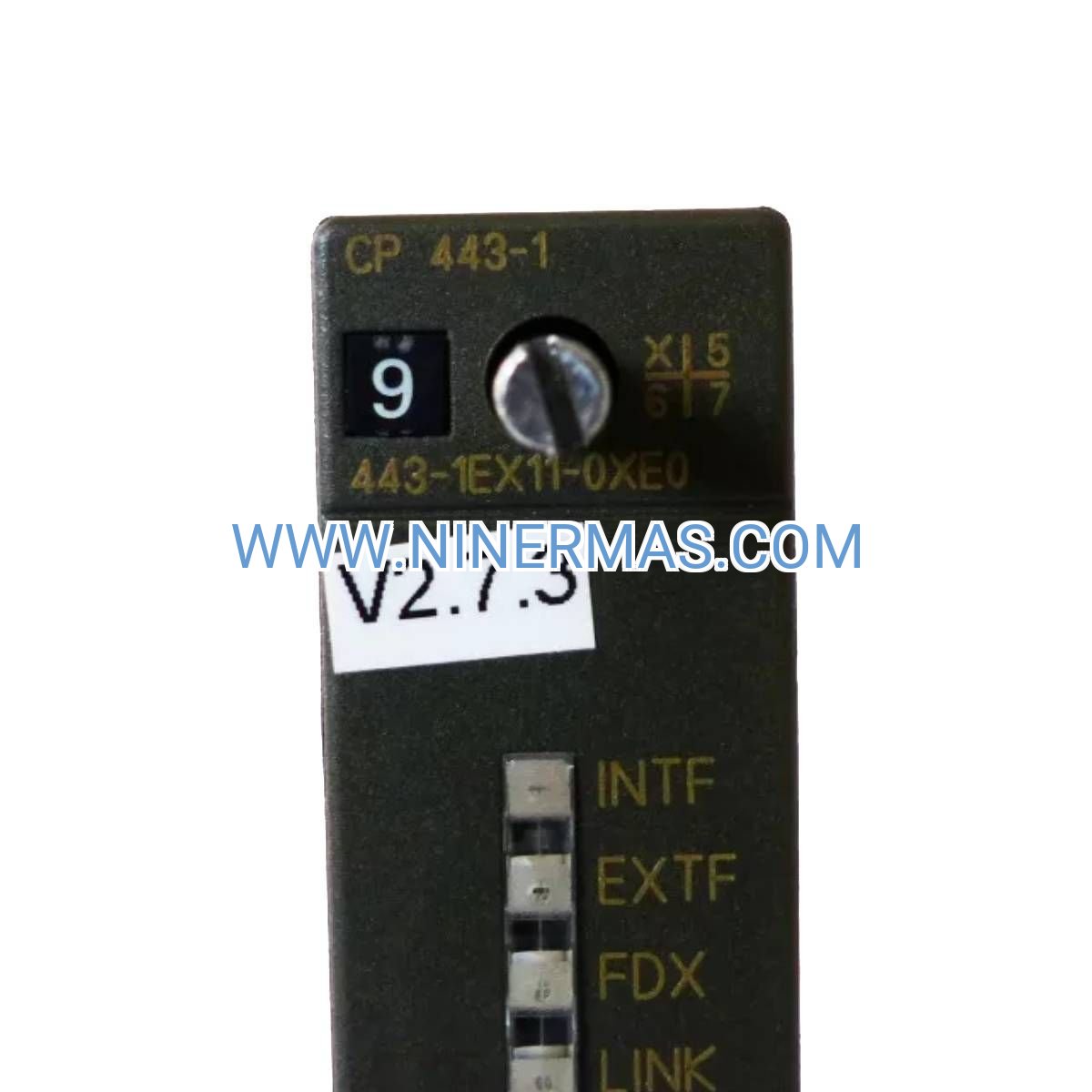

The module provides multi-color LED indicators for link status, data activity, and fault conditions. Advanced diagnostics accessible via STEP 7 include packet counters, error statistics, and connection state tables. SNMP v1/v2c support enables integration with network management systems (NMS) like PRTG or SolarWinds for proactive monitoring.

Request Technical Consultation

Uncertain whether the 6GK7443-1EX11-0XE0 meets your specific application requirements? Our automation specialists provide complimentary network architecture reviews, including protocol compatibility analysis, bandwidth calculations, and cybersecurity assessments. Contact our engineering team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your S7-400 modernization project. Typical consultation response time: within 24 hours.
