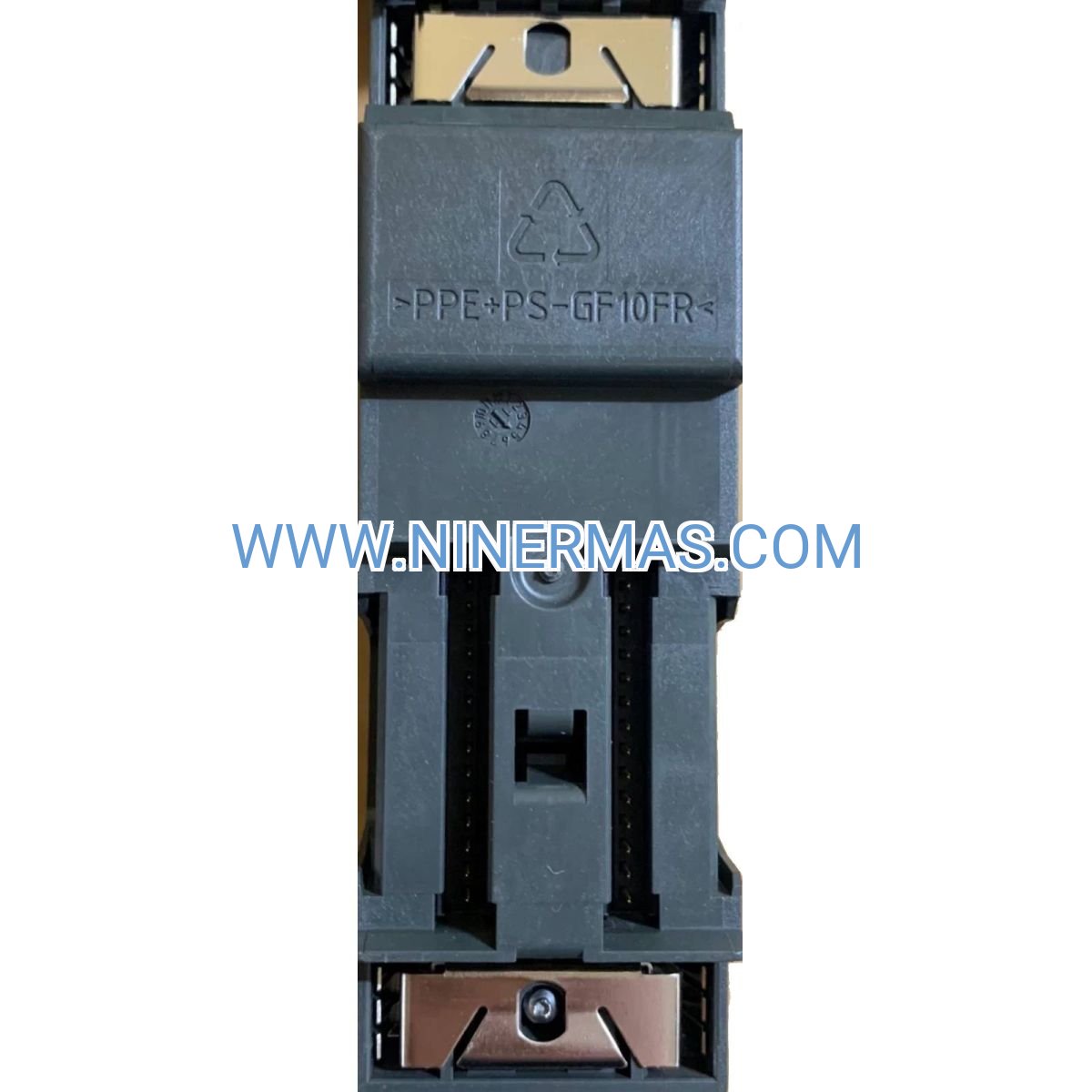

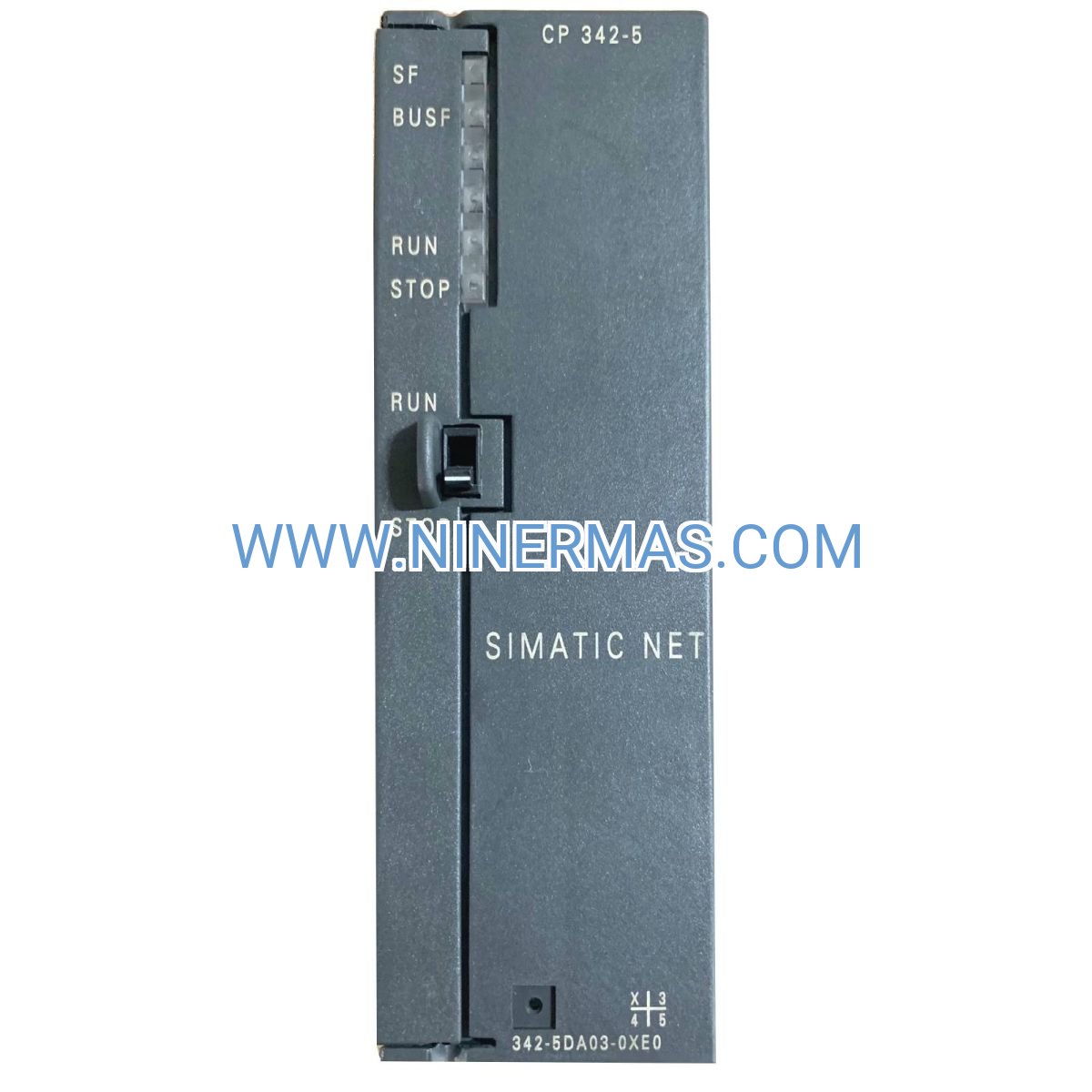

Siemens 6GK7342-5DA02-0XE0 PROFIBUS CP 342-5 Processor | S7-400 Industrial Communication Module

Siemens CP 342-5 PROFIBUS Communication Processor (Industrial-Grade Fieldbus Control Solution)

The Siemens 6GK7342-5DA02-0XE0 CP 342-5 is a high-performance PROFIBUS communication processor designed for S7-400 PLC systems. Through advanced DP (Decentralized Periphery) protocol and real-time data exchange capabilities, it enables seamless integration between controllers and distributed I/O devices, drives, and field instruments across industrial automation networks.

Ideal for manufacturing plants, process industries, energy facilities, and large-scale automation projects requiring reliable fieldbus communication. This module addresses critical challenges including network latency, protocol compatibility issues, multi-vendor device integration complexity, and real-time diagnostic requirements in distributed control architectures.

Featuring standardized PROFIBUS DP V0/V1 support with flexible configuration options, this processor delivers proven reliability, fast commissioning, straightforward maintenance, and excellent compatibility with third-party devices. Suitable for system integrators, automation engineers, OEM equipment manufacturers, and plant maintenance teams. Contact our engineering team for application-specific configuration guidance and technical quotations.

Core Features & Advantages

High-Speed PROFIBUS DP Communication
Supports data transmission rates up to 12 Mbps with deterministic cycle times, ensuring precise synchronization between master controllers and slave devices while minimizing network jitter and response delays.

Dual Operating Modes: DP Master & DP Slave
Functions as either DP master (controlling up to 125 slaves) or DP slave (interfacing with higher-level controllers), providing architectural flexibility for multi-tier automation systems and redundant configurations.

Seamless S7-400 Integration
Hot-swappable module design with automatic hardware detection, integrated into STEP 7 engineering environment for unified programming, diagnostics, and asset management across the entire control system.

Comprehensive Diagnostic & Protection Functions
Built-in network diagnostics, slave status monitoring, cable fault detection, and EMC protection (EN 61000-6-2/4 compliant), reducing downtime and simplifying troubleshooting in harsh industrial environments.

Intuitive Configuration & Commissioning
GSD file-based device integration with graphical network configuration tools in STEP 7, supporting online/offline parameterization, topology visualization, and firmware updates without production interruption.

Typical Application Scenarios

This processor is engineered for environments demanding high communication reliability, real-time performance, and extensive fieldbus connectivity, particularly in:

Automotive & Discrete Manufacturing
Connects assembly line robots, conveyor systems, vision inspection stations, and quality control devices, ensuring synchronized production flow and rapid fault response in high-speed manufacturing cells.

Process Industries & Chemical Plants
Integrates distributed I/O racks, smart transmitters, valve positioners, and analyzer systems in DCS architectures, maintaining stable process control and regulatory compliance (SIL-rated applications supported).

Energy & Utilities Infrastructure
Facilitates communication between turbine controllers, substation automation equipment, SCADA gateways, and remote terminal units in power generation, water treatment, and oil & gas facilities.

Building Automation & HVAC Systems
Manages large-scale BMS networks controlling chillers, air handling units, lighting panels, and access control systems, optimizing energy efficiency and operational visibility across commercial complexes.

Technical Specifications & Selection Guide

To ensure optimal system design and procurement accuracy, we provide key technical parameters for engineering reference and project planning:

Communication Interface: PROFIBUS DP V0/V1, 9-pin D-sub connector
Transmission Rate: 9.6 kbps to 12 Mbps (auto-detection supported)
Network Topology: Linear bus, up to 32 nodes per segment (repeaters extend to 125 nodes)
Operating Modes: DP Master (Class 1/2) or DP Slave
Data Consistency: Up to 244 bytes input / 244 bytes output per slave
Power Supply: Via S7-400 backplane (5V DC, typical 1.2A consumption)
Operating Temperature: 0°C to +60°C (horizontal installation)
Protection Rating: IP20 (for control cabinet mounting)
Certifications: CE, UL, cULus, ATEX Zone 2 (when used with approved components)
Module Dimensions: Standard S7-400 format (approx. 25mm width)

Selection Recommendations:
When specifying this module, consider: required number of PROFIBUS slaves, maximum network distance, baud rate requirements, redundancy needs (pair with redundant S7-400H systems if applicable), and compatibility with existing GSD device files. For complex multi-segment networks or safety-related applications, consult with our automation engineers who can recommend optimal network architecture, cable specifications, and commissioning procedures.

Advanced Capabilities

Redundancy & High-Availability Support
Compatible with S7-400H redundant controller configurations, enabling fault-tolerant communication paths for mission-critical processes requiring 99.99%+ uptime.

Remote Diagnostics & Maintenance
Supports TeleService and remote access via CP 443-1 Ethernet modules, allowing off-site monitoring, parameter adjustments, and firmware management through secure VPN connections.

Multi-Protocol Gateway Integration
Can be combined with PROFINET, Ethernet/IP, or Modbus TCP gateways for hybrid network architectures, facilitating brownfield upgrades and cross-platform data exchange.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured modules or bulk orders typically require 10-15 business days.
Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship; extended service agreements available for critical infrastructure projects.
Technical Support: Complimentary pre-sales application consulting, post-delivery commissioning guidance (remote or on-site, region-dependent), and access to certified Siemens technical documentation.
Documentation Package: Includes product datasheet, GSD device file, STEP 7 configuration manual, wiring diagrams, and EMC installation guidelines—ensuring smooth integration and compliance with safety standards.

Frequently Asked Questions (FAQ)

Q: How does the CP 342-5 PROFIBUS processor integrate with existing S7-400 PLC systems?
A: The module installs directly into the S7-400 rack via the backplane connector. Configuration is performed in STEP 7 software using the hardware catalog; the processor automatically appears after rack scan. Ensure STEP 7 version supports the module firmware (typically V5.5 SP4 or higher recommended).

Q: What is the maximum number of PROFIBUS devices this processor can control?
A: In DP Master mode, it supports up to 125 slaves across multiple segments (using RS-485 repeaters). Single-segment configurations without repeaters typically handle 32 nodes. Actual capacity depends on data volume per slave and required cycle time.

Q: Can this module achieve energy savings compared to traditional hardwired I/O?
A: While the module itself doesn't directly reduce energy consumption, PROFIBUS networks significantly lower wiring costs (up to 40% reduction in installation labor and materials) and enable advanced energy management strategies through centralized monitoring and optimized process control algorithms.

Q: What are the environmental and installation requirements for this communication processor?
A: Rated IP20 for enclosed control cabinet installation; ambient temperature 0-60°C (horizontal mounting), 0-40°C (vertical). Requires proper grounding, shielded PROFIBUS cable (Type A recommended), and adherence to PROFIBUS installation guidelines (IEC 61158-2) for EMC compliance.

Q: Does this processor support remote monitoring and Industrial IoT connectivity?
A: Yes, when paired with S7-400 Ethernet communication processors (e.g., CP 443-1) or industrial edge gateways. Data can be accessed via OPC UA, MQTT, or proprietary Siemens protocols for integration with MES, SCADA, or cloud-based analytics platforms.

Q: Is this module suitable for safety-related applications (functional safety)?
A: The standard CP 342-5 is designed for standard automation tasks. For SIL 2/3 safety applications, consider PROFIsafe-enabled modules or dedicated safety controllers (e.g., S7-400FH with fail-safe I/O). However, it can coexist in mixed networks with safety devices.

Request Technical Support & Quotation

For detailed application engineering, custom configuration assistance, or project-specific pricing, please provide the following information to our team:

• Project name and industry sector
• Number of PROFIBUS slaves and device types (I/O modules, drives, instruments)
• Required network topology and maximum cable distance
• S7-400 CPU model and STEP 7 software version
• Redundancy or high-availability requirements
• Delivery timeline and installation location

Our certified automation engineers will respond within 24 hours with tailored recommendations, compliance documentation, and competitive quotations.
