Siemens SCALANCE XB-100 Industrial Ethernet Switch | 6GK7277-1AA00-0AA0 | S7-300 Network Module

Siemens SCALANCE XB-100 Industrial Ethernet Switch (Unmanaged Network Module for S7-300 Automation)

The SCALANCE XB-100 (6GK7277-1AA00-0AA0) is a compact unmanaged industrial Ethernet switch designed specifically for Siemens S7-300 PLC systems. Through plug-and-play installation and robust industrial-grade construction, it enables reliable network connectivity for distributed automation architectures, helping solve challenges such as limited communication ports, complex wiring, and network expansion constraints in factory environments.

Ideal for manufacturing plants, process automation facilities, and industrial control systems requiring deterministic Ethernet communication. This module addresses critical needs including: insufficient PLC Ethernet ports, difficulty integrating multiple field devices, lack of network redundancy, and challenges in maintaining stable communication in harsh industrial conditions.

With standardized S7-300 mounting compatibility and customizable network configurations, this switch delivers key advantages: seamless integration with existing Siemens ecosystems, industrial-grade reliability (MTBF >10 years), minimal configuration overhead, and proven compatibility with PROFINET and Industrial Ethernet protocols. Suitable for design engineers, system integrators, automation contractors, and end-user manufacturing facilities. Contact our engineering team for application-specific configuration guidance and quotations.

Core Features & Technical Advantages

Plug-and-Play Unmanaged Operation
No configuration required—simply connect devices and power on. Auto-negotiation for speed (10/100 Mbps) and duplex mode ensures immediate network operation, reducing commissioning time and eliminating setup errors common in managed switches.

Optimized for S7-300 Integration
Direct mounting on S7-300 DIN rail profile with compact 40mm width footprint. Shares the same 24VDC power supply as PLC modules, reducing panel space requirements by approximately 35% compared to standalone switch solutions.

Industrial-Grade Reliability
Operating temperature range -25°C to +60°C with conformal coating protection against dust, humidity, and vibration. Mean Time Between Failures (MTBF) exceeds 10 years under continuous industrial operation, minimizing unplanned downtime.

Multi-Port Connectivity Expansion
Provides multiple Fast Ethernet ports (10/100BASE-TX) to connect HMI panels, I/O modules, drives, and other Ethernet-enabled devices to a single S7-300 CPU communication port, eliminating bottlenecks in distributed control systems.

Comprehensive Electrical Protection
Built-in surge protection, reverse polarity safeguards, and electromagnetic interference (EMI) shielding ensure stable operation in electrically noisy environments typical of motor control centers and high-power equipment installations.

Diagnostic LED Indicators

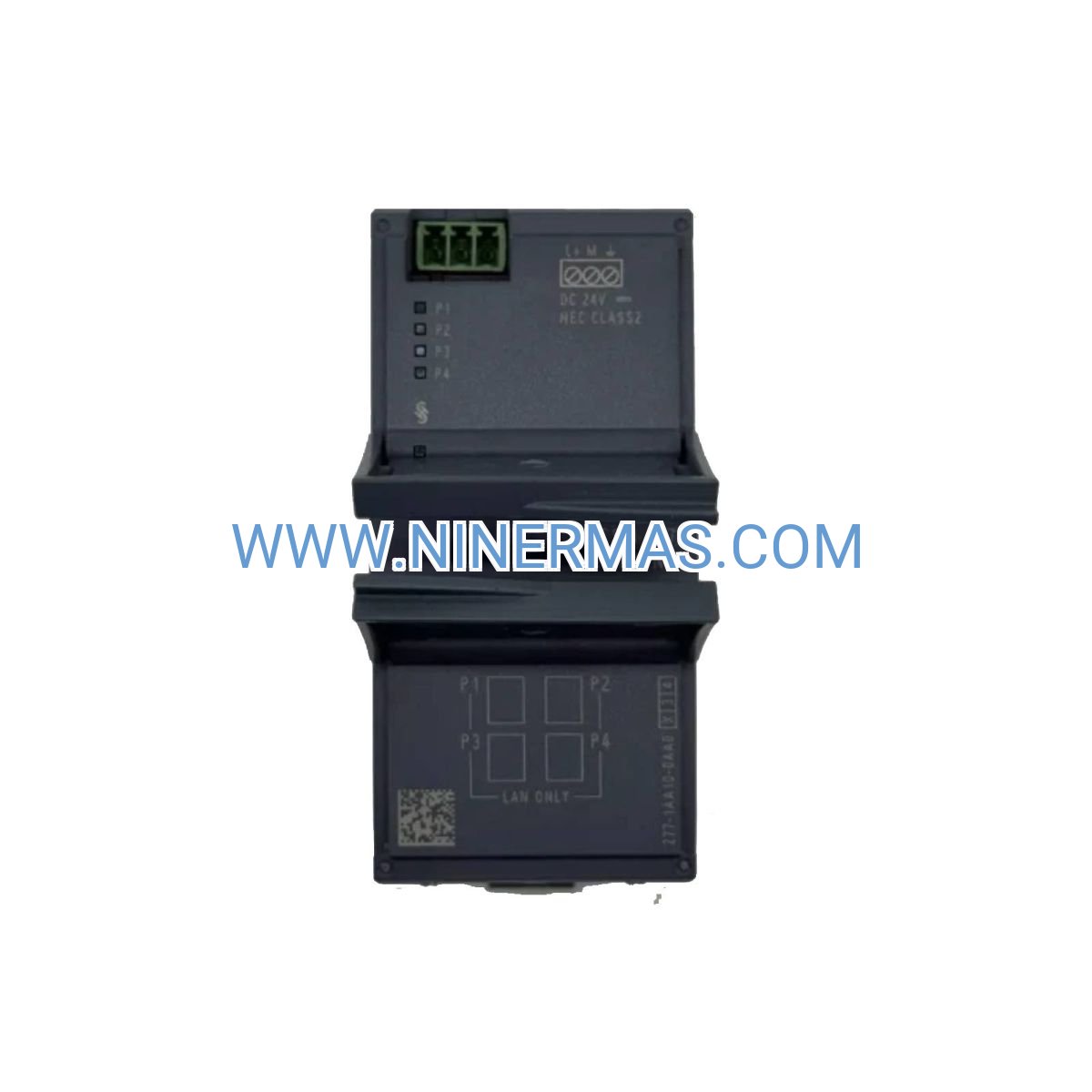

Front-panel LEDs provide instant visual feedback on power status, port link activity, and data transmission, enabling rapid troubleshooting without specialized diagnostic tools or software interfaces.

Typical Application Scenarios

This industrial Ethernet switch is engineered for environments demanding high communication reliability, continuous operation, and seamless integration with Siemens automation platforms:

Automotive & Discrete Manufacturing
Connects assembly line robots, vision systems, barcode scanners, and quality control stations to S7-300 controllers. Supports real-time data exchange for production tracking and MES integration in automotive body shops, electronics assembly, and packaging lines.

Process Industries & Chemical Plants
Enables communication between distributed I/O racks, flow meters, temperature transmitters, and SCADA workstations in oil & gas, pharmaceuticals, and water treatment facilities. Withstands corrosive atmospheres and temperature fluctuations common in process environments.

Building Automation & HVAC Control
Integrates chillers, air handling units, variable frequency drives, and energy meters into centralized S7-300 building management systems. Facilitates energy monitoring and demand-based control strategies in commercial buildings and industrial campuses.

Material Handling & Logistics
Networks conveyor controllers, sortation systems, automated guided vehicles (AGVs), and warehouse management terminals. Provides deterministic communication for synchronized material flow in distribution centers and automated storage/retrieval systems.

Technical Specifications & Selection Guide

To ensure optimal system design and compatibility, reference the following technical parameters. Custom configurations available for specialized applications requiring extended temperature ranges or fiber optic connectivity.

Selection Recommendations
When specifying this switch, consider: total number of Ethernet devices requiring connectivity, maximum network cable distance (100m per segment), ambient temperature range in control cabinet, available 24VDC power budget, and future expansion requirements. For applications requiring managed features (VLAN, QoS, redundancy protocols), consult our engineering team for SCALANCE X-200 series alternatives. Provide site electrical drawings and device inventory for tailored recommendations.

Advanced Integration Capabilities

PROFINET Compatibility
Fully transparent to PROFINET IO communication, supporting real-time (RT) and isochronous real-time (IRT) traffic classes. Enables seamless integration of PROFINET devices without protocol conversion or gateway requirements.

Multi-Vendor Device Support
While optimized for Siemens ecosystems, the switch supports standard IEEE 802.3 Ethernet, allowing integration of third-party HMIs, industrial PCs, IP cameras, and IoT gateways using TCP/IP, Modbus TCP, or OPC UA protocols.

Network Topology Flexibility
Supports star, line, and tree topologies. Daisy-chain multiple switches to extend network reach across large production floors or multi-building facilities without requiring expensive fiber optic infrastructure.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items typically ship within 3–5 business days from regional distribution centers. Custom-configured or bulk orders require 10–15 business days. Expedited shipping available for critical project timelines.

Warranty & Support
Backed by a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical installations. Technical support includes remote diagnostics, configuration assistance, and on-site commissioning services (region-dependent).

Documentation Package
Each unit ships with complete technical documentation including: product datasheet, installation manual, wiring diagrams, dimensional drawings, and compliance certificates. CAD models (STEP, DXF) and EPLAN macros available for download to streamline panel design workflows.

Quality Certifications
Manufactured in ISO 9001:2015 certified facilities with full traceability. Complies with international standards including IEC 61000 (EMC), IEC 61010 (safety), and RoHS/REACH environmental directives. ATEX Zone 2 certification for use in potentially explosive atmospheres.

Frequently Asked Questions (FAQ)

Q: How does the SCALANCE XB-100 integrate with existing S7-300 PLC systems?
A: The switch mounts directly onto the S7-300 DIN rail and connects to the CPU's Ethernet port via standard RJ45 cable. It operates transparently at Layer 2, requiring no PLC programming changes. Simply connect additional devices to the switch's available ports—the PLC sees all devices as if directly connected.

Q: What is the maximum number of devices this switch can support?

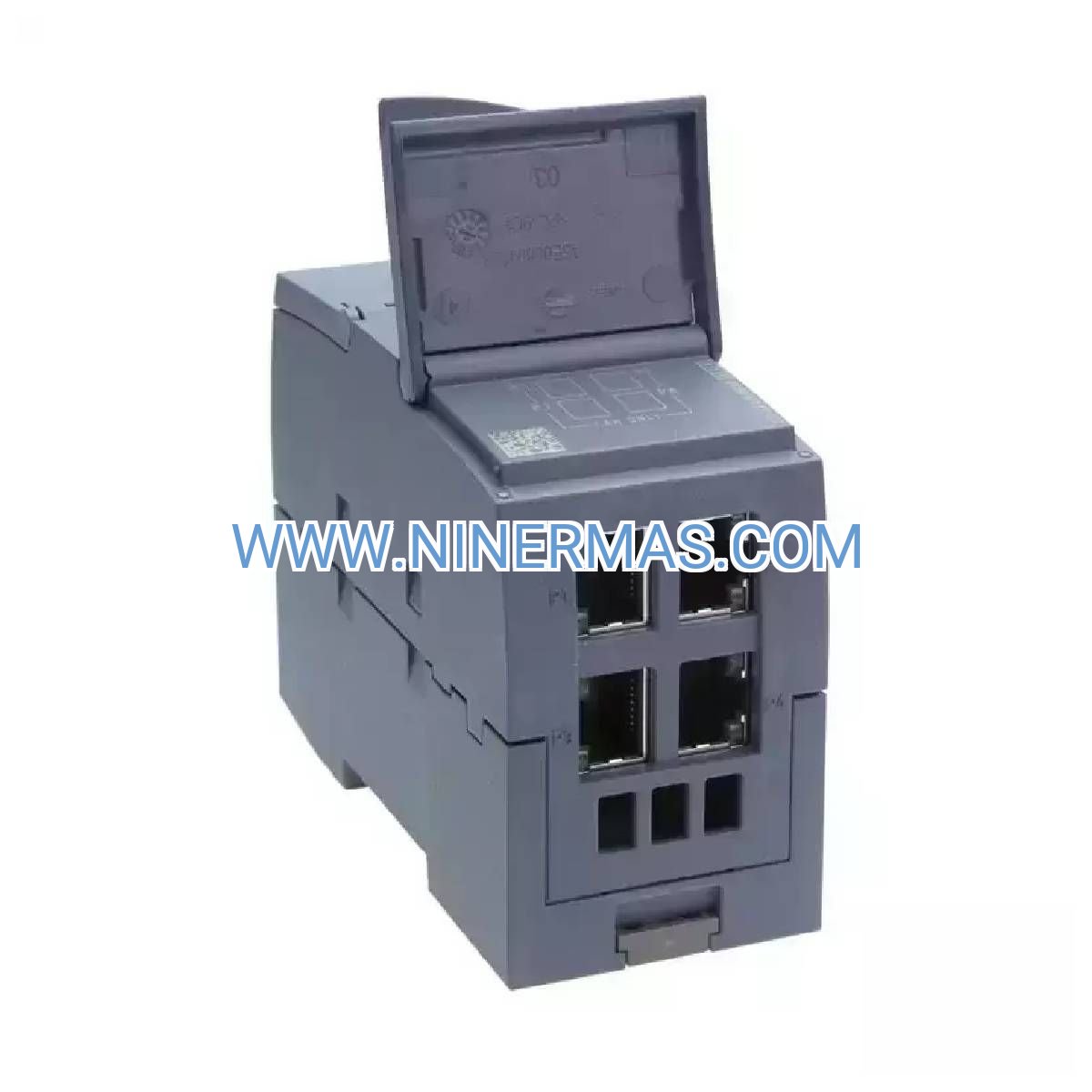

A: The XB-100 provides 4 Ethernet ports. Accounting for the uplink to the S7-300 CPU, you can connect up to 3 additional devices. For larger networks, cascade multiple switches or consider the SCALANCE X-200 series with 8–24 port configurations.

Q: Can this switch improve network performance in high-traffic applications?
A: As an unmanaged switch, it provides basic traffic segmentation through store-and-forward switching, reducing collisions compared to hubs. However, it lacks QoS prioritization. For applications with mixed real-time and non-real-time traffic (e.g., PROFINET + IT data), a managed switch with VLAN and traffic shaping is recommended.

Q: What environmental conditions can the SCALANCE XB-100 withstand?
A: Rated IP20 for indoor control cabinet installation, operating from -25°C to +60°C with 5–95% relative humidity (non-condensing). Conformal coating protects against dust and minor condensation. For outdoor or harsh chemical environments, specify IP65/67 rated enclosures or fiber-optic variants.

Q: Does this switch support remote monitoring or SNMP management?
A: No, the XB-100 is an unmanaged switch without SNMP, web interface, or remote configuration capabilities. Diagnostics are limited to front-panel LEDs. For centralized network management, remote monitoring, or alarm integration, upgrade to SCALANCE X-200 managed switches with SNMP v1/v2c/v3 support.

Q: Is the switch compatible with non-Siemens automation equipment?
A: Yes, it functions as a standard IEEE 802.3 Ethernet switch and works with any device using 10/100BASE-TX Ethernet—including Allen-Bradley, Schneider Electric, Mitsubishi, or Omron PLCs, as well as industrial PCs and HMI panels from any manufacturer.

Request Technical Support & Quotation

For detailed application engineering, custom configurations, or project quotations, please provide the following information to our technical team:

• Project name and application industry
• Total number of Ethernet devices requiring connectivity
• PLC model and firmware version (e.g., S7-300 CPU 315-2 PN/DP)
• Control cabinet ambient temperature range
• Maximum network cable run distances
• Required certifications (ATEX, UL, marine, railway)
• Delivery timeline and installation location

Our automation specialists will respond within 24 hours with tailored recommendations, compliance documentation, and competitive pricing for single units or volume orders.
