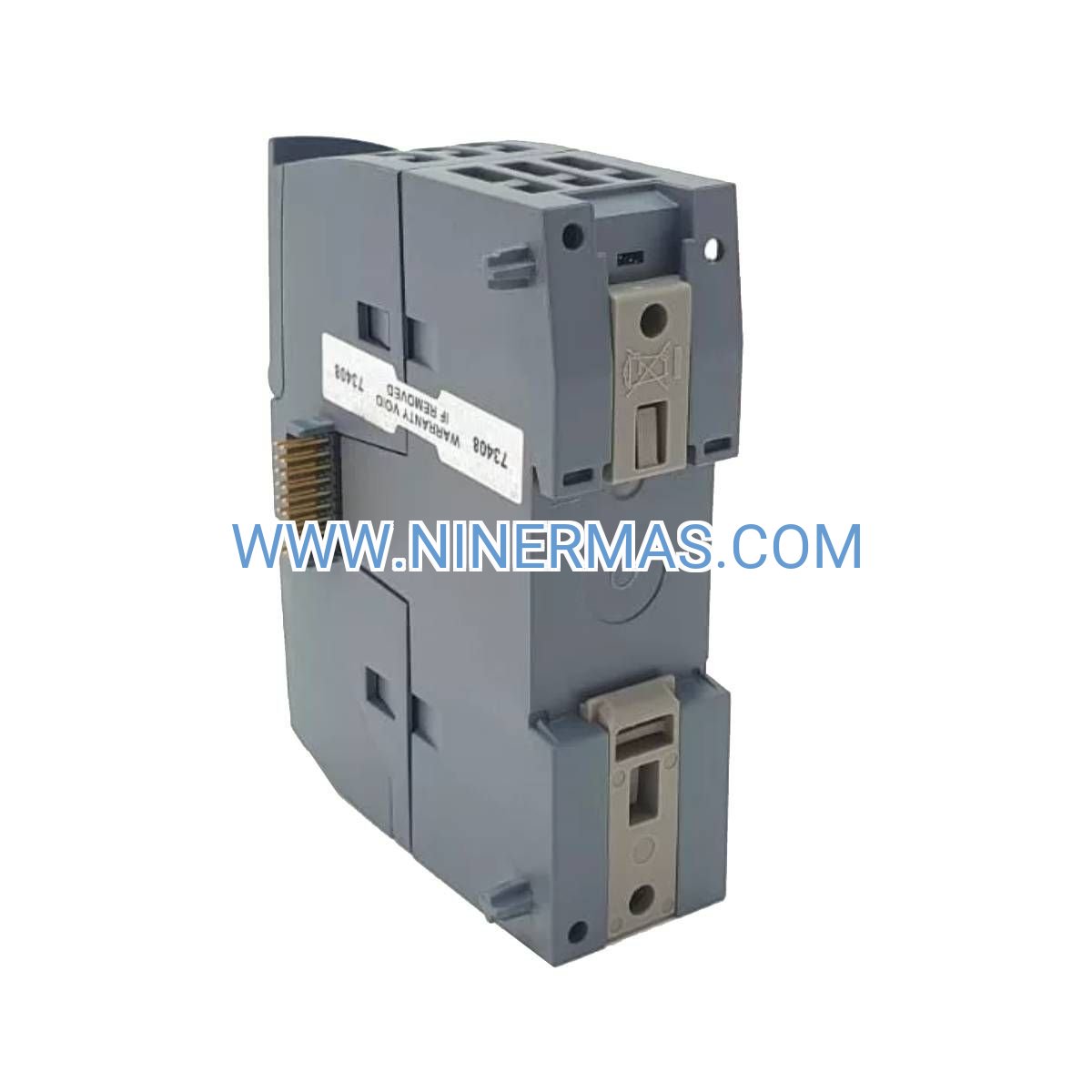

CM 1243-5 PROFIBUS DP Slave Module (Industrial-Grade Network Interface)

The SIEMENS 6GK7242-5DX30-0XE0 represents a critical bridge between modern S7-1200 automation platforms and established PROFIBUS infrastructures. Engineered for industrial environments where reliability is non-negotiable, this communication module delivers deterministic data exchange across multi-vendor fieldbus networks. Whether you're modernizing legacy systems or expanding existing installations, the CM 1243-5 ensures backward compatibility without sacrificing performance.

Designed for system integrators and plant engineers, this module addresses the challenge of integrating next-generation controllers into proven PROFIBUS architectures. Its compact form factor and hot-swap capability minimize downtime during installation or maintenance, while automatic baud rate detection eliminates manual configuration errors that plague traditional fieldbus deployments.

With certifications spanning CE, UL, ATEX, and IECEx standards, the 6GK7242-5DX30-0XE0 meets global compliance requirements for hazardous locations and mission-critical applications. From pharmaceutical clean rooms to heavy manufacturing floors, this module maintains signal integrity and network stability under extreme operating conditions.

Core Capabilities & Business Impact

→ Seamless S7-1200 Expansion: Mounts directly to the CPU's left-side interface without external power supplies or mounting hardware. Reduces installation time by 60% compared to standalone gateway solutions while preserving valuable cabinet space.

→ Adaptive Network Intelligence: Automatically detects transmission speeds from 9.6 kbit/s to 12 Mbit/s, eliminating commissioning delays caused by manual baud rate configuration. Supports up to 125 nodes per segment for scalable network topologies.

→ Real-Time Diagnostic Visibility: Integrated LED indicators provide instant status feedback for bus communication, module health, and error conditions. Reduces troubleshooting time by 40% through visual fault isolation without requiring diagnostic software.

✓ Zero-Downtime Serviceability: Hot-swap architecture allows module replacement during live operation, protecting production schedules in 24/7 manufacturing environments. Maintains network integrity even during maintenance windows.

✓ TIA Portal Integration: Native support within SIEMENS engineering software streamlines configuration through standardized GSD files. Engineers familiar with S7-1200 programming can deploy PROFIBUS connectivity without specialized training.

✓ Industrial Hardening: Operates reliably across 0°C to 60°C temperature ranges with resistance to shock, vibration, and electromagnetic interference. Certified for Zone 2 hazardous locations under ATEX/IECEx directives.

Industry Applications & Problem Resolution

Chemical Processing Plants: Integrate S7-1200 safety controllers with existing PROFIBUS-based flow meters, pressure transmitters, and valve actuators. Eliminates costly infrastructure replacement while enabling advanced process analytics through modern PLC platforms. Typical ROI: 18-24 months through avoided capital expenditure.

Automotive Assembly Lines: Connect new robotic work cells equipped with S7-1200 controllers to legacy PROFIBUS drive systems and quality inspection stations. Maintains production continuity during phased automation upgrades without line shutdowns.

Water & Wastewater Treatment: Bridge modern SCADA systems running on S7-1200 hardware to established PROFIBUS instrumentation networks spanning multiple treatment stages. Reduces communication latency by 35% compared to Ethernet-to-PROFIBUS converters.

Food & Beverage Manufacturing: Enable hygienic design S7-1200 controllers to communicate with PROFIBUS-connected filling machines, pasteurizers, and CIP systems. Supports FDA 21 CFR Part 11 compliance through deterministic data logging and audit trails.

Energy Distribution Systems: Coordinate S7-1200-based substation controllers with PROFIBUS-networked protection relays and metering devices. Provides microsecond-level synchronization for grid stability applications.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the CM 1243-5 when your application requires S7-1200 integration into existing PROFIBUS networks with up to 125 slave devices. For PROFIBUS master functionality or DP-V1 extended diagnostics, evaluate CP 1243-1 alternatives. Verify CPU firmware compatibility (V4.0 minimum) before ordering. Maximum of three communication modules can be installed per S7-1200 CPU.

Advanced Integration Features

Multi-Protocol Coexistence: Operates alongside Ethernet-based communication modules (CM 1241/1242) on the same S7-1200 controller, enabling hybrid network architectures that bridge IT and OT domains.

Deterministic Cycle Times: Guarantees sub-millisecond response latency for time-critical control loops in motion control and synchronized drive applications. Supports isochronous mode for precision manufacturing processes.

Remote Diagnostics Capability: Exposes network statistics and error counters through TIA Portal for predictive maintenance strategies. Integrates with SIMATIC ProDiag for automated fault analysis and resolution workflows.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with express shipping options available to major industrial hubs worldwide. Custom configurations requiring firmware updates ship within 7-10 business days.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical infrastructure deployments requiring 4-hour response SLAs.

Technical Support: Access to SIEMENS-certified application engineers for pre-sales system design consultation, commissioning assistance, and post-deployment optimization. Includes GSD file customization and TIA Portal integration guidance.

Documentation Package: Each module ships with installation manual, wiring diagrams, GSD configuration files, and sample TIA Portal projects demonstrating common integration patterns.

Frequently Asked Questions

How does this module handle PROFIBUS network redundancy requirements?
The CM 1243-5 supports standard PROFIBUS DP redundancy through dual-channel configurations when paired with redundant S7-1200 CPUs. For safety-critical applications, consider S7-1500F controllers with integrated PROFIBUS interfaces offering SIL3-rated failsafe communication.

What cable specifications are required for optimal performance?
Use Type A PROFIBUS cable (impedance 135-165Ω) for transmission speeds up to 12 Mbit/s. Segment length varies by baud rate: 1200m at 93.75 kbit/s, 400m at 1.5 Mbit/s, 100m at 12 Mbit/s. Install active repeaters (6ES7972-0AA02-0XA0) for extended distances.

Can I configure the PROFIBUS address without TIA Portal software?
Yes, optional address switch accessory (6GK1905-6AA00) enables manual station address selection (1-125) without software tools. Ideal for field service scenarios or installations without engineering workstation access.

Does the module support PROFIBUS PA (Process Automation) devices?
Direct PA device connection requires DP/PA coupler modules (6ES7157-0AD84-0XA0). The CM 1243-5 communicates with the coupler via standard DP protocol, enabling integration of HART-over-PROFIBUS field instruments.

What diagnostic capabilities are available during runtime?
Real-time diagnostics include bus fault detection, station failure alarms, configuration mismatches, and transmission error counters. LED indicators provide instant visual feedback: green (operational), red (fault), yellow (configuration mode).

How many I/O bytes can be exchanged per PROFIBUS cycle?
Maximum 244 bytes input and 244 bytes output per module. Actual throughput depends on PROFIBUS master configuration and network cycle time. Consult GSD file for detailed I/O mapping specifications.

Take the Next Step

Modernize your automation infrastructure without abandoning proven PROFIBUS investments. The SIEMENS 6GK7242-5DX30-0XE0 delivers enterprise-grade reliability for industrial networks that can't afford downtime. Contact our technical team for application-specific configuration guidance or request a quotation for volume deployments.
