Industrial Wi-Fi 6 Access Point (SCALANCE WAM766-1 Series)

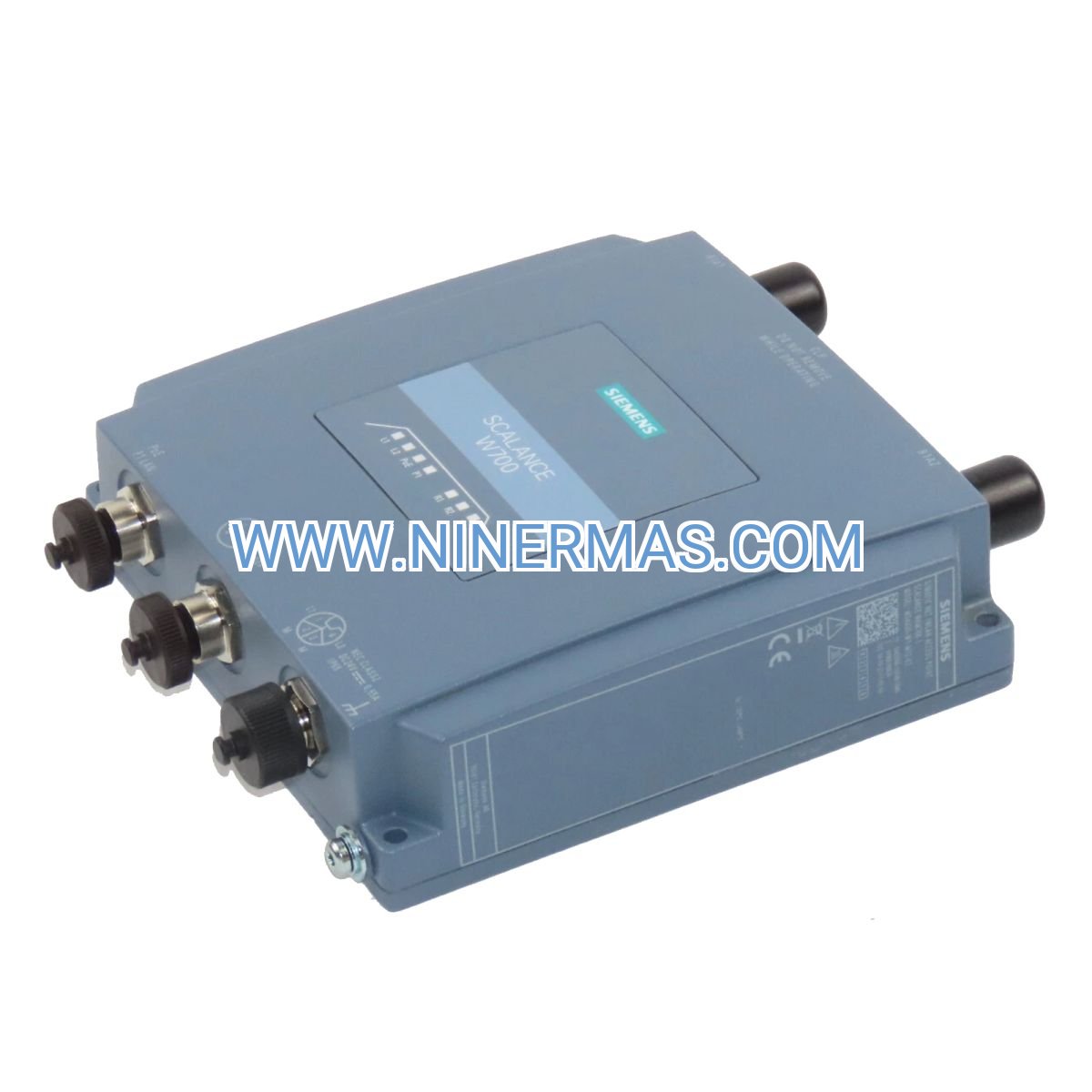

The Siemens SCALANCE WAM766-1 (6GK5766-1GE00-7DA0) delivers enterprise-grade wireless connectivity engineered for the harshest industrial conditions. Built on IEEE 802.11ax (Wi-Fi 6) technology, this rugged access point provides up to 1201 Mbps throughput across dual-band 2.4/5 GHz frequencies, ensuring reliable data transmission for mission-critical automation systems, mobile machinery, and distributed sensor networks. Designed for manufacturers, logistics operators, and infrastructure managers who demand uninterrupted wireless performance in extreme temperatures, dusty environments, and vibration-prone installations.

Unlike consumer-grade wireless equipment, the WAM766-1 features IP65-rated enclosures, M12 industrial connectors, and an extended operating range of -30°C to +60°C—making it the ideal solution for factory floors, outdoor warehouses, mining operations, and transportation hubs. With integrated iFeatures support via CLP slot, redundant power options (24V DC + PoE), and digital I/O capabilities, this access point seamlessly integrates into existing SCADA, MES, and IIoT architectures while future-proofing your wireless infrastructure.

Core Capabilities & Business Value

✓ Wi-Fi 6 Performance for High-Density Environments
IEEE 802.11ax technology delivers 1201 Mbps gross data rates per radio, supporting simultaneous connections from AGVs, handheld scanners, tablets, and IoT sensors without bandwidth degradation. OFDMA and MU-MIMO capabilities reduce latency by up to 75% compared to Wi-Fi 5, critical for real-time PLC communication and video surveillance.

→ Extreme Environment Durability
IP65 ingress protection shields internal components from dust, water jets, and chemical exposure. Operating temperature range of -30°C to +60°C ensures consistent performance in freezer warehouses, steel mills, and outdoor substations. M12 connectors prevent accidental disconnections in high-vibration applications.

✓ Redundant Power Architecture
Dual power inputs (802.3at PoE+ and 24V DC via M12 L-coded connector) eliminate single points of failure. Automatic failover maintains uptime during power supply maintenance or grid fluctuations—essential for 24/7 production lines and critical infrastructure.

→ Modular iFeatures Expansion
CLP slot accepts Siemens iFeature modules for GPS positioning, Bluetooth Low Energy, or additional security functions. Enables location-based asset tracking, proximity-triggered workflows, and encrypted communication without replacing the base unit.

✓ Simplified Network Management
Centralized configuration via SINEMA Remote Connect or SCALANCE W controller reduces deployment time by 60%. Zero-touch provisioning and firmware rollback features minimize on-site technician visits for multi-site installations.

→ Industrial-Grade Security
WPA3 encryption, 802.1X authentication, and MAC filtering protect against unauthorized access. Digital I/O ports enable integration with physical security systems for alarm-triggered network segmentation.

Application Scenarios Across Industries

Automotive Manufacturing – AGV Fleet Connectivity
Challenge: 50+ autonomous guided vehicles require seamless handoff between access points without dropping TCP/IP sessions during part transport.
Solution: WAM766-1's fast roaming (sub-50ms handoff) and high client capacity maintain uninterrupted communication with warehouse management systems, preventing production line stoppages.
Value: Reduces AGV navigation errors by 40%, increases throughput by 18 units/hour.

Food & Beverage – Cold Chain Monitoring
Challenge: Temperature sensors in -25°C freezer zones lose connectivity with standard Wi-Fi equipment, risking spoilage and compliance violations.
Solution: Extended temperature rating and IP65 sealing enable reliable data collection from 200+ wireless sensors across refrigerated storage areas.
Value: Achieves 99.7% sensor uptime, ensures FDA 21 CFR Part 11 compliance, prevents $120K annual spoilage losses.

Oil & Gas – Remote Wellhead Monitoring
Challenge: Outdoor pump stations require wireless connectivity for SCADA systems in desert environments with 55°C ambient temperatures and sandstorms.
Solution: Rugged enclosure and dual-band operation maintain link stability for pressure sensors, flow meters, and safety shutdown systems.
Value: Eliminates 12 annual site visits, reduces mean time to repair by 3.2 hours.

Logistics – Warehouse Mobility Solutions
Challenge: 80 handheld scanners experience 15% packet loss during peak shifts, slowing order fulfillment by 22 minutes/hour.
Solution: Wi-Fi 6 OFDMA technology allocates dedicated bandwidth to each scanner, while 1201 Mbps capacity handles concurrent barcode lookups and inventory updates.
Value: Increases pick rates from 110 to 145 items/hour, improves order accuracy to 99.4%.

Smart Buildings – Converged Networks
Challenge: Separate networks for BMS, access control, and guest Wi-Fi create security gaps and increase infrastructure costs.
Solution: VLAN segmentation and iFeature modules consolidate building automation, security cameras, and visitor access onto a single wireless backbone.
Value: Reduces network equipment costs by 35%, simplifies compliance audits.

Technical Parameters & Selection Guide

Selection Criteria:

• Coverage Area: Each WAM766-1 unit covers 3,000-5,000 sq ft in industrial environments (varies with obstacles). For facilities >20,000 sq ft, deploy multiple units with 20-30% overlap for seamless roaming.
• Client Density: Supports 50+ concurrent clients per radio. For high-density applications (>80 devices), consider dual-radio WAM766-2 variant.
• Antenna Selection: Pair with Siemens ANT795-6MR omnidirectional (indoor) or ANT794-4MA directional (outdoor point-to-point) antennas based on coverage pattern requirements.
• Power Planning: PoE+ simplifies installation where 24V DC infrastructure is unavailable. Use redundant power in critical applications (SCADA, safety systems).
• Frequency Band: 5 GHz recommended for high-throughput applications (video, large file transfers); 2.4 GHz for longer range and better obstacle penetration.

Extended Functionality & Integration

iFeature Module Ecosystem
The integrated CLP slot accepts hot-swappable iFeature cards without firmware updates:

• GPS Module: Outdoor asset tracking for mobile machinery, geofencing triggers
• Bluetooth 5.0: Beacon-based indoor positioning (±3m accuracy), wearable device connectivity
• LTE Backup: Cellular failover for mission-critical links (requires SIM card)

Industrial IoT Integration
Native support for PROFINET, Modbus TCP, and OPC UA protocols enables direct communication with PLCs, HMIs, and edge gateways. MQTT publish/subscribe capabilities streamline cloud data pipelines to AWS IoT Core, Azure IoT Hub, or private historians.

Cybersecurity Hardening
Beyond WPA3-Enterprise encryption, the WAM766-1 supports:

• 802.1X/EAP-TLS certificate-based authentication
• MAC address whitelisting (up to 500 entries)
• Rogue AP detection and containment
• Encrypted management via HTTPS/SSH only

Custom Firmware & Automation
RESTful API and SNMP v3 enable scripted configuration changes, automated health checks, and integration with network monitoring platforms (PRTG, Nagios, SolarWinds). Digital I/O ports trigger external alarms or accept shutdown signals from emergency stop circuits.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe). Express shipping available for urgent deployments.

Custom Configuration: Pre-programmed units with customer-specific SSIDs, VLANs, and security policies ship within 7-10 business days. Bulk orders (20+ units) include complimentary configuration templates.

Warranty Coverage: 5-year manufacturer warranty covering defects in materials and workmanship. Advanced replacement available within 48 hours for critical infrastructure applications.

Technical Support: Lifetime access to Siemens technical support hotline (24/7 for Tier 1 issues). Includes firmware updates, security patches, and remote diagnostics via SINEMA Remote Connect.

Documentation Package: Each unit ships with installation quick-start guide, mounting template, configuration manual (PDF), and CAD drawings for enclosure integration. Video tutorials and Visio stencils available via customer portal.

Frequently Asked Questions

Q: How does the WAM766-1 integrate with existing Cisco or Aruba wireless controllers?
A: While optimized for Siemens SCALANCE W controllers, the WAM766-1 operates in standalone mode with web-based management. For multi-vendor environments, configure as autonomous AP with manual SSID/VLAN settings. Third-party controller integration requires custom RADIUS server configuration.

Q: What is the maximum coverage range in outdoor applications?
A: With high-gain directional antennas (12-15 dBi), point-to-point links achieve 500-800 meters line-of-sight. Omnidirectional coverage spans 150-200 meter radius in open areas. Actual range depends on antenna selection, transmit power regulations, and environmental obstacles.

Q: Can this access point reduce energy consumption compared to older Wi-Fi standards?
A: Yes. Wi-Fi 6 Target Wake Time (TWT) reduces client device power consumption by 30-50% by scheduling transmission windows. The AP itself draws 18-22W under typical load (vs. 25W for equivalent Wi-Fi 5 models), lowering annual energy costs by $12-15 per unit in 24/7 operations.

Q: What installation accessories are required for wall or pole mounting?
A: The WAM766-1 includes DIN rail clips for panel mounting. Optional accessories: wall bracket kit (6GK5798-8PB00-0AA0), pole mount adapter for 40-80mm diameter pipes, and weatherproof antenna extension cables (N-type, 3-10m lengths). All M12 connectors require field-installable or pre-terminated cables (sold separately).

Q: Does the device support mesh networking for extended coverage?
A: The WAM766-1 supports wireless distribution system (WDS) for point-to-point or point-to-multipoint bridging. For true mesh topology with self-healing routes, deploy with SCALANCE W1788-2 EEC controller managing 10+ APs. Mesh mode reduces throughput by 40-50% due to multi-hop overhead.

Q: How do I configure VLANs for guest Wi-Fi and production network separation?
A: Access the web interface (default 192.168.1.1), navigate to SSID settings, and assign VLAN IDs per network (e.g., VLAN 10 for production, VLAN 99 for guest). Configure trunk port on upstream switch to pass tagged traffic. Firewall rules on core router enforce inter-VLAN isolation.

Ready to Upgrade Your Industrial Wireless Infrastructure?

The Siemens SCALANCE WAM766-1 combines Wi-Fi 6 performance with industrial-grade reliability, delivering the connectivity foundation for Industry 4.0 initiatives. Whether you're deploying AGV fleets, upgrading legacy wireless networks, or building greenfield smart factories, this access point provides the throughput, durability, and security your operations demand.

Request a technical consultation to discuss your specific coverage requirements, antenna configurations, and integration with existing automation systems. Our application engineers provide complimentary site surveys, RF planning tools, and ROI analysis for multi-site deployments.
