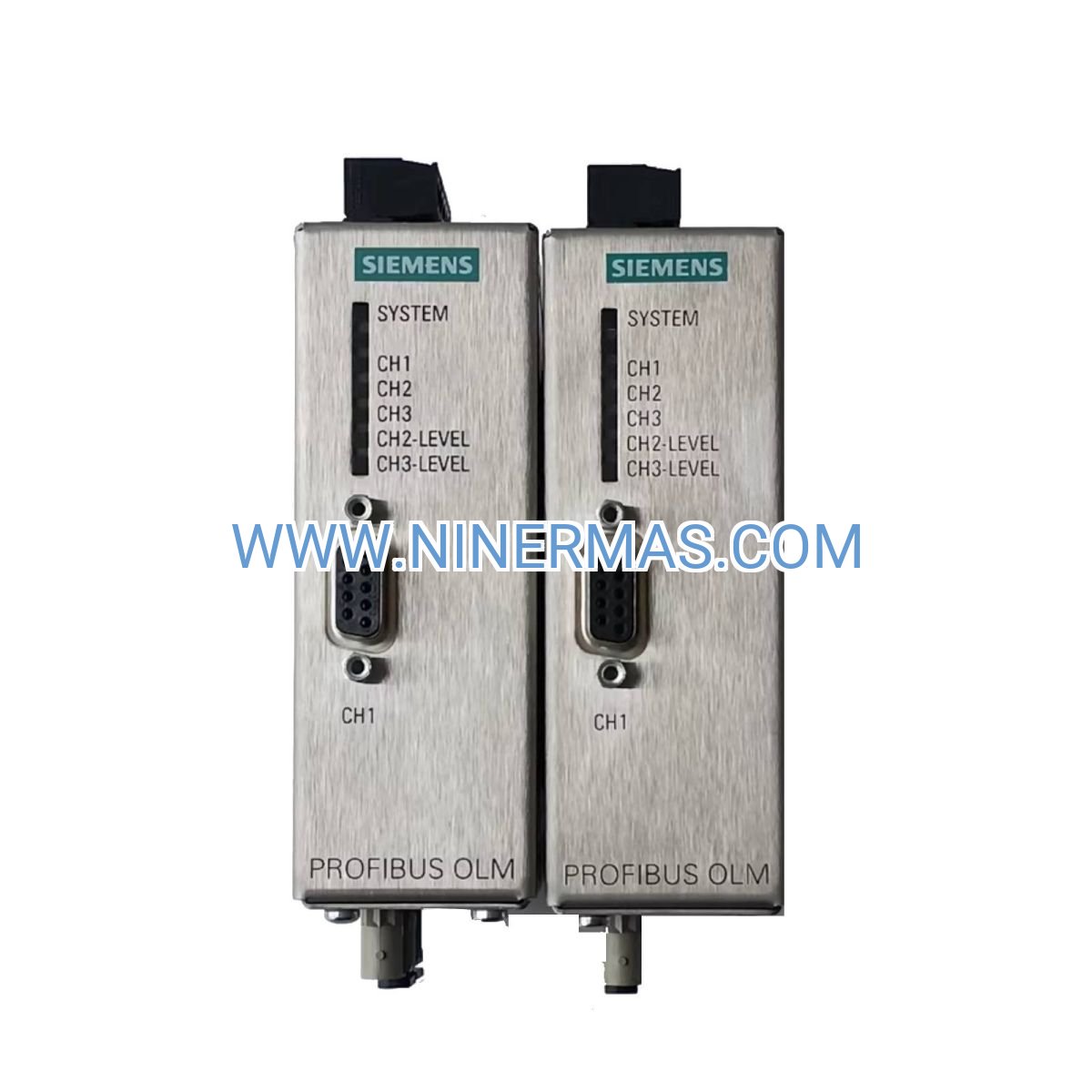

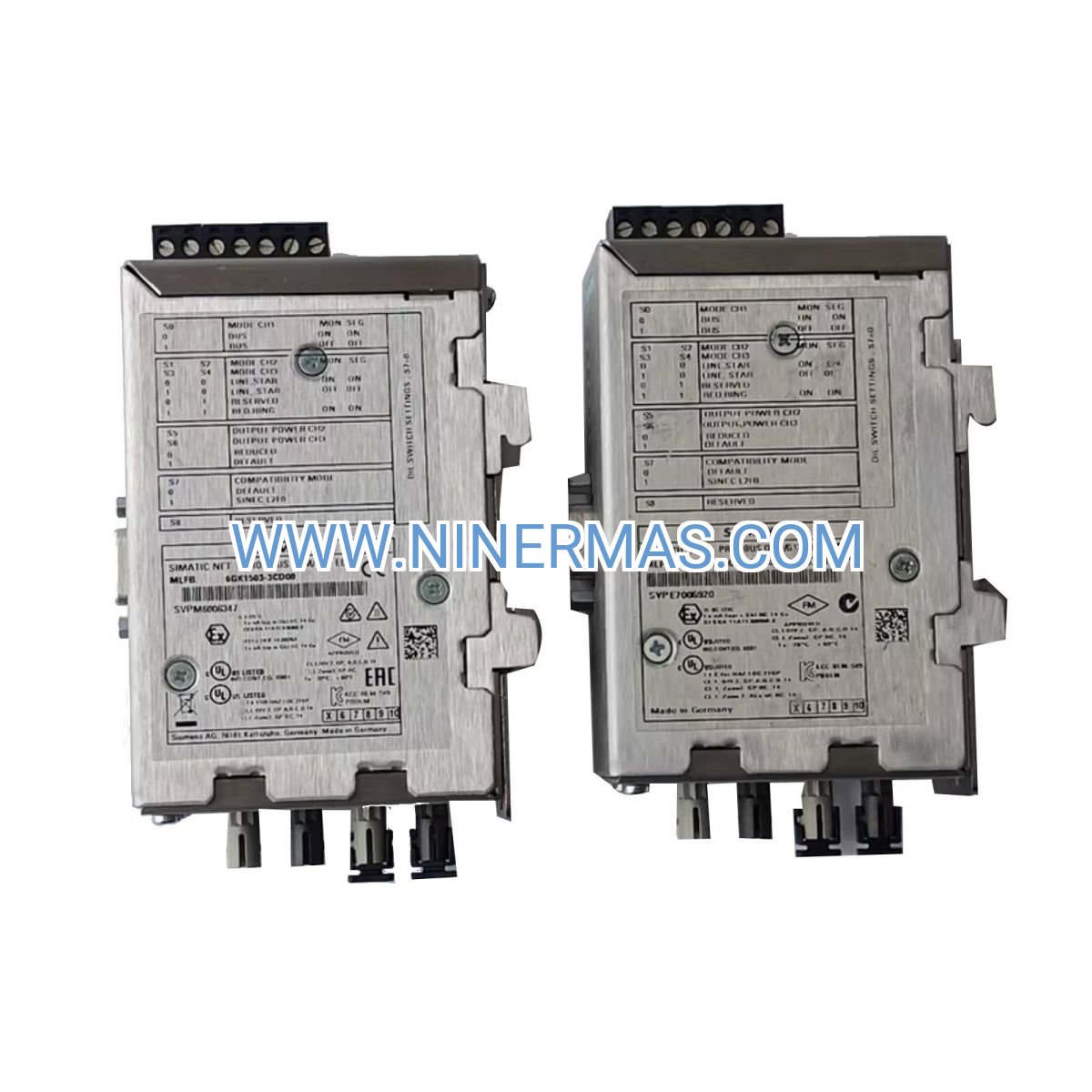

PROFIBUS DP Optical Link Module (Industrial-Grade Fiber Optic Communication System)

The 6GK1503-3CC00 optical link module is a professional industrial communication device designed for PROFIBUS DP networks, utilizing fiber optic transmission technology to achieve high-speed data exchange, electromagnetic interference immunity, and galvanic isolation. Through advanced optical-electrical conversion and protocol processing, it enables reliable communication over extended distances (up to 3 km) while maintaining 12 Mbps data throughput.

Ideal for factory automation, process control systems, hazardous area installations, and multi-building industrial facilities where electrical noise, ground potential differences, or lightning protection are critical concerns. This module addresses challenges such as electromagnetic interference (EMI), signal degradation over long cable runs, ground loop issues, and the need for intrinsically safe communication in explosive atmospheres.

Featuring standardized design with customizable network configurations, this product offers rapid deployment, robust performance, easy maintenance, and broad compatibility with PROFIBUS DP controllers and field devices. Suitable for system integrators, automation engineers, plant maintenance teams, and OEM equipment manufacturers. Contact our engineering team for network topology design, configuration assistance, and quotation.

Core Features & Technical Advantages

Fiber Optic Transmission Technology
Utilizes multimode or single-mode fiber optic cables for data transmission, completely immune to electromagnetic interference (EMI/RFI), ensuring stable communication in high-noise industrial environments such as welding areas, motor control rooms, and power distribution facilities.

Extended Communication Distance
Supports transmission distances up to 3,000 meters (multimode fiber) or 15,000 meters (single-mode fiber), significantly exceeding copper cable limitations (typically 100-200m for RS-485), making it ideal for large-scale plants, campus-wide automation systems, and distributed control architectures.

Galvanic Isolation Protection
Provides complete electrical isolation between network segments, eliminating ground loop currents and protecting equipment from voltage surges, lightning strikes, and potential differences between buildings or grounding systems.

High-Speed Data Rate
Maintains PROFIBUS DP communication at speeds up to 12 Mbps, supporting real-time control applications with cycle times as low as 1-2 milliseconds, suitable for motion control, high-speed packaging lines, and time-critical process automation.

Plug-and-Play Installation
Features standard PROFIBUS DP connectors (9-pin D-sub) and fiber optic interfaces (ST, SC, or LC type), with DIP switch or software-based address configuration, enabling quick commissioning without specialized programming tools.

Comprehensive Diagnostic Capabilities
Equipped with LED status indicators for power, transmit/receive activity, and fault conditions; supports PROFIBUS DP diagnostics for remote monitoring via SCADA/HMI systems, reducing troubleshooting time and maintenance costs.

Typical Application Scenarios

This optical link module is engineered for industrial environments requiring high reliability, long-distance communication, and immunity to electrical interference, particularly in:

Factory Automation & Manufacturing Execution Systems (MES)
Connects PLCs, distributed I/O modules, variable frequency drives (VFDs), and robotic controllers across production lines, assembly cells, and material handling systems. Eliminates EMI issues in environments with heavy machinery, arc welding, and induction heating equipment.

Process Industries & Continuous Production
Integrates field instruments, analyzers, and control valves in chemical plants, refineries, pharmaceutical facilities, and food processing operations. Ensures reliable communication in areas with explosive atmospheres (Zone 1/2, Division 1/2) when combined with intrinsically safe barriers.

Multi-Building & Campus-Wide Networks
Links control rooms, substations, and remote equipment buildings in power generation plants, water treatment facilities, mining operations, and large manufacturing complexes. Overcomes distance limitations and ground potential differences inherent in copper-based networks.

Harsh Environmental Conditions
Operates reliably in high-temperature, high-humidity, or corrosive environments where copper cables degrade rapidly. Suitable for outdoor installations, coastal facilities, and heavy industrial sites with extreme ambient conditions.

Technical Specifications & Selection Guide

To facilitate system design and product selection, we provide key technical parameters for the 6GK1503-3CC00 optical link module. Custom configurations are available based on project-specific requirements.

Key Technical Parameters:

• Protocol Support: PROFIBUS DP (EN 50170, IEC 61158)
• Data Rate: 9.6 kbps to 12 Mbps (auto-detection or manual setting)
• Fiber Type: Multimode (62.5/125 µm or 50/125 µm) or Single-mode (9/125 µm)
• Transmission Distance: Up to 3 km (multimode) / 15 km (single-mode)
• Optical Wavelength: 820 nm (multimode) / 1300 nm (single-mode)
• Connector Type: ST, SC, or LC duplex (specify when ordering)
• Electrical Interface: 9-pin D-sub female (PROFIBUS DP standard)
• Power Supply: 24 VDC ±20% (typical consumption: 3-5W)
• Operating Temperature: -25°C to +60°C (extended range models available)
• Protection Rating: IP20 (standard enclosure) / IP65 (optional ruggedized housing)
• Mounting: DIN rail (35mm) or panel mount
• Dimensions: Approximately 40mm (W) × 125mm (H) × 115mm (D)
• Certifications: CE, UL, ATEX/IECEx (for hazardous area applications)

Selection Considerations:
When specifying an optical link module, consider the following factors: required communication distance, fiber type availability (multimode vs. single-mode), environmental conditions (temperature, humidity, vibration), power supply voltage, mounting space constraints, and hazardous area classification (if applicable). For assistance with network topology design, fiber budget calculations, or compatibility verification with existing PROFIBUS equipment, please provide your system architecture details and our application engineers will recommend the optimal configuration.

Advanced Integration Capabilities

Redundant Network Topologies
Supports ring, star, and redundant fiber optic network architectures when used with compatible PROFIBUS DP masters and redundancy modules, achieving network availability exceeding 99.9% for mission-critical applications.

Mixed Media Networks
Enables seamless integration of copper-based (RS-485) and fiber optic segments within the same PROFIBUS DP network, allowing gradual migration to fiber infrastructure or hybrid topologies optimized for cost and performance.

Protocol Transparency
Functions as a transparent physical layer converter, supporting all PROFIBUS DP services including cyclic data exchange, acyclic read/write operations, diagnostics, and parameter assignment without protocol limitations.

Hot-Swappable Operation
Selected models support hot-swap capability, allowing module replacement during system operation without network shutdown, minimizing downtime in continuous production environments.

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3-5 business day lead time; custom-configured solutions (specific fiber types, connector options, or extended temperature ratings) require 10-15 business days. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship.

We provide comprehensive technical support including pre-sales application consulting, network design assistance, installation guidance, and post-sales troubleshooting (remote diagnostics and on-site service available in select regions). Each module ships with complete documentation: technical datasheet, installation manual, wiring diagrams, and configuration instructions in English and Chinese.

Our quality management system is certified to ISO 9001:2015 standards, and all products undergo rigorous factory testing including optical power measurement, bit error rate (BER) testing, and environmental stress screening to ensure field reliability.

Frequently Asked Questions (FAQ)

Q: How do I connect a PROFIBUS DP optical link module to my existing copper-based network?
A: Install one optical link module at each end of the fiber segment. Connect the copper PROFIBUS cable to the 9-pin D-sub connector on each module, and connect the fiber optic cables to the optical ports. Ensure both modules are configured for the same baud rate (typically auto-detected). The modules act as transparent repeaters, requiring no programming or configuration changes to your PLC or field devices.

Q: What is the maximum number of optical link modules I can use in a single PROFIBUS DP network?
A: PROFIBUS DP specifications allow up to 9 repeater segments (including optical links) in a single network. However, practical limitations depend on total network delay, number of devices, and baud rate. For networks exceeding 5-6 optical segments, consult our engineering team for network timing analysis and optimization.

Q: Can I achieve energy savings by using fiber optic communication instead of copper cables?
A: While the optical link modules themselves consume 3-5W of power, the primary benefits are reliability and noise immunity rather than direct energy savings. However, by eliminating communication errors, reducing downtime, and enabling more efficient process control, fiber optic networks contribute to overall system efficiency and reduced operational costs.

Q: What environmental protection rating do I need for outdoor or harsh industrial installations?
A: Standard modules are rated IP20 for indoor control cabinet mounting. For outdoor, washdown, or corrosive environments, specify IP65 or IP67 rated enclosures. Additionally, ensure fiber optic cables have appropriate outdoor ratings (UV-resistant jackets, moisture barriers) and use sealed cable glands at entry points.

Q: Does the optical link module support remote monitoring and diagnostics via Ethernet or cloud platforms?
A: The module itself provides PROFIBUS DP diagnostics accessible through your PLC/SCADA system. For Ethernet/IP or cloud connectivity, integrate with a PROFIBUS-to-Ethernet gateway or industrial IoT edge device. We can recommend compatible gateway solutions and assist with system architecture design.

Q: Are there any special tools required for installation and commissioning?
A: Basic installation requires standard electrical tools (screwdrivers, wire strippers) and fiber optic cleaning supplies (lint-free wipes, isopropyl alcohol). For optimal performance, we recommend using an optical power meter to verify signal strength and a fiber inspection microscope to check connector cleanliness. Our technical team can provide training or commissioning support if needed.

Request Technical Support & Quotation

To receive a detailed application solution, pricing quotation, or engineering consultation, please provide the following information: project name and industry sector, application scenario (factory automation, process control, etc.), required communication distance and number of fiber segments, existing PROFIBUS DP equipment (PLC model, number of field devices), environmental conditions (temperature range, hazardous area classification), and preferred delivery timeline. Our application engineers will respond within 24 hours with a customized recommendation and technical proposal.
