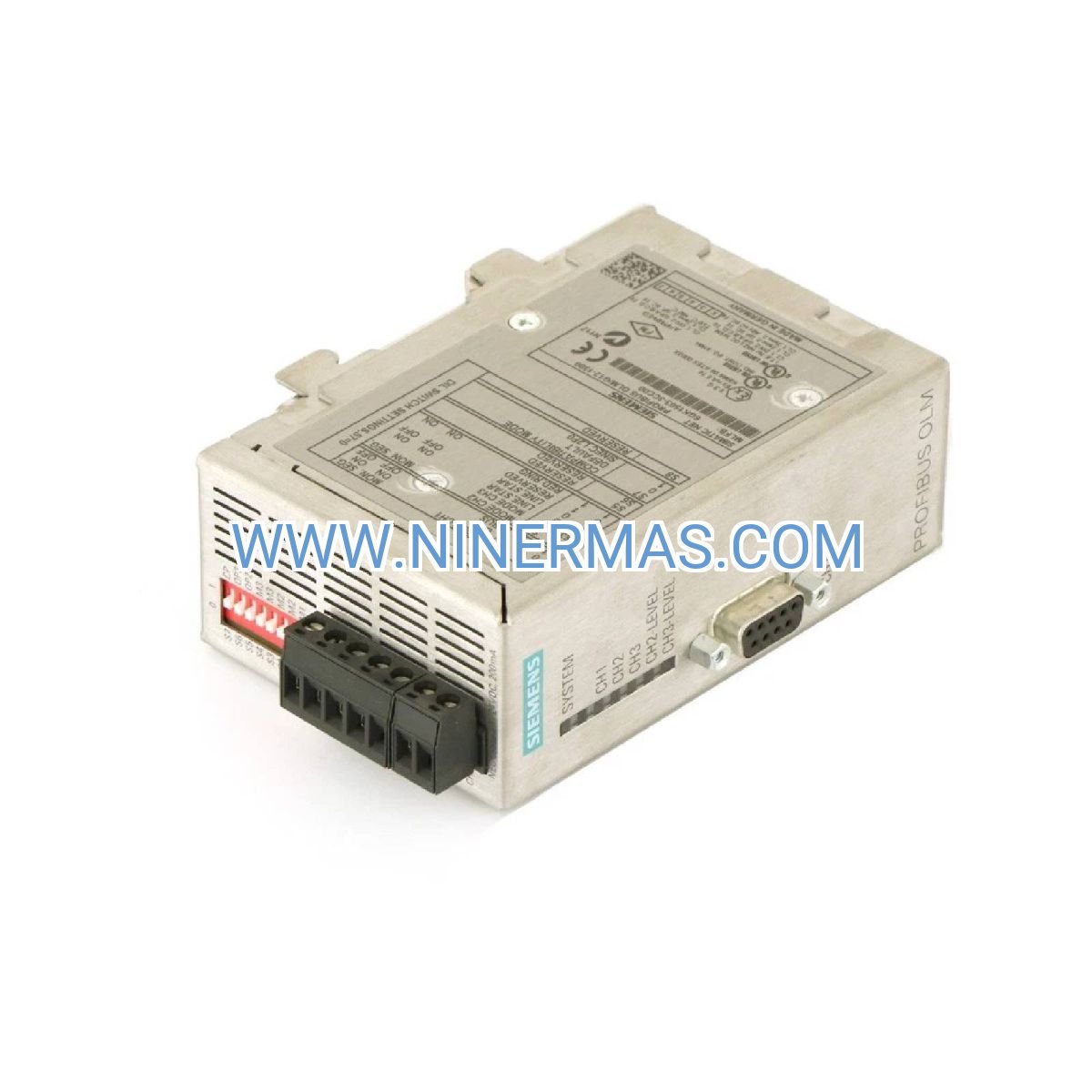

PROFIBUS Optical Link Module 6GK1503-3CB00 (Industrial Fiber Optic Network Interface)

The Siemens 6GK1503-3CB00 PROFIBUS Optical Link Module is an industrial-grade communication device designed for fiber optic network integration in automation systems. Through advanced optical transmission technology and PROFIBUS DP protocol support, it enables reliable, high-speed data exchange over extended distances while maintaining complete immunity to electromagnetic interference.

Ideal for manufacturing plants, process industries, power generation facilities, chemical processing units, and distributed control systems where electrical isolation and long-distance communication are critical. This module solves common challenges including EMI-induced communication failures, ground loop issues, lightning strike vulnerability, and distance limitations of copper-based networks.

With standardized design and flexible configuration options, this optical link module delivers exceptional reliability, seamless integration with existing PROFIBUS networks, maintenance-free operation, and proven compatibility with major automation platforms. Suitable for system integrators, automation engineers, plant maintenance teams, and OEM equipment manufacturers. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

• Complete Electrical Isolation
  Fiber optic transmission eliminates ground loops and provides galvanic isolation between network segments, protecting equipment from voltage surges and lightning-induced damage in industrial environments.
• Extended Transmission Distance
  Supports reliable communication up to 3 kilometers over multimode fiber, enabling network expansion across large facilities without signal degradation or the need for repeaters.
• Superior EMI Immunity
  Optical transmission is inherently immune to electromagnetic interference from motors, drives, welding equipment, and high-voltage systems, ensuring stable communication in electrically noisy environments.
• High-Speed Data Transfer
  Supports PROFIBUS DP communication at speeds up to 12 Mbit/s, meeting the real-time requirements of demanding automation applications including motion control and high-speed I/O.
• Plug-and-Play Integration
  Transparent optical link design requires no protocol conversion or special configuration—simply connects between existing PROFIBUS segments with automatic baud rate detection and network parameter inheritance.
• Robust Industrial Design
  Compact DIN-rail mountable housing with wide operating temperature range (-25°C to +70°C), conformal coating protection, and LED diagnostics for quick troubleshooting and reliable operation in harsh conditions.

Typical Application Scenarios

This optical link module is engineered for industrial automation systems requiring reliable, interference-free communication over extended distances, particularly in:

• Manufacturing & Assembly Lines
  Connects distributed I/O, drives, and HMI panels across production floors where welding equipment, motor drives, and power distribution create severe electromagnetic interference that disrupts copper-based networks.
• Process Industries & Chemical Plants
  Provides safe electrical isolation between hazardous areas and control rooms, eliminating ground loop issues in multi-building facilities while maintaining real-time communication for DCS and SCADA systems.
• Power Generation & Substations
  Enables communication in high-voltage environments where electrical isolation is mandatory, protecting automation equipment from ground potential differences and lightning-induced surges common in utility installations.
• Water Treatment & Municipal Infrastructure
  Connects remote pump stations, treatment facilities, and monitoring points over distances exceeding copper cable limitations, reducing installation costs while improving system reliability in outdoor environments.
• Building Automation & HVAC Systems
  Links control panels across multi-story buildings or campus facilities where vertical cable runs and inter-building connections benefit from fiber's distance capability and immunity to electrical interference.

Technical Specifications & Selection Guide

To facilitate system design and component selection, we provide comprehensive technical parameters for the 6GK1503-3CB00 optical link module. Custom configurations and application-specific variants are available upon request.

Selection Considerations: When specifying optical link modules, evaluate maximum network segment length, required transmission speed, fiber type availability, environmental conditions (temperature, humidity, vibration), mounting space constraints, and power supply compatibility. For applications requiring single-mode fiber (distances beyond 3 km) or redundant ring topologies, alternative models are available. Our application engineers can recommend optimal configurations based on your network architecture, device count, cycle time requirements, and installation environment.

Advanced Integration Capabilities

• Network Segmentation: Create electrically isolated PROFIBUS segments for improved troubleshooting, reduced ground loop interference, and enhanced system reliability in multi-building installations.
• Redundancy Support: Compatible with redundant fiber ring architectures when used with appropriate network components, enabling fault-tolerant communication for critical process control applications.
• Mixed Media Networks: Seamlessly integrates copper and fiber segments within the same PROFIBUS network, allowing gradual migration to fiber optics or targeted deployment in high-interference zones.
• Diagnostic Capabilities: Built-in LED indicators provide real-time status of power, fiber link quality, and PROFIBUS communication, simplifying commissioning and maintenance procedures.

Delivery, Service & Quality Assurance

Standard catalog items ship from stock within 3-5 business days; custom-configured solutions typically deliver within 10-15 business days depending on specifications. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote consultation for installation planning, configuration assistance, and troubleshooting guidance (on-site service available in select regions).

Each module ships with complete technical documentation including product datasheet, installation manual, wiring diagrams, and PROFIBUS network integration guidelines to ensure smooth deployment and long-term maintainability. Fiber optic cables and connectors are available separately—consult our catalog or contact technical sales for compatible accessories.

Frequently Asked Questions (FAQ)

Q: How does the PROFIBUS optical link module integrate with existing copper-based networks?
A: The module acts as a transparent media converter—connect the electrical PROFIBUS segment to the 9-pin D-sub connector and the fiber segment to the optical ports. No configuration or protocol conversion is required; the module automatically detects baud rate and passes all PROFIBUS telegrams unchanged.

Q: What is the maximum number of optical link modules allowed in a single PROFIBUS network?
A: Each pair of modules counts as one network segment. PROFIBUS DP allows up to 9 segments (including repeaters and optical links) in a single network, though practical limits depend on total propagation delay and network cycle time requirements.

Q: What fiber optic cable type is required, and are cables included?
A: The 6GK1503-3CB00 requires multimode fiber (50/125 μm or 62.5/125 μm) with BFOC/ST connectors. Fiber optic cables are not included and must be ordered separately based on required length and installation environment (indoor/outdoor, armored/non-armored).

Q: Can this module be used in hazardous area (ATEX/IECEx) installations?
A: The standard 6GK1503-3CB00 is rated IP20 for general industrial use. For hazardous area applications, the fiber link provides electrical isolation, but the module itself must be installed in a safe area or appropriate enclosure. Consult factory for intrinsically safe or explosion-proof variants if required.

Q: Does the optical link module support PROFIBUS PA or only PROFIBUS DP?
A: This module is designed for PROFIBUS DP networks operating at 9.6 kbit/s to 12 Mbit/s. For PROFIBUS PA (31.25 kbit/s process field bus), a DP/PA coupler or link is required in addition to the optical module if connecting PA segments over fiber.

Q: What diagnostic features are available for troubleshooting communication issues?
A: The module provides LED indicators for power status, optical link quality (transmit/receive), and PROFIBUS communication activity. These allow quick verification of power supply, fiber connection integrity, and network traffic flow during commissioning and maintenance.

Request Technical Support & Quotation

For detailed application engineering support, custom configuration recommendations, or project quotations, please provide the following information: project name and industry, application environment (indoor/outdoor, temperature range), network topology (linear/ring, number of segments), required transmission distance, number of PROFIBUS devices, existing infrastructure (fiber type, cable routes), and power supply specifications. Our engineering team will provide tailored selection guidance and competitive pricing within 24 hours.
