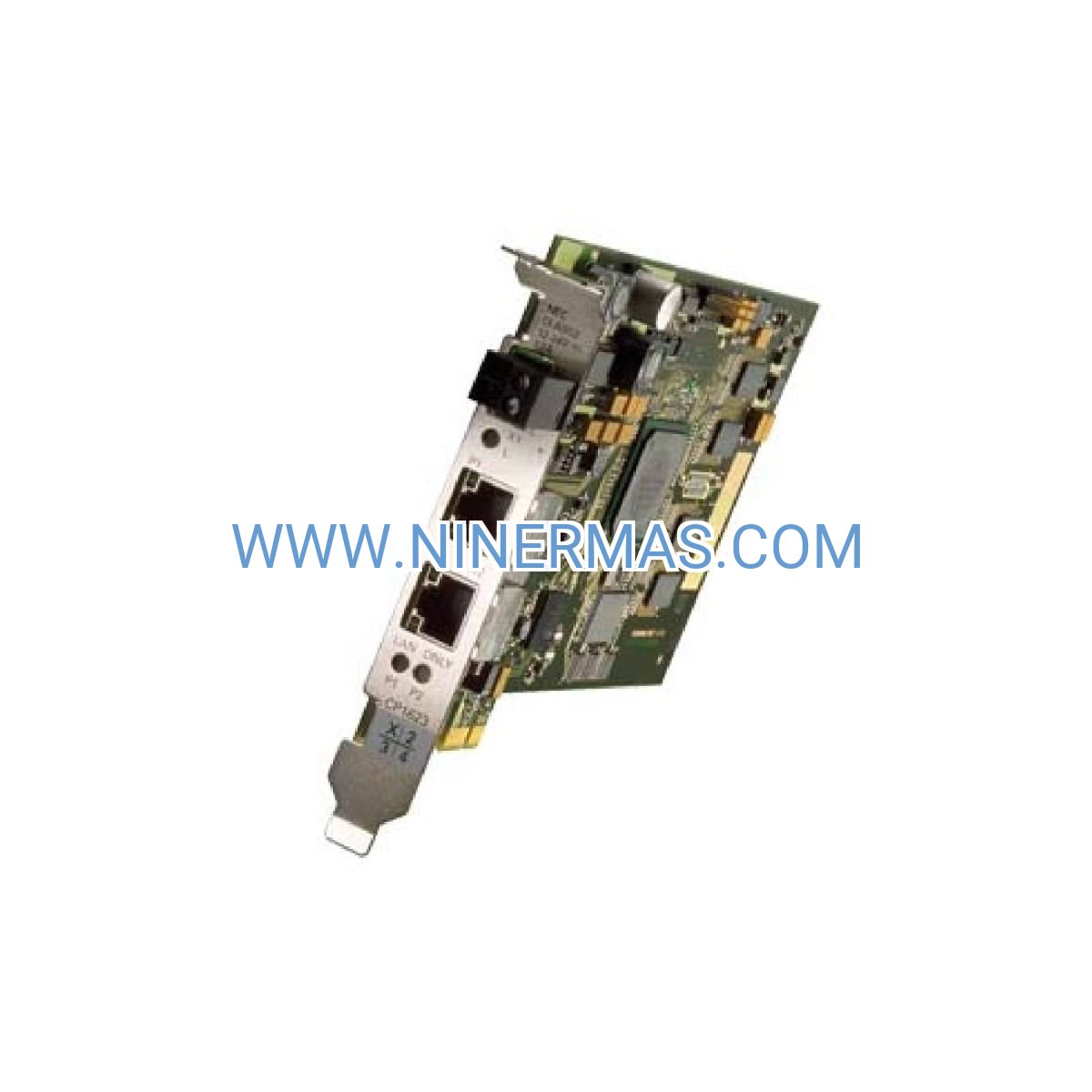

Siemens CP 1613 Industrial Ethernet Processor | 6GK1161-3AA00 SIMATIC NET PLC Communication Module

CP 1613 Industrial Ethernet Communication Processor (High-Performance PLC Networking Solution)

The Siemens 6GK1161-3AA00 CP 1613 is an industrial-grade Ethernet communication processor designed for seamless integration with SIMATIC S7-300/400 PLC systems. Through advanced TCP/IP protocol stack and ISO transport services, it enables high-speed data exchange, real-time diagnostics, and multi-device connectivity for mission-critical automation networks.

Ideal for manufacturing plants, process control systems, energy facilities, and distributed automation architectures where reliable PLC-to-PLC, PLC-to-SCADA, or PLC-to-MES communication is essential. Solves challenges including network latency, protocol incompatibility, limited connection capacity, and lack of real-time monitoring capabilities.

Featuring standardized design with flexible configuration options, this module delivers proven reliability, seamless STEP 7 integration, robust diagnostics, and broad protocol compatibility. Suitable for system integrators, automation engineers, OEM equipment manufacturers, and plant maintenance teams. Contact our engineers for application-specific configuration and technical support.

Core Features & Advantages

High-Speed Industrial Ethernet Connectivity
Equipped with 10/100 Mbps Ethernet interface supporting full-duplex operation, ensuring rapid data transfer between S7 controllers and supervisory systems with minimal latency.

Multi-Protocol Support
Supports ISO-on-TCP, TCP/IP, and UDP protocols, enabling communication with diverse industrial devices, SCADA platforms, and third-party equipment without additional gateways.

Scalable Connection Capacity
Handles up to 16 simultaneous connections, allowing one controller to communicate with multiple HMIs, databases, and remote I/O systems concurrently, improving system flexibility.

Seamless STEP 7 Integration
Fully compatible with SIMATIC STEP 7 engineering software for straightforward configuration, programming, and diagnostics, reducing commissioning time and learning curve.

Built-In Diagnostics & Status Monitoring
Provides real-time LED indicators and software-based diagnostics for connection status, data traffic, and error detection, simplifying troubleshooting and reducing downtime.

Industrial-Grade Reliability
Designed for harsh environments with wide operating temperature range, EMC compliance, and robust construction, ensuring stable performance in demanding industrial settings.

Typical Application Scenarios

This communication processor is engineered for environments demanding stable, high-throughput network connectivity and real-time data integrity, particularly in:

Discrete Manufacturing & Assembly Lines
Connects multiple S7-300/400 controllers across production zones, enabling centralized monitoring, recipe management, and production data collection for automotive, electronics, and machinery manufacturing.

Process Industries & Continuous Production
Facilitates real-time data exchange between PLCs and DCS/SCADA systems in chemical plants, refineries, pharmaceuticals, and food processing, ensuring process stability and regulatory compliance.

Energy & Utilities Infrastructure
Supports distributed control architectures in power generation, water treatment, and oil & gas facilities, providing reliable communication for remote monitoring, load balancing, and emergency shutdown systems.

Building Automation & HVAC Systems
Integrates S7 controllers with BMS platforms for centralized control of HVAC, lighting, and access systems in commercial buildings, data centers, and industrial complexes.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key technical parameters below. Custom configurations available based on project requirements.

Key Parameters:

• Model Number: 6GK1161-3AA00
• Product Line: SIMATIC NET CP 1613
• Interface Type: 10/100 Mbps Ethernet (RJ45)
• Supported Protocols: ISO-on-TCP, TCP/IP, UDP
• Maximum Connections: 16 simultaneous
• Compatible Controllers: S7-300, S7-400 series
• Configuration Tool: SIMATIC STEP 7
• Operating Temperature: 0°C to +60°C
• Power Supply: Via PLC backplane
• Dimensions: Standard S7-300 module format
• Certifications: CE, UL, cULus

Selection Considerations:
When selecting this module, evaluate: required number of simultaneous connections, network topology (star/ring), protocol requirements (ISO vs. TCP), controller CPU compatibility, available slot positions, and environmental conditions. For assistance, provide your PLC model, network architecture diagram, communication partner details, and data throughput requirements—our engineers will recommend optimal configuration.

Extended Capabilities

Advanced Networking Functions

• S7 routing for multi-subnet communication
• Time synchronization via NTP for distributed systems
• SNMP support for network management integration
• Redundancy options for high-availability architectures

Delivery, Service & Quality Assurance

Standard catalog items typically ship within 3–5 business days; custom-configured solutions require 7–14 days. All products include minimum 12-month manufacturer warranty with extended coverage options available. We provide remote technical consultation and on-site commissioning support (region-dependent). Complete documentation package includes technical datasheet, wiring diagrams, STEP 7 configuration examples, and user manual in English for streamlined installation and maintenance.

Frequently Asked Questions (FAQ)

Q: How does the CP 1613 Industrial Ethernet processor integrate with existing S7-300/400 systems?
A: The module installs directly into the S7-300 rack or connects to S7-400 via interface module. Configuration is performed through STEP 7 software using standard communication function blocks (FB/FC). No additional hardware required beyond Ethernet cabling.

Q: What is the maximum data throughput and how many devices can connect simultaneously?
A: The CP 1613 supports up to 16 concurrent connections with aggregate throughput dependent on network infrastructure and protocol overhead. Typical sustained rates reach 8–10 MB/s for optimized S7 communication.

Q: Can this processor communicate with non-Siemens devices or third-party SCADA systems?
A: Yes, through open TCP/IP and ISO-on-TCP protocols, the CP 1613 can exchange data with any device supporting standard Ethernet communication, including third-party HMIs, databases, and MES platforms.

Q: What diagnostic capabilities are available for troubleshooting network issues?
A: The module provides LED status indicators for power, link, and activity. STEP 7 diagnostics display connection status, error counters, and traffic statistics. Advanced users can leverage SNMP for network-level monitoring.

Q: Does the CP 1613 support redundant network configurations for critical applications?
A: While the CP 1613 itself is a single-channel module, redundancy can be achieved through dual-module configurations with appropriate software logic or by using higher-tier CP modules with built-in redundancy features.

Q: What environmental conditions and certifications does this module meet?
A: Operating temperature range: 0°C to +60°C; storage: -40°C to +70°C. Complies with CE, UL, cULus standards and meets industrial EMC requirements for use in electrically noisy environments.

Request Technical Support & Quotation

For detailed application engineering, configuration assistance, or pricing information, please provide: project name, application scenario, PLC model and CPU type, number of communication partners, required protocols, network topology, and environmental conditions. Our automation specialists will deliver customized selection recommendations and competitive quotations within 24 hours.
